2026 5kw 10kw 20kw Solar Tile Roof Mounting Structure

1 / 5

2026 5kw 10kw 20kw Solar Tile Roof Mounting Structure

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

BR-SMS

Application

Commercial

Material

Aluminum & Stainless Steel

Type

Roof Bracket

Applicable Module

Framed or Frameless

Surface Treatment

Anodized

Module Orientation

Portrait or Landscape

HS Code

7610900000

Production Capacity

1,000,000 PCS/Month

Packaging & Delivery

Package Size

50.00cm * 30.00cm * 25.00cm

Gross Weight

20.000kg

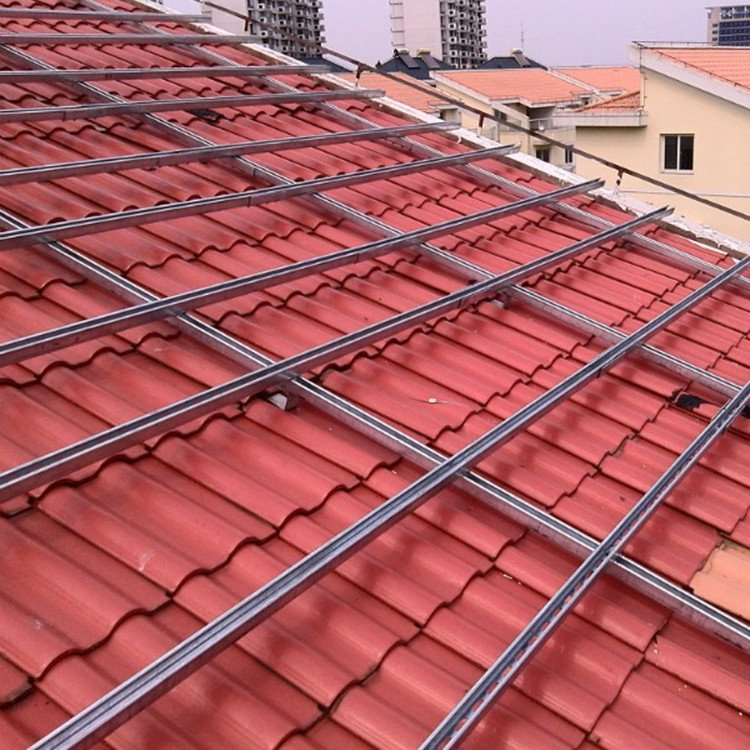

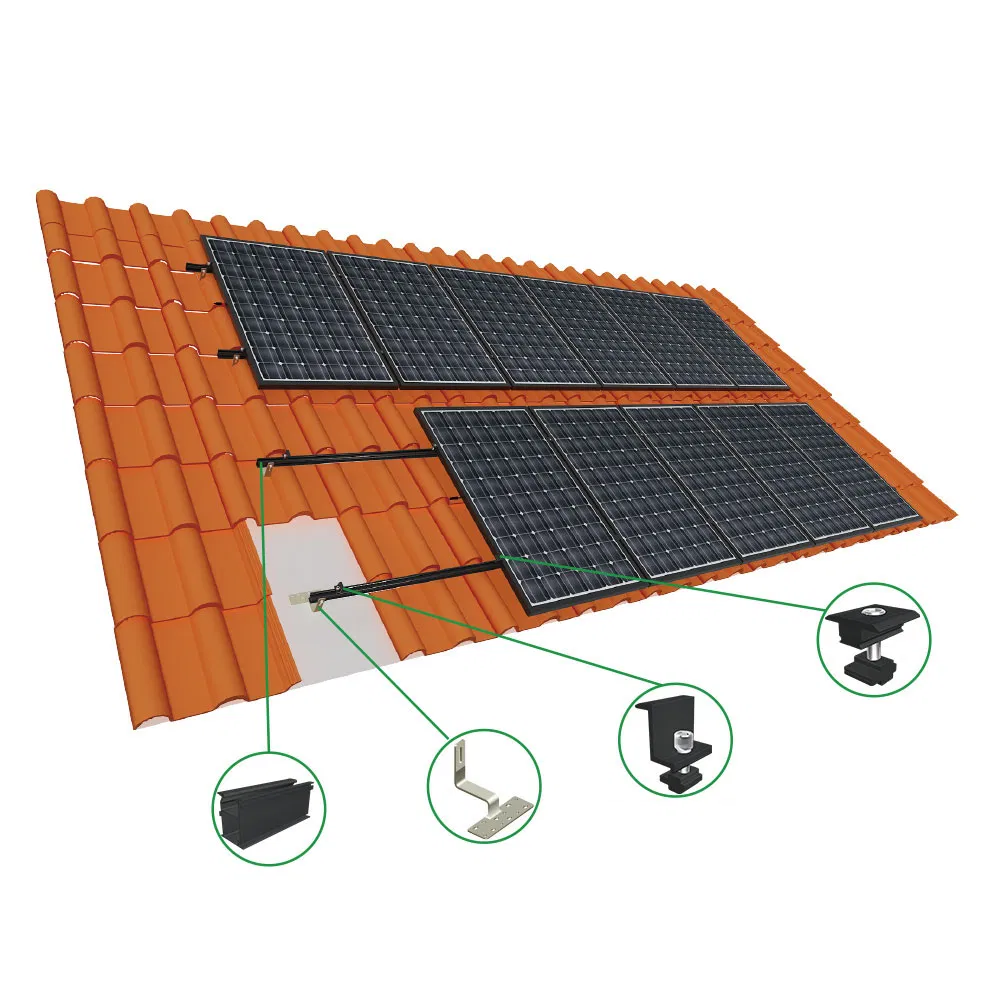

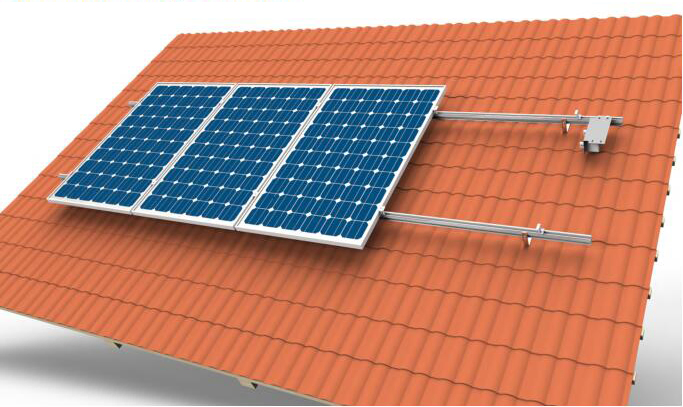

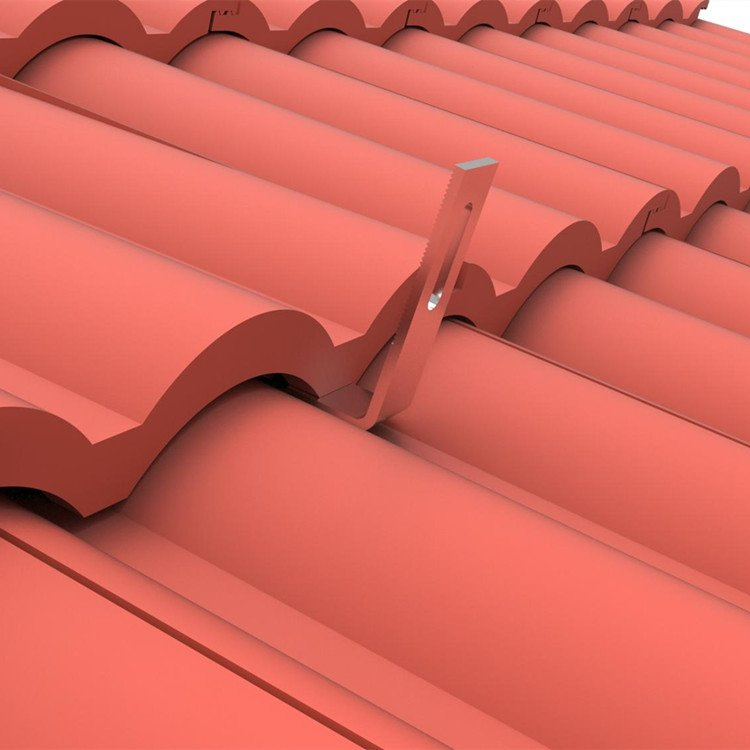

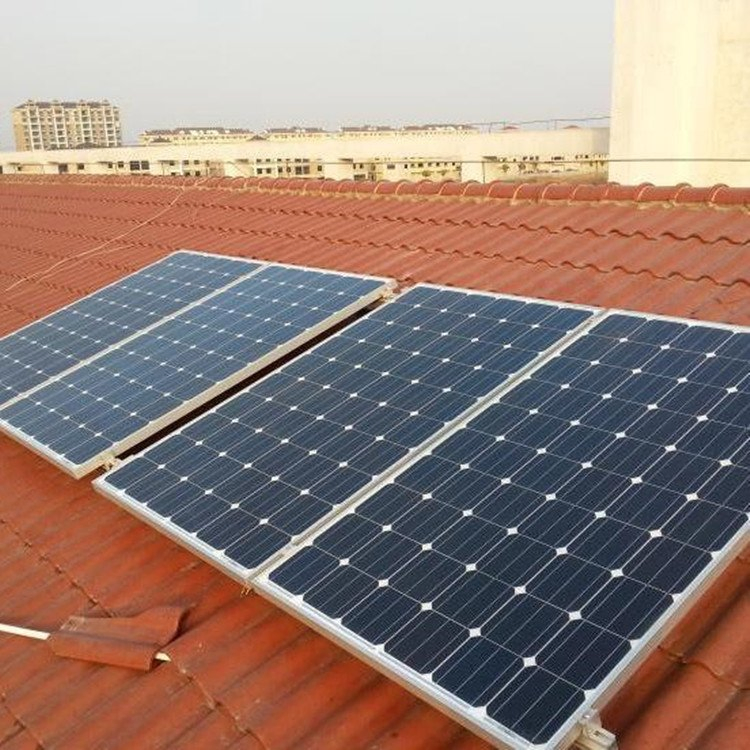

Solar Tile Roof Mounting Structure

Topic: 2026 5kw 10kw 20kw Solar Tile Roof Solutions

Product Advantages

Light weight, easy transportation, convenient installation and safe construction.
High corrosion resistance and excellent salt tolerance for long-term durability.
Professional and specific solutions tailored to meet diverse customer requirements.

Technical Specifications

Material	Aluminum & Stainless Steel
Standard	AS/NZS 1170
Wind Load	216 km/h (60 m/s)
Snow Load	1.4 kn/m2
Applicable Module	Framed or Frameless
Module Orientation	Portrait or Landscape
Surface Treatment	Anodized
Certificates	ISO9001, CE, etc.
Installation Site	Tile Roof
Warranty	10-Year Warranty, 20-Year Service Life

Necessary Information for Quotes

To provide an accurate quote, please prepare the following details:

Panel Details:
- Dimensions (L x W x T)
- Power (Watts)
- Array Layout (Rows x Columns)

Site Conditions:
- Wind Load (m/s)
- Snow Load (cm)
- Installation Angle (Degrees)

Roof Specifics:
- Type: Tin, Tile, or Concrete

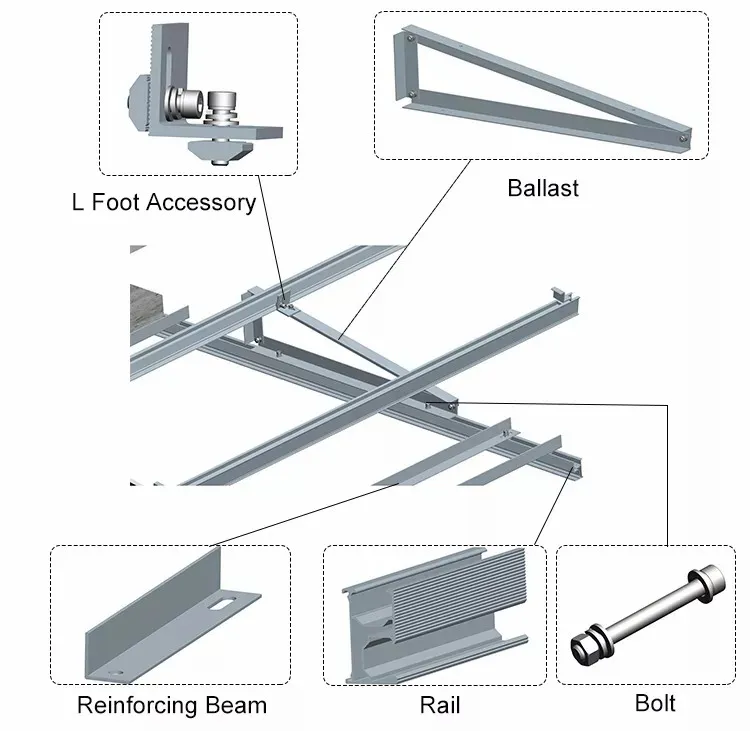

- Solution: Hook, L-foot, Clamp, etc.
- Purlin Span (mm)

Frequently Asked Questions

Q1: What roof types is this mounting system compatible with?

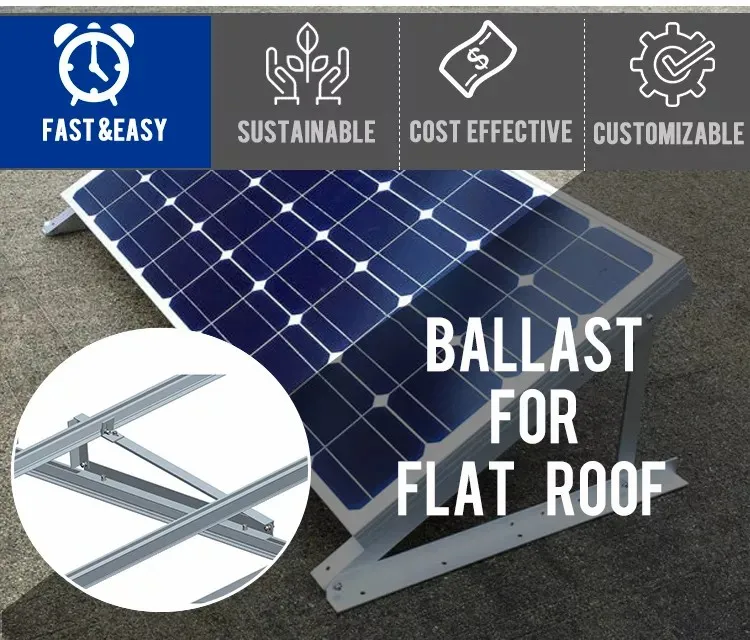

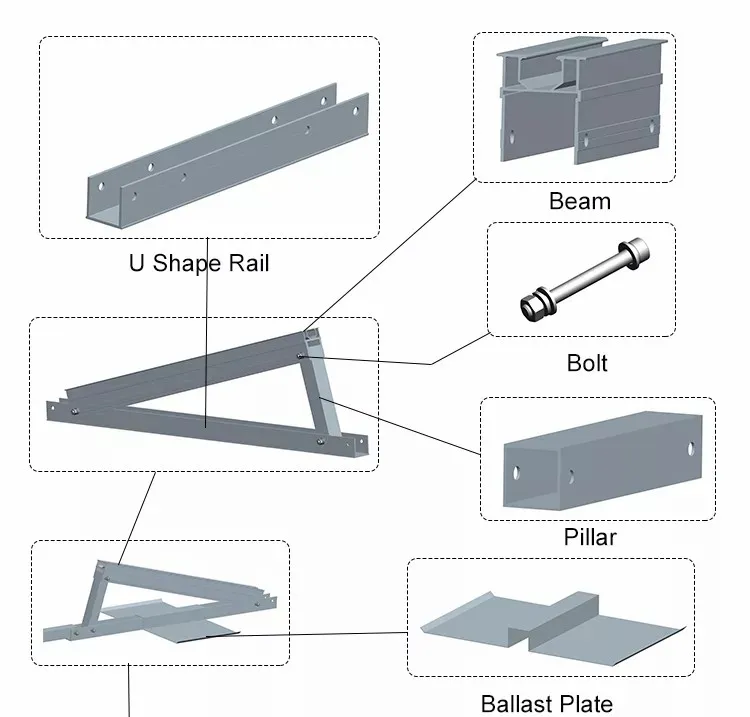

This system is specifically designed for tile roofs, but we also offer fixed solutions for tin roofs and concrete surfaces using hooks, L-feet, clamps, or ballasts.

Q2: What is the maximum wind and snow load the structure can handle?

The structure is engineered to withstand wind loads up to 216 km/h (60 m/s) and snow loads up to 1.4 kn/m2, complying with AS/NZS 1170 standards.

Q3: What materials are used to ensure durability?

We use high-grade Aluminum and Stainless Steel with an anodized surface treatment to provide high corrosion resistance and salt tolerance.

Q4: Can I install both framed and frameless solar panels?

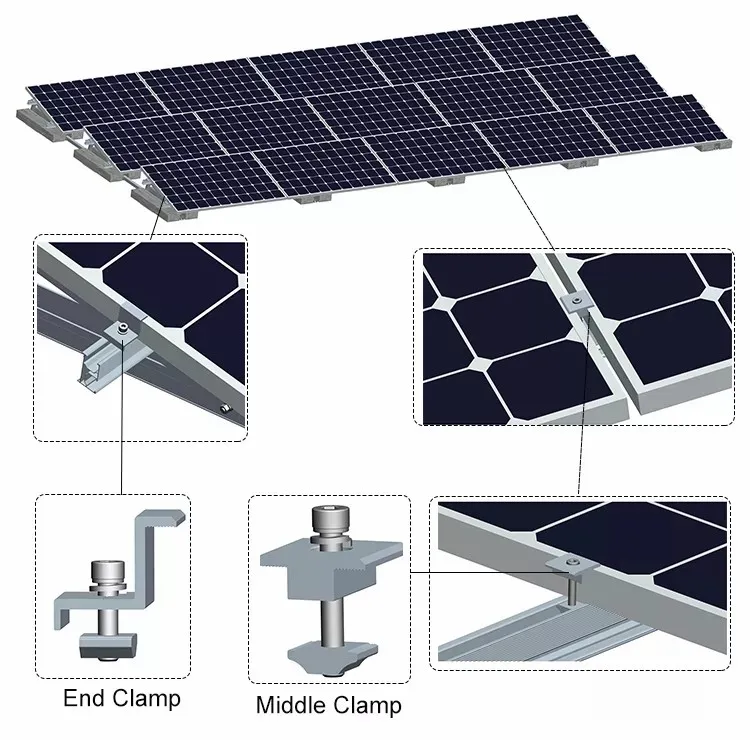

Yes, the bracket system is versatile and compatible with both framed and frameless solar modules in either portrait or landscape orientation.

Q5: What is the expected service life and warranty?

We provide a 10-year warranty on the mounting structure with a projected service life of over 20 years.

Q6: Is the system easy to transport and install?

Absolutely. The lightweight aluminum components are designed for easy transportation and a simplified installation process to ensure safety and efficiency on site.
