Adjustable Solar Metal Roof Mount Racking System

Basic Information

Model NO.

Iron Roof Mounting System 5

Certification

ISO, CE

Application

Home

Material

Aluminum Alloy

Type

Roof Angle Bracket

Install Site

Tin Roof

Module Orientation

Landscape, Portrait

Anti-Corrosive

Anodized

Max Wind Speed

60m/S

Max Snow Load

1.6kn/M²

Duration

More Than 20 Years

Transport Package

Carton or Iron Frame

Production Capacity

1gw/Years

Product Description

⚙️

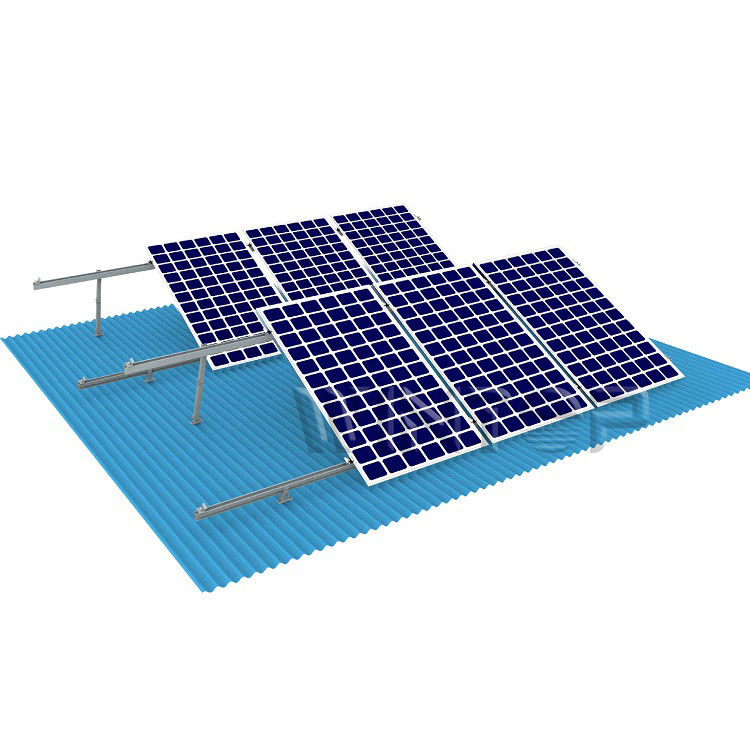

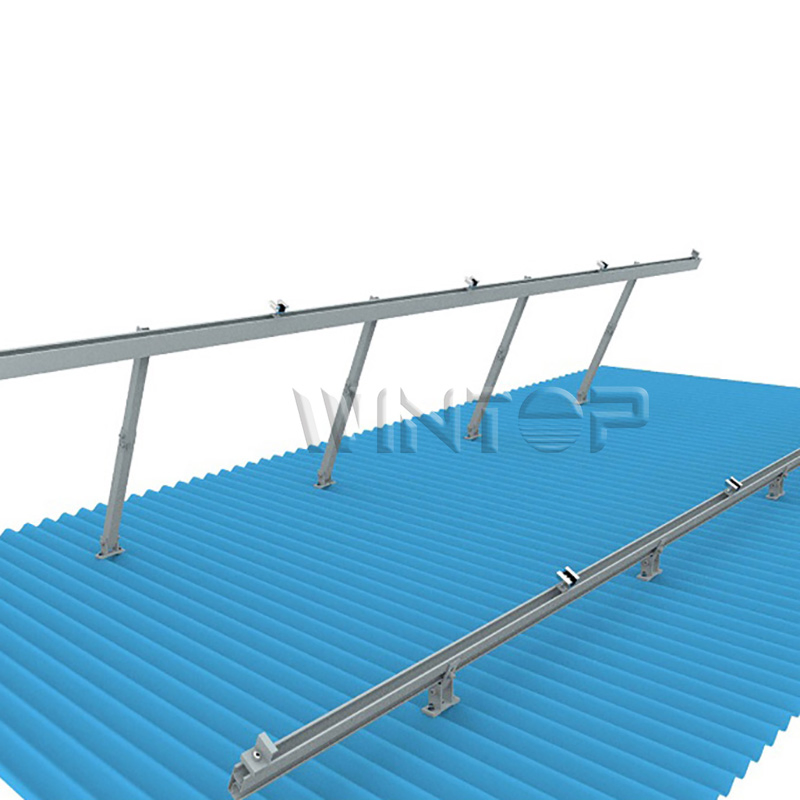

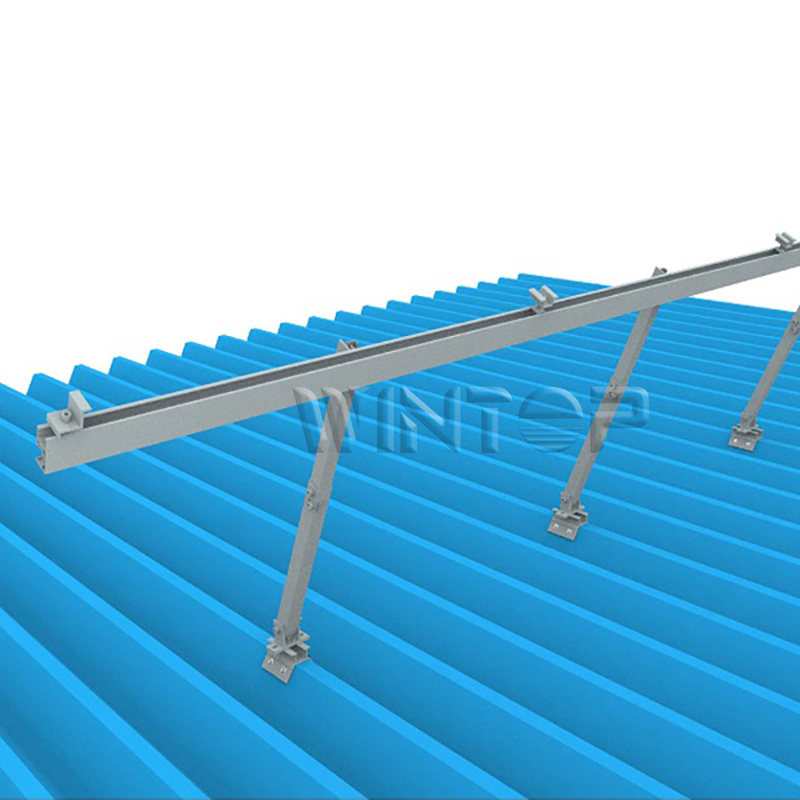

Adjustable Solar Metal Roof Mount Racking System
This Adjustable Solar Panel Tin Roof Mount Bracket is upgraded for maximum efficiency. The tilt angle is variable, easily adapting to flat roofs or open areas.

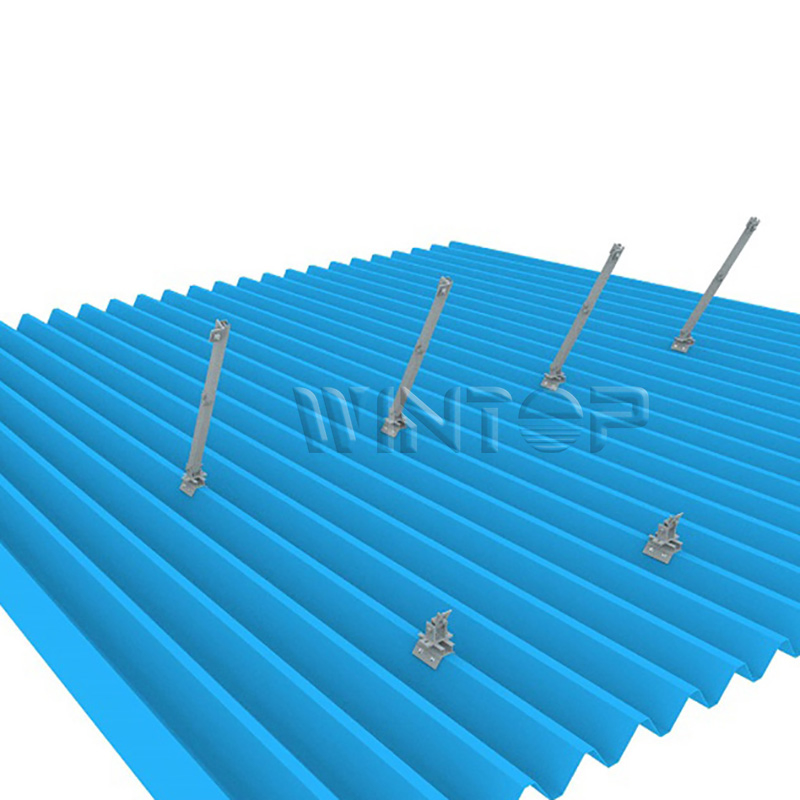

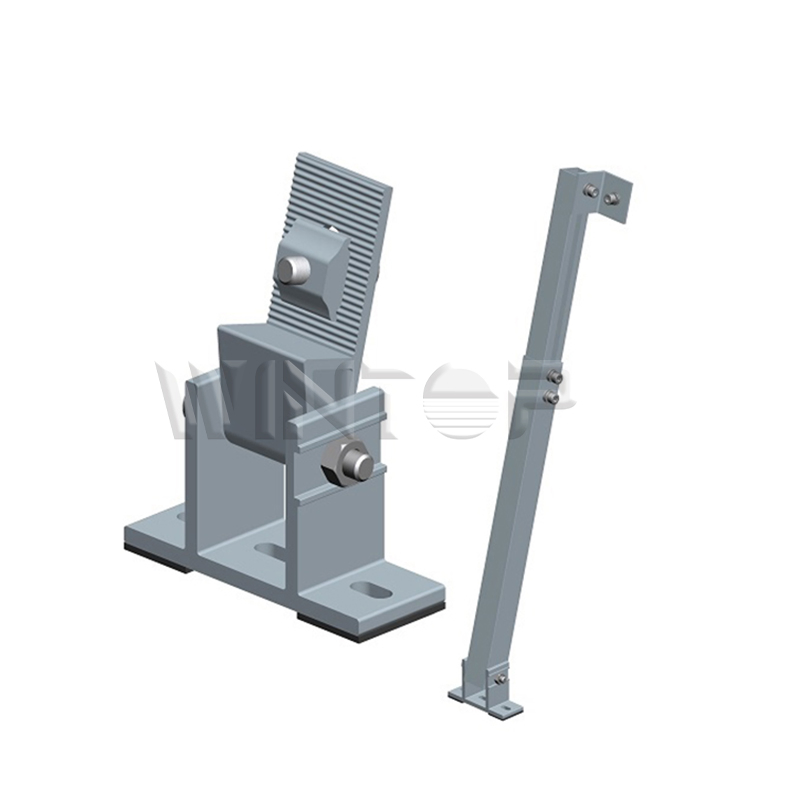

The telescopic rod can be designed as a fixed angle or an adjustable angle. It can be adjusted according to site construction requirements to make the system reach the maximum power generation. It is highly pre-assembled without on-site cutting or welding, ensuring simple and convenient installation.

Product Parameters

Installation location	Roof
Installation foundation	Tin Roof
Installation angle	10°/15°, 15°/30°, 30°/60°
Wind load	60m/s (216kmh/133mph)
Snow load	1.4KN/m²
Module type	Mono-crystalline, Poly-crystalline, Double wave and Thin film
Module Orientation	Horizontal, Vertical
Design standard	AS/NZS1170, JIS C 8955-2017
Bracket material	AL6005-T5 (Anodized Oxidation)
Fastener Material	Stainless steel SUS304
Warranty & Duration	10 years & More than 20 years

Features & Benefits

Adjust the angle for optimal sunshine exposure across different seasons.
The base can be an aluminum plate or directly fixed on the roof.
Compatible with various solar components and modules.
High corrosion resistance and excellent salt tolerance.
Structures can be adjusted to horizontal or vertical demands.
Multiple solutions available to meet diverse customer requirements.

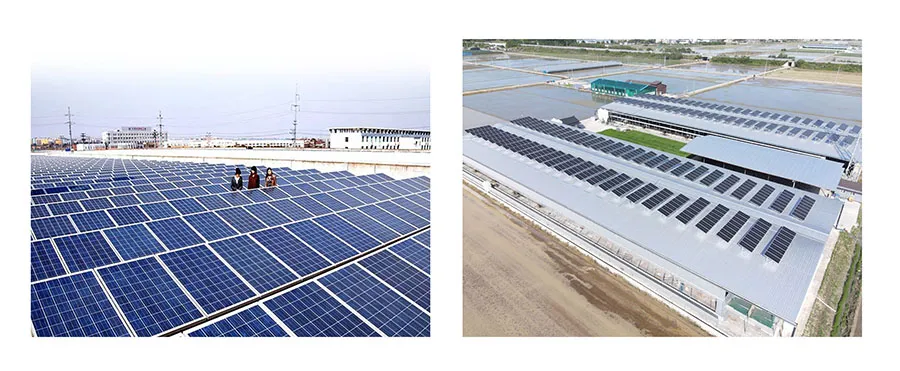

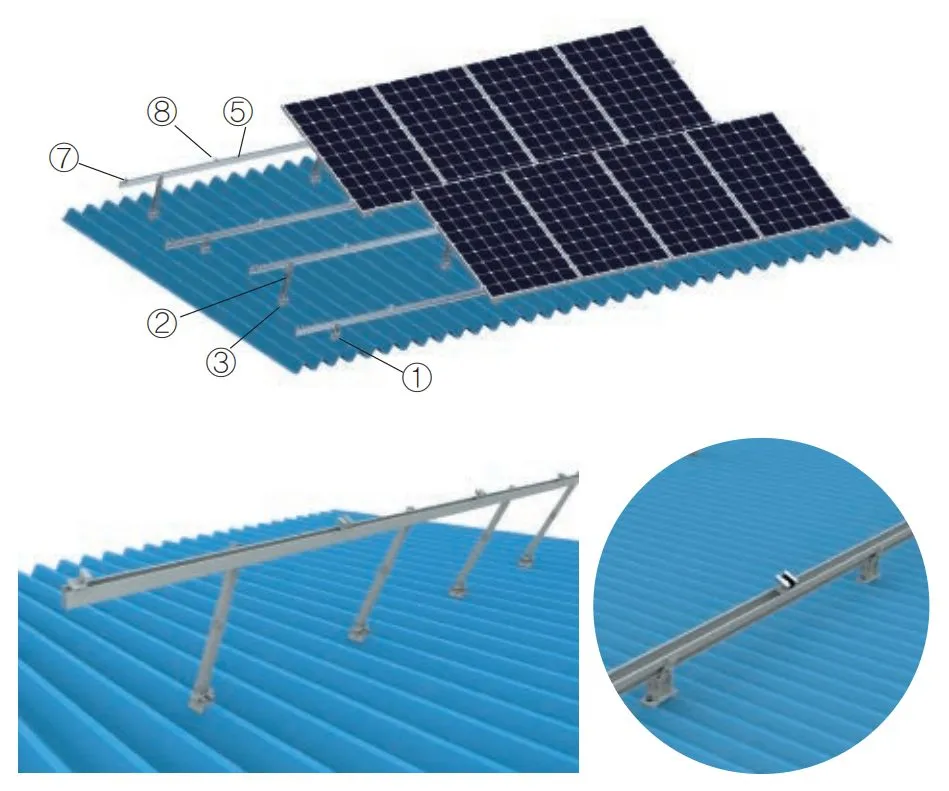

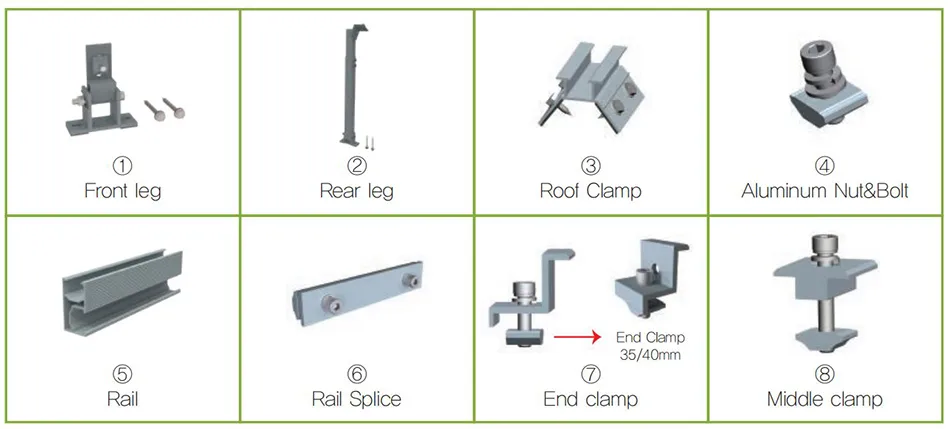

Product Components & Project

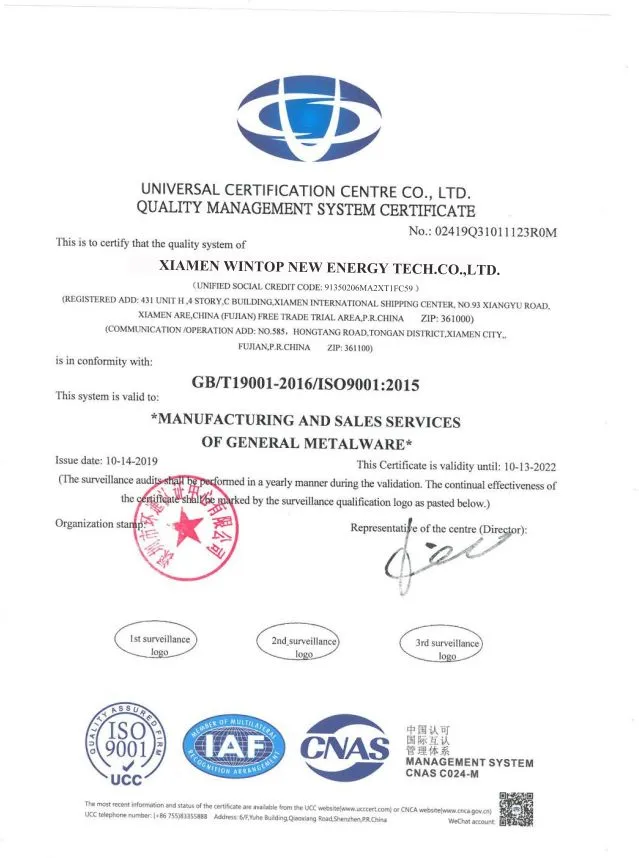

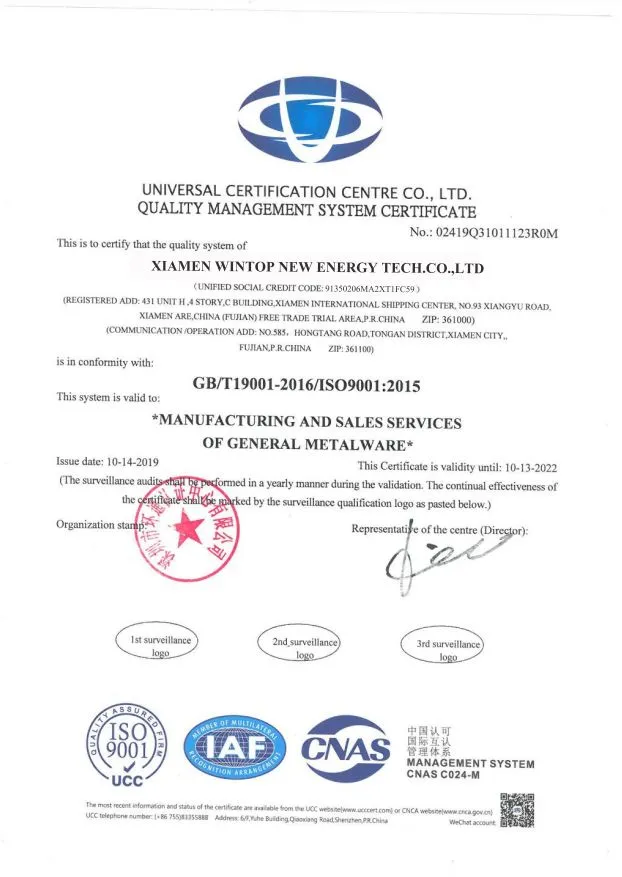

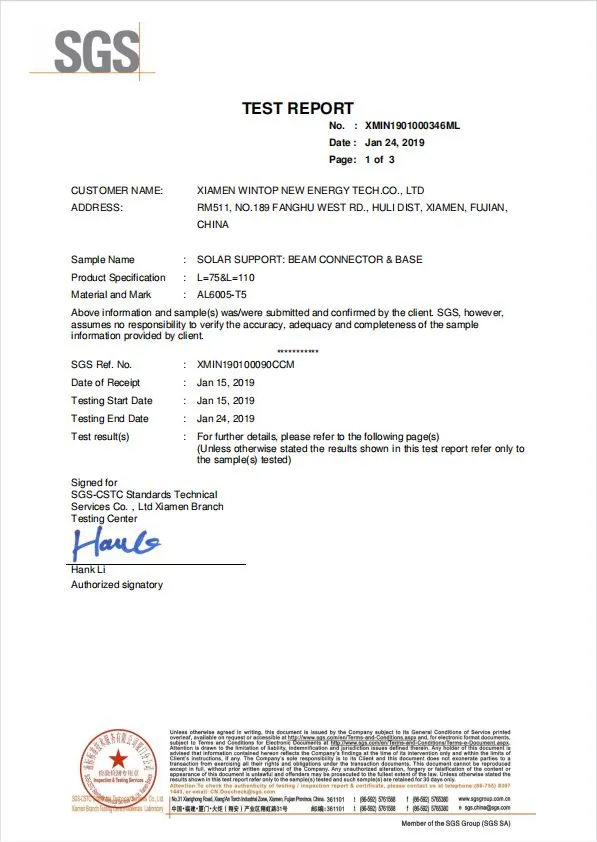

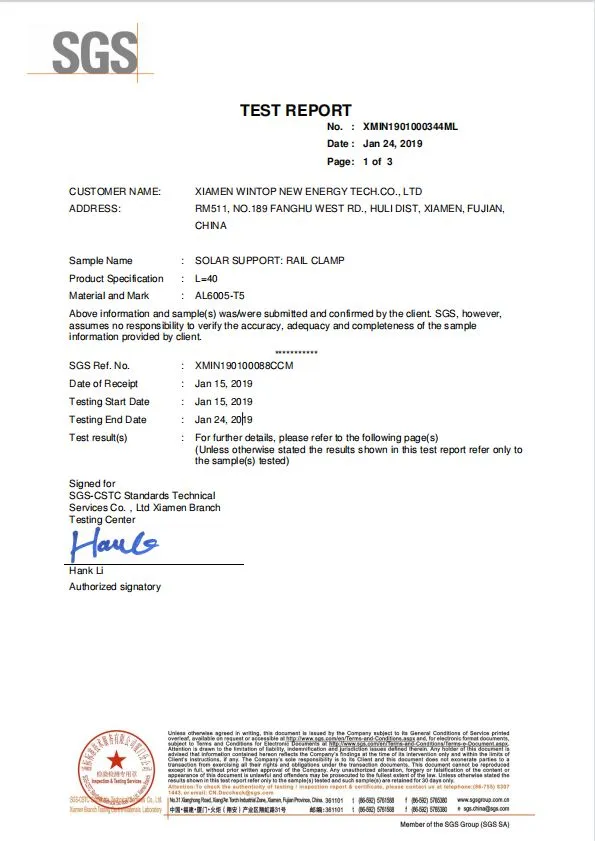

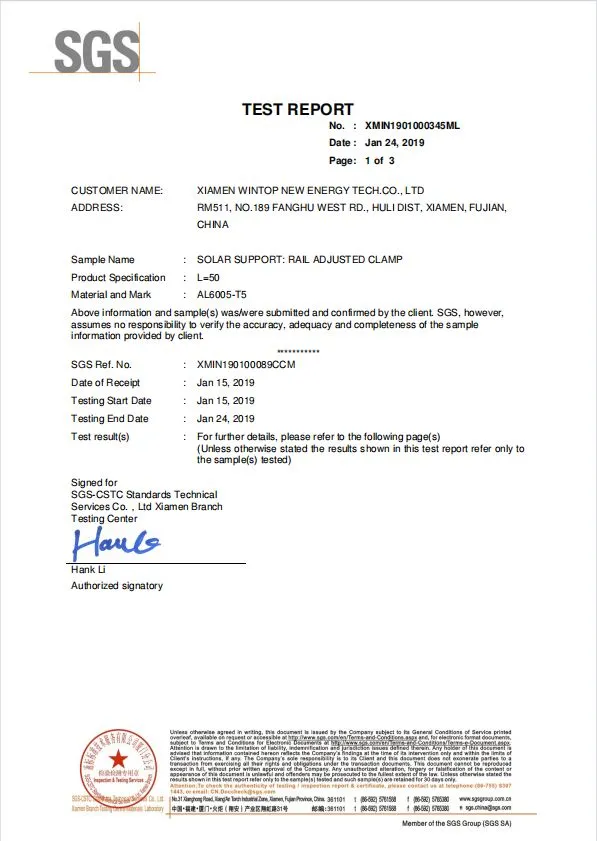

Certifications

Company Profile

Established in 2016, we are a high-tech enterprise that integrates R&D, production, and marketing of Solar Mounting Systems for residential, commercial, and utility-scale customers.

Frequently Asked Questions

Will the solar panels cause my roof to leak?

No, all of our mounting solutions are professionally engineered and guaranteed to ensure the integrity of your roof. To prevent water intrusion on roofs, we use specialized kits that create a watertight seal every time.

What materials are used for the mounting brackets?

The brackets are made of high-quality Aluminum Alloy (AL6005-T5) with an Anodized Oxidation finish, while fasteners are made of Stainless Steel SUS304 for superior corrosion resistance.

What is the wind and snow load capacity?

The system is designed to withstand a maximum wind speed of 60m/s (216km/h) and a maximum snow load of 1.6kn/m², making it suitable for extreme weather conditions.

Can the angle of the mounting system be adjusted?

Yes, we offer adjustable options with ranges such as 10°/15°, 15°/30°, and 30°/60° to maximize power generation based on your specific location and seasonal needs.

What is the expected lifespan of the mounting system?

Our solar mounting systems come with a 10-year warranty and are designed to have a functional duration of more than 20 years.

Is it possible to receive samples for quality checking?

Yes, we can provide samples for your review. Please feel free to send an inquiry regarding your sample requirements.
