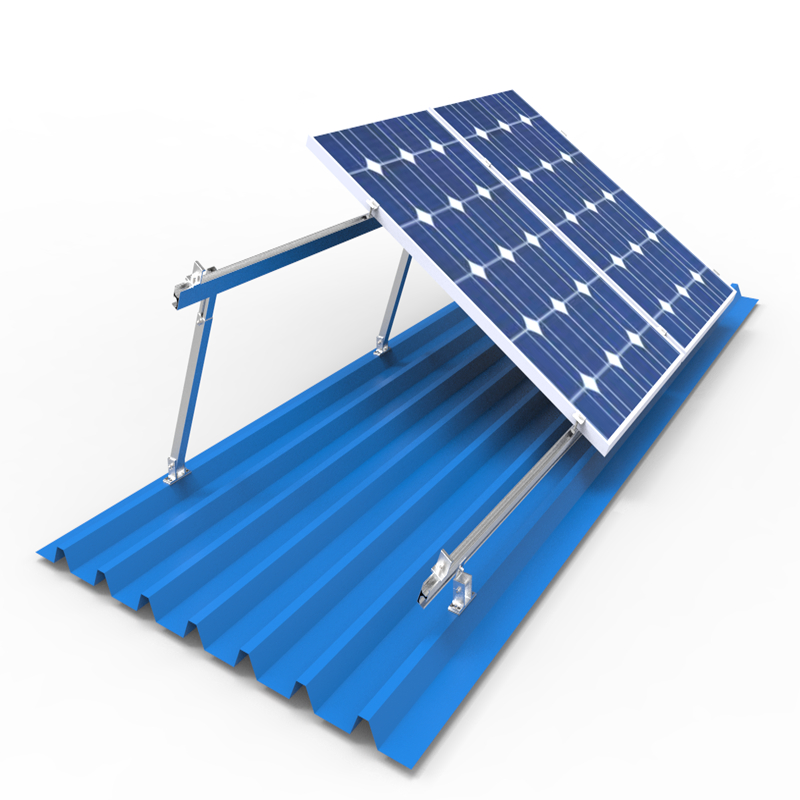

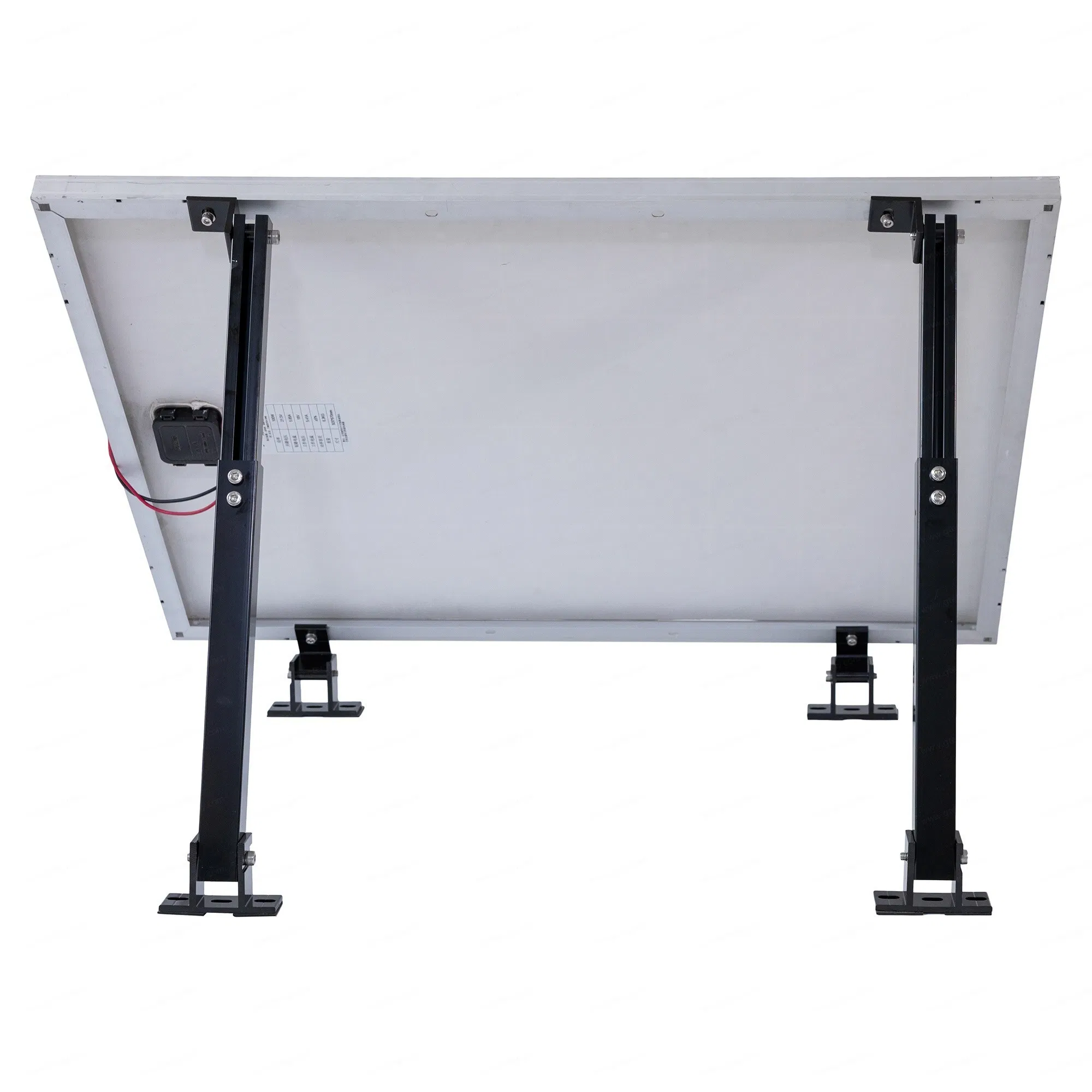

Adjustable Tilt Flat Roof Racking Metal Roof PV Mounting Brackets Mounted Solar Panel Structure

1 / 5

Adjustable Tilt Flat Roof Racking Metal Roof PV Mounting Brackets Mounted Solar Panel Structure

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋

Basic Information

Certification

Certificate of Utility Model Patent

Application

Commercial

Material

Aluminum Alloy

Type

Roof Bracket

Product Name

Solar Adjustable Mounting System

Surface Treatment

Anodizing 13 Um

Max Wind Speed

Up to 130mph (60m/s)

Design Snow Load

Up to 30PSF (1.4kN/m2)

Panel Direction

Vertical or Landscape

Duration

25 Years

⚙️

Technical Parameters

SPECIFICATION DETAILS
Material	Aluminum 6005-T5 & SUS304
Tilt Angle	10°-15°; 15°-30°; 30°-60°
Design Standard	JIS C 8955:2011, GB50009-2012, 1BC 2009, CBC2010
Installation Site	Tin Rooftop or Flat Concrete Open Space
Application	Compatible with almost all market panels
Warranty	12 Years

🌟

Product Description

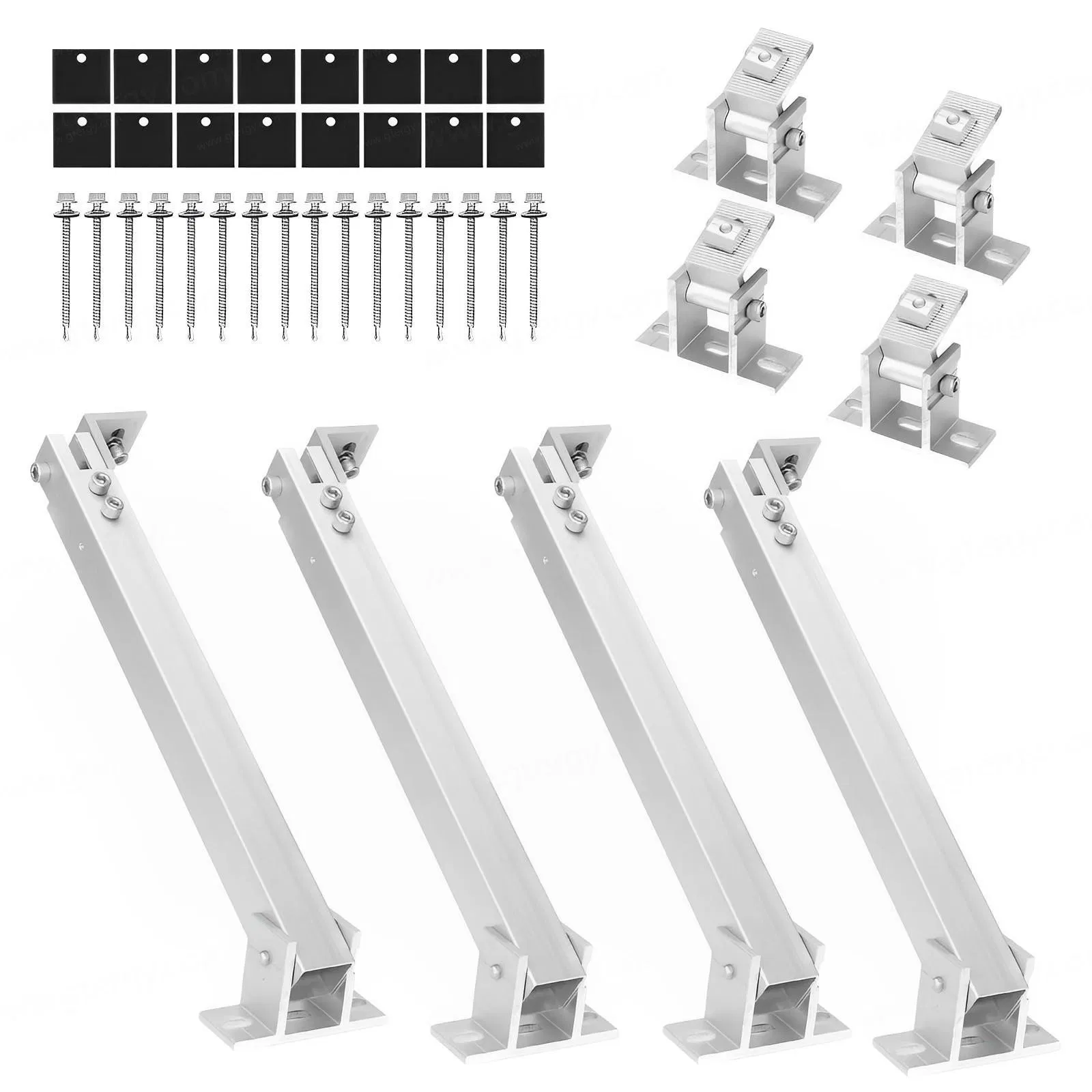

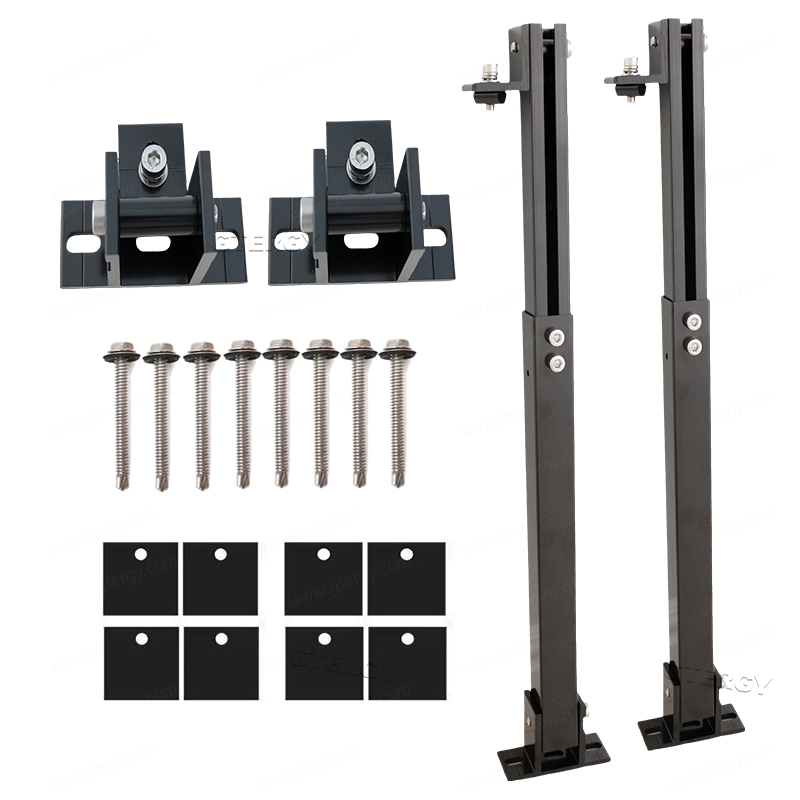

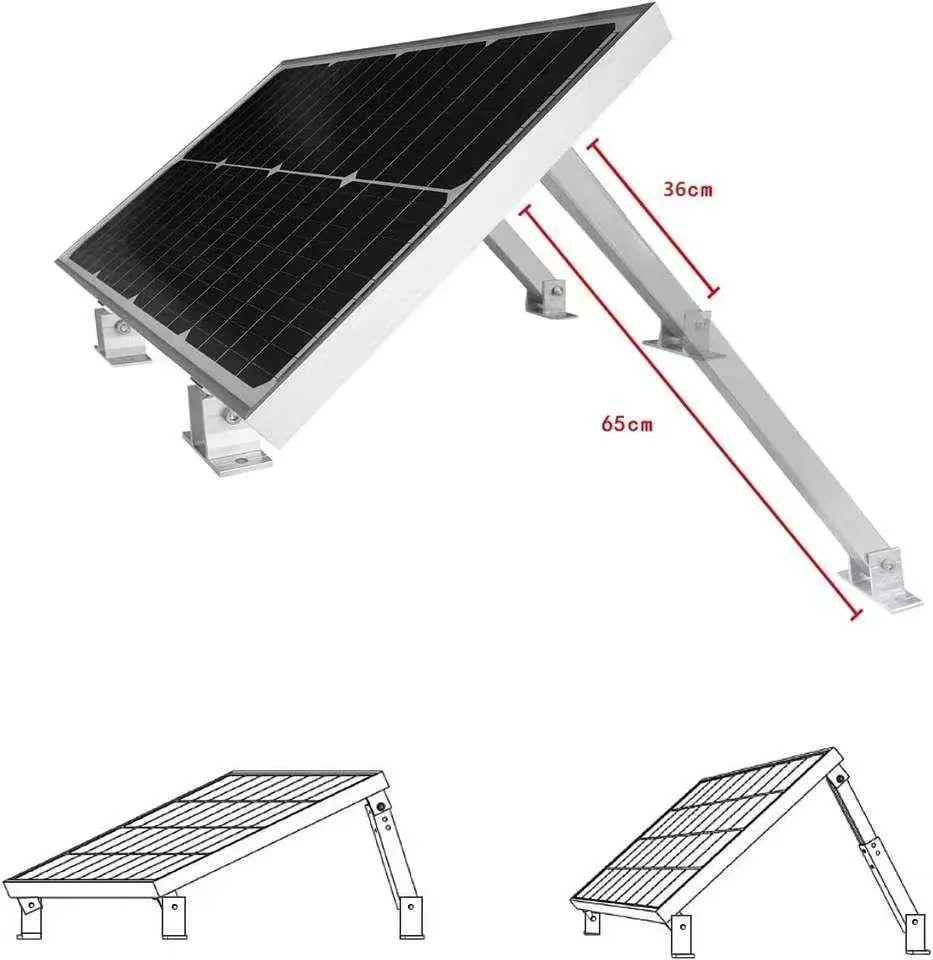

Adjustable Tilt Kit

Cost-Effective Solution — Eliminates extra profiles and accessories.
Quick Installation — Simplified structure saves time and labor.
Versatile Application — Suitable for pitched rooftops and concrete spaces.

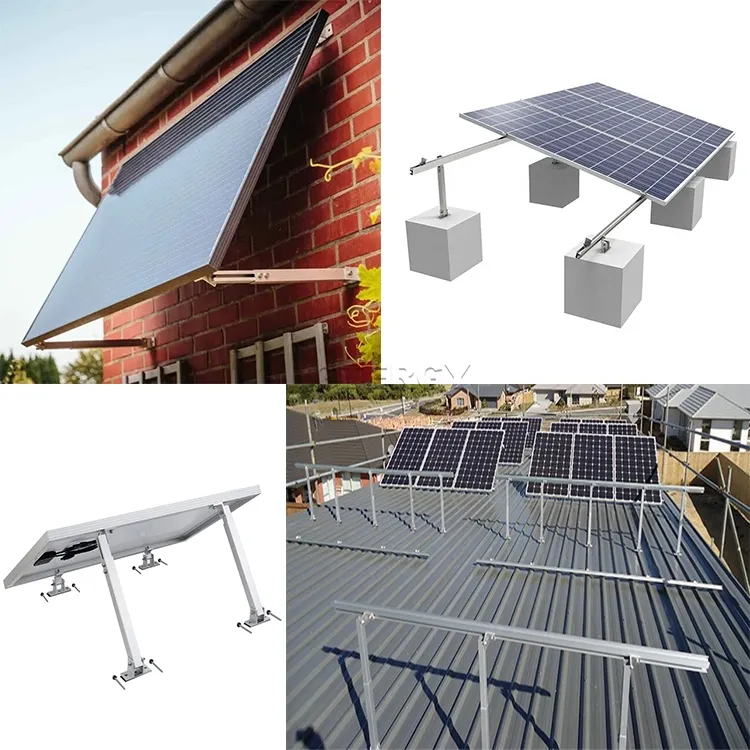

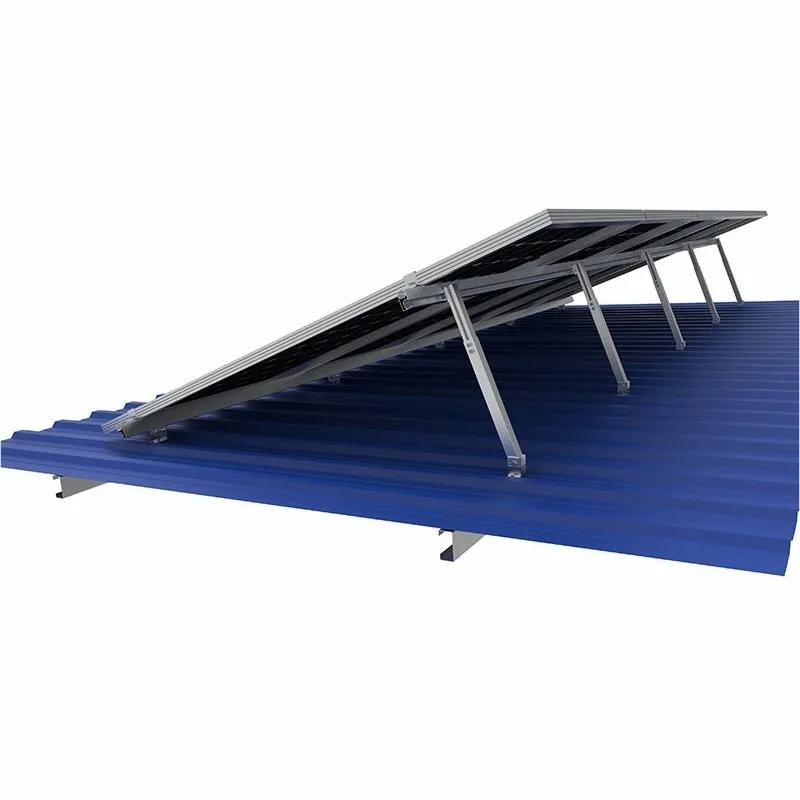

Metal Rooftop Installation

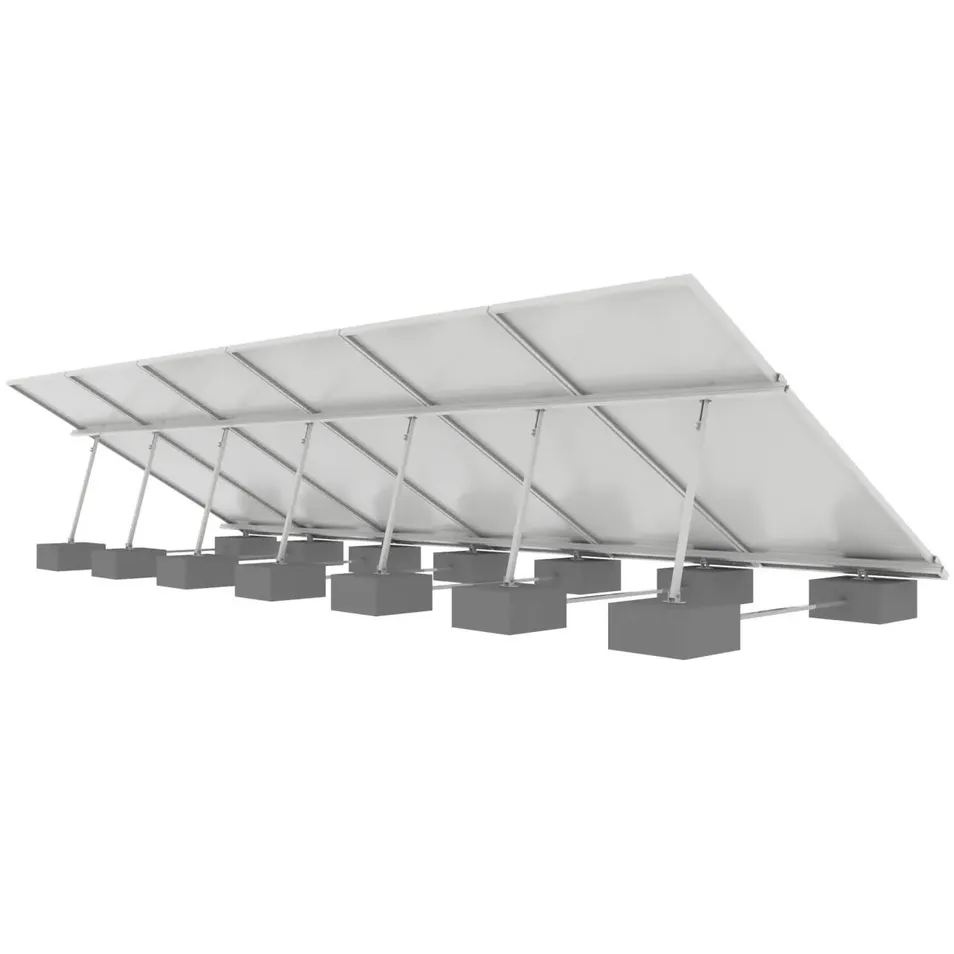

Concrete Open Space Application

⚡ Economic & Saving

Made of Al6005-T5 material, lighter weight than carbon steel with high strength and corrosion resistance.

🛡️ Corrosion Resistance

Anodized surfaces deliver excellent resistance to harsh weather and environmental conditions.

☀️ Optimized Efficiency

Precisely designed tilt adjustments allow modules to be positioned for maximum sunlight exposure.

📸

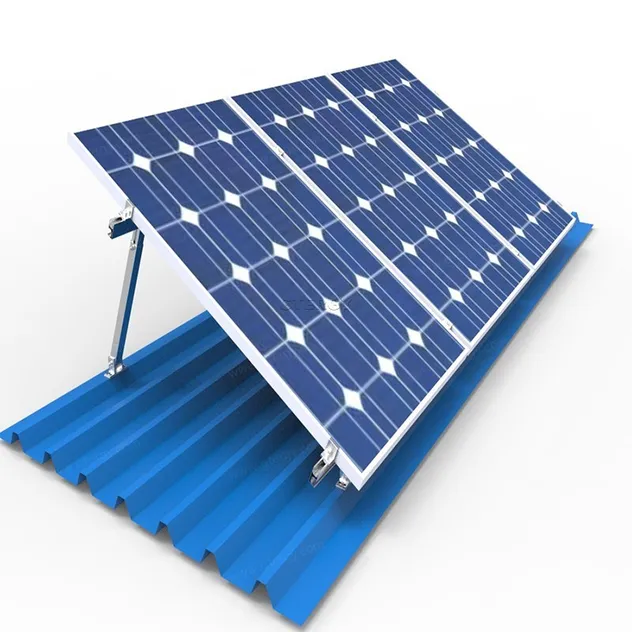

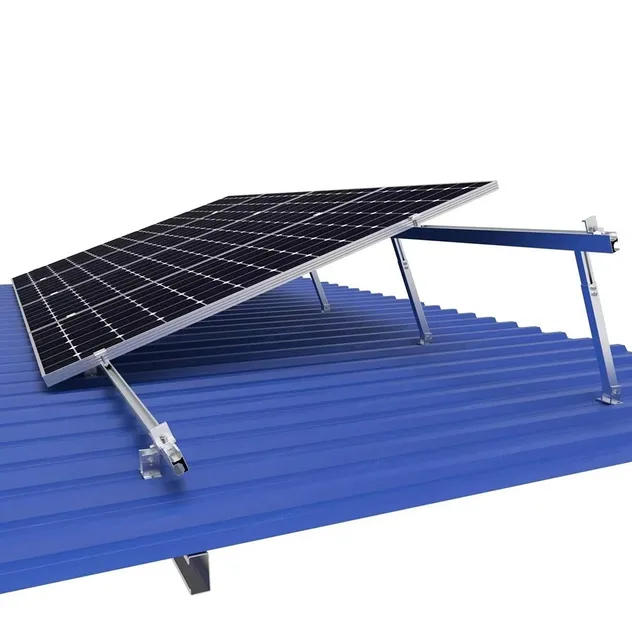

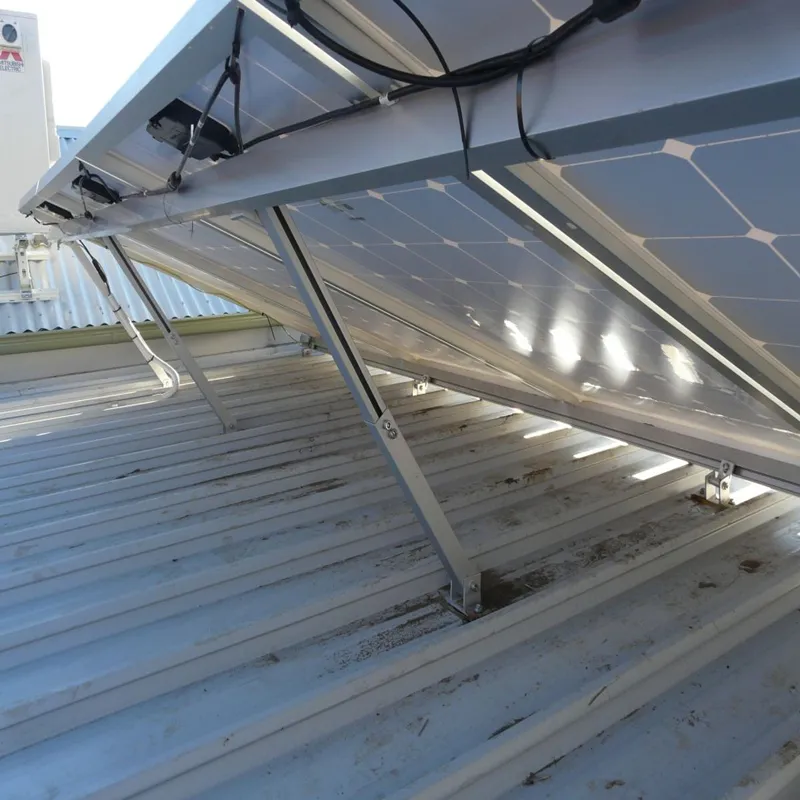

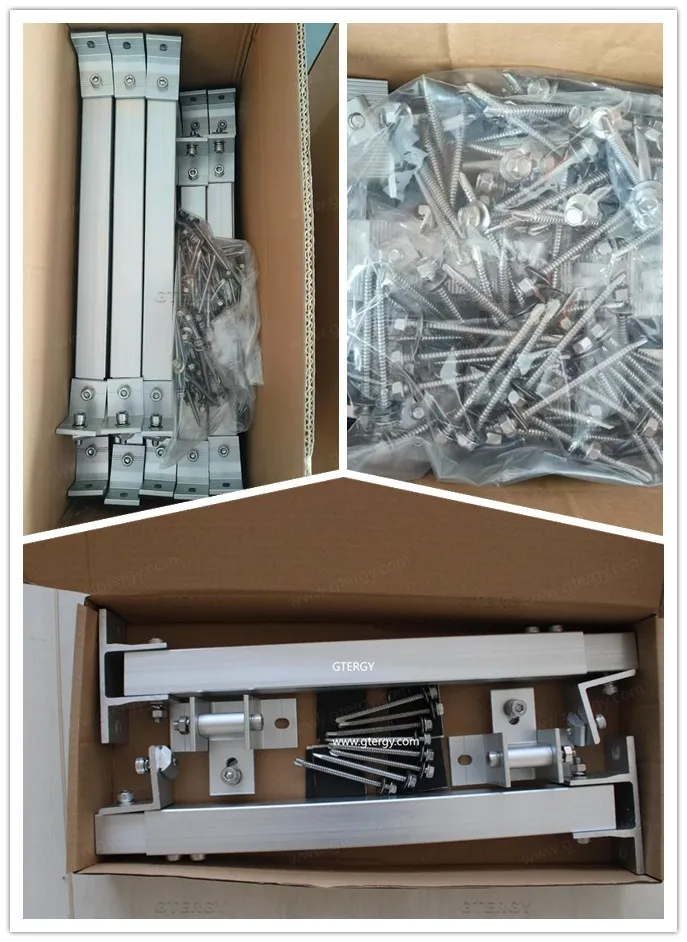

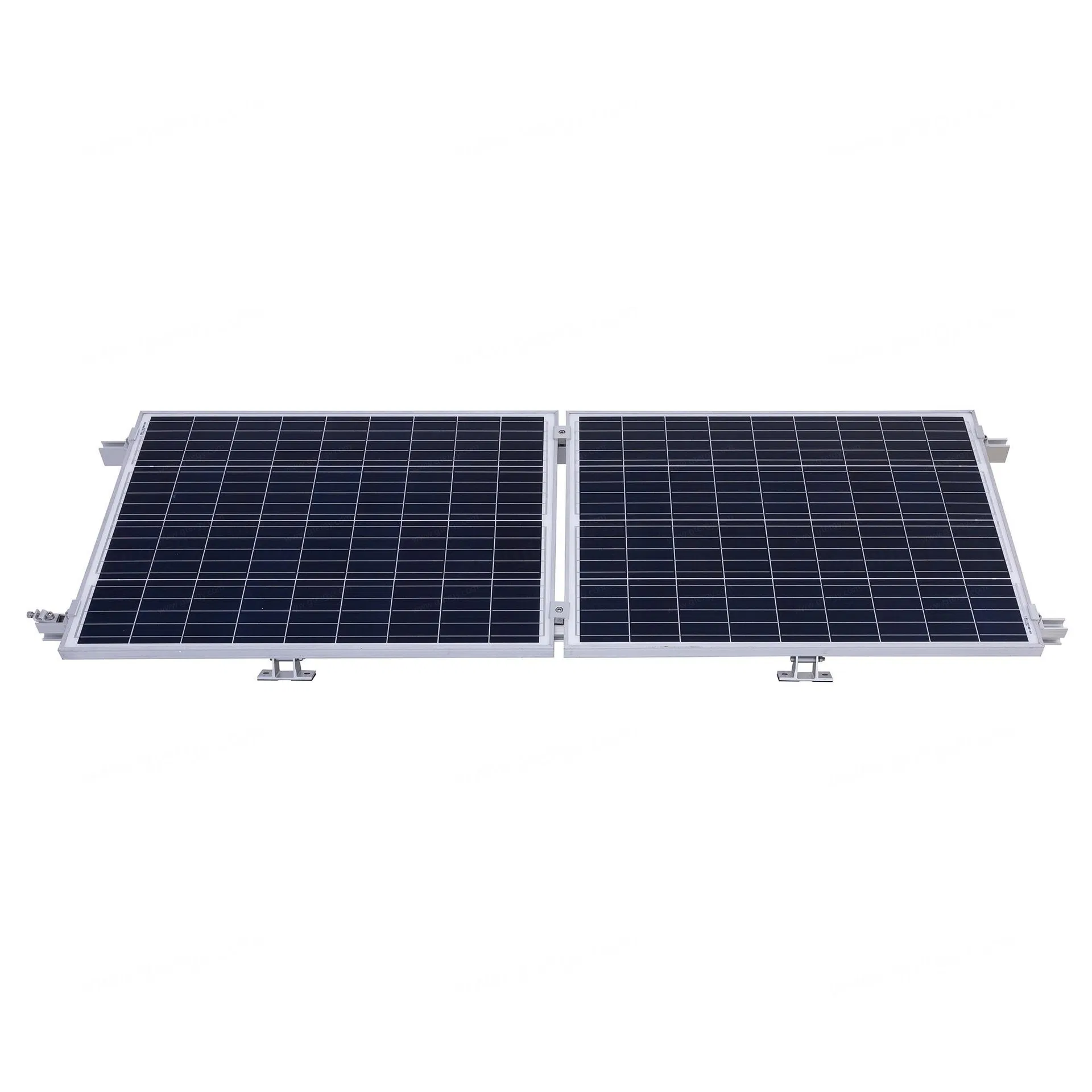

Detailed Photos & Projects

📦

Packaging & Shipping

Package Size

240.00cm * 30.00cm * 20.00cm

Gross Weight

3.000kg

❓

Frequently Asked Questions

Are you a factory or trading company?

We are a direct manufacturer in China specializing in solar mounting systems for roofs, grounds, and RVs.

How long is the production lead time?

Stock items require 1-3 days. Mass production typically takes 7-15 days, depending on the order quantity.

Do you have a Minimum Order Quantity (MOQ)?

We do not have an MOQ for our current standard products; 1pc for testing is available. ODM/OEM items may require an MOQ.

Can I request a free sample?

Yes, similar samples from our showroom are free (freight excluded). Customized samples involve a charge.

How are the goods shipped and how long does it take?

Samples are sent via DHL/FedEx (3-5 days). Large orders are shipped by sea (15-30 days depending on the port).

What customization services do you offer?

We provide full OEM and ODM services, including customized logos, colors, and specialized packaging.
