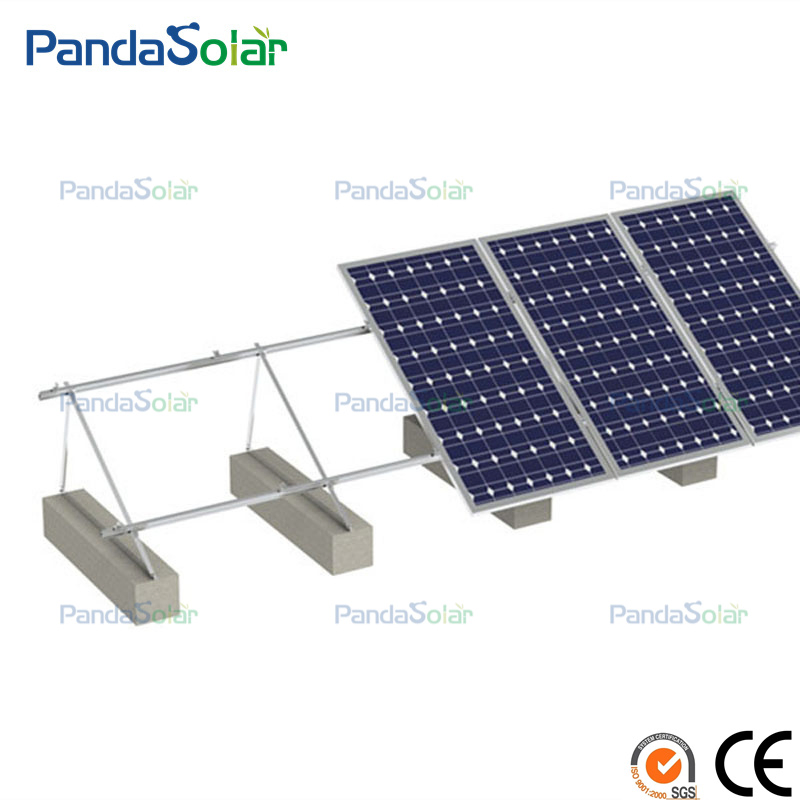

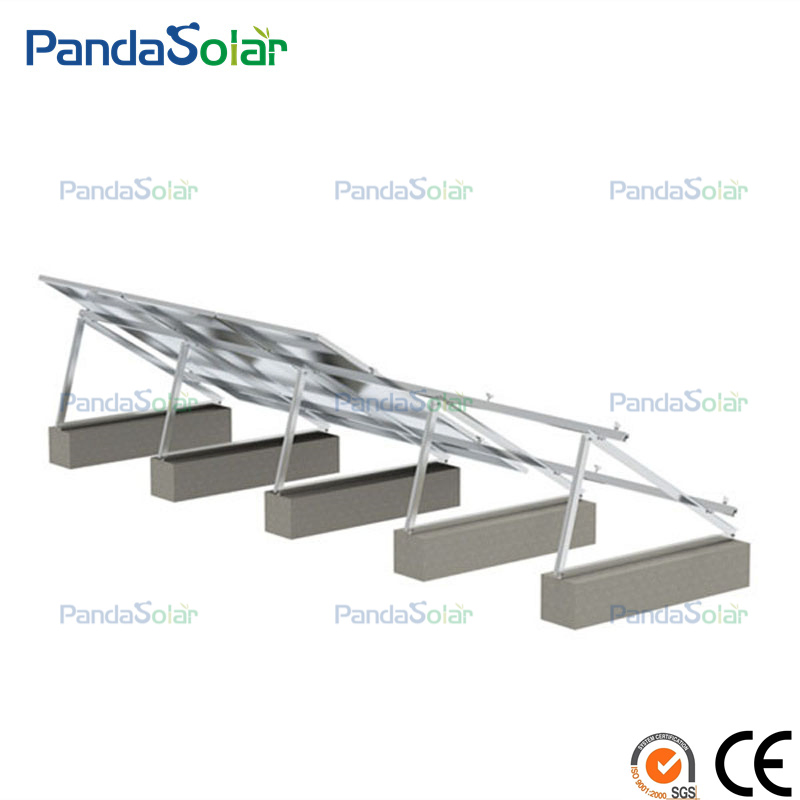

The Adjustable Triangle Solar Mounting System is primarily utilized on cement roofs or as an aluminum alloy solar triangular solution with cement pier foundations. It features high corrosion resistance, making it ideal for various environmental conditions including the Middle East and Europe.
This highly pre-assembled system simplifies installation. The structure's ability to fold into a smaller volume significantly reduces shipping costs. Holes are pre-drilled according to specific solar panel arrangements.

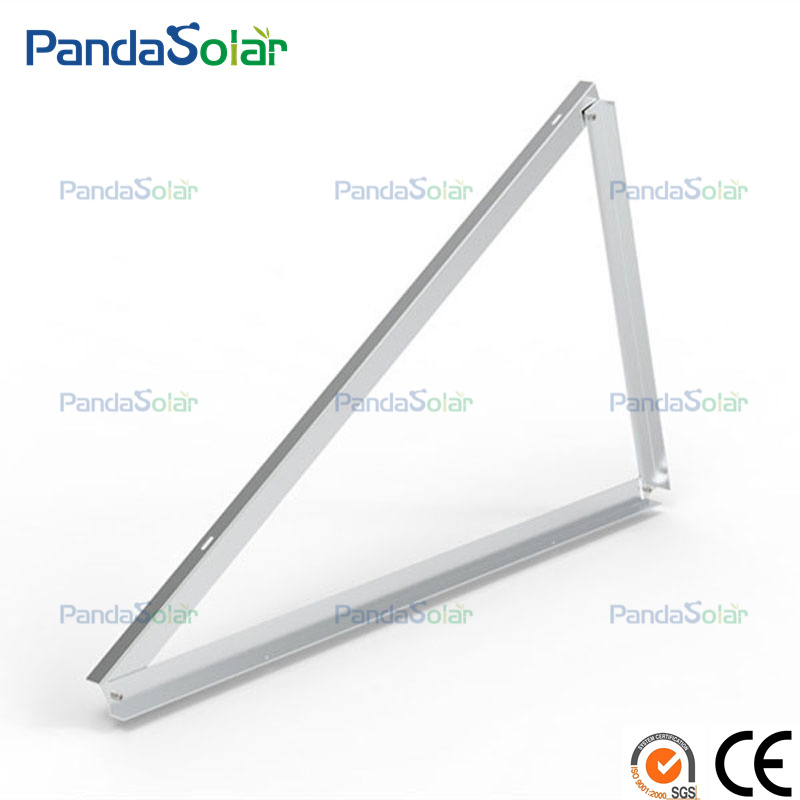

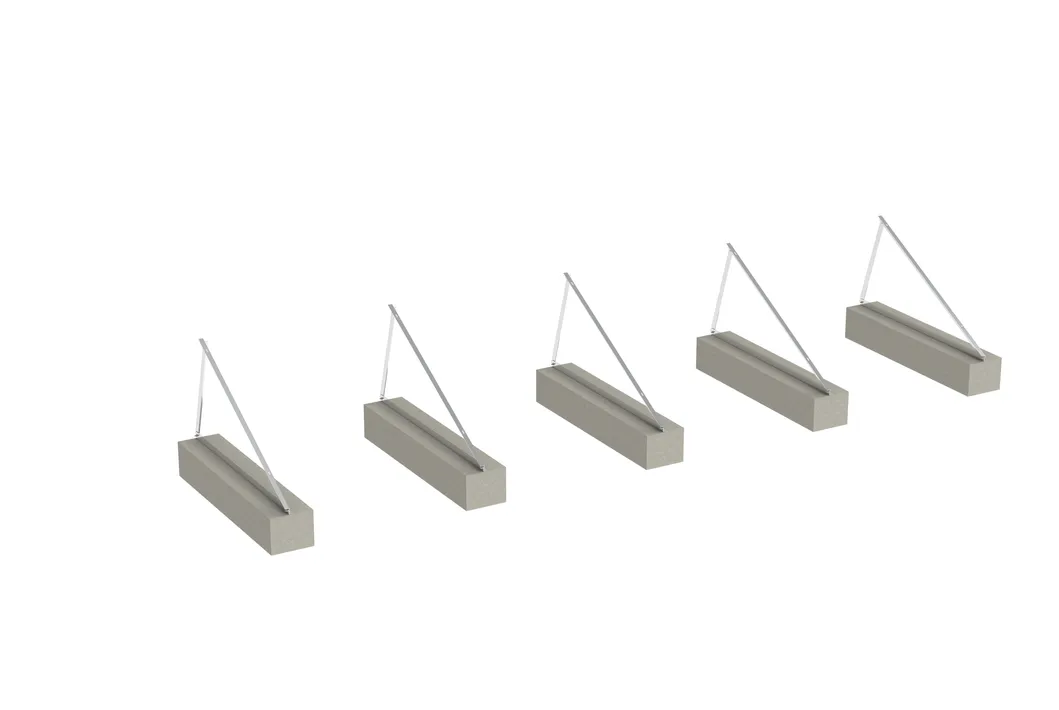

Step 1: Fitting pre-assembled brackets to concrete piers.

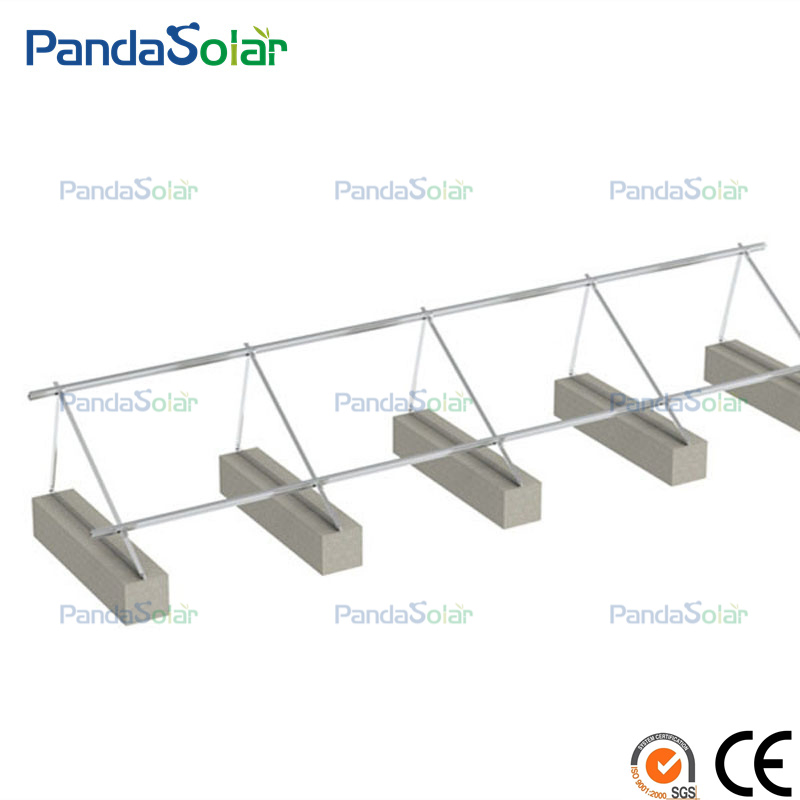

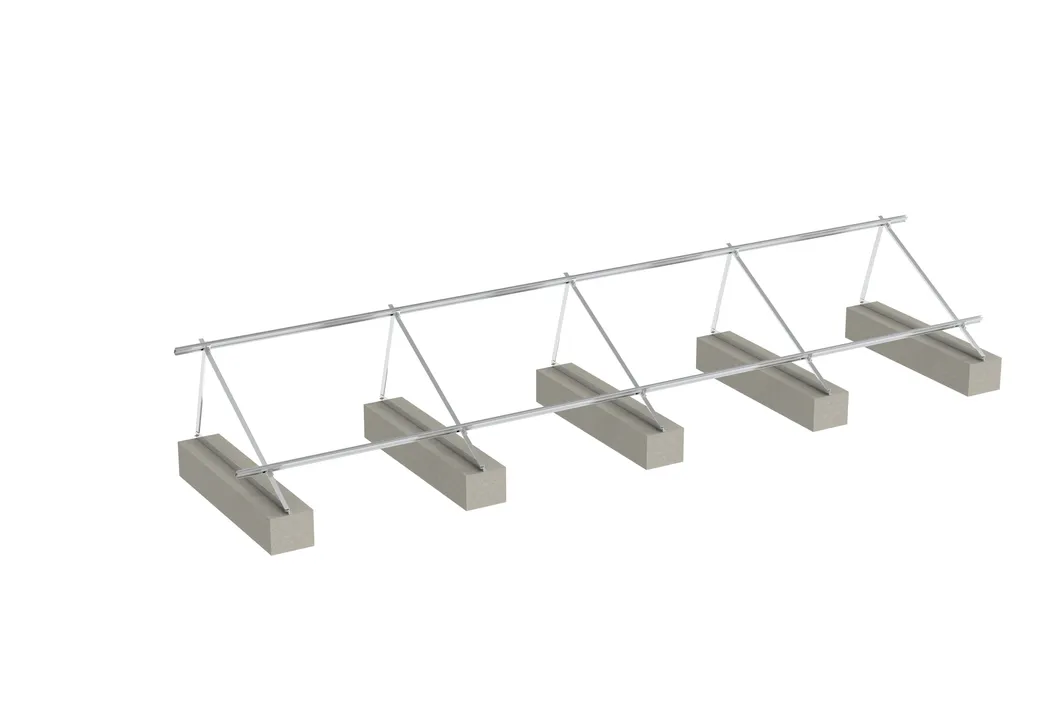

Step 2: Installing rails onto the brackets.

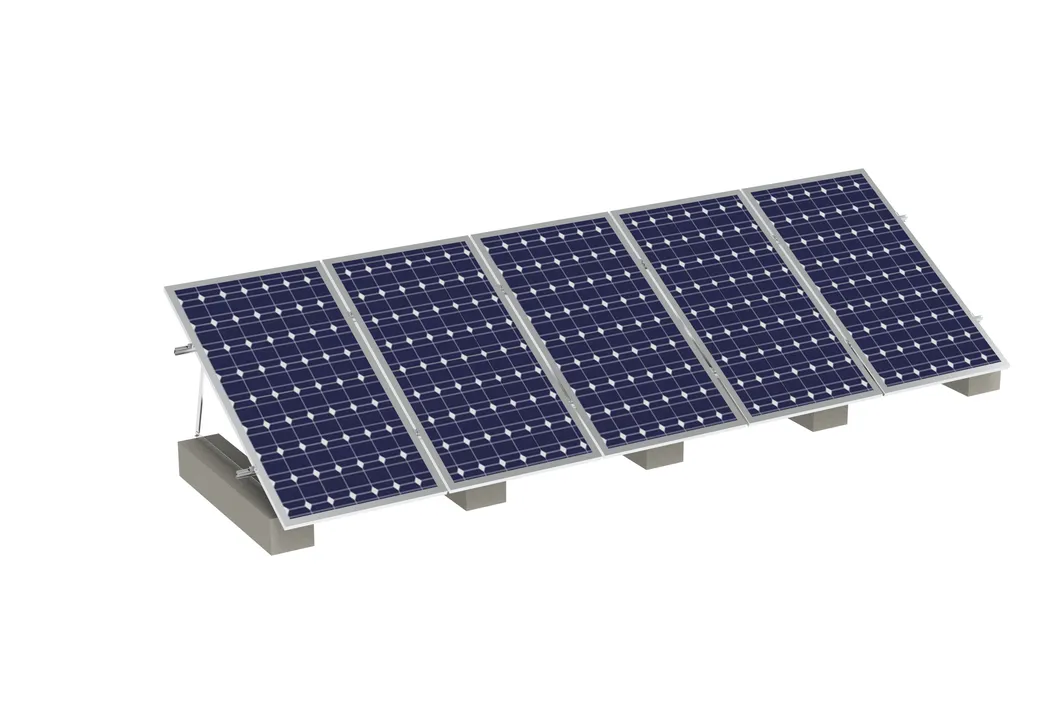

Step 3: Fixing panels using mid and end clamps.
| Material | Structure: AL6005-T5(Anodized) | Components: AL6005-T5 / SUS304 |
| Application | Solar Flat Roof Mounting |
| Wind Speed | 0-60 m/s |
| Snow Load | 0-150cm |
| Design Standard | AS/NZS 1170, DIN 1055, JIS C8955: 2017, IBC 2009 |
| Warranty | 12 years |

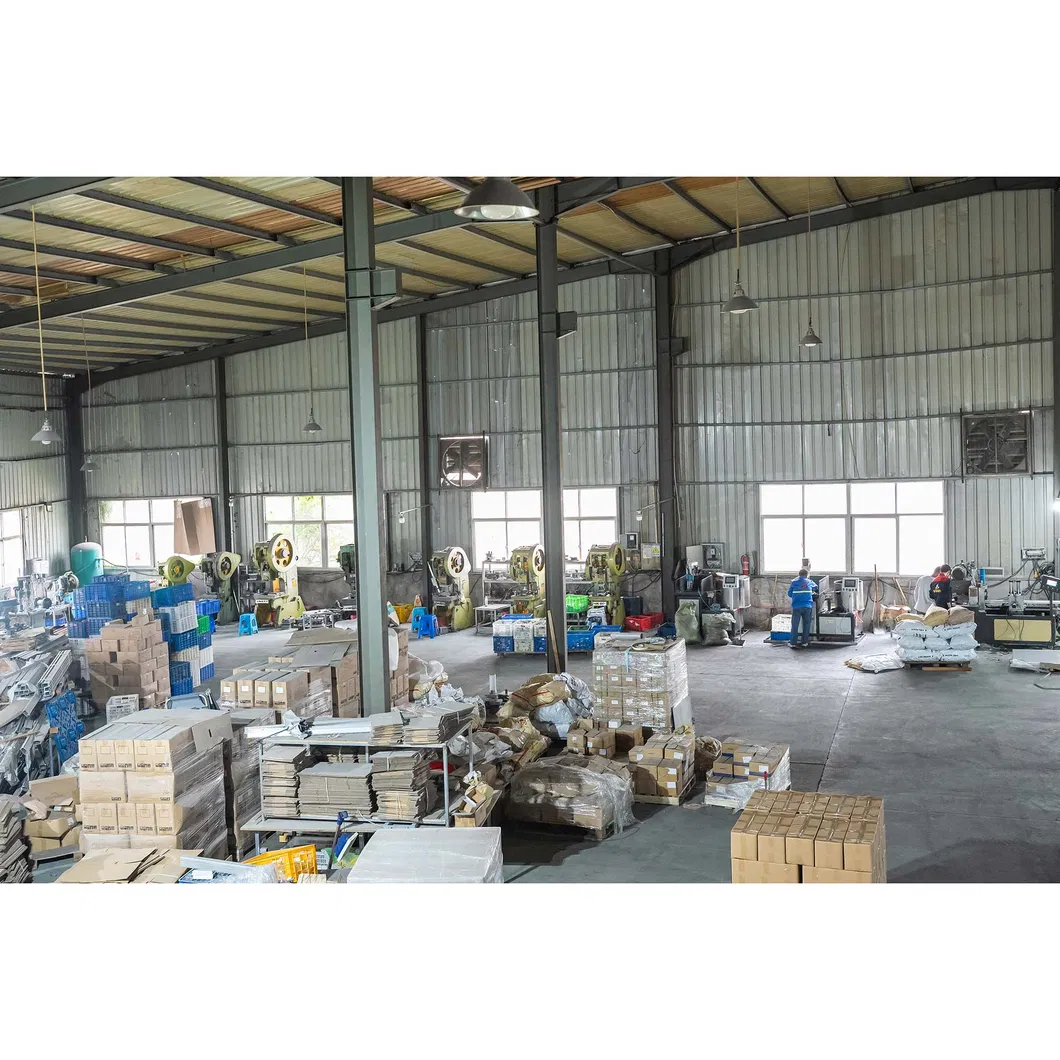

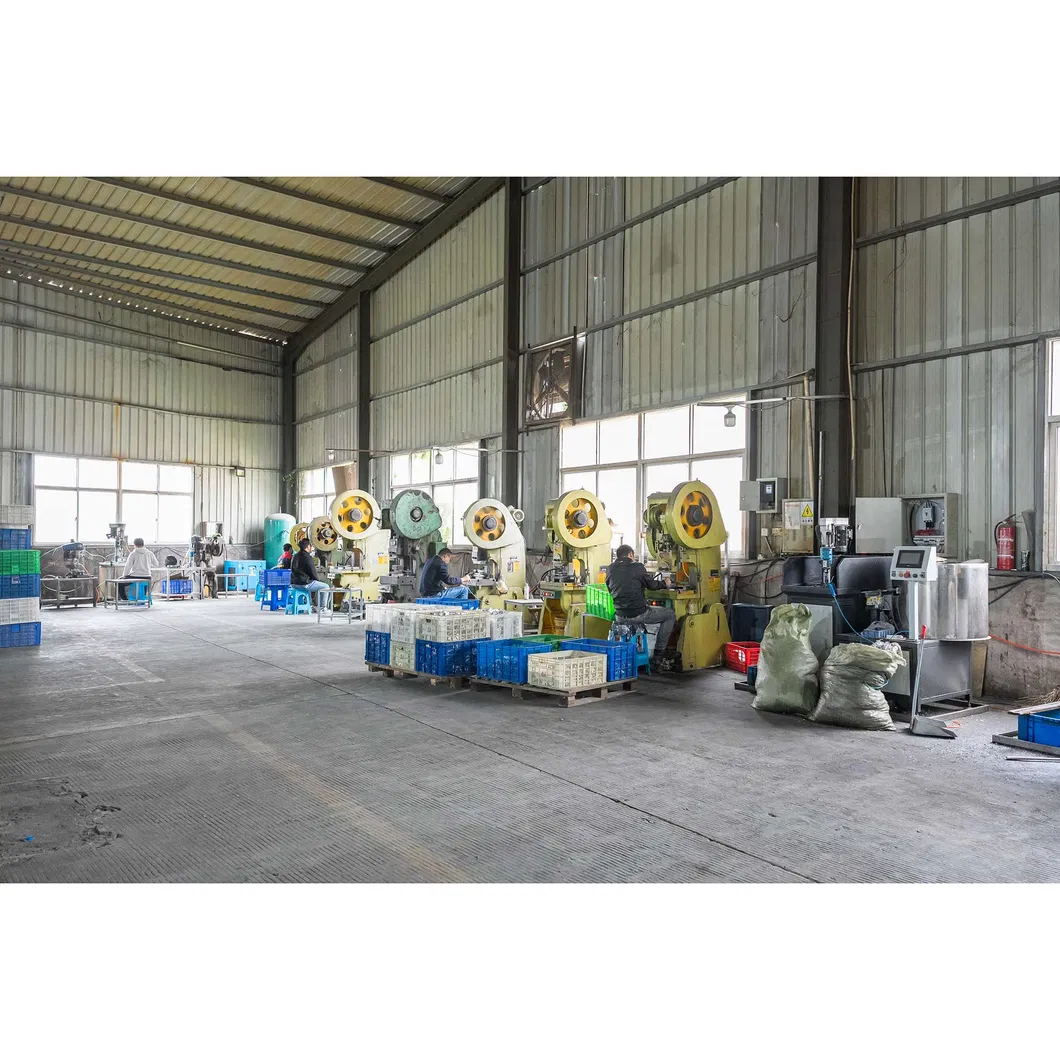

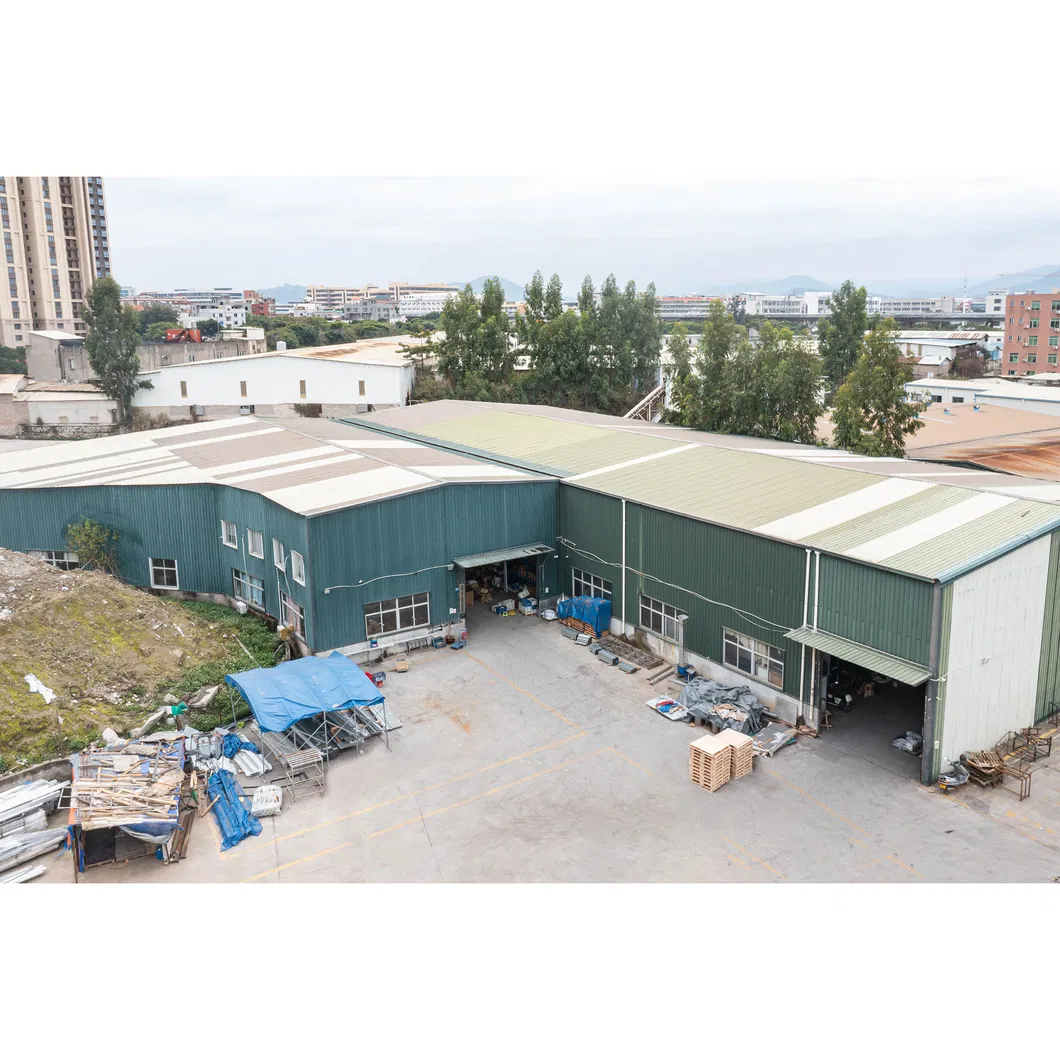

Independent processing workshops for cutting, drilling, stamping, and forging. Monthly productivity reaches 40-50MW.
