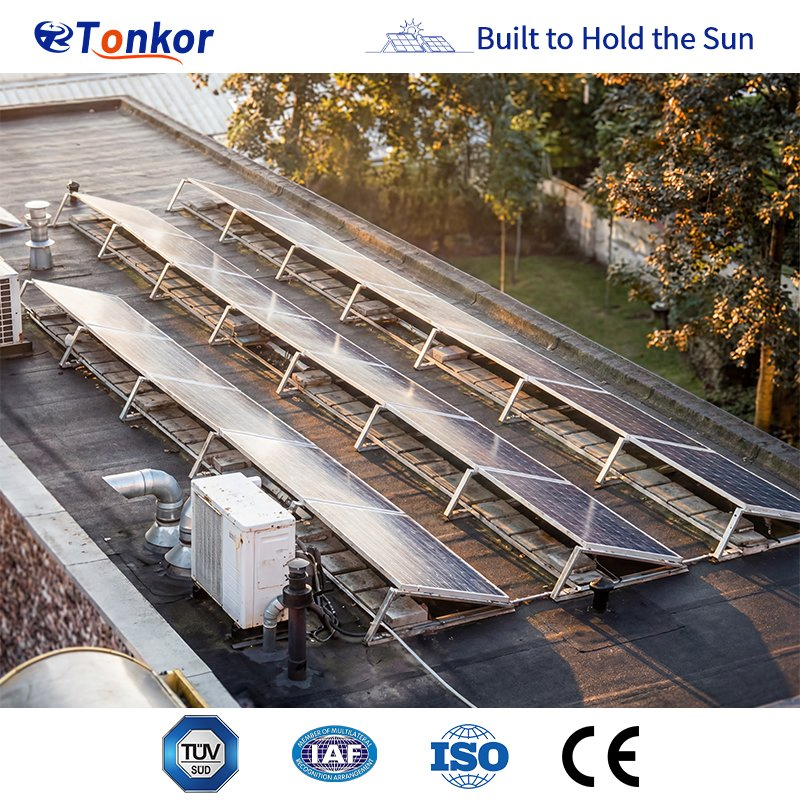

New Ballast Flat Roof Solar Mounting Solution

📋

Basic Info.

Certification

ISO, TUV, CE

Application

Home

Material

Aluminum Alloy

Type

Roof Angle Bracket

Max Wind Speed

60m/S

Max Snow Load

1.6kN/M²

Module Orientation

Landscape, Portrait

Anti-Corrosive

Anodized

OEM/ODM

Support

Production Capacity

1000000W/Month

💡

Product Introduction

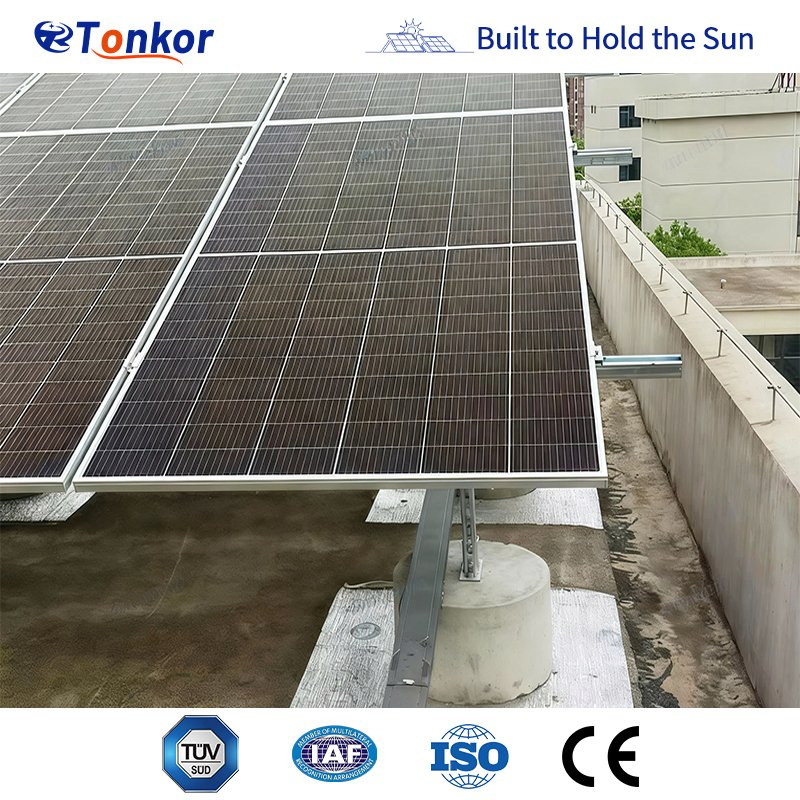

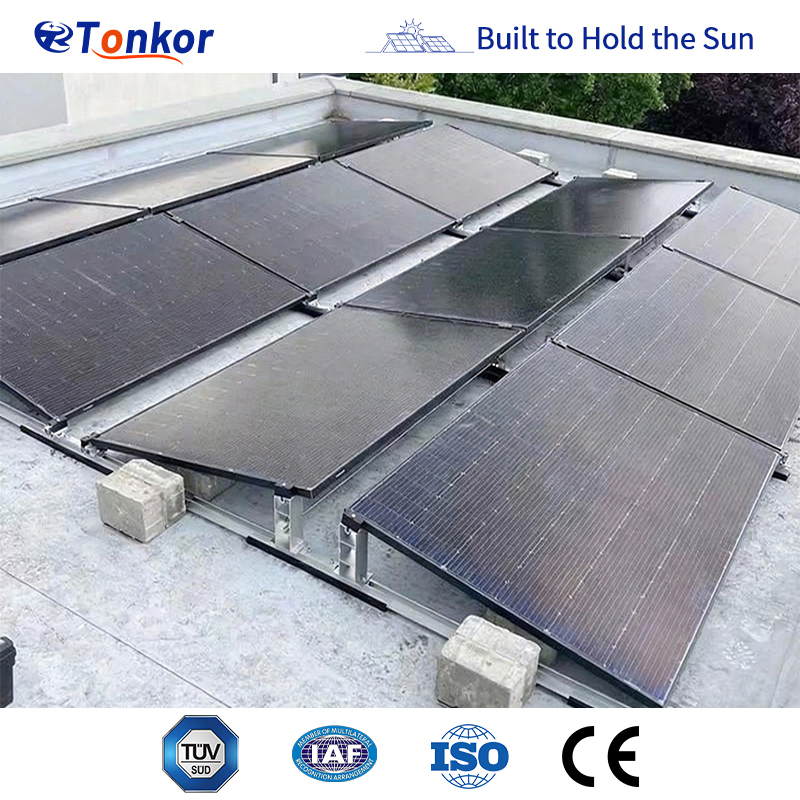

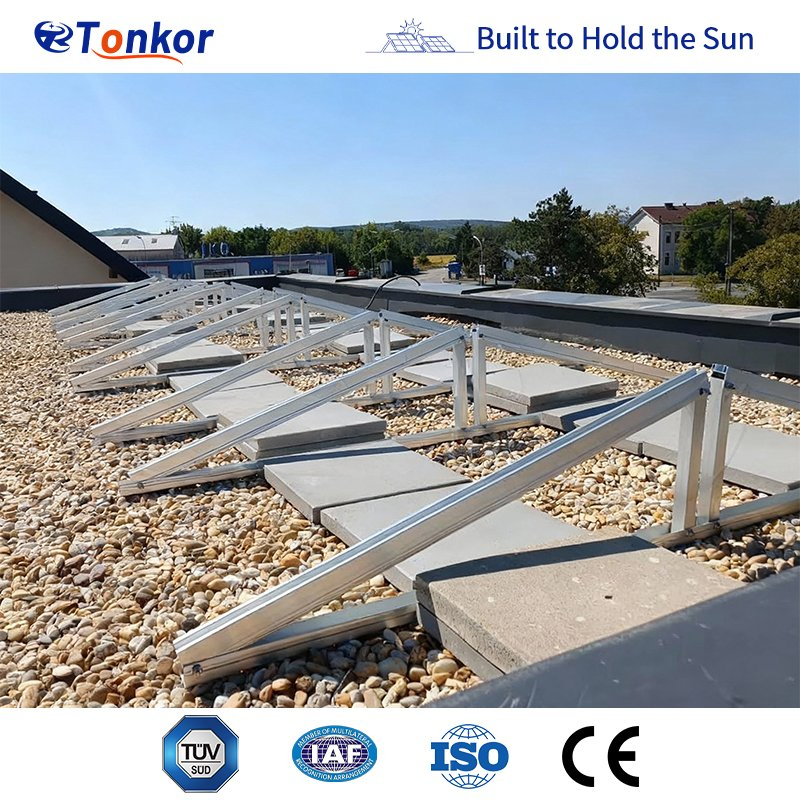

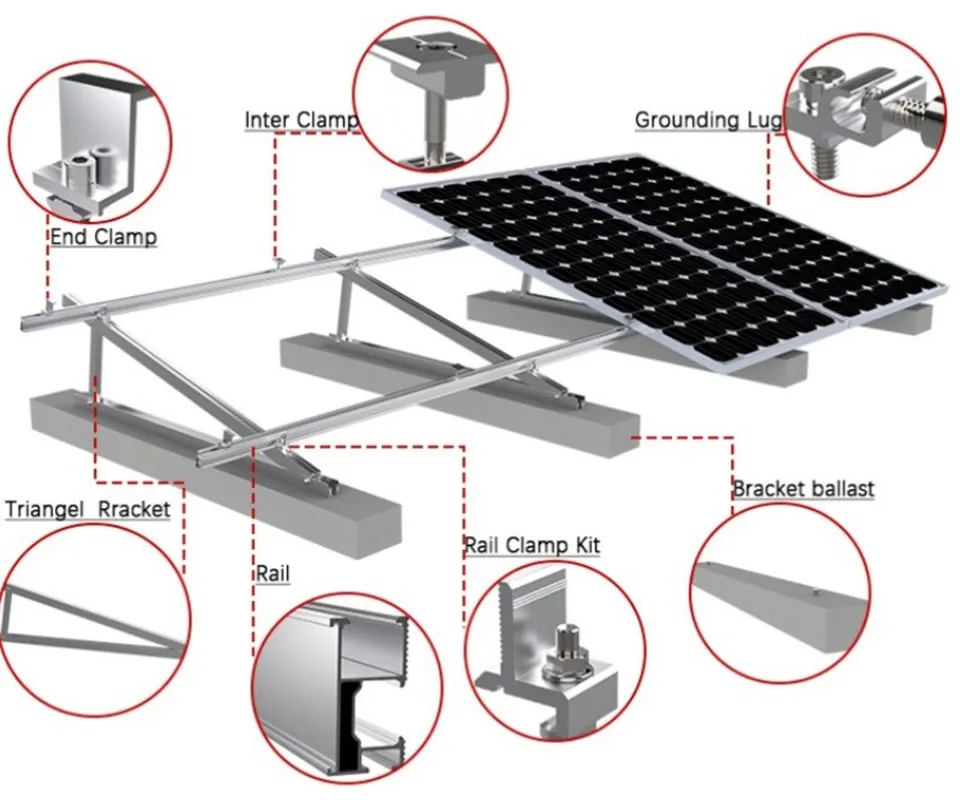

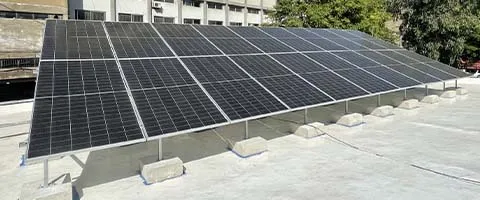

This solar triangular mounting system is designed for flat concrete roofs, using concrete foundation-fixed aluminum brackets that do not penetrate or damage the roof's waterproof layer. The cross-type support structure provides a sturdy and durable framework with excellent corrosion resistance and long service life. The uniquely designed aluminum alloy triangular pre-assembled supports are lightweight, easy to transport, and allow for fast and convenient installation.

⚙️

Product Specifications

Installation location	Roof
Installation angle	10°/15°, 15°/30°, 30°/60°
Wind load	60m/s (216kmh/133mph)
Snow load	1.4KN/m²
Applicable module type	Mono-crystalline, Poly-crystalline, Double wave and Thin film
Bracket material	AL6005-T5 (Anodized Oxidation)
Fastener Material	Stainless steel SUS304
Design standard	AS/NZS1170, JIS C 8955-2017
Module Orientation	Horizontal, Vertical

⭐

Features & Benefits

Excellent ResistanceDesigned to withstand harsh environments and coastal salt conditions.

Strong Wind StabilityFixed with concrete ballast for enhanced wind resistance without roof penetration.

Innovative DesignOptimized base rail design for secure and reliable mounting of PV modules.

Flexible StructureSupports horizontal and vertical installation, adaptable to specific project needs.

Efficient SetupSimple construction method saves significant time on-site during installation.

🏢

About Our Manufacturing

Established in 2015, our facility is a high-tech enterprise specializing in solar mounting systems and integrated energy storage solutions. We operate a modern manufacturing base of over 20,000 m², equipped with automated extrusion, cutting, stamping, and welding lines. With a complete quality system, our products meet international standards and are exported to more than 30 countries across Southeast Asia, the Middle East, Europe, and South America.

🏆

Certifications & Exhibition

We are a professional manufacturer and have successfully cooperated with major infrastructure groups, providing reliable solar mounting solutions and engineering support for large-scale projects.

📦
