Concrete Foundation Flat Roof Solar Mounting System Aluminum Alloy Structure

1 / 5

Concrete Foundation Flat Roof Solar Mounting System Aluminum Alloy Structure

Customization:	Available
Certification:	GB, ISO, TUV, CE
Application:	Commercial

Send Inquiry

Product Description

Basic Specifications

Model NO.:SF-FR-02

Material:Aluminum Alloy

Type:Roof Ballast Bracket

Wind Speed:60m/S

Snow Load:1.4kn/Square Mater

Package:Carton or Iron Pallet

Warranty:10 Years

Service Life:25 Years

HS Code:8503009090

Capacity:2000000W/ Month

Product Description

Concrete and Flat Roof Mounting Structure Accessories

Product Type	Solar Roof Mounting System
Arrangement	Columns / Rows
Panel Size	Customized
Panel Framing	Framed / Unframes
Panel Orientation	Landscape / Portrait
Panel Tilt Angle	Customized
Wind Load	60m/s
Snow Load	1.4KN/M2
Supporting Structure	Galvanized Steel
Small Parts Materials	Aluminum / Galvanized Steel / Polyethylene / SUS
Standards	GB50009 / UL2703 / DIN1055
Warranty	10 years warranty, 25 years service life

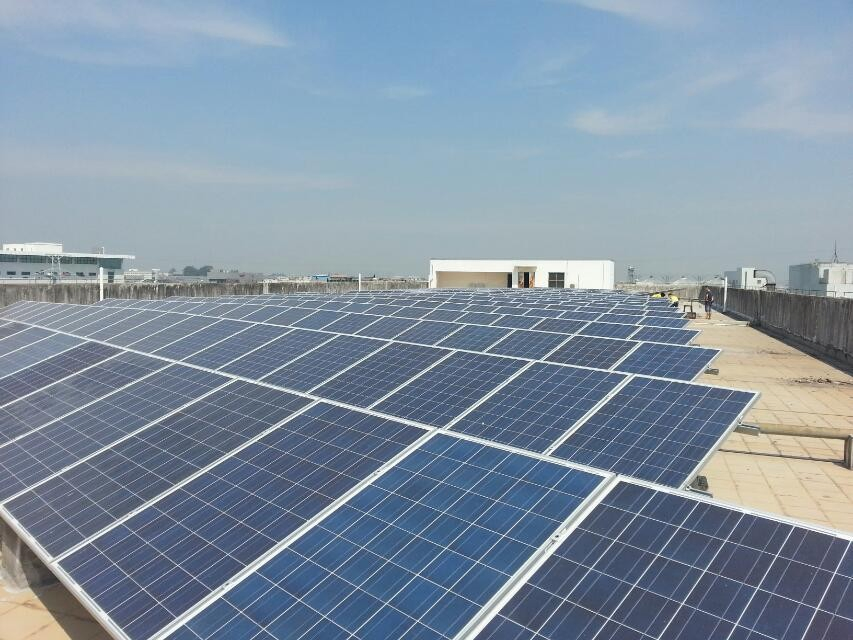

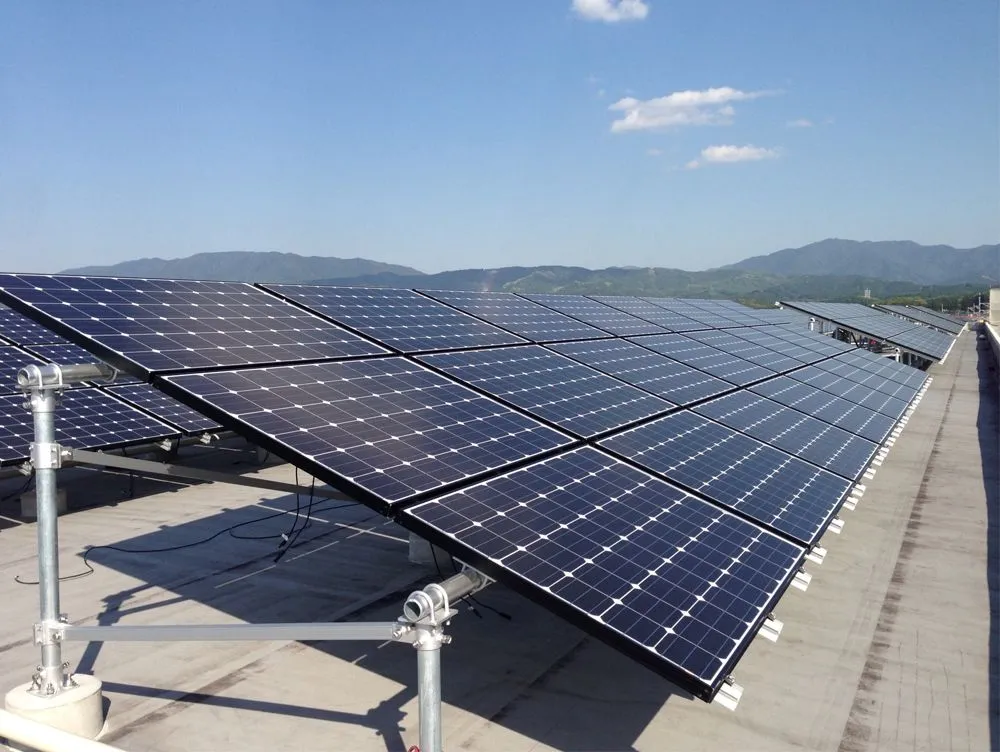

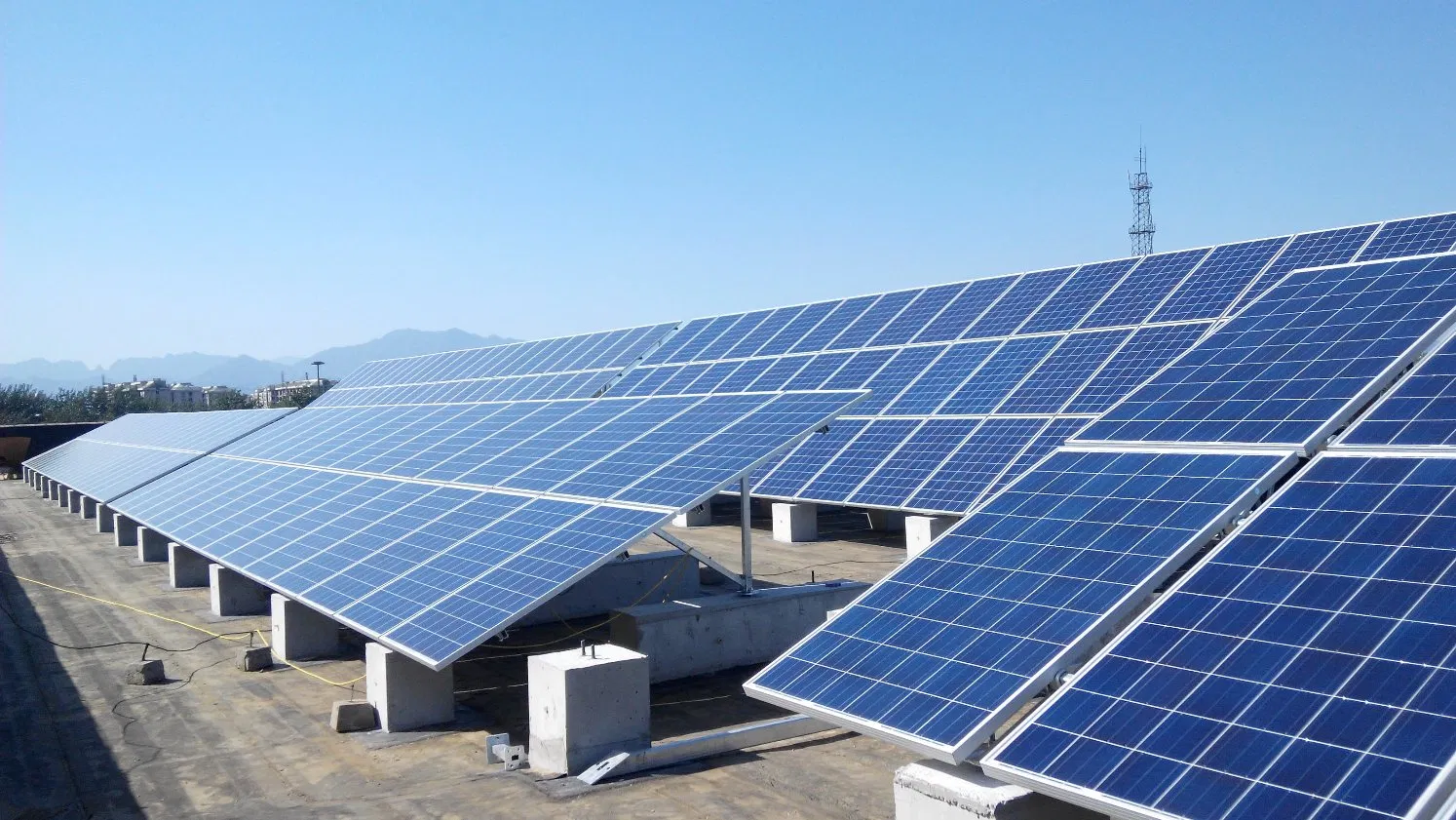

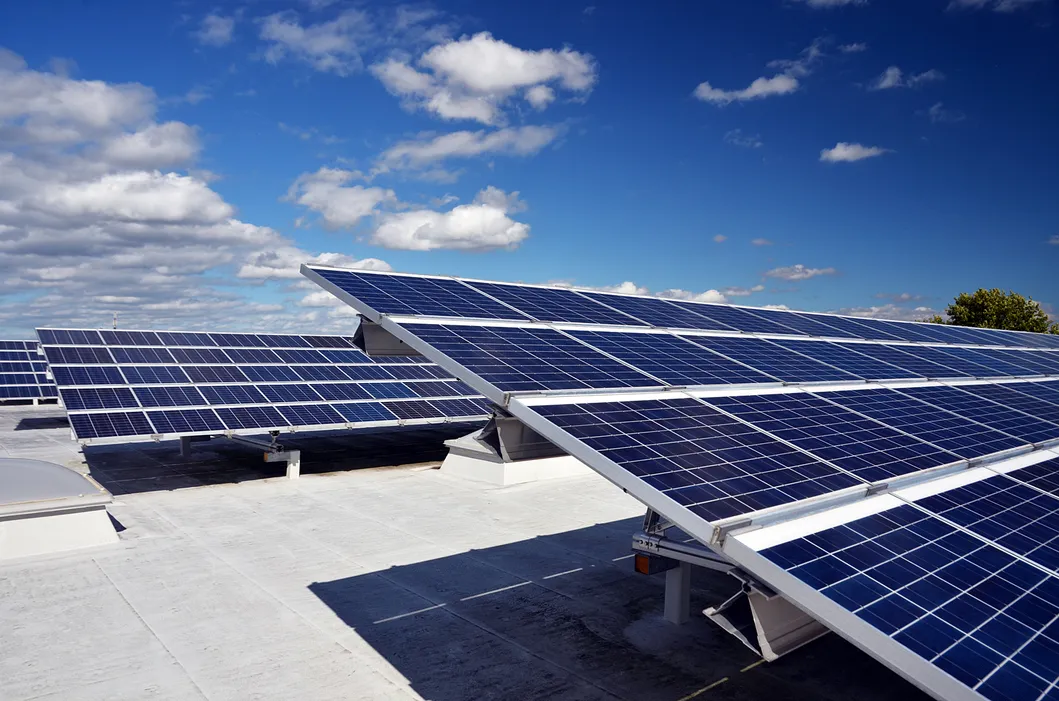

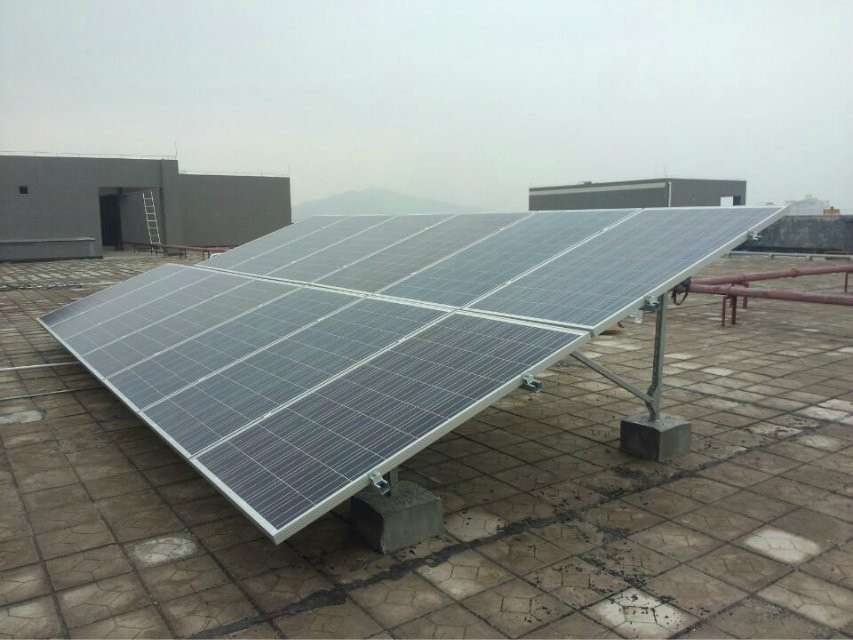

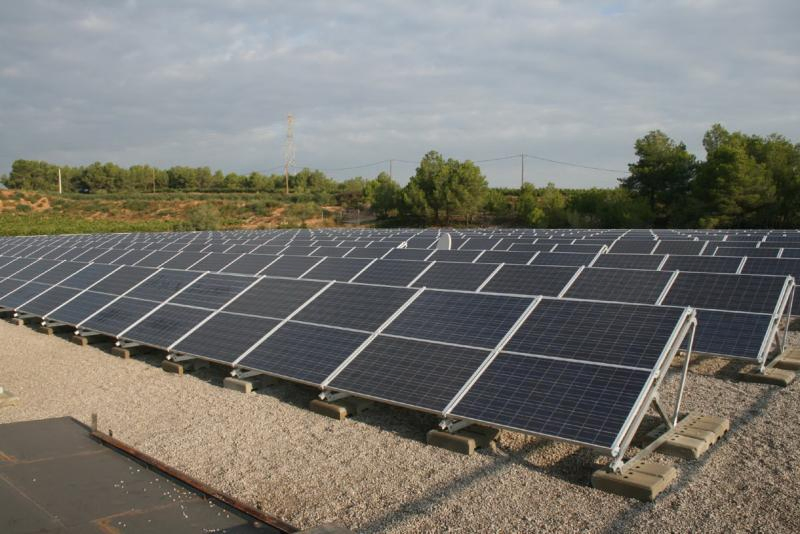

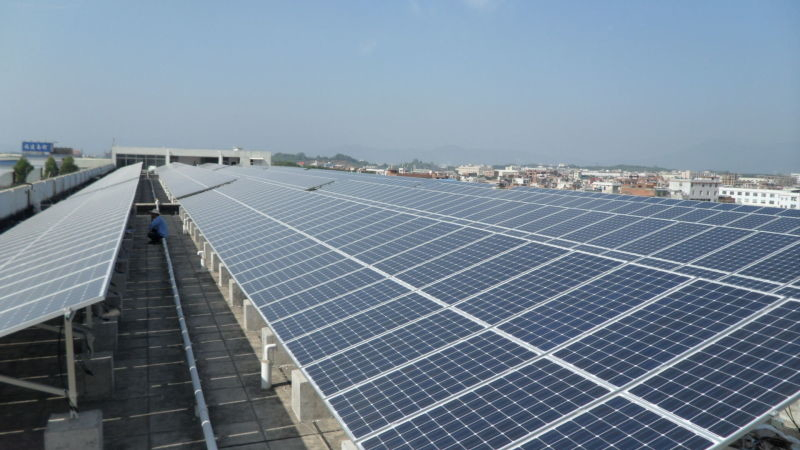

Reference Photos

Certifications

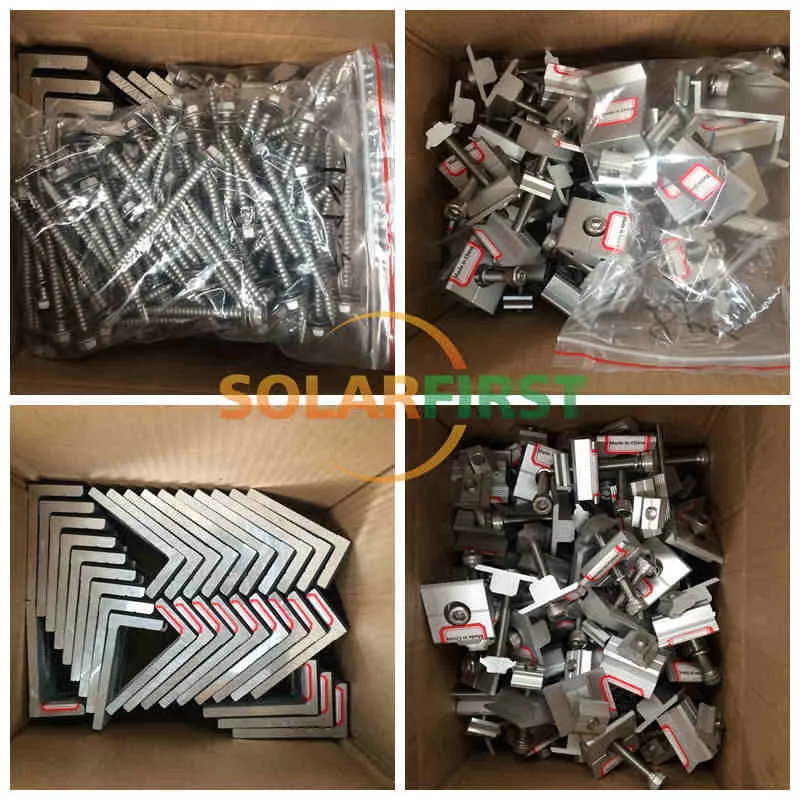

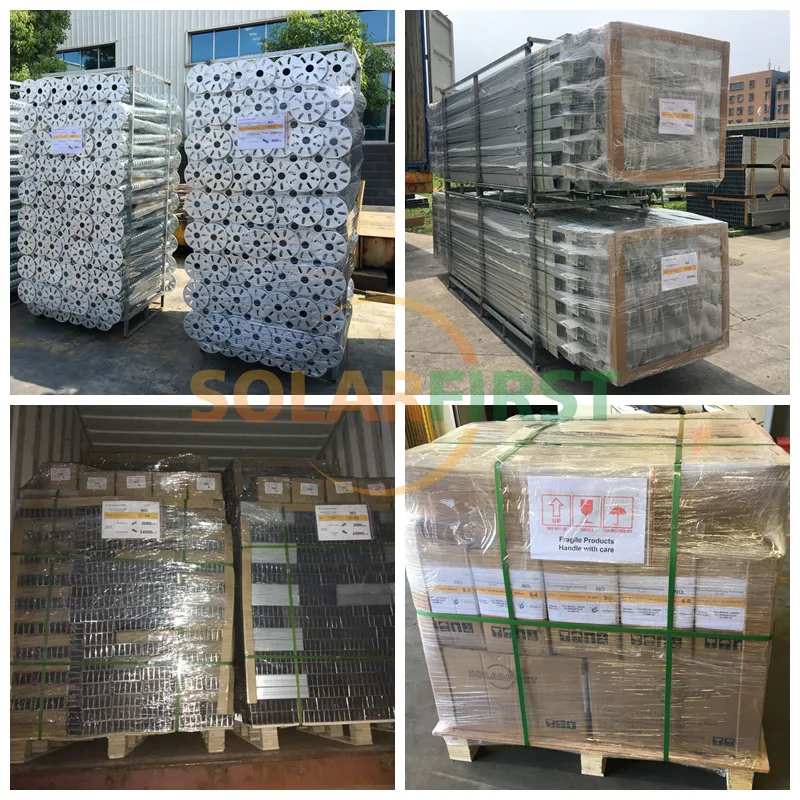

Packaging Details

Small components are packaged by cartons. Rails and beams are packaged by iron pallets for maximum protection.

Frequently Asked Questions

What is the maximum wind and snow load capacity for this system?

The system is designed to withstand a wind speed of up to 60m/s and a snow load of 1.4KN/M2.

What materials are used in the mounting structure?

The main supporting structure is made from Galvanized Steel and Aluminum Alloy, with small parts utilizing Aluminum, Polyethylene, and Stainless Steel (SUS).

Is the tilt angle of the solar panels adjustable?

Yes, the tilt angle can be customized according to your specific installation requirements and site location.

What is the expected warranty and service life?

The mounting system comes with a 10-year warranty and has an expected service life of over 25 years.

Which international standards do your products comply with?

Our mounting structures comply with international standards including GB50009, UL2703, and DIN1055.

Can this system be used for both landscape and portrait panel orientations?

Yes, the system arrangement supports both landscape and portrait panel orientations as per your project design.
