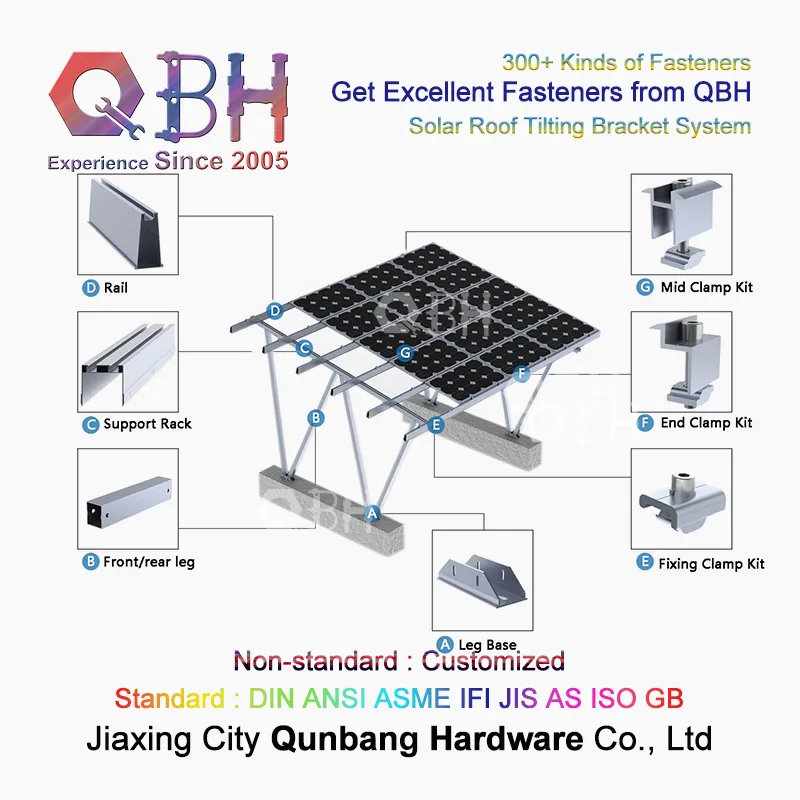

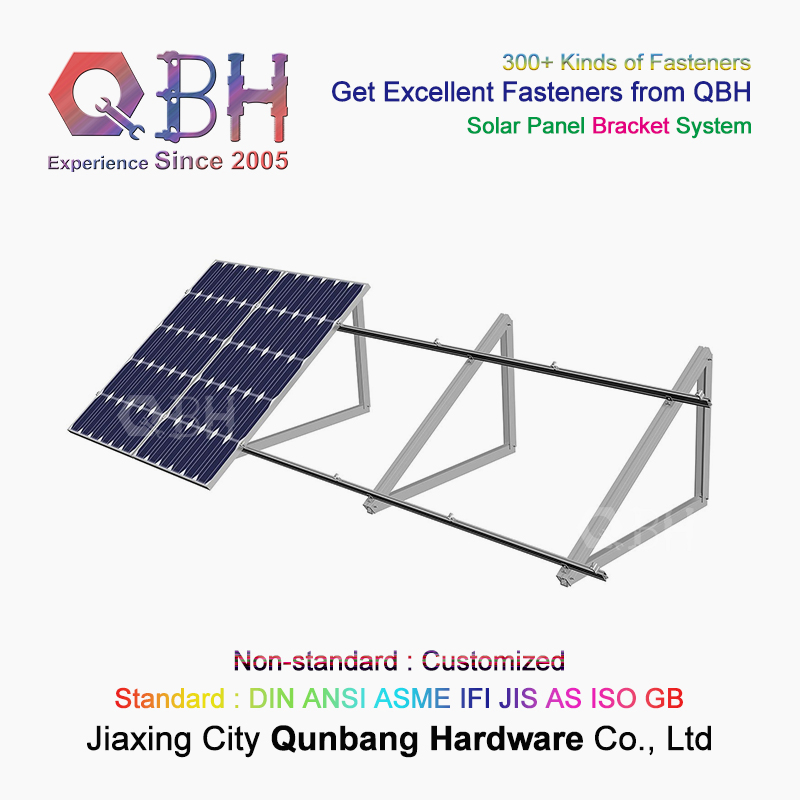

Solar Roof Tilting Bracket System offers exceptional flexibility for the design and planning of commercial or civil roof solar systems. Specifically engineered for parallel installation of common framed solar panels on sloping roofs.

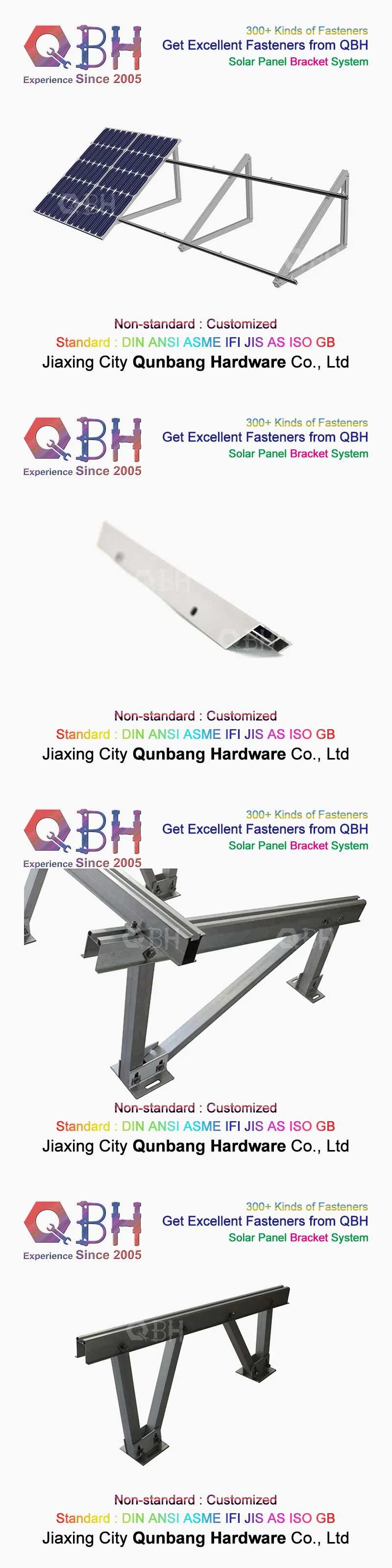

The unique aluminum extrusion guide rail, inclined mounting parts, various card blocks, and specialized roof hooks can be pre-installed to ensure easy and fast setup, significantly saving labor costs and installation time. The customized length eliminates on-site welding and cutting, ensuring high corrosion resistance and structural aesthetics.
Inclined mounting parts can be installed from any position of the Aluminum Alloy Extrusion Guide Rail, minimizing installation time and cost.
Designed for a 20-year service life with 10 years of quality assurance. Structural parts are made of high-strength stainless steel and anodized aluminum alloy.
Designed according to AS/NZS 1170 and other international standards to withstand extreme conditions. Stress components are rigorously tested.
Applicable to all types of universal framed solar panels and various roofs in the existing market, from small home systems to multi-megawatt projects.
| Type | C ≤ | Si ≤ | Mn ≤ | P ≤ | S ≤ | Ni ≥ | Cr ≥ | Mo ≥ | Cu ≈ |
|---|---|---|---|---|---|---|---|---|---|
| 201Cu | 0.08 | 1.00 | 7.5-10 | 0.06 | 0.03 | 4.0-6.0 | 14.0-17.0 | - | 2.0-3.0 |
| 301 | 0.15 | 1.00 | 2.00 | 0.045 | 0.03 | 5.0-8.0 | 16.0-18.0 | - | - |
| 304 | 0.07 | 1.00 | 2.00 | 0.035 | 0.03 | 8.0-10.0 | 18.0-20.0 | - | - |
| 316L | 0.03 | 1.00 | 2.00 | 0.045 | 0.03 | 12.0-15.0 | 16.0-18.0 | 2.0-3.0 | - |
