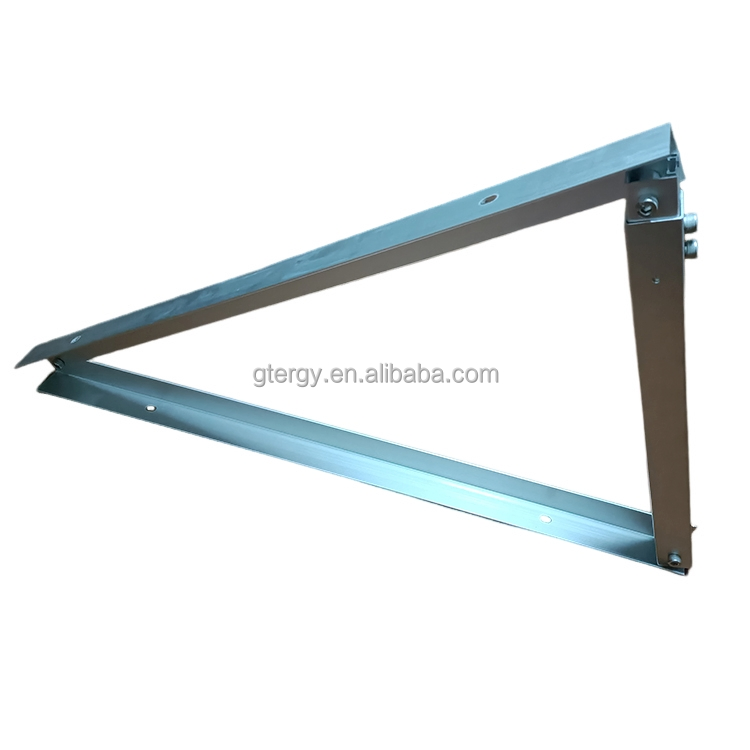

Flat Roof Solar Panel Mounting Kits Mount Structure Fixed Ballast Bracket Triangle System

1 / 5

Flat Roof Solar Panel Mounting Kits Mount Structure Fixed Ballast Bracket Triangle System

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Info

Certification

Certificate of Utility Model Patent

Application

Commercial

Material

Aluminum Alloy

Type

Roof Bracket

Product Name

Solar Triangle Kit

Max Wind Speed

up to 130mph(60m/s)

Design Snow Load

up to 30PSF(1.4kN/m2)

Duration

25 Years

Tilt Angle

10-15; 15-30; 30-60 degrees

Capacity

50GW / Month

Product Description

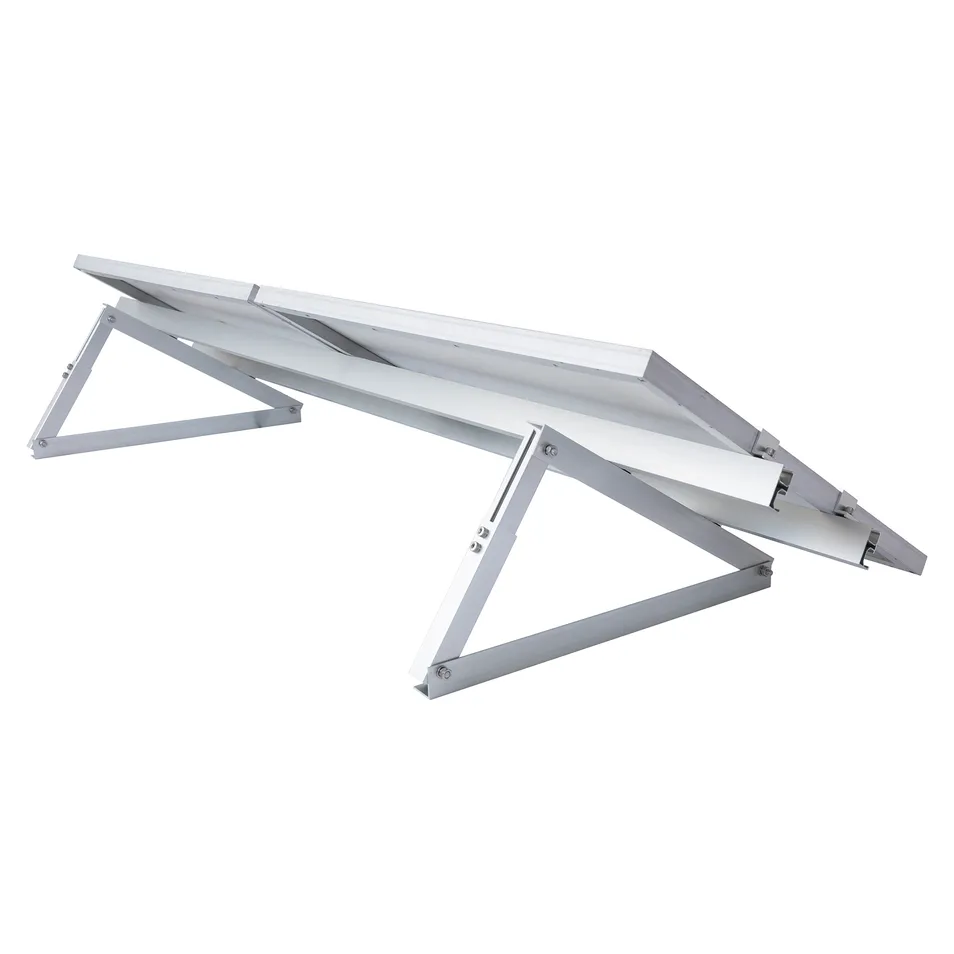

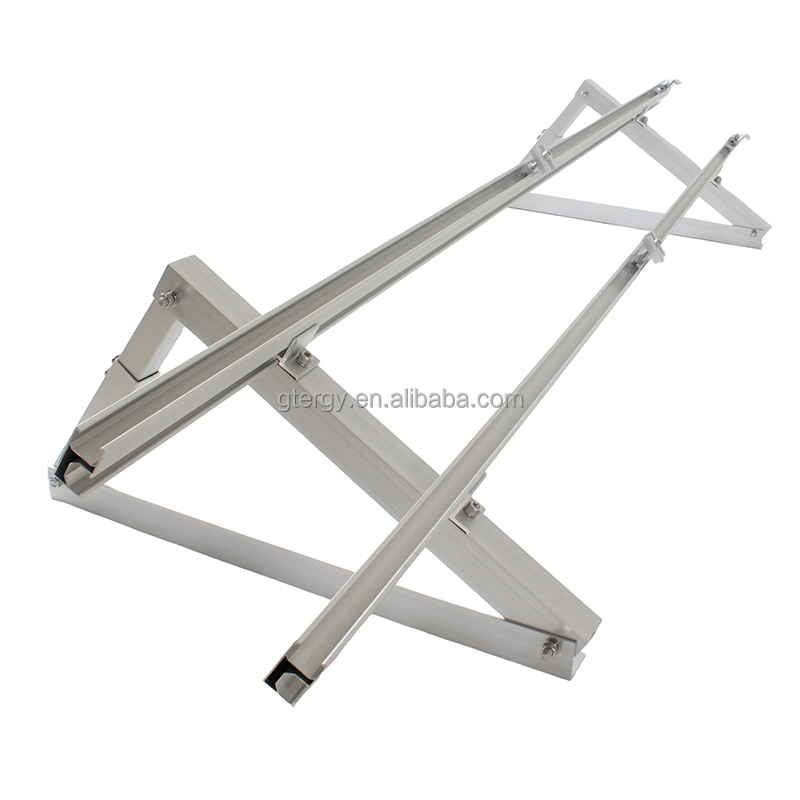

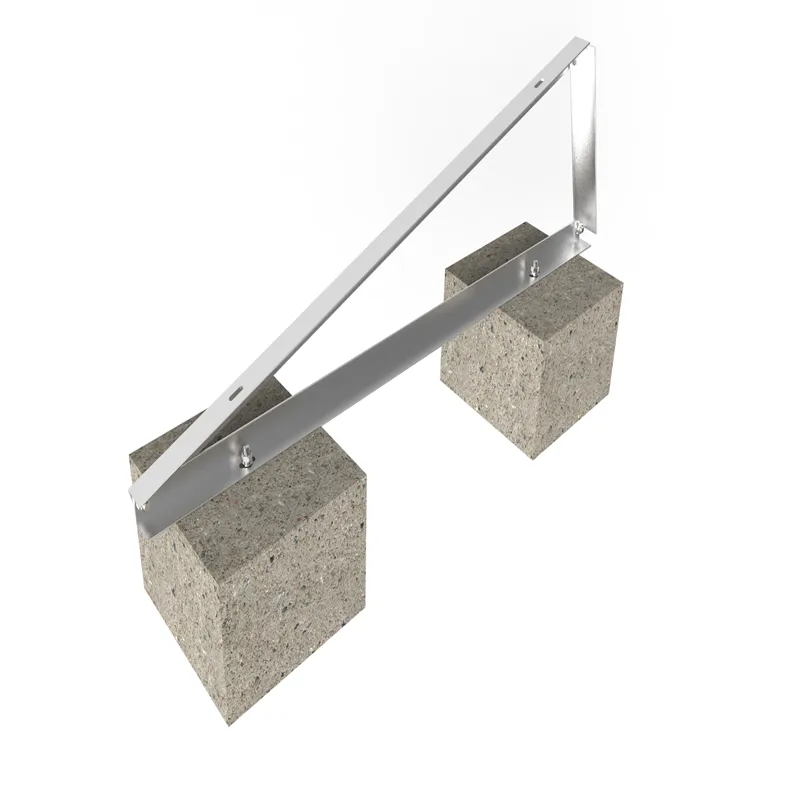

Adjustable Triangle Kit
The aluminum alloy adjustable-angle triangular solar bracket is a lightweight, durable, and corrosion-resistant mounting solution designed for optimal solar panel positioning. Made from high-strength aluminum alloy, it allows flexible angle adjustments to maximize solar energy capture. Its modular design ensures easy transportation and quick installation, making it suitable for flat roofs, ground-mounted systems, or other surfaces requiring precise tilt adjustments.

Technical Parameters

TECHNICAL SPECIFICATIONS
Material	Aluminum 6005-T5 & SUS304
Surface Treatment	Anodizing 13 Um
Tilt Angle	10°-15°; 15°-30°; 30°-60°
Max Wind Speed	Up To 130Mph (60m/s)
Design Snow Load	Up To 30Psf (1.4kn/m2)
Design Standard	JIS C 8955:2011, GB50009-2012, 1BC 2009
Installation	Tin Rooftop or Flat Concrete Open Space
Warranty	12 Years
Duration	25 Years

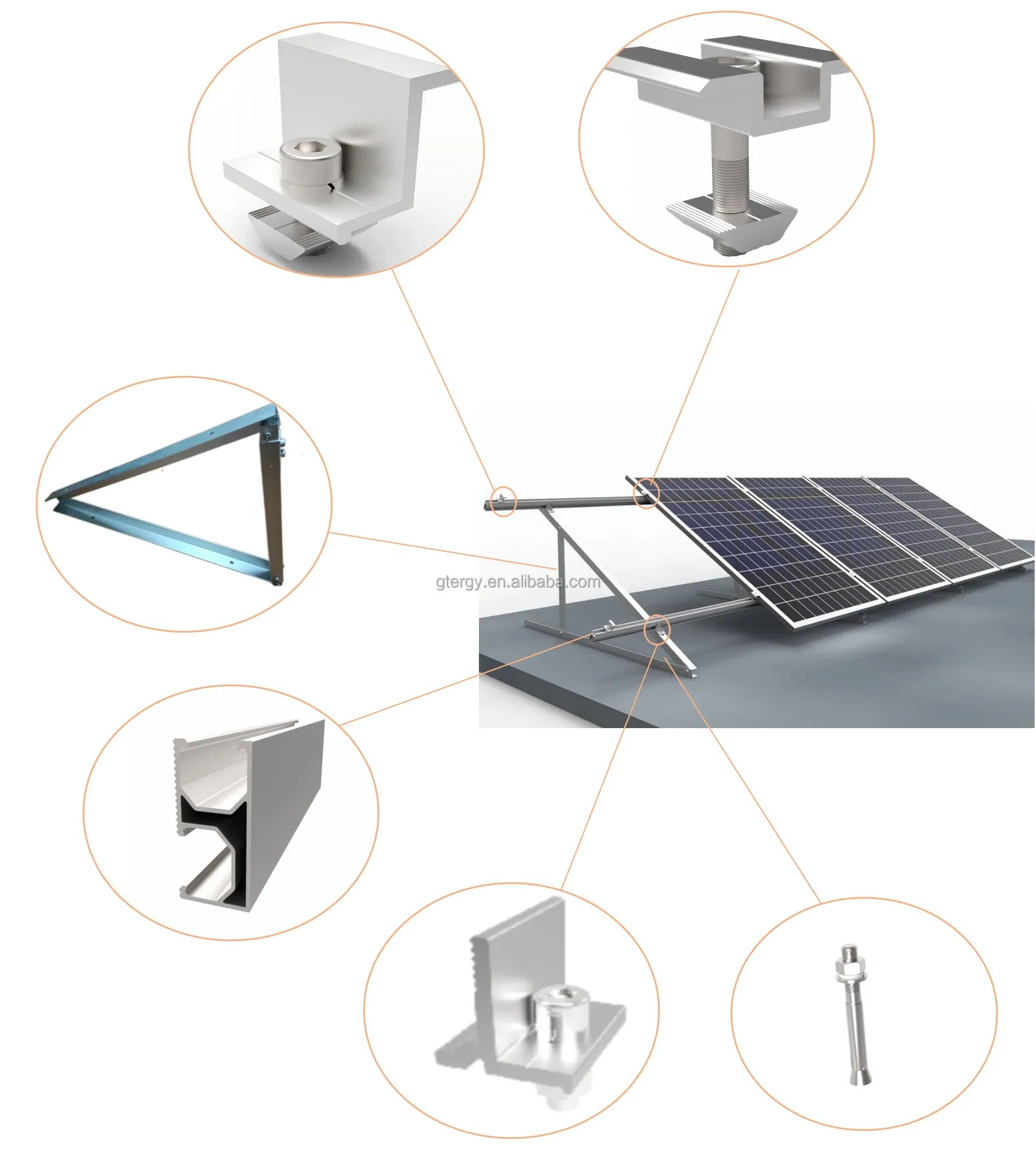

Detailed Photos

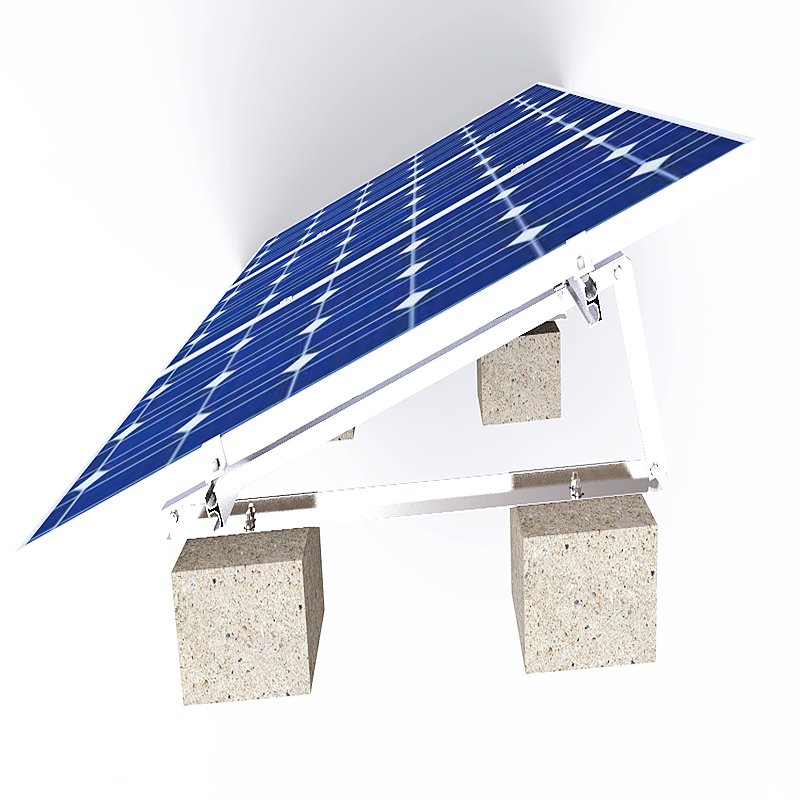

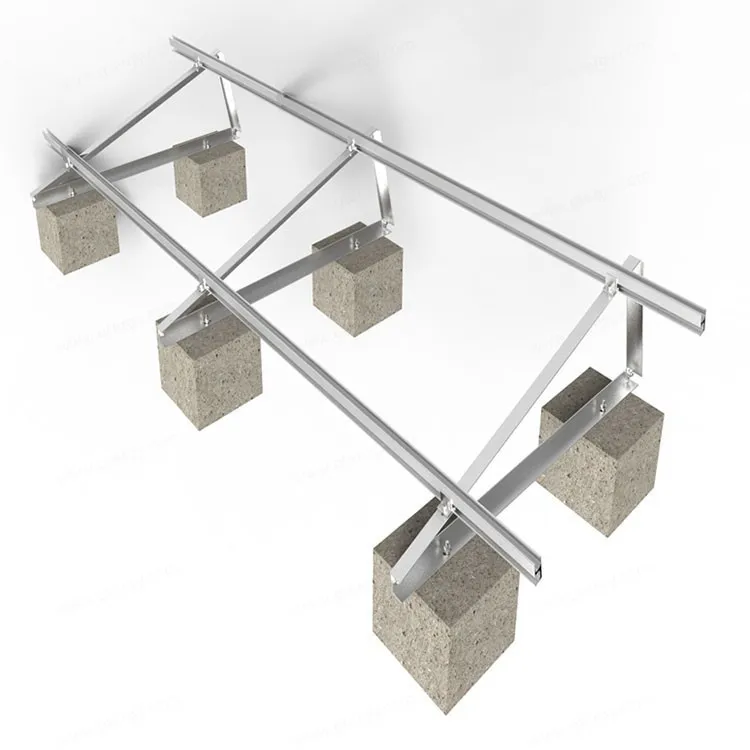

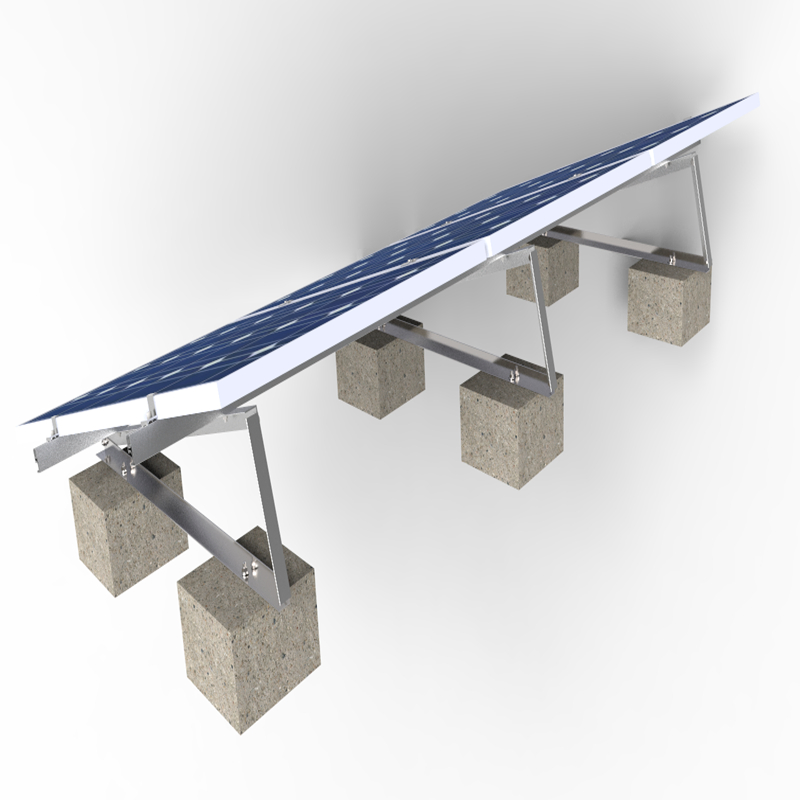

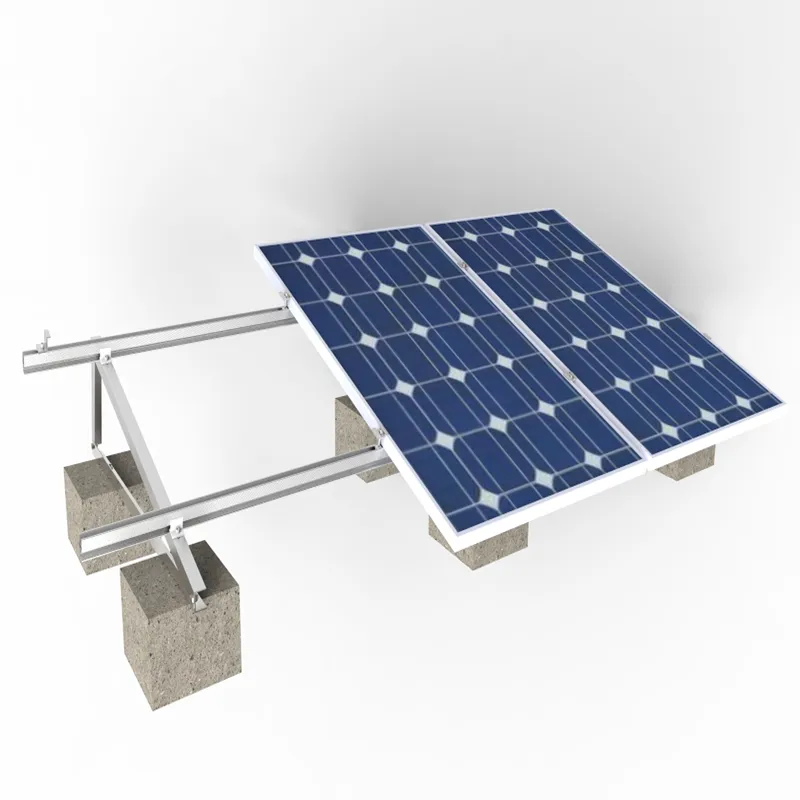

Solar panel flat roof mounting brackets
Designed for concrete roofs or flat open ground spaces. Panels can be installed in landscape or vertical orientation. Custom angles available.

Global Projects

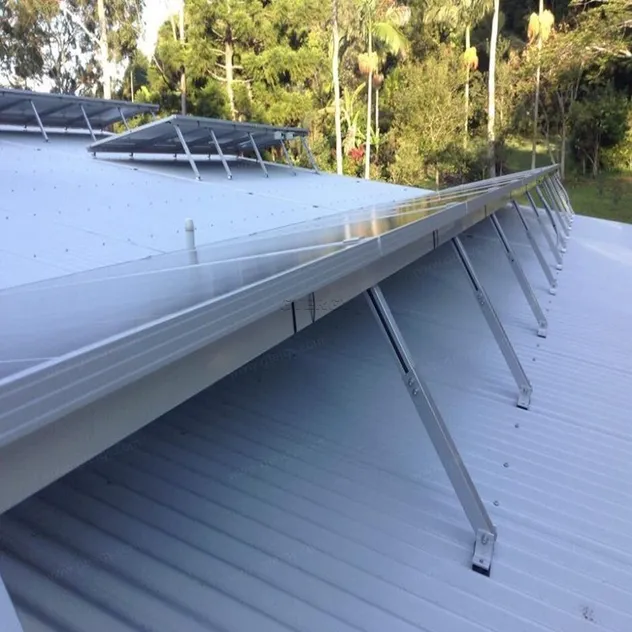

Mexico Rooftop

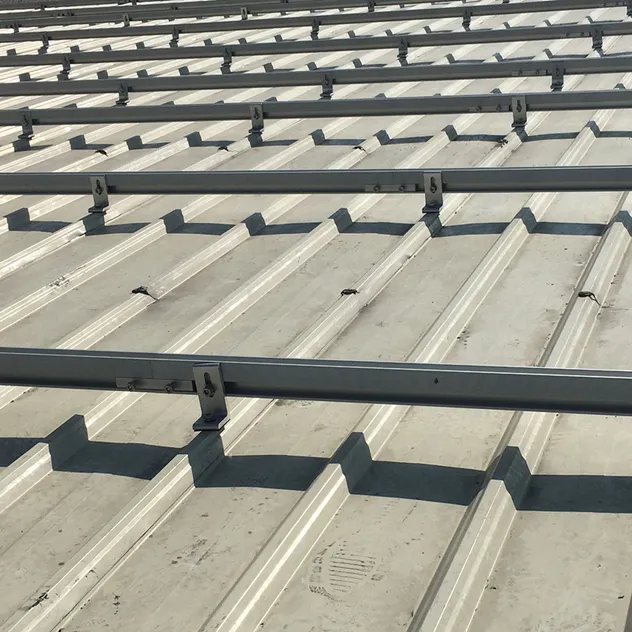

Sri Lanka Project

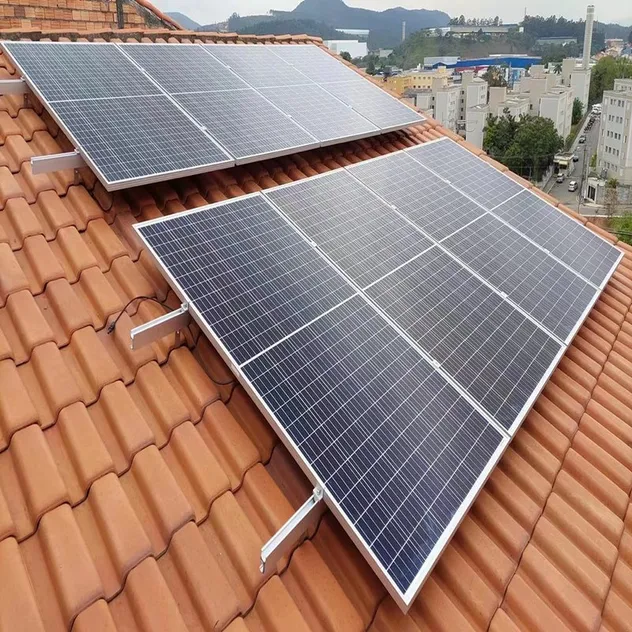

Poland Project

Packaging & Shipping

Frequently Asked Questions

Are you a factory or trading company?

We are a direct manufacturer specializing in producing solar mounting systems, including multi-choice options for roofs, ground, and RV solutions.

How long is the typical production time?

Stock items require 1-3 days. Mass production usually takes 7-15 days, depending on the specific order quantity.

Do you have a Minimum Order Quantity (MOQ)?

We do not have an MOQ for our current standard products; even 1 piece for quality testing is available. For ODM/OEM items, a minimum quantity is required due to technical reasons.

Can I request a free sample?

Yes, similar samples from our showroom are free, though the freight cost is the customer's responsibility. Customized samples may incur a sample charge.

What are the shipping methods and delivery times?

Sample orders ship via DHL/FedEx (3-5 days). Bulk orders are generally shipped by sea, taking 15-30 days depending on the destination port.

Do you offer OEM/ODM services?

Yes, we provide comprehensive OEM and ODM services, including customized logos, colors, and packaging based on your artwork.
