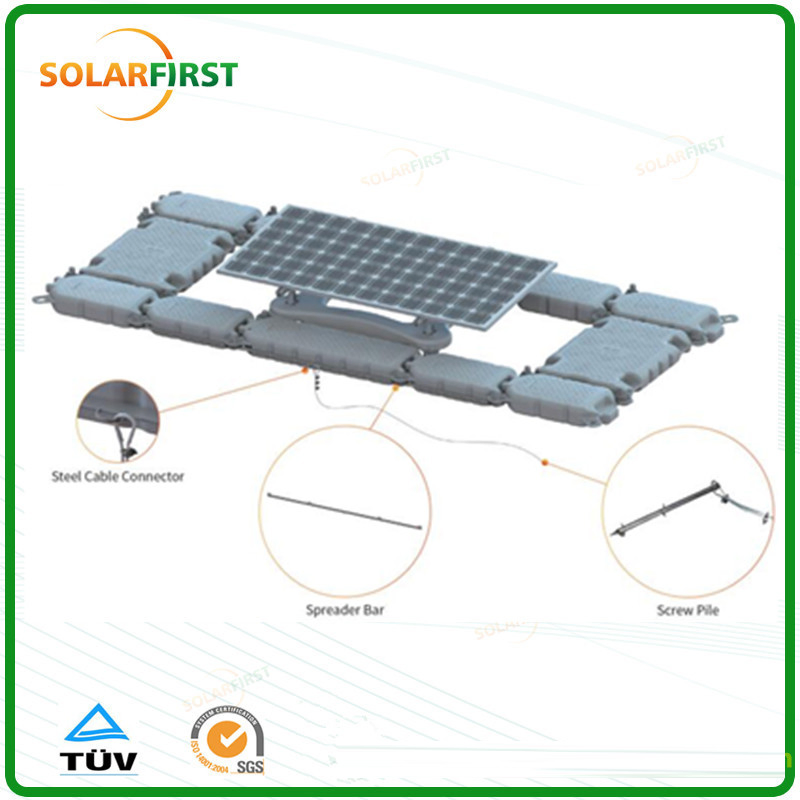

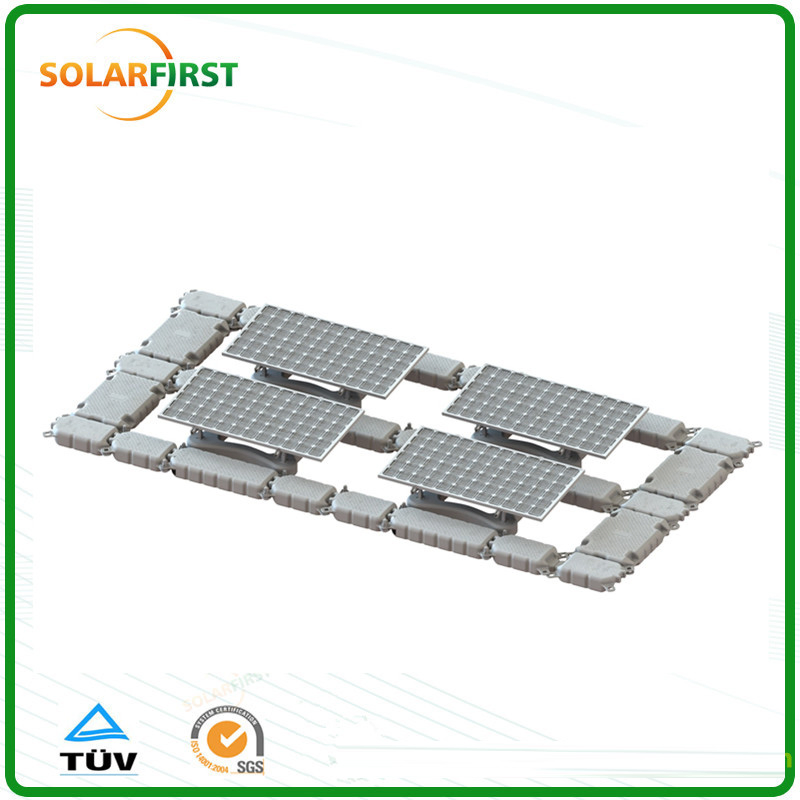

Floating Solar Mounting Solar Float Body Bracket

1 / 5

Floating Solar Mounting Solar Float Body Bracket

Customization:	Available
Certification:	ISO
Application:	Commercial

Send Inquiry

Product Description

Basic Information

Model NO.

SF-FM-01

Material

HDPE

Type

Floating Mounting

Product Name

Floating Solar Mounting

Installation Site

Lake, River or Sea

Tilt Angle

10, 15 Degree or Other

Max Wind Load

60m/S

Max Snow Load

1.4kN/M2

Specification

Customize

Capacity

100,000,000W/Month

✓

Technical Specification

Installation site	On Water Surface (lake, reservoir, dam, pond, etc.)
Surface flow rate	≤0.51m/s
Wind Load	≤36m/s
Snow Load	≤45KN/㎡
Tilt Angle	0~25°
Standards	BS6349-6, T/CPIA 0017-2019, T/CPIA0026-2019, NBT10187-2019, GBT 13508-1992

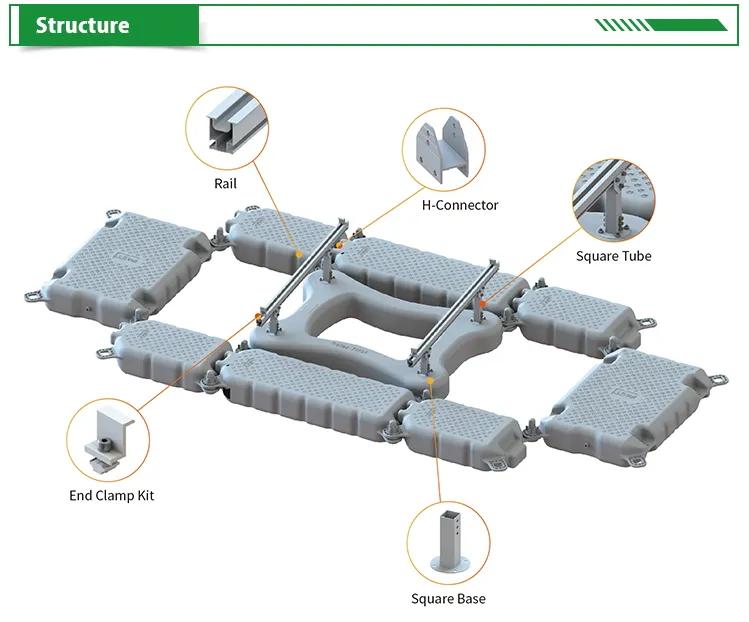

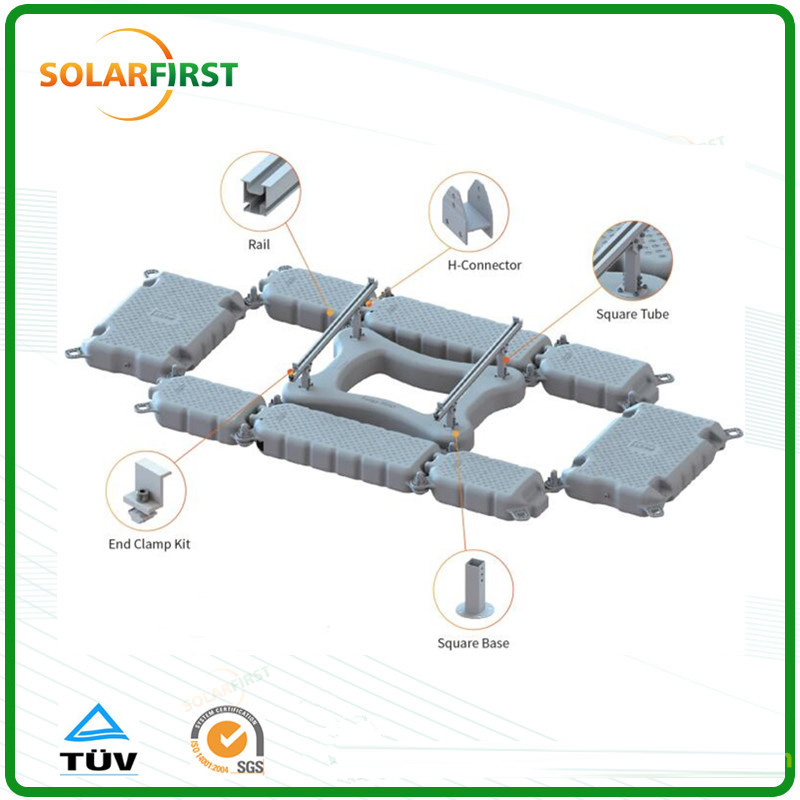

Material	HDPE, Al6005-T5, SUS304
Warranty	10-Year Warranty and 25-Year Service Life

📷

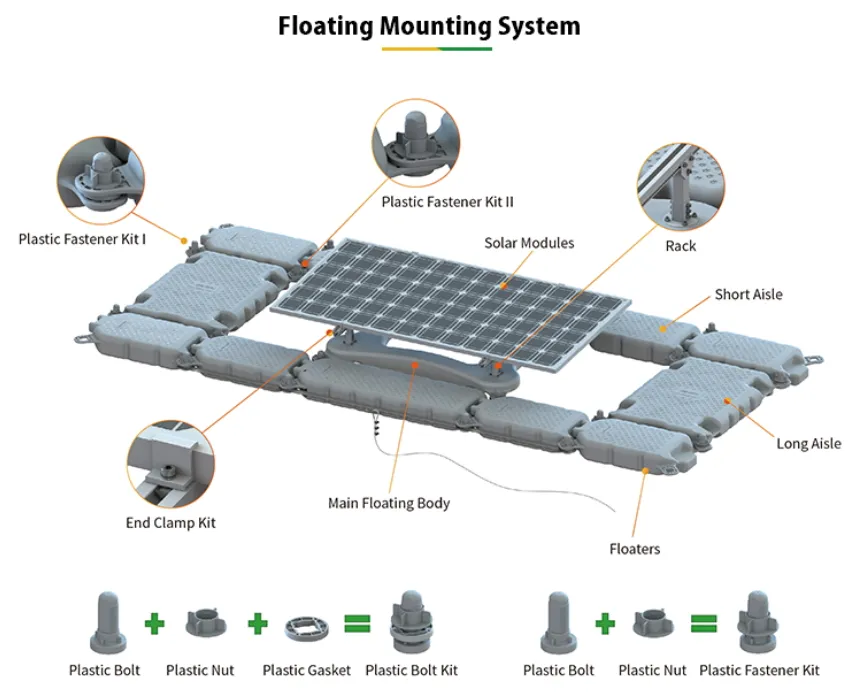

Product Showcase

Frequently Asked Questions

What materials are used in the floating solar mounting system?

The system primarily uses High-Density Polyethylene (HDPE) for floats, along with Al6005-T5 aluminum alloy and SUS304 stainless steel for structural components to ensure high corrosion resistance.

Where can this system be installed?

It is designed for various water surfaces including lakes, rivers, reservoirs, dams, and ponds. It can handle surface flow rates of up to 0.51m/s.

What is the wind and snow load resistance of the mounting?

The system is engineered to withstand extreme conditions, with a maximum wind load of 60m/s and a snow load capacity of up to 1.4kN/M2.

Can the tilt angle of the solar panels be adjusted?

Yes, the system offers standard tilt angles of 10° and 15°, but it can be customized between 0° to 25° based on specific project requirements and geographic location.

How long is the service life and warranty period?

The floating mounting system comes with a 10-year warranty and is designed for a service life of up to 25 years.

Does the system comply with international safety standards?

Yes, the product adheres to multiple rigorous standards including BS6349-6, T/CPIA 0017-2019, and GBT 13508-1992, ensuring safety and reliability.
