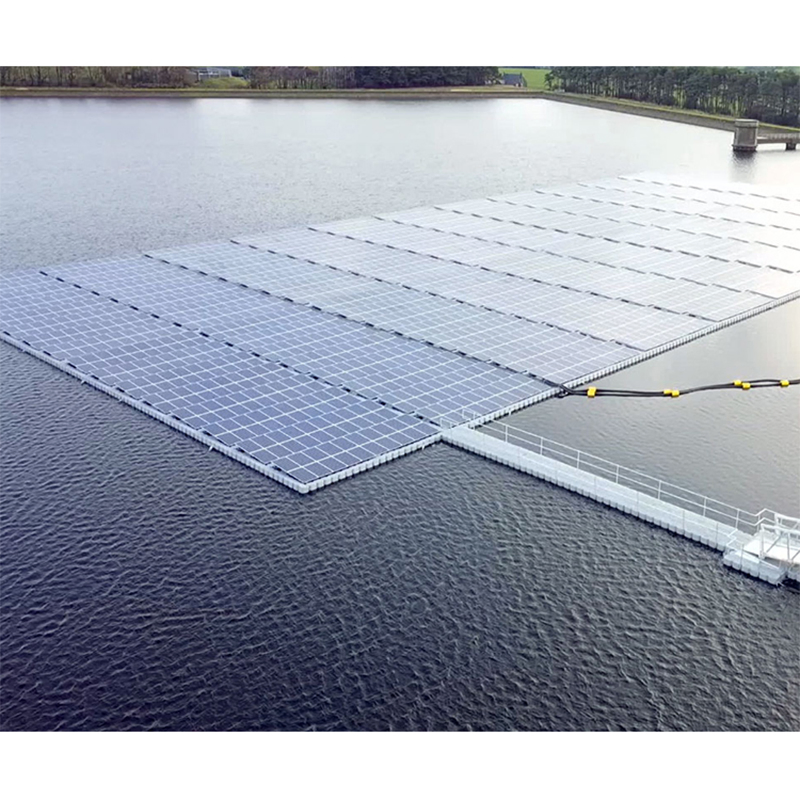

Solar Floating Mounting Structure Floating Solar System

1 / 5

Solar Floating Mounting Structure Floating Solar System

Customization:	Available
After-sales Service:	Yes
Warranty:	Yes

Send Inquiry

Product Description

Basic Info.

Model NO.

SF-FM003

Condition

New

Certification

ISO, CE, TUV

Application

Commercial

Specification

Normal

Product Name

Floating Solar Mounting

Material

HDPE

Tilt Angle

10, 15 Degree or Other

Installation Site

Lake, River or Sea

Product Description

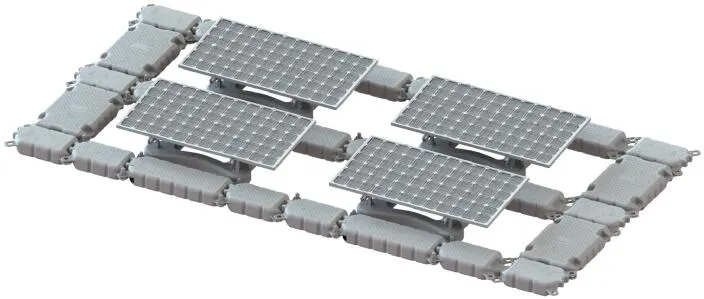

☀ Floating Solar Mounting System

This floating solar mounting system is designed to reduce water evaporation and utilize the cooling effect of water to significantly increase power generation efficiency.

Fireproof Design: The bracket for installing solar panels is constructed from high-quality aluminum alloy. This ensures fireproof performance, preventing any potential fire on a single panel from spreading to main floaters or adjacent components.

Easy Maintenance: The system is designed for easy installation without the need for heavy equipment, making it safe and convenient to maintain over time.

Customizable Angles: The tilt angle can be customized from 0 to 25° without requiring new moulds, offering flexibility for different geographic locations.

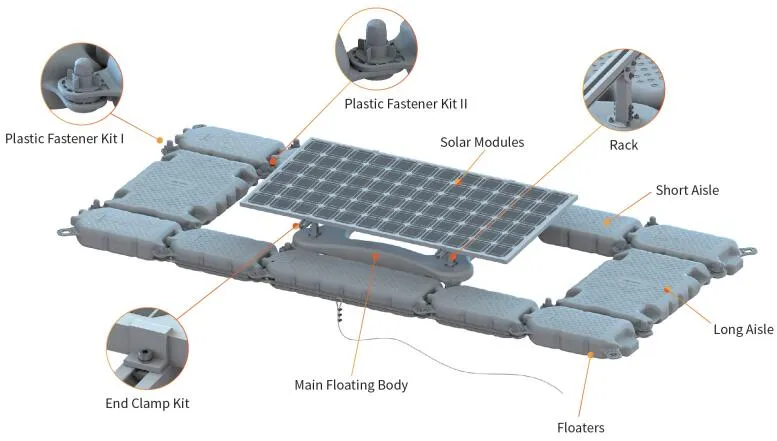

⚙ Component Details

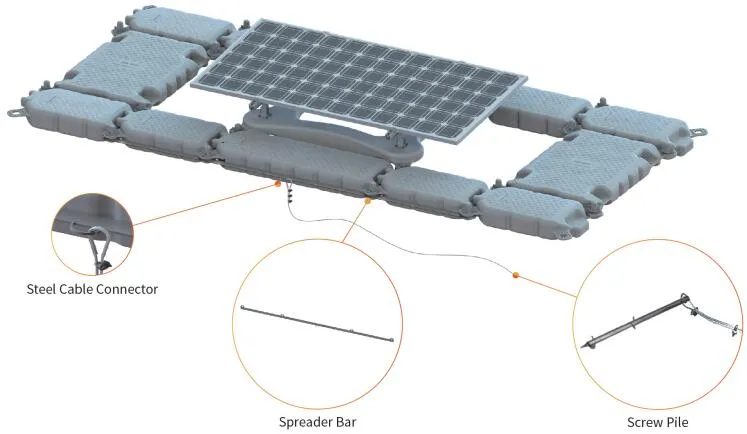

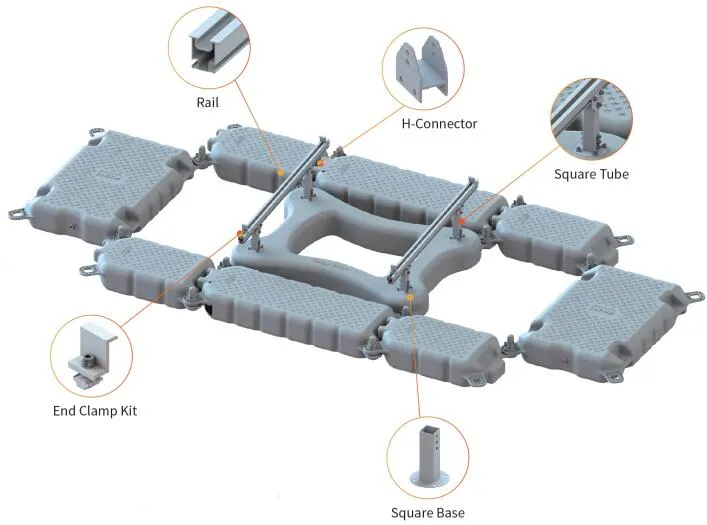

🔗 Aluminum Bracket & Anchoring

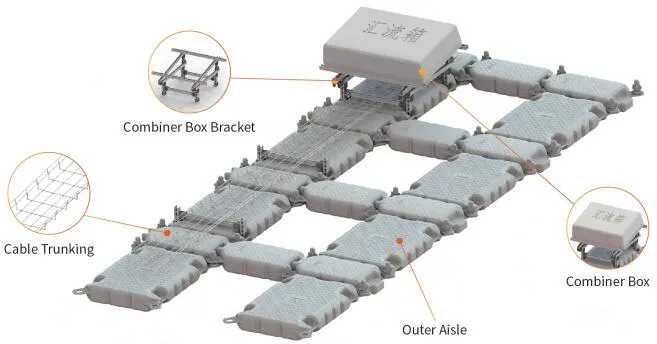

📦 Combiner Box & Aisle Solutions

🛣 Types of Trunking

Technical Details

Installation Site	On Water Surface (lake, reservoir, dam, pond, etc.)
Wave Height	≤0.5m
Water Flow Rate	≤0.51m/s
Wind Load	≤36m/s
Snow Load	≤0.45kN/mm²
Tilt Angle	0~25°
Standards	BS6349-6, T/CPIA 0017-2019, T/CPIA0026-2019, NBT10187-2019, GBT 13508-1992
Material	HDPE, Al6005-T5, SUS304
Warranty	10-Year Warranty and 25-Year Service Life

Frequently Asked Questions

What are the main advantages of floating solar systems?

Floating solar systems reduce water evaporation and utilize the water's cooling effect to enhance solar panel efficiency and power output.

Is the floating mounting structure fire-resistant?

Yes, the brackets are made of fireproof aluminum alloy (Al6005-T5) to prevent the spread of fire between panels and floaters.

Can the tilt angle be customized for specific locations?

Absolutely. The system supports custom tilt angles from 0° to 25° without the need for creating new manufacturing moulds.

What materials are used in the construction?

The system primarily uses High-Density Polyethylene (HDPE) for floaters, Aluminum Alloy (Al6005-T5) for brackets, and Stainless Steel (SUS304) for hardware.

What is the expected lifespan of this mounting system?

The system is designed for a 25-year service life and comes with a 10-year warranty.

Where can these floating structures be installed?

They are suitable for various water surfaces, including lakes, reservoirs, dams, ponds, and even certain calm sea areas.
