Product Description

📊

Overview & Basic Info

Model NO.	YL-F1	Application	Commercial
Material	Aluminum Alloy	Type	Roof Ballast Bracket
Wind Load	Up to 60 M/S	Snow Load	Up to 1.4 Kn/M2
Angle	5-15 Degree	Foundation	Flat Roof with Concrete Block

🏗️

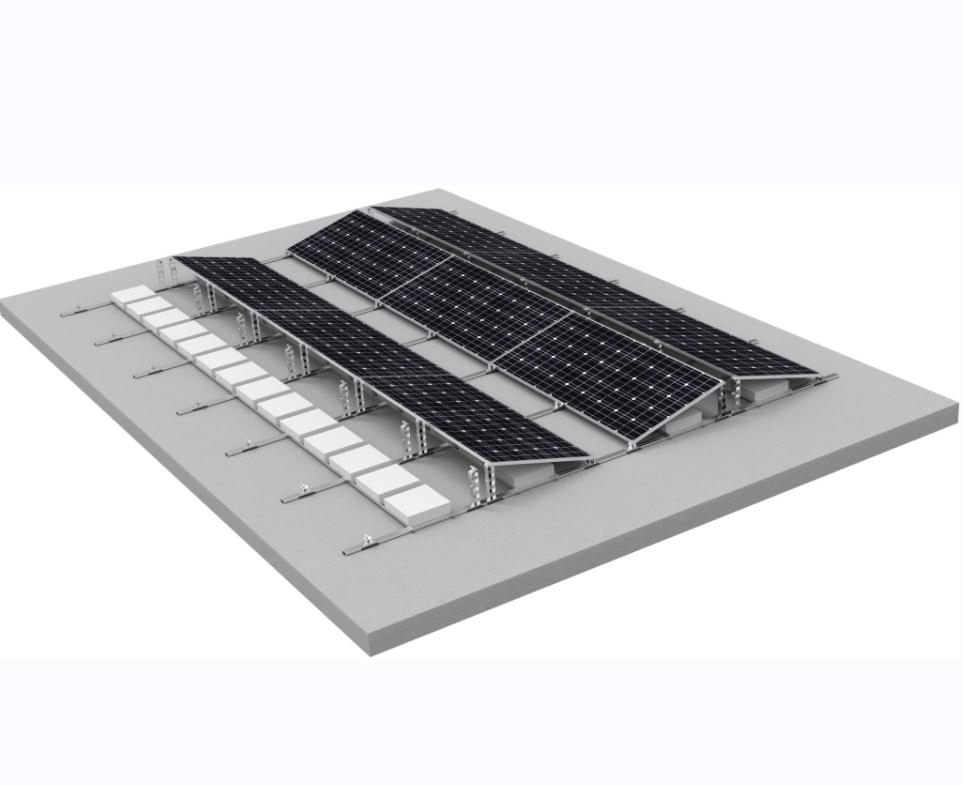

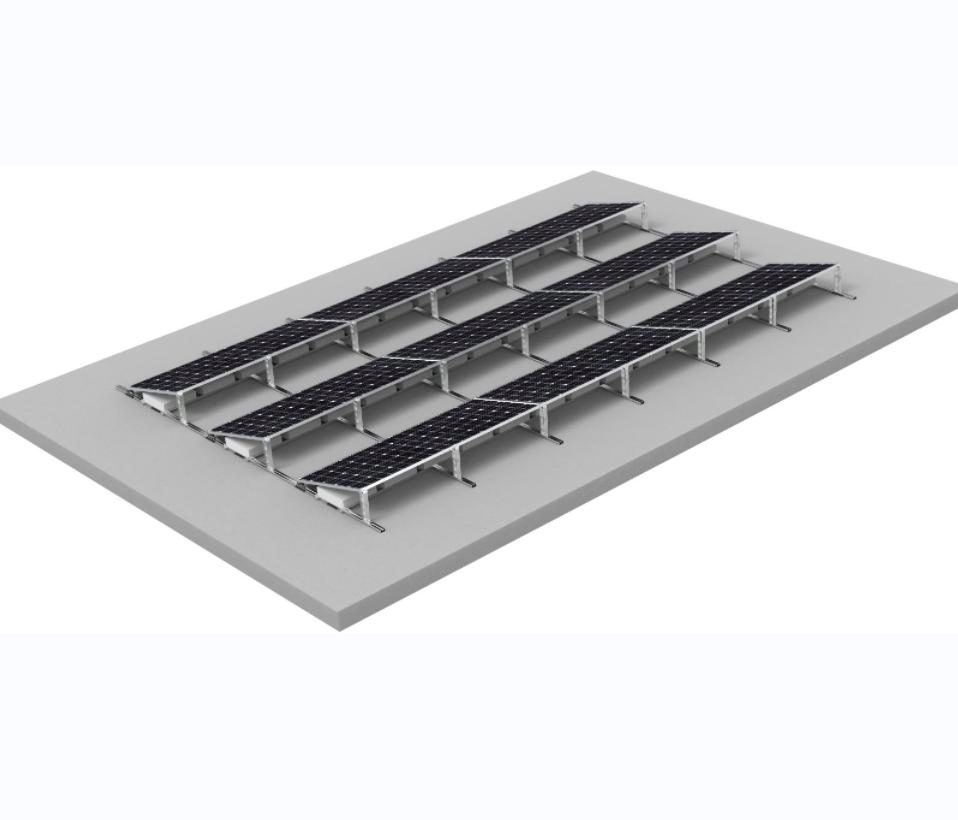

Flat Roof Ballasted Mounting System

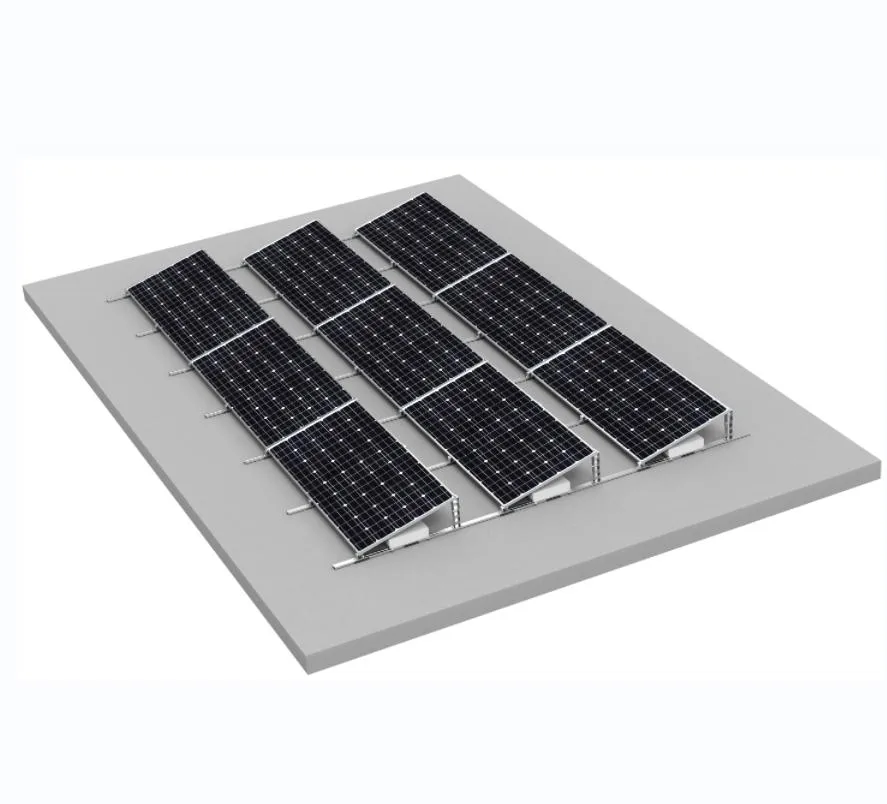

Single Orientation

Single Orientation
Angle: 5-15°, or customized

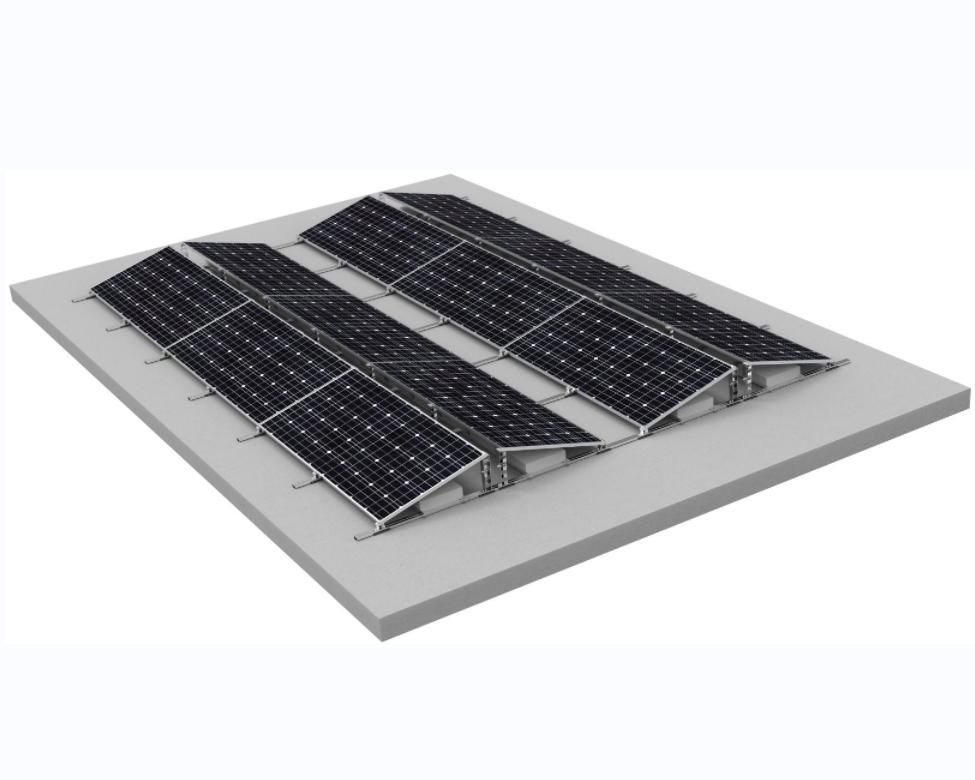

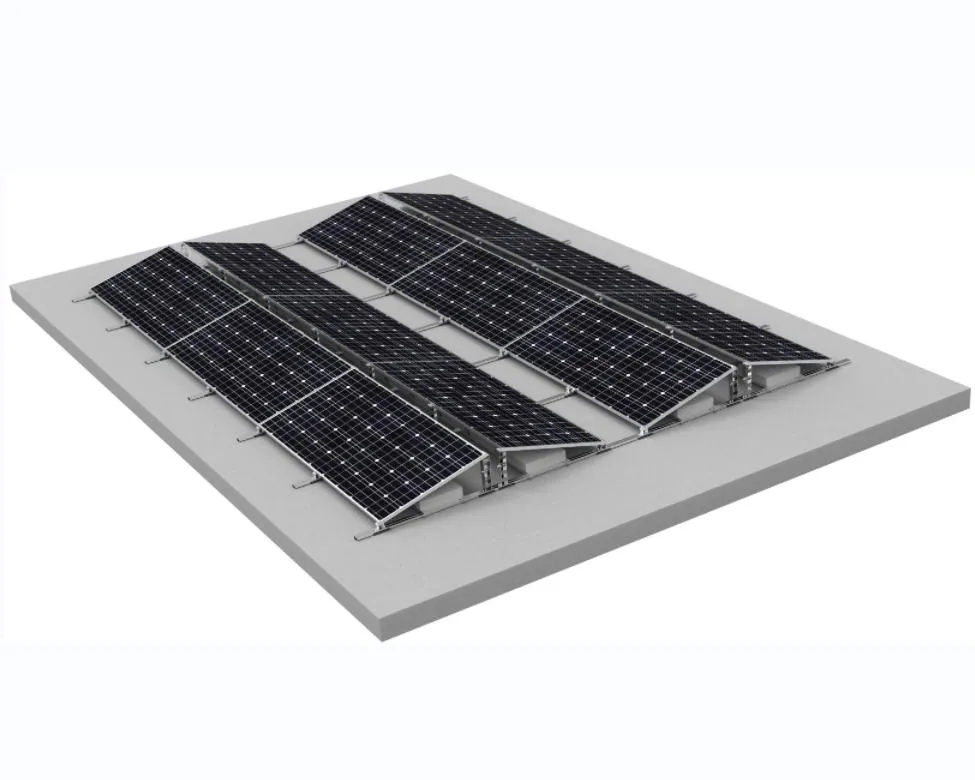

Double Orientation

Double Orientation
Angle: 5-15°, or customized

📝 Design Requirements

Please provide the following information for a customized design:

Solar Panel Dimensions (L x W x T) and Power (W)
Panel Array Layout (Row x Column)
Orientation: Portrait or Landscape
Desired Tilt Angle (5-15°)
Local Max Wind Speed and Snow Load

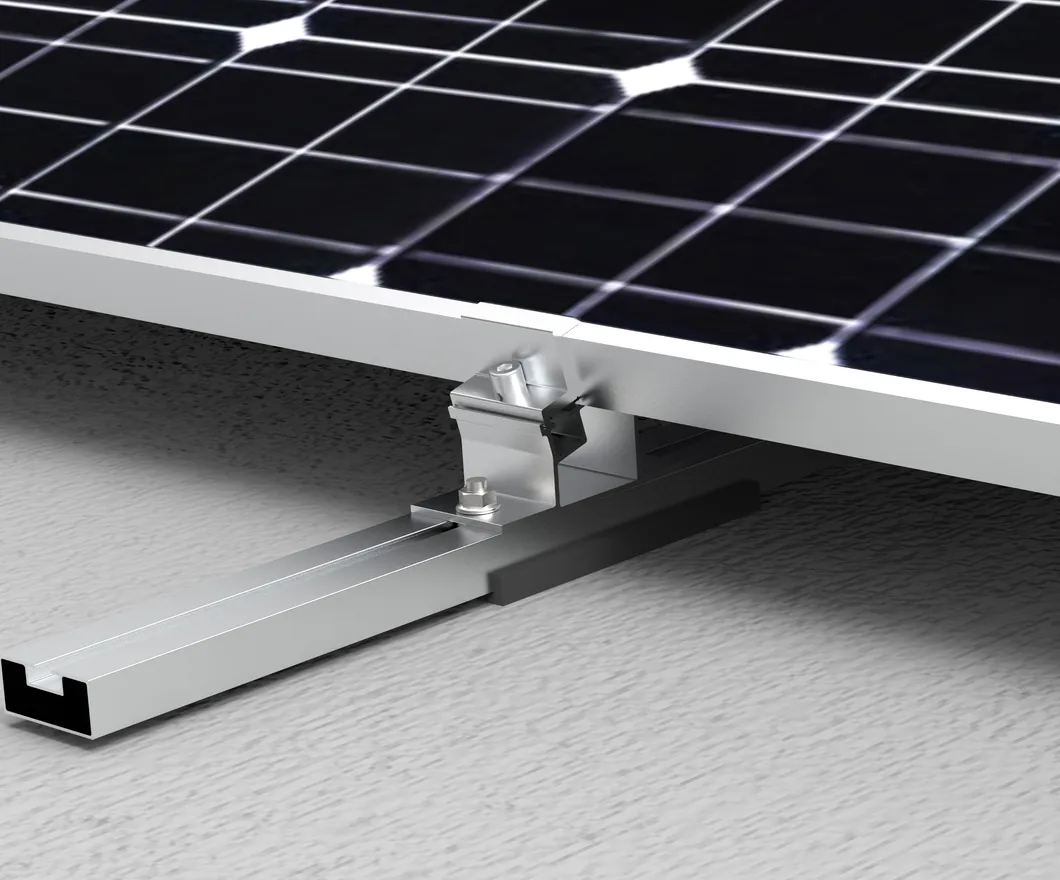

Mounting Detail 1

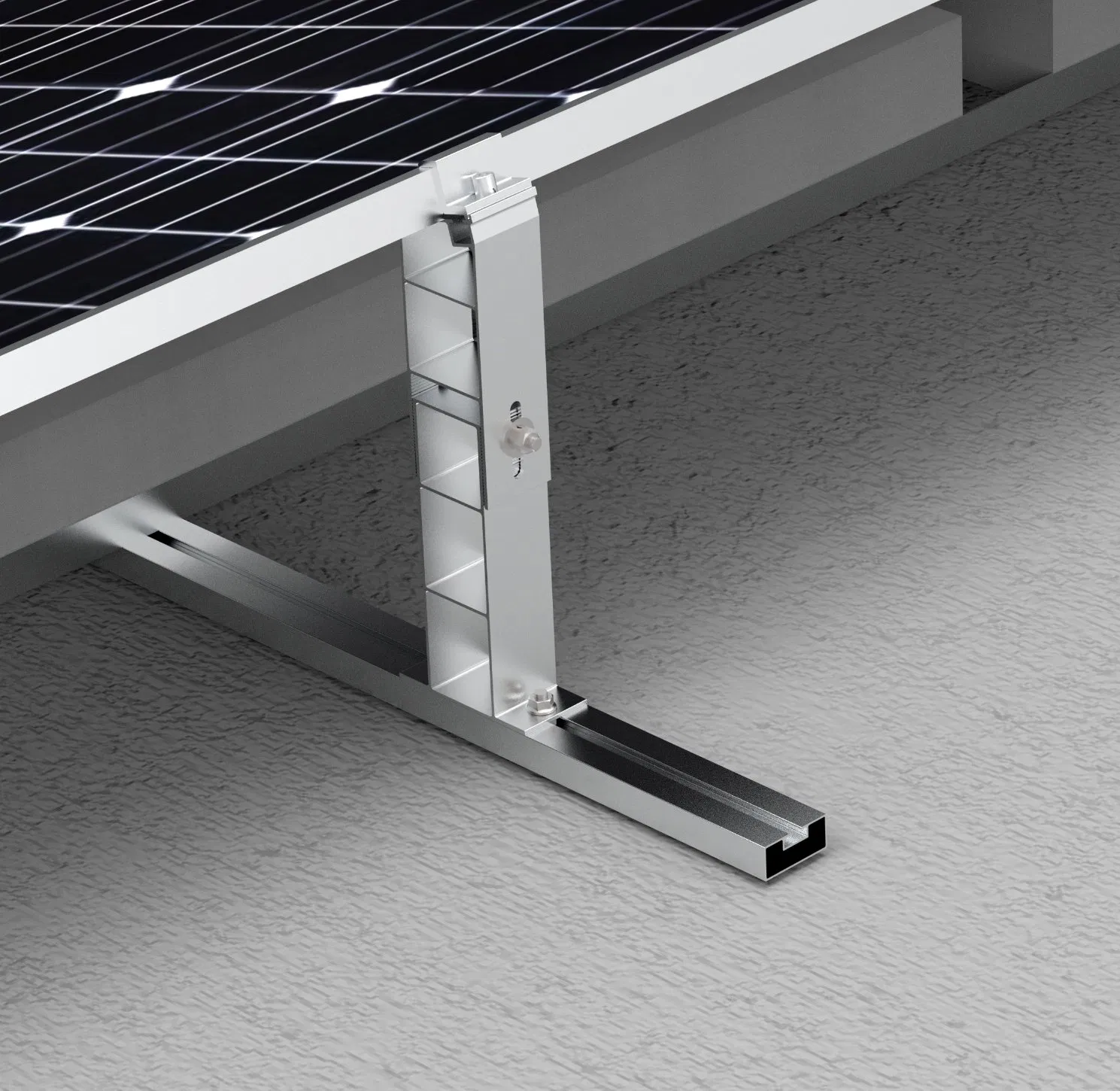

Mounting Detail 2

📦

Packaging & Related Products

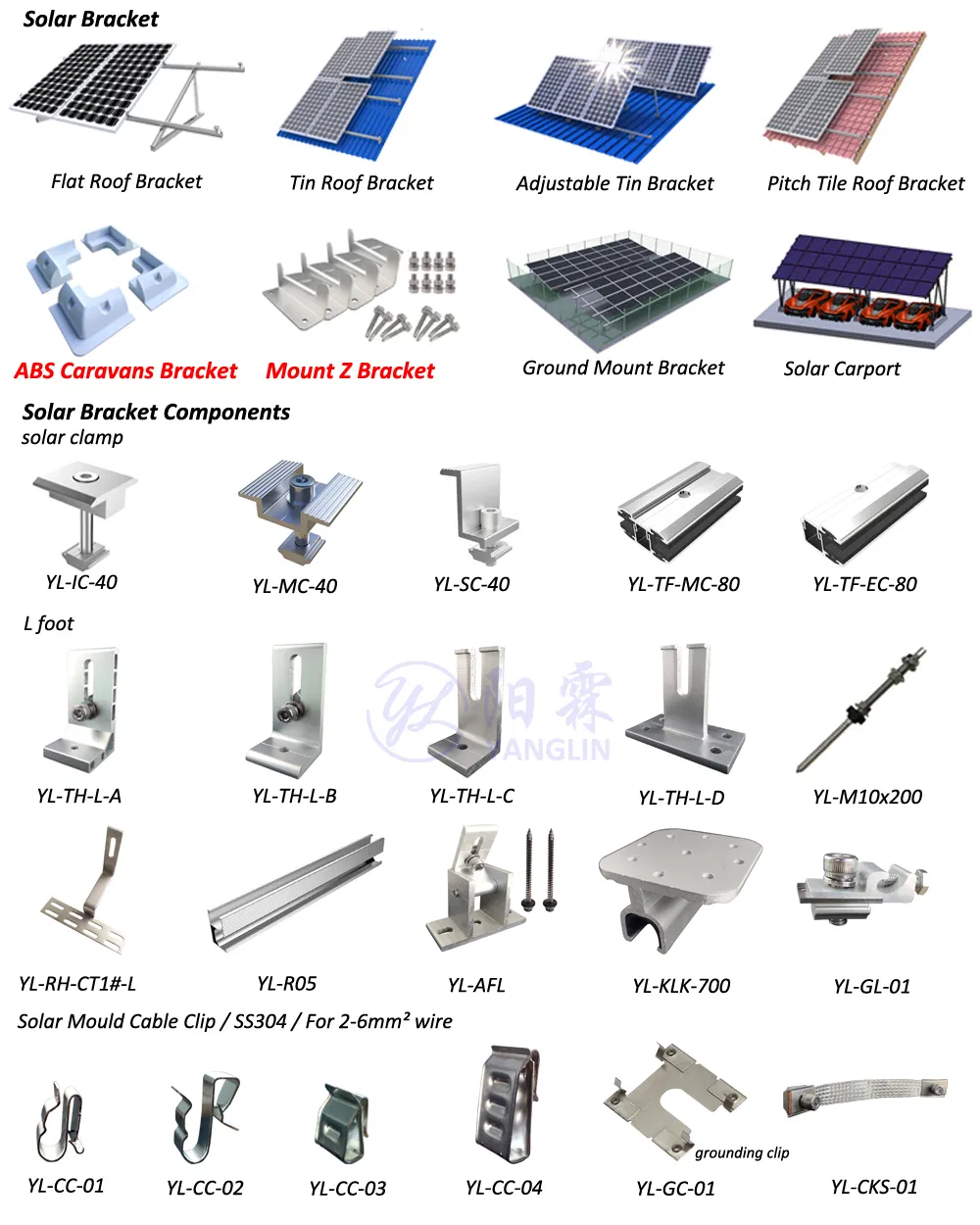

Related Products

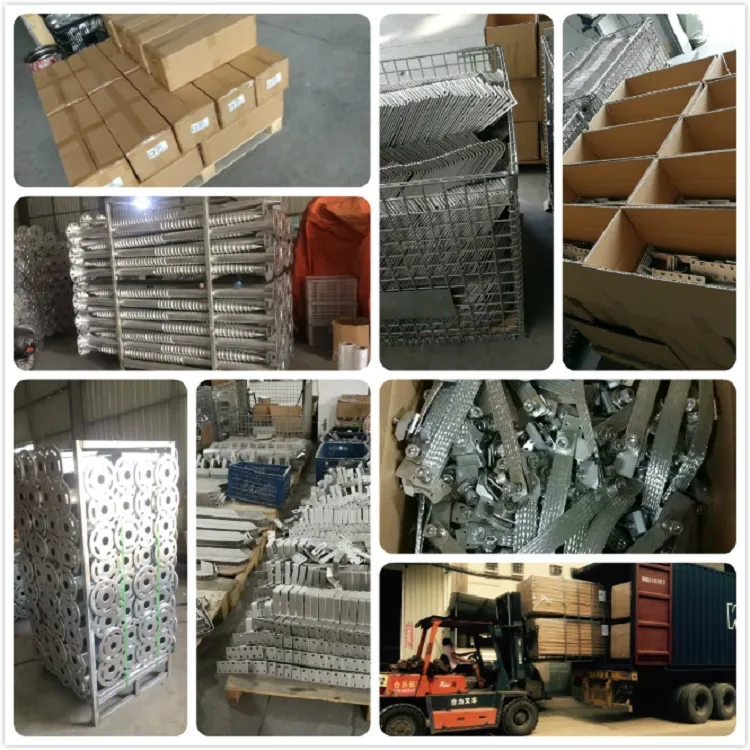

Packaging

🏭

Company Profile

Company Facility

Established in 2007 with professional sales and R&D teams.
Specialized in Flat Roof, Pitch Tile Roof, Ground Mount, and Solar Carport structures.
Direct factory manufacturing, offering significant cost savings of 15%-40%.
Quick delivery within 5-15 days post-deposit.
Strict commitment to first-class quality and credit standards.

Project Case 1

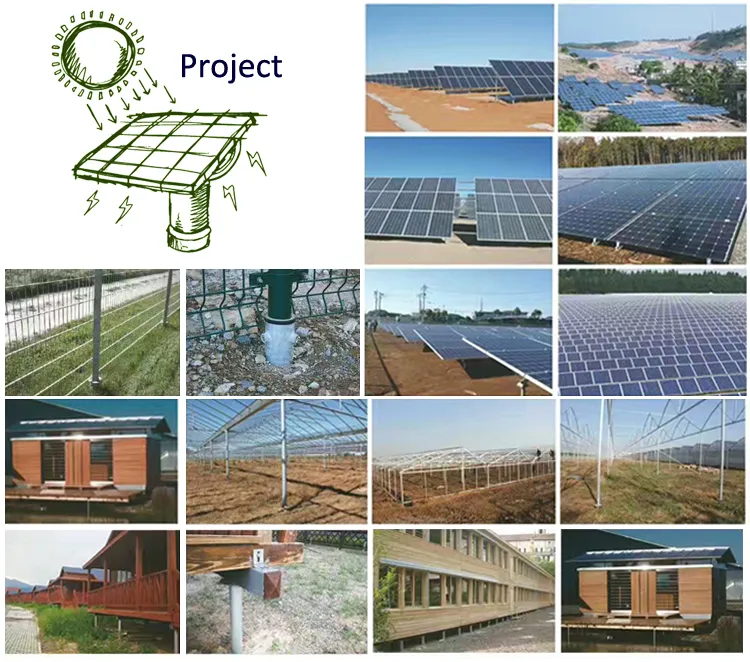

Project Case 2

❓

Frequently Asked Questions

Q1. Are you a factory or a trading company?

We are one of the largest factories in China specialized in solar racking, including ground mounts, roof mounts, and customized OEM solutions.

Q2. How do you ensure product quality?

Quality is our core culture. We conduct casual inspections during each production procedure and a final QQC check upon completion.

Q3. Can I request samples before ordering?

Yes, we are honored to provide samples according to your specific requirements.

Q4. What is the lead time for delivery?

Standard delivery usually takes 5-15 days after the receipt of the deposit.

Q5. What info is needed for an accurate quotation?

Please provide: 1. Panel quantity and dimensions; 2. Tilt angle; 3. Wind and snow load; 4. Ground clearance; 5. Planned layout.

Q6. Do you support OEM and ODM orders?

Yes, both OEM and ODM services are allowed and welcomed to meet your specific project needs.
