Product Description

Basic Info Overview

Model NO.	APV865
Certification	CE
Application	Industrial
Material	Aluminum Alloy
Type	Ground Bracket
Thickness of Module	30-50 mm
Wind Load	60 M/S
Snow Load	1.4 Kn/M2
Adjustable Angle Range	15~50 Degree
Foundation	Ground, Balcony, Roof, Wall
Finishing	Clear Anodized/Mill Finish
Production Capacity	33,000 Tons / Year

Product Description

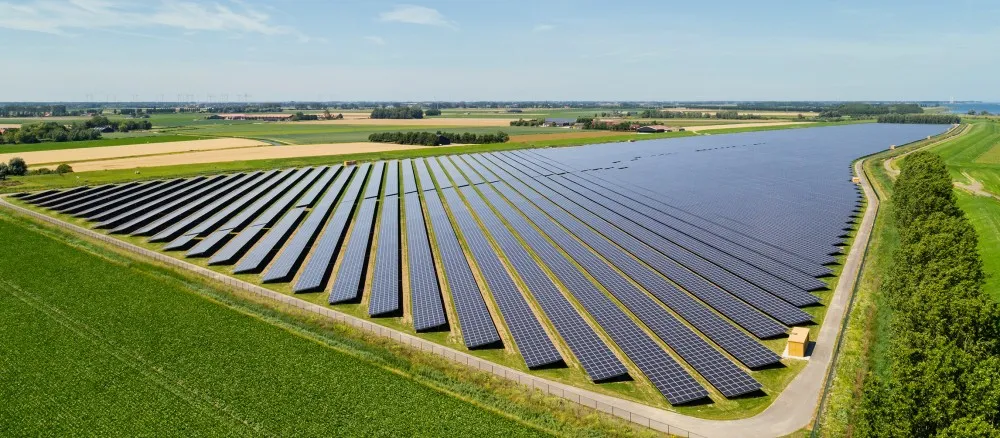

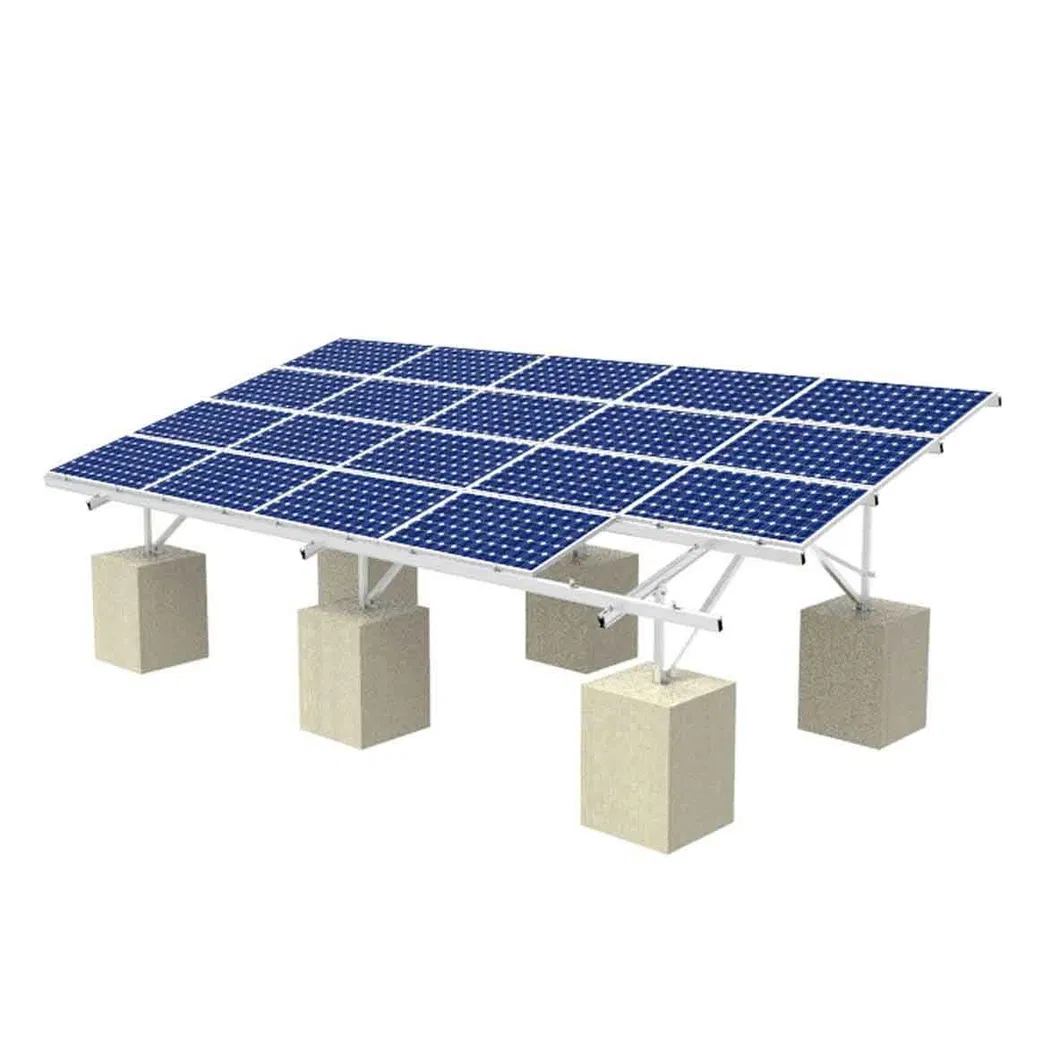

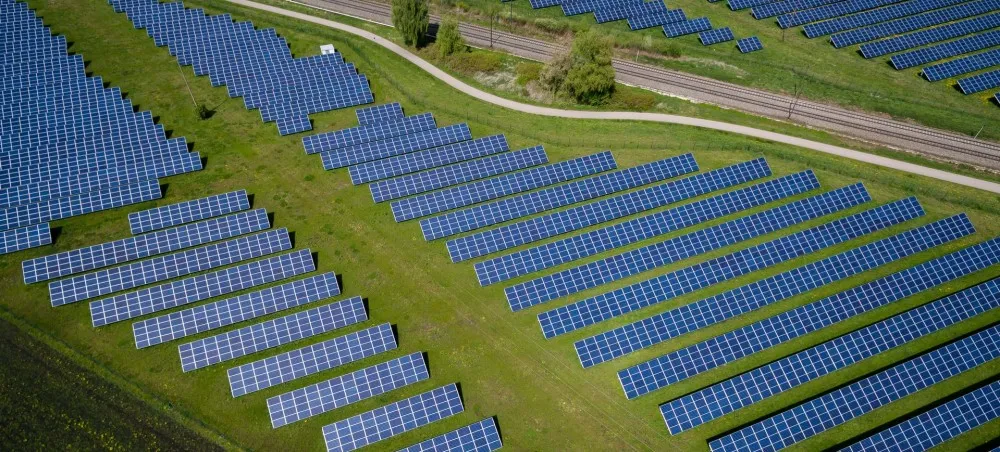

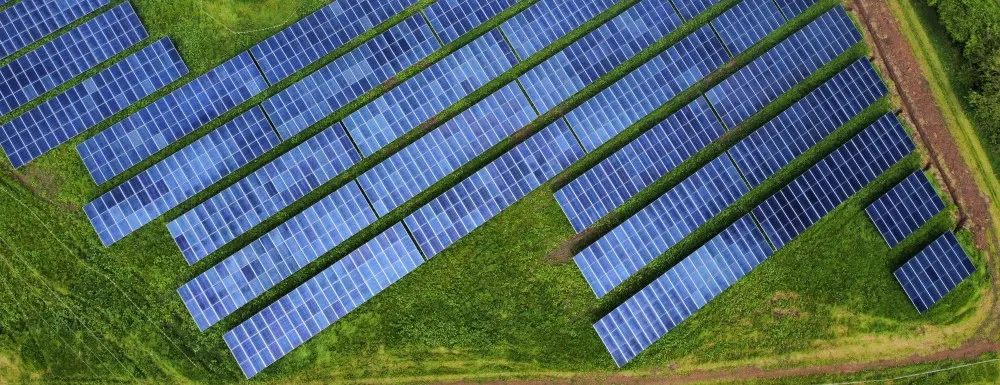

Ground mount solar racking system usually consists of metal structure, concrete base and other spare parts to fix the solar panels on a rack. It is suitable for big projects: such as commercial pv plant power stations.

According to the location, geographic and weather situations, and the target power output, ground solar mounting system can be classified with 3 kinds of systems:

⚙️

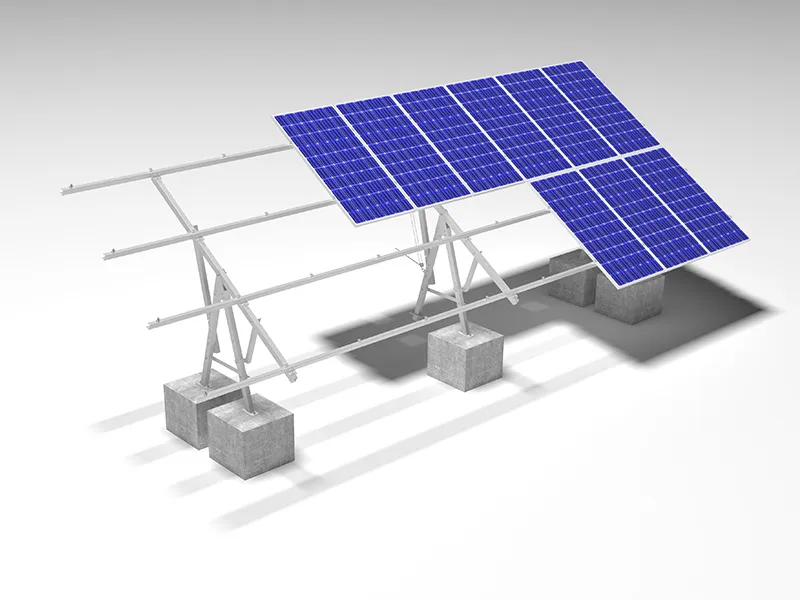

Fixed tilt system: The simplest and the most economic one. Fixed structure, fixed panels, in need of less maintenance.

🔄

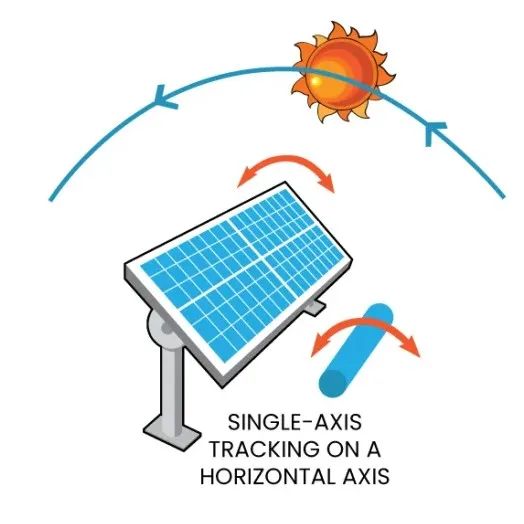

Single axis tracking system: It uses an electric motor to move the solar panels in one direction to track the sun's turning movement throughout a whole day.

🌐

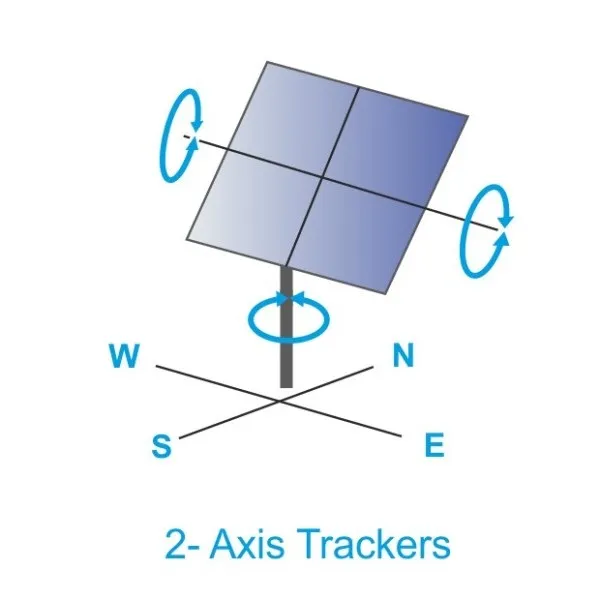

Dual-axis tracking systems: Using two axes to track the sun's movement both horizontally and vertically, maximizing the PV power produce.

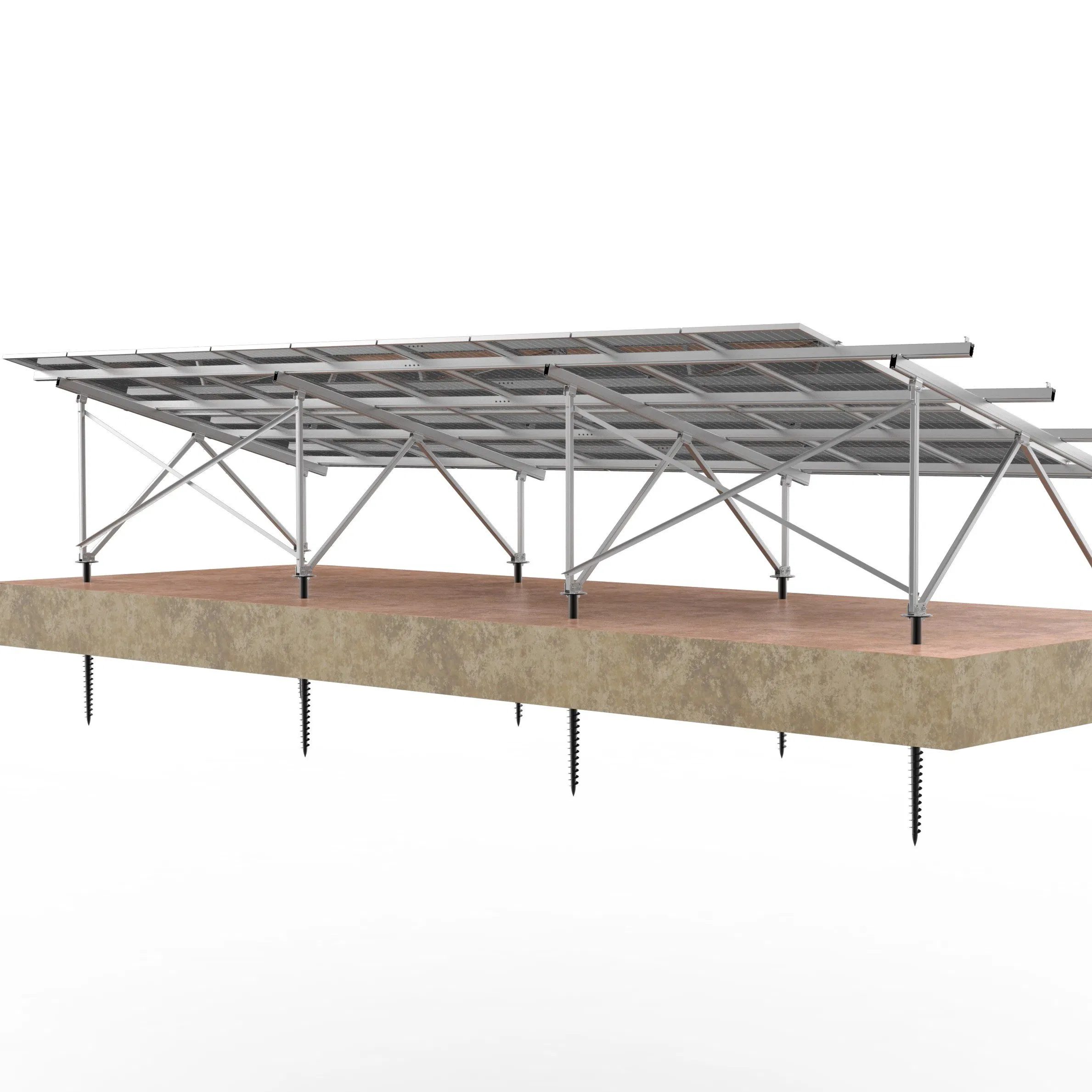

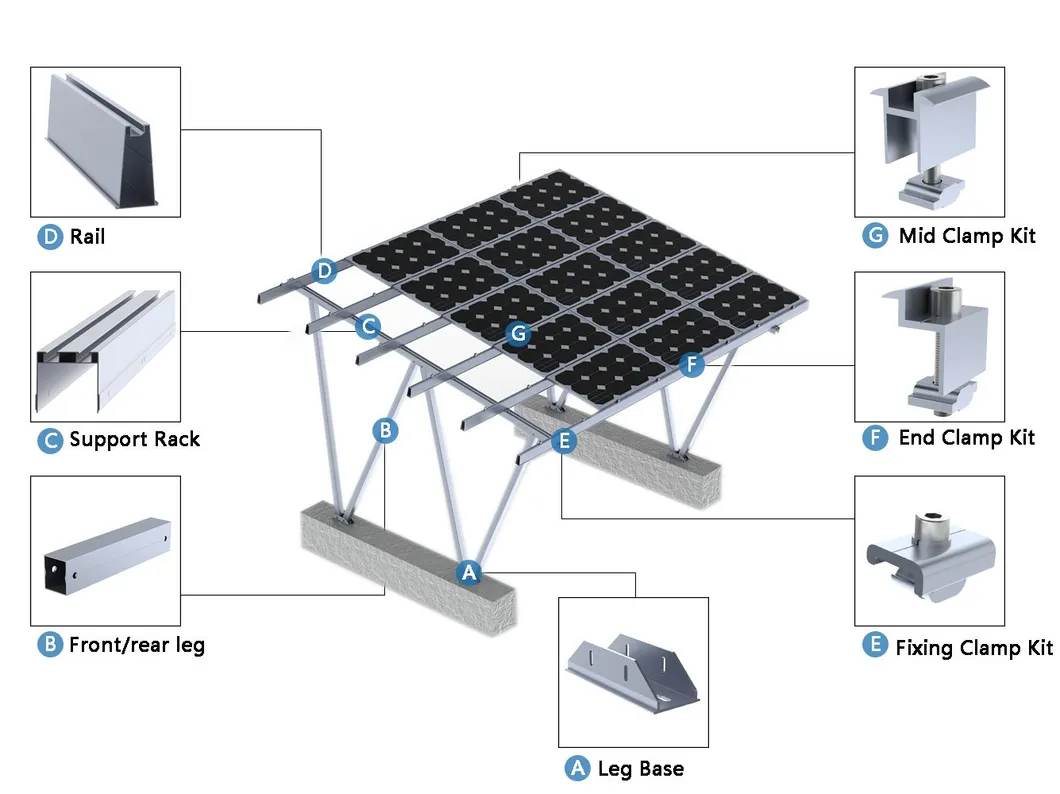

The photovoltaic panel racking system for ground projects consists of 3 key parts:

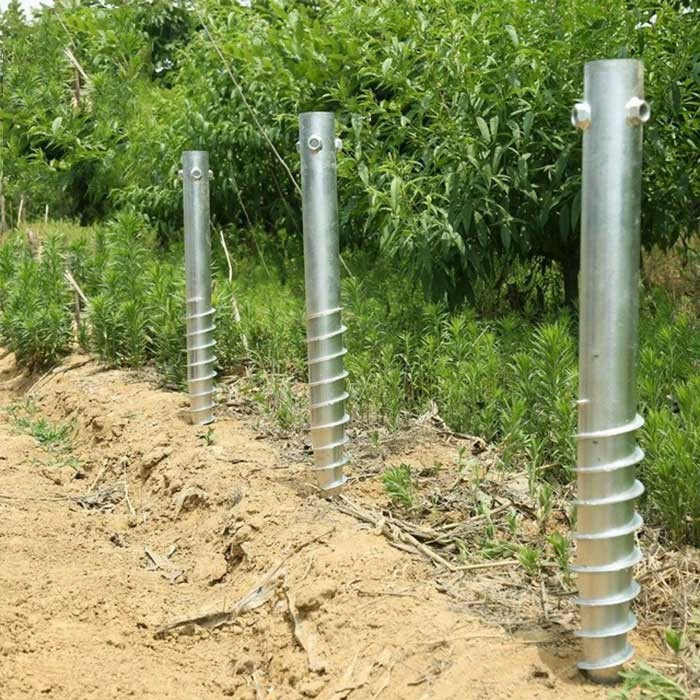

The base: The support for mounting system. It must hold the solar panels and withstand the strongest possible wind and snow load.
The structure: The rack system holding the solar panels firmly and safely at right positions and directions. Tailor-made according to panel size and site conditions.

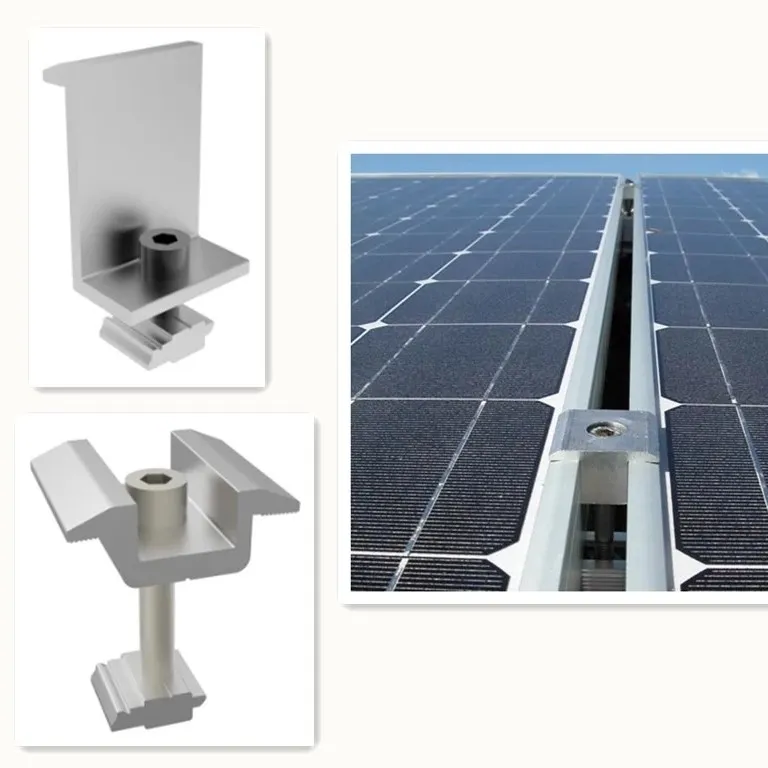

Clamps: Fasteners with bolts to secure panels on the racking system (Mid clamps and end clamps).

Key Advantages

🏞️

Wide Adaption: Systems can be installed on a variety of terrains, including uneven or sloping surfaces.

🛡️

Durability and Stability: Made of 6005 T5 anodized aluminum alloy to withstand high winds and heavy snow.

💰

Economic Solution: Lightweight materials require less labor and installation time. Cost-effective options like Zinc Aluminum Magnesium Alloy are available.

🔧

Easy Maintenance: Easy access typically makes systems simple to maintain and repair.

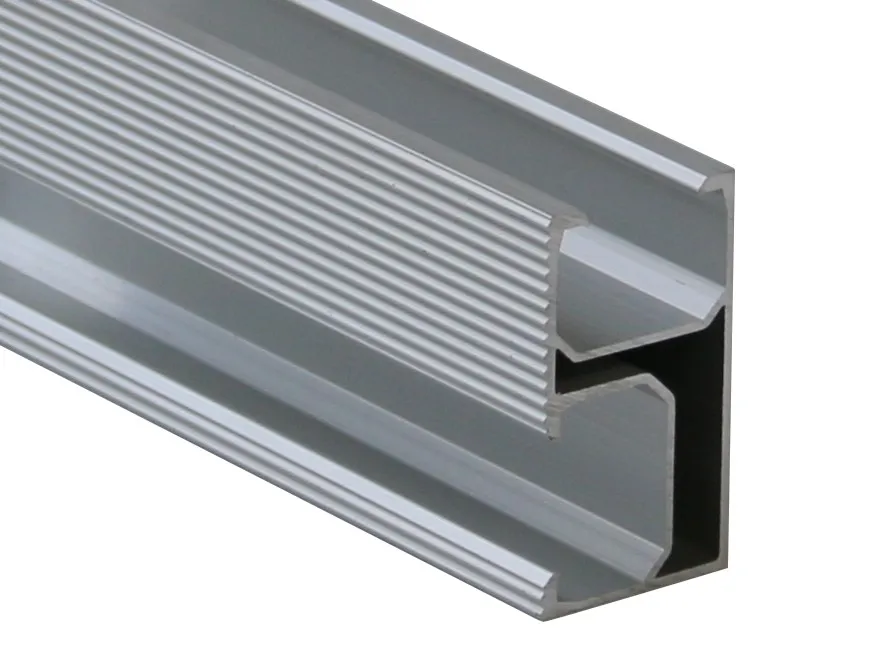

Detailed Photos

Product Parameters

Mount Type	Customized mounting system
Standard	AS/NZS 1170
Applicable Module	Framed or frameless panel
Wind Load	Up to 218Kmph (60m/s)
Snow Load	Up to 30psf (1.4KN/m2)
Module Width	751 ≤ A ≤ 1313 mm
Adjustable Angle	15~50°
Material	Aluminum alloy 6063 T5 / 6005 T5
Warranty	10 years

Why Choose Our Solutions

⭐

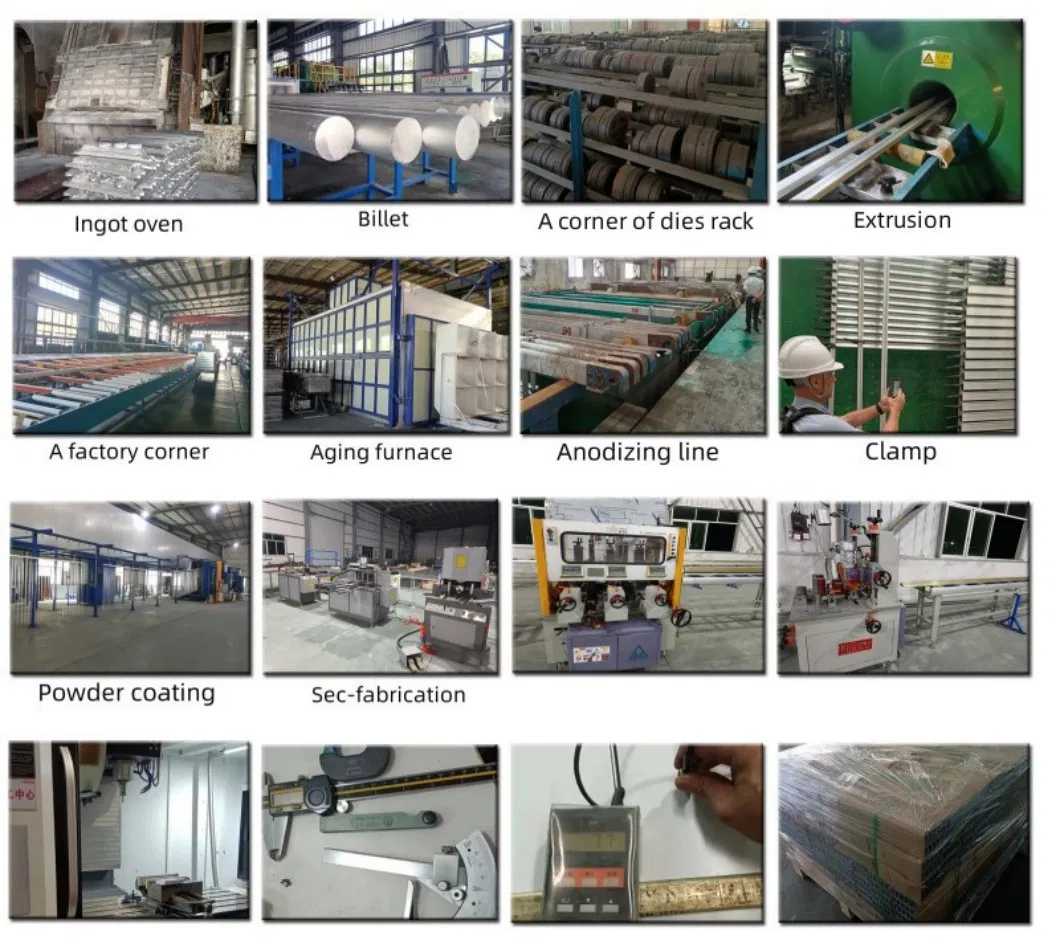

Experienced Manufacturing: Years of experience in solar components, providing professional advice to find the most suitable product for your needs.

💎

High Quality Materials: Made of high-quality stainless steel and aluminum alloy using advanced technology to withstand harsh climates.

🤝

Professional Service: Comprehensive technical consultation, installation guidance, and maintenance support through dedicated service teams.

Frequently Asked Questions

What materials are used for ground solar mounting systems?

Mainly 6005 T5 aluminum alloy extrusion, along with some carbon steel or zinc, magnesium, and aluminum alloys depending on requirements.

What factors must be considered before installation?

Key factors include geographic location, local weather records (wind and snow load), solar panel size and weight, and the desired tilt angle.

How long is the typical warranty for these systems?

Ordinarily, solar racking systems offer a lifespan of 15-25 years depending on materials and installation methods.

How much wind and snow load can the bracket withstand?

Our structures are engineered to handle up to 60m/s wind loads and 1.4KN/m2 snow loads, customized to local weather conditions.

Is a license required before installation?

Yes, most areas require licenses from local government authorities. Please refer to your local policies and regulations before starting a project.

What kind of maintenance is needed?

Regular cleaning of panels and periodic checks of bolts, nuts, and fasteners are required, especially after severe weather like typhoons or heavy snow.
