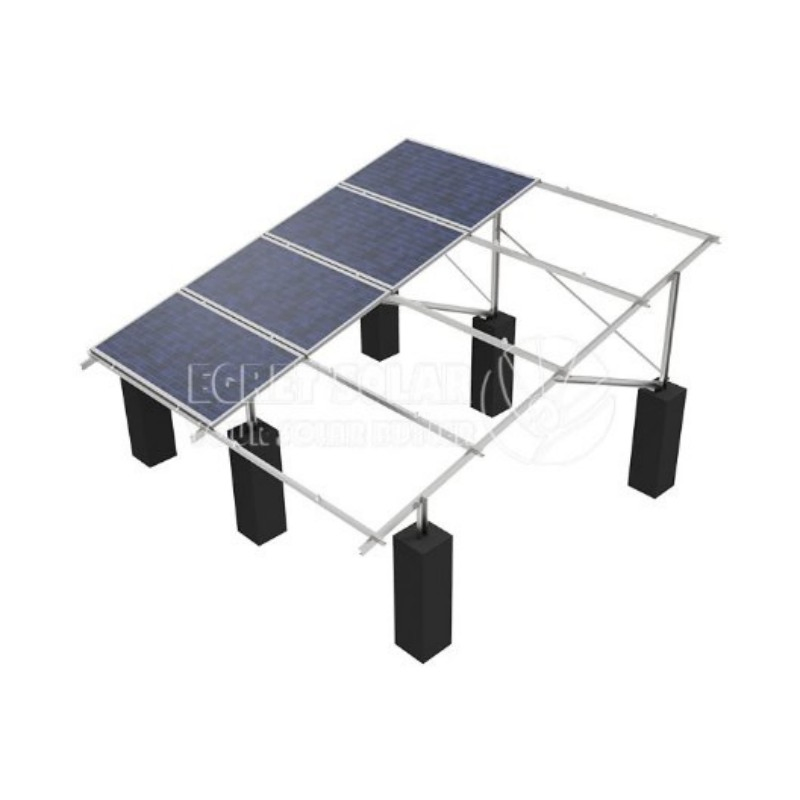

10 Panels HDG Solar Agricultural Irrigation Solar Ground Mounting Structure

1 / 5

10 Panels HDG Solar Agricultural Irrigation Solar Ground Mounting Structure

Customization:	Available
After-sales Service:	Yes
Warranty:	12 Years

Send Inquiry

Product Description

🔶 Basic Information

Model NO.

EG-GC

Condition

New

Certification

ISO, CE

Application

Home, Commercial, Solar Ground Mounting

Wind Speed

60m/S

Product Name

Agricultural Greenhouse Tripod

Material

Al6005-T5

Duration

25 Years Life Time

Snow Load

1.4kN/M2

Surface

Clean Anodized

HS Code

76169000

Capacity

100000/Month

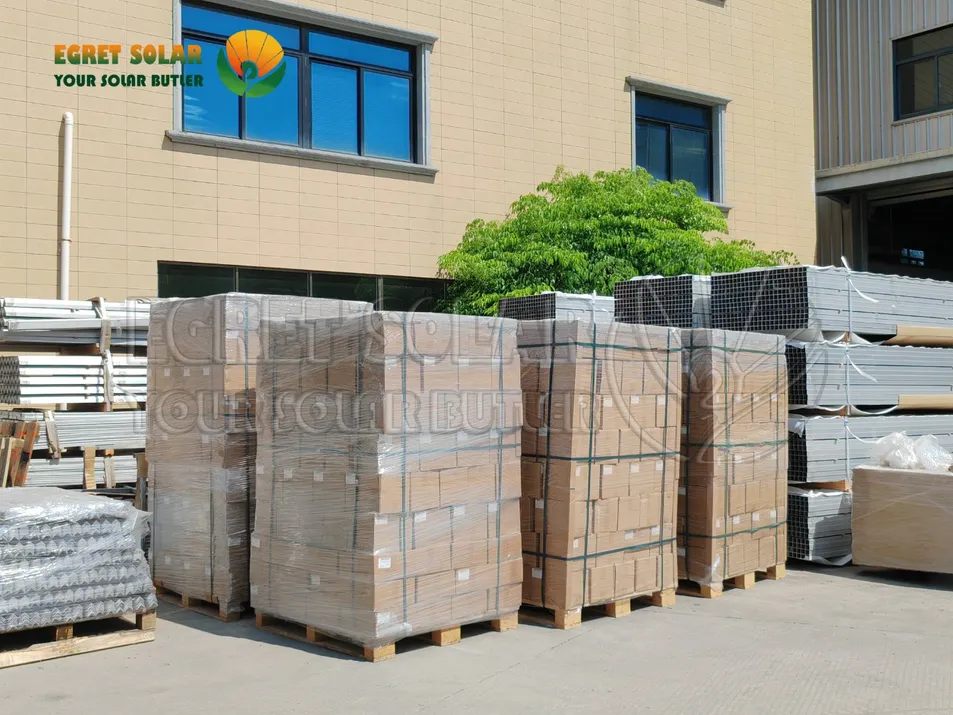

📦 Packaging & Delivery

Package Size

29.00cm * 23.00cm * 23.00cm

Gross Weight

1.000kg

Transport

Pallet

🛠️ Product Description

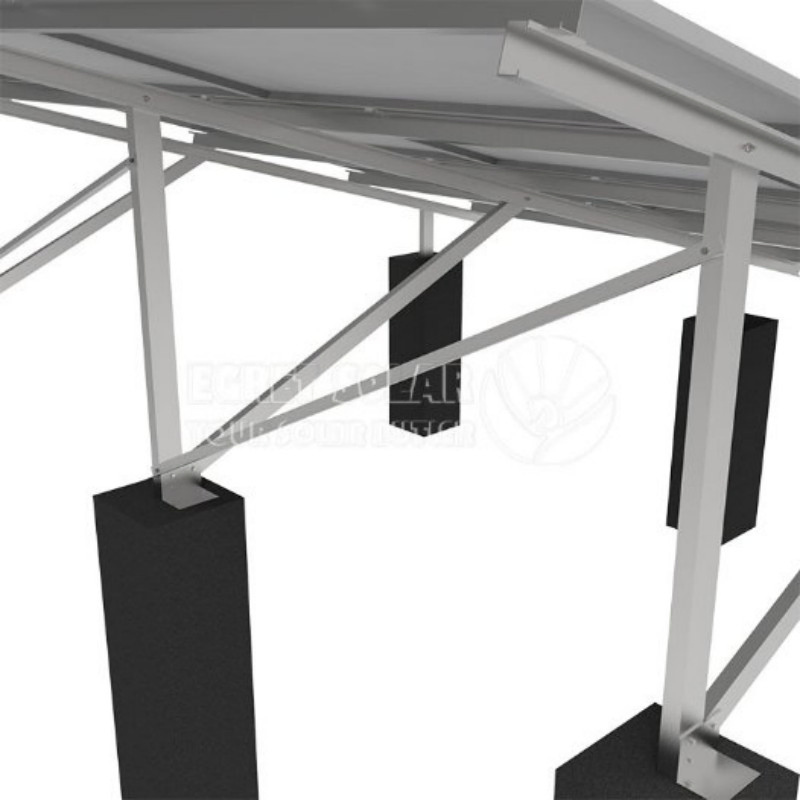

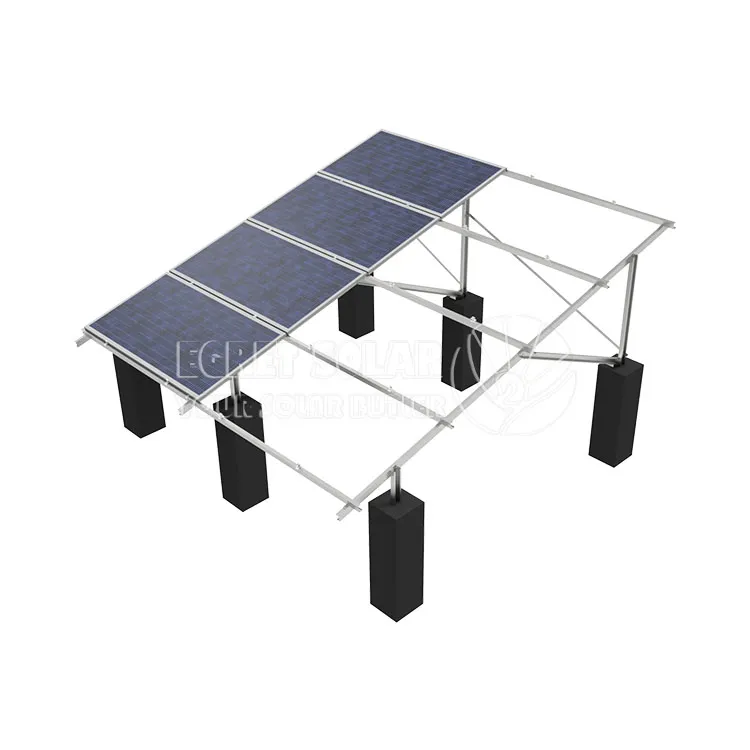

Ground mount solar racking systems are essential structures designed to fix solar panels securely on the ground. These systems are ideal for large-scale projects, including commercial PV power stations and agricultural irrigation setups.

The system consists of three primary components:

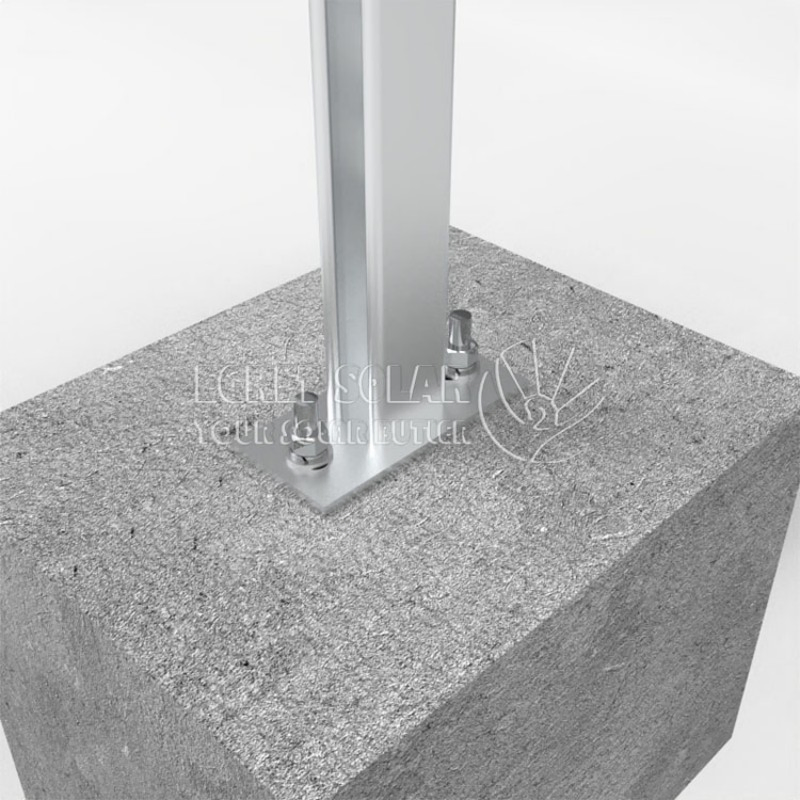

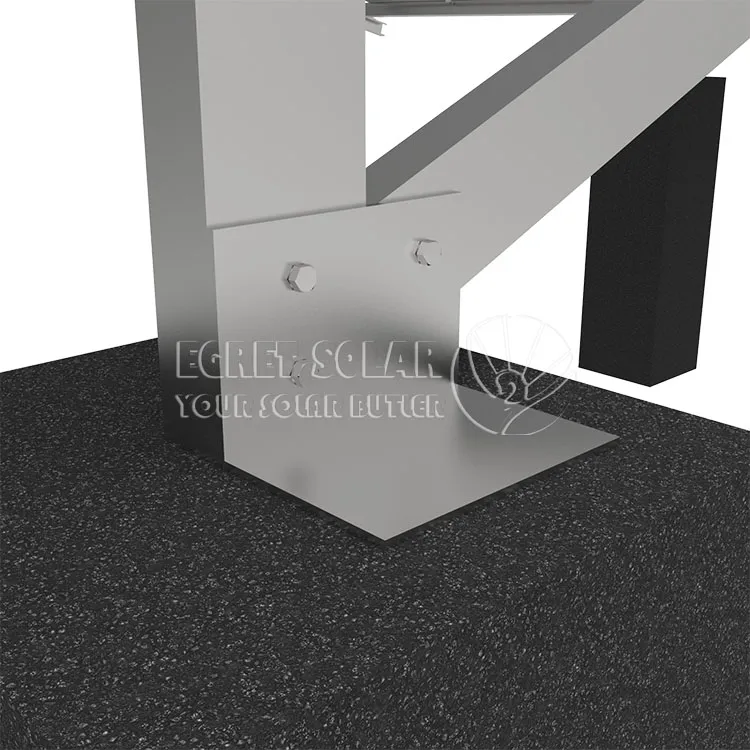

The Base: Provides the foundational support, engineered to withstand extreme wind and snow loads.
The Structure: The rack system that holds panels firmly at precise angles, customized based on panel size and site latitude.

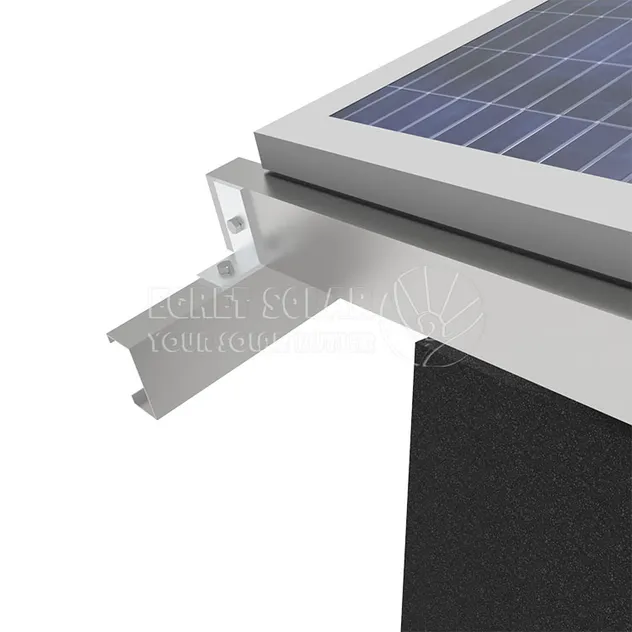

Clamps: Includes mid-clamps and end-clamps with bolts to fasten panels to the racking system.

Material	Aluminum / Carbon Steel
Color	Natural / Customized
Lead Time	10-15 Days
Certification	ISO / SGS / CE

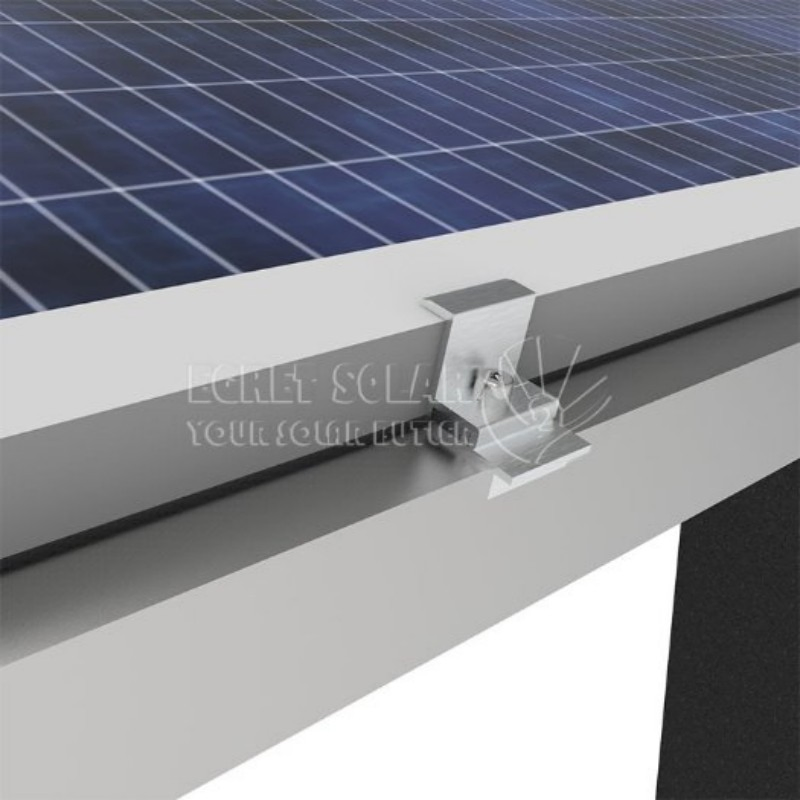

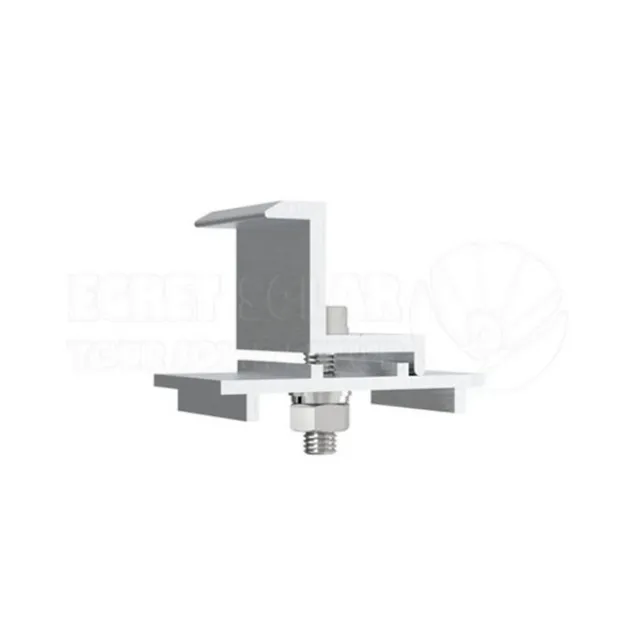

End Clamp

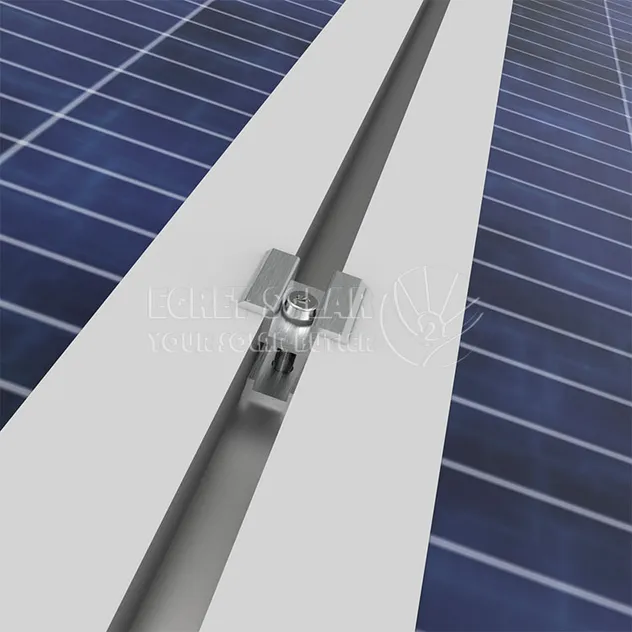

Mid Clamp

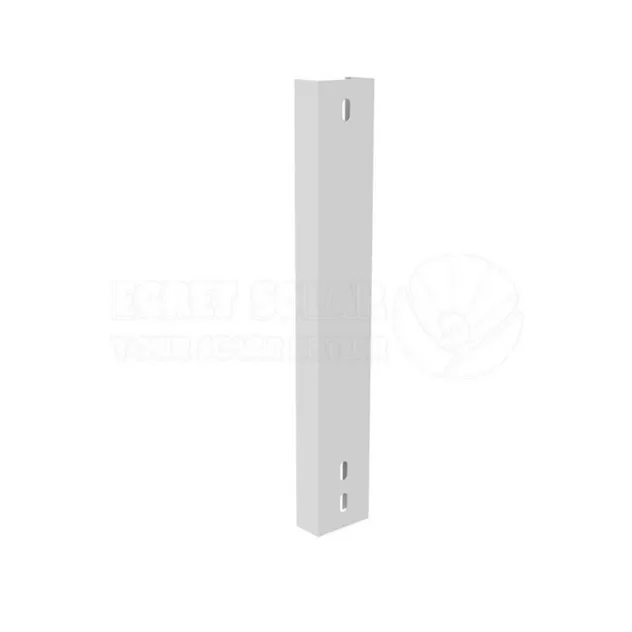

C-shaped steel

C-shaped steel ground mount racking systems are versatile and can be installed on various terrains, including uneven or sloping surfaces. Utilizing anodized aluminum alloy and extruded steel profiles, these systems are built for durability against harsh weather, high winds, and heavy snow loads. Their lightweight design reduces labor and material costs, making them a sustainable and efficient choice for solar energy production.

🎥 Production & Overview

❓ Frequently Asked Questions

Q1: What materials are used in the solar mounting structures?

The system primarily uses High-Strength Aluminum Al6005-T5 and Carbon Steel with a clean anodized surface to ensure durability and corrosion resistance.

Q2: Can the ground mounting system withstand extreme weather?

Yes, the system is designed to handle a maximum wind speed of 60m/s and a snow load of up to 1.4kN/m2, making it suitable for harsh environments.

Q3: What is the expected lifespan of these mounting structures?

The products are engineered for a long-term service life, with a 25-year lifetime duration.

Q4: Is it possible to install the system on sloping or uneven ground?

Absolutely. The C-shaped steel and flexible design allow for installation on a variety of terrains, including uneven or sloping surfaces.

Q5: What information is required to receive a detailed quotation?

To provide an accurate solution, please provide the panel quantity and dimensions, tilt angle, local max wind and snow loads, and the desired ground clearance.

Q6: Are samples available for testing?

Yes, samples can be provided upon request to ensure the structure meets your project requirements before full-scale production.
