Jinko N-Type Half Cell Solar Panel 570W 575W 580W 585W 590W Mono Solar Panel Wall Mount
Jinko N-Type Half Cell Solar Panel 570W 575W 580W 585W 590W Mono Solar Panel Wall Mount
Jinko N-Type Half Cell Solar Panel 570W 575W 580W 585W 590W Mono Solar Panel Wall Mount
Jinko N-Type Half Cell Solar Panel 570W 575W 580W 585W 590W Mono Solar Panel Wall Mount
Jinko N-Type Half Cell Solar Panel 570W 575W 580W 585W 590W Mono Solar Panel Wall Mount
1 / 5
Jinko N-Type Half Cell Solar Panel 570W 575W 580W 585W 590W Mono Solar Panel Wall Mount
Jinko N-Type Half Cell Solar Panel 570W 575W 580W 585W 590W Mono Solar Panel Wall Mount
Jinko N-Type Half Cell Solar Panel 570W 575W 580W 585W 590W Mono Solar Panel Wall Mount
Jinko N-Type Half Cell Solar Panel 570W 575W 580W 585W 590W Mono Solar Panel Wall Mount
Jinko N-Type Half Cell Solar Panel 570W 575W 580W 585W 590W Mono Solar Panel Wall Mount

Jinko N-Type Half Cell Solar Panel 570W 575W 580W 585W 590W Mono Solar Panel Wall Mount

Customization: Available
After-sales Service: Yes
Warranty: 30 Years
Send Inquiry

Product Description

Basic Specifications

Model NO.
JKM570-590N-72HL4-BDV-F7-EN
Number of Cells
144(2*72)
Application
Solar System
Certification
EST, ISO, CB, CE, TUV
Material
Monocrystalline Silicon
Weight
31 Kg
Frame
Anodized Aluminium Alloy
Junction Box
IP68 Rated
Output Cables
TUV 1*4.0mm2 (+): 400mm , (-): 200mm
Front Glass
2.0mm, Anti-Reflection Coating
Packaging
36PCS/Pallet, 720PCS/40'HQ
Specification
2278*1134*30mm

Product Description

Solar Panel Specifications
Module Type: xxxN-72HL4-BDV 570 575 580 585 590
Maximum Power (Pmax/w)570575580585590
Maximum Power Voltage (Vmp/V)43.5843.7343.8844.0244.17
Maximum Power Current (Imp/A)13.0813.1513.2213.2913.36
Open-circuit Voltage (Voc/V)52.1052.3052.5052.7052.90
Short-circuit Current (Isc/A)13.8313.8913.9514.0114.07
Module Efficiency STC (%)22.0722.2622.4522.6522.84
Operating Temperature(°C)-40°C~+85°C
Max System Voltage1500VDC (IEC)

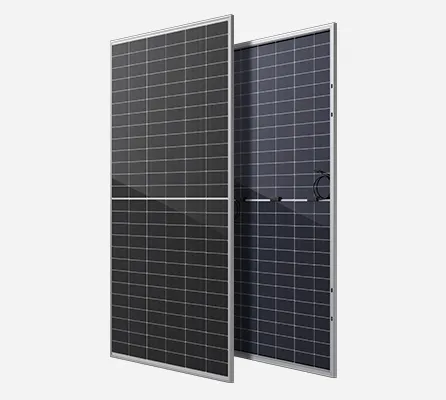

Bifacial 615-635W
615~635W Bifacial
Tiger Neo N-Type 78HL4-BDV
Cells: 156 Half Cells
Size: 2465x1134x30mm
Weight: 34kg

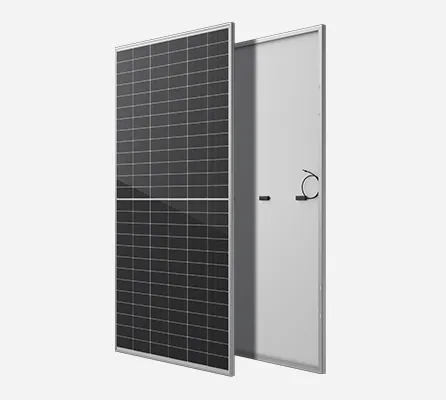

Mono-Facial 615-635W
615~635W Mono-Facial
Tiger Neo N-type 78HL4-(V)
Cells: 156 Half Cells
Size: 2465x1134x30mm
Weight: 29.5kg

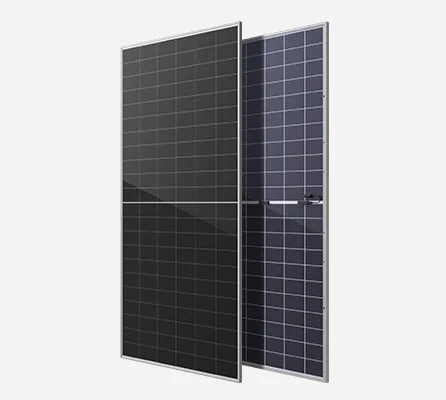

Bifacial 600-625W
600~625W Bifacial
Tiger Neo N-type 66HL4M-BDV
Cells: 132 Half Cells
Size: 2382x1134x30mm
Weight: 32.4kg

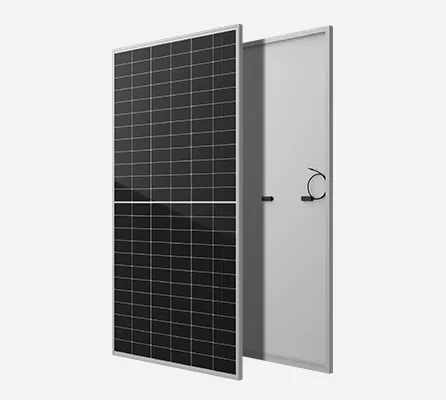

Mono-Facial 570-590W
570~590W Mono-Facial
Tiger Neo N type 72HL4-BDV
Cells: 144 Half Cells
Size: 2278x1134x35mm
Weight: 27kg

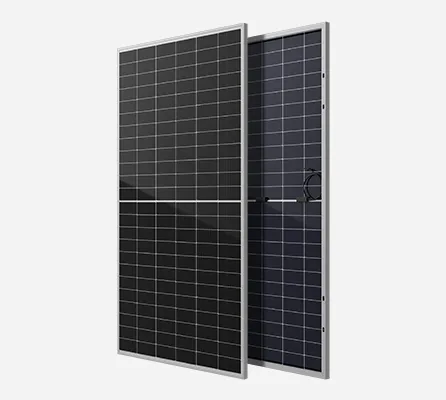

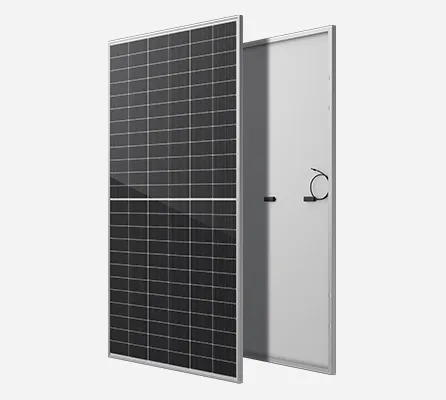

Solar Modules
Solar Panels

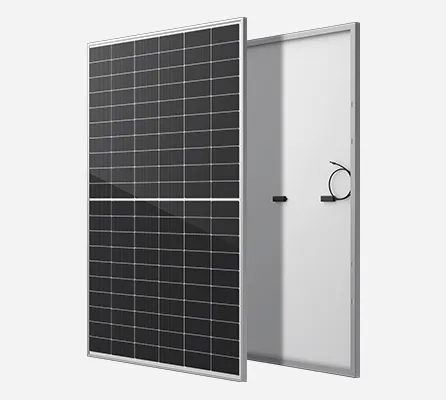

All Black Module

Tier 1 Solar Modules

Tier 1 Banner

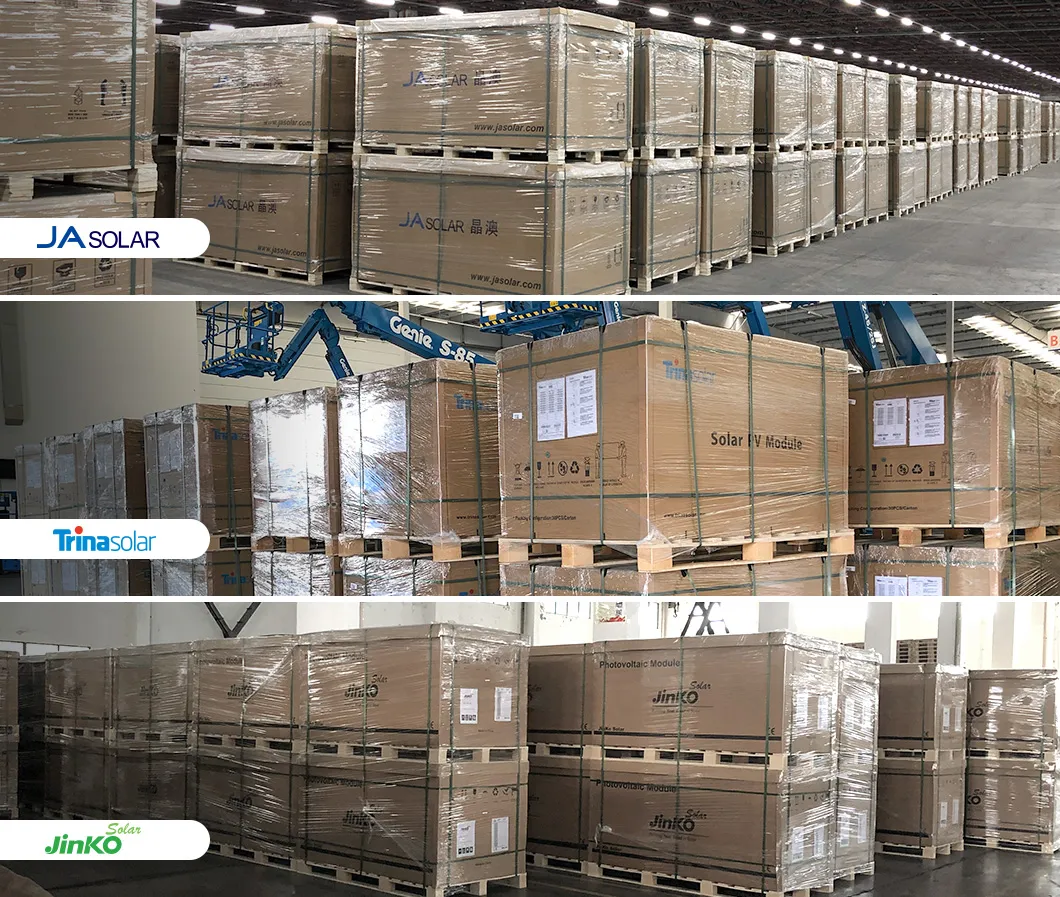

Quality Standards

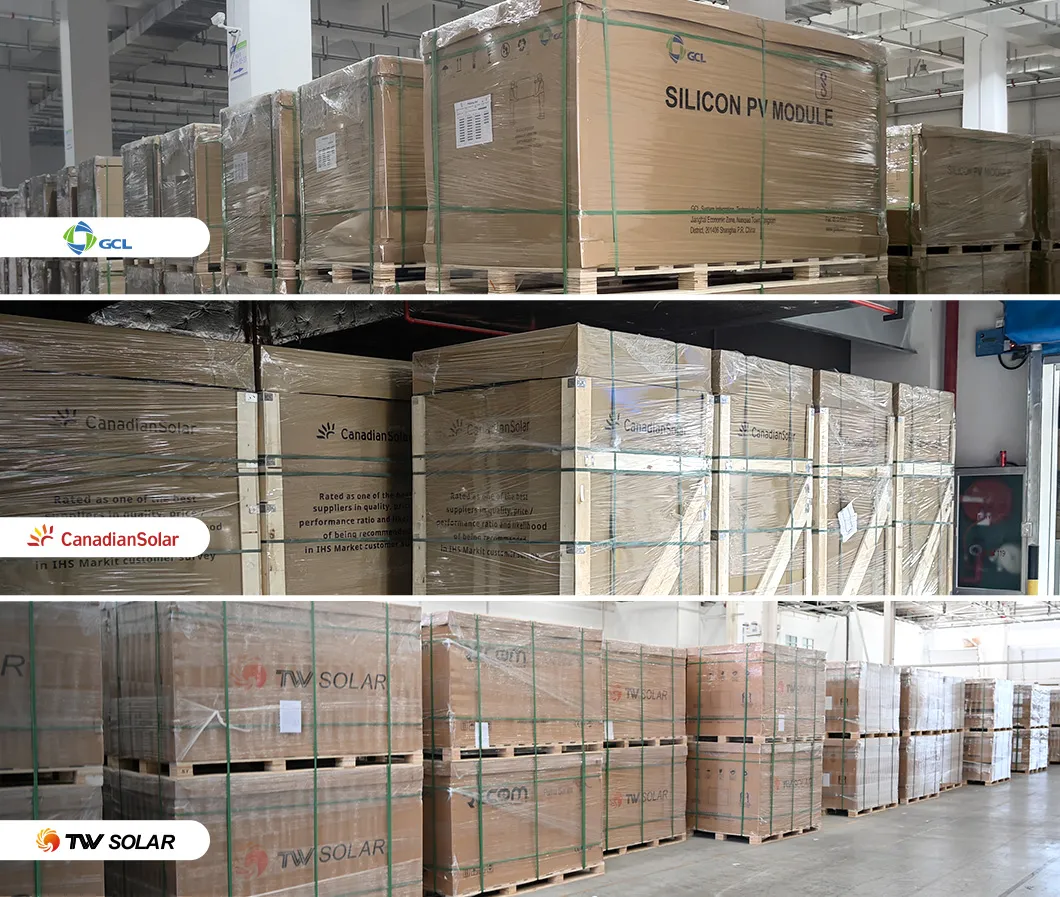

Certification

Global Project Cases

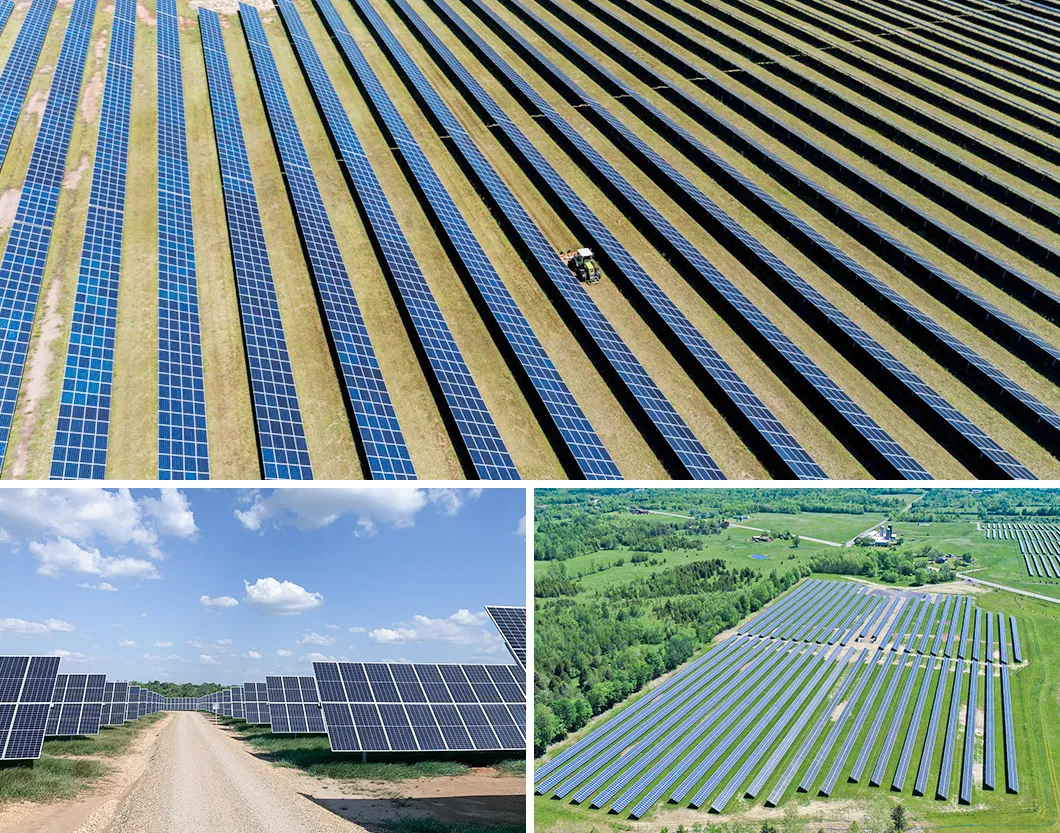

Project 1

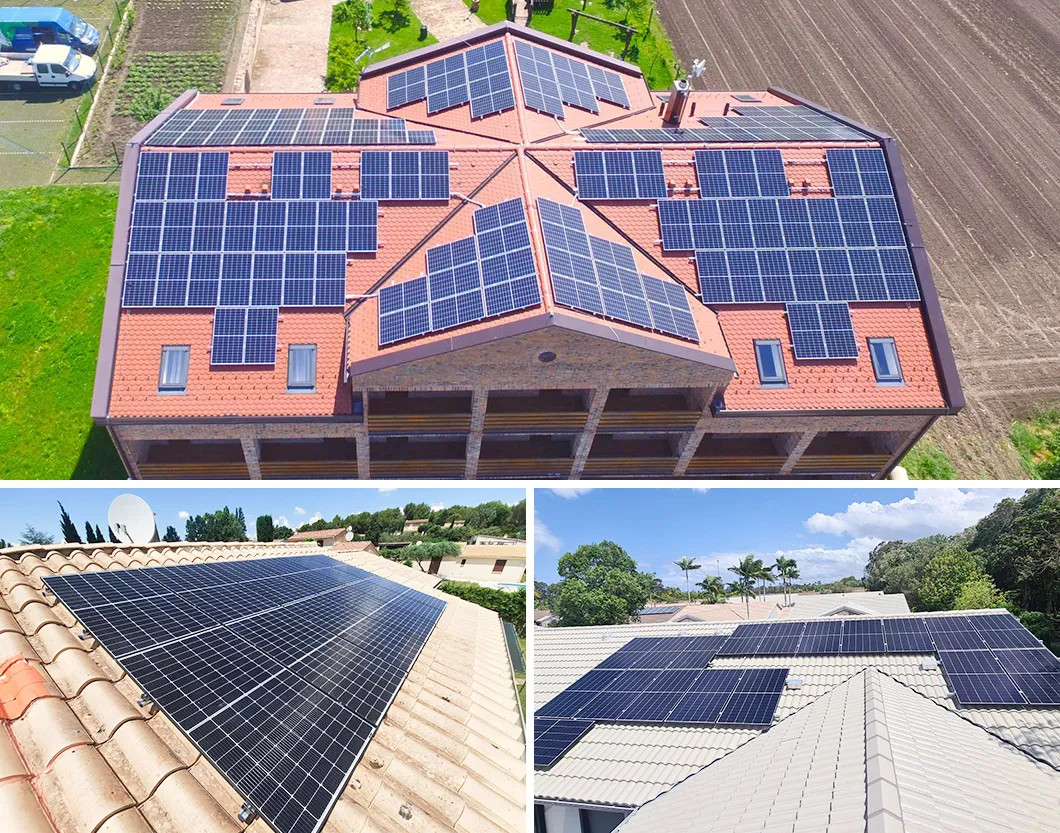

Project 2

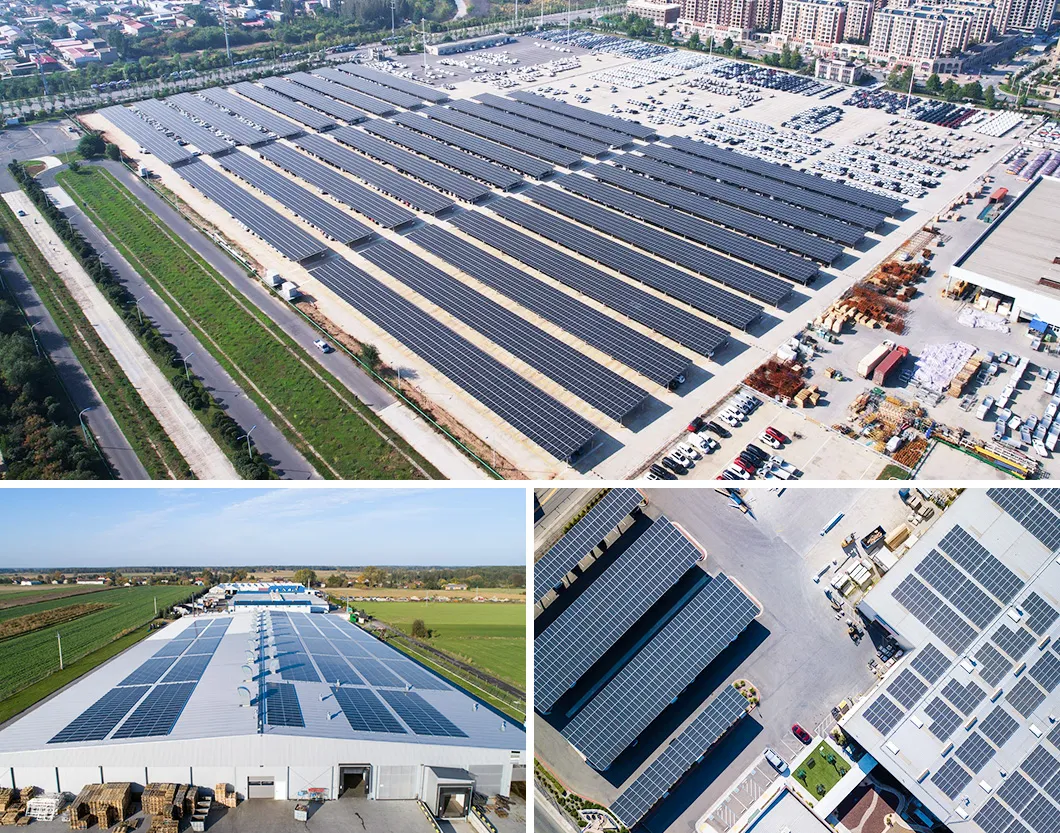

Project 3

Frequently Asked Questions

Q1: What is the warranty policy for these solar modules?
We offer a 12-year warranty for materials and processing, and a 25-year warranty for extra linear power output.
Q2: Are you a manufacturer or a trading company?
We are a professional factory with over 19 years of experience in producing solar energy series products. Customers are always welcome to visit our production facility.
Q3: Do you support OEM services and field installation?
Yes, as a specialized factory with nearly two decades of experience, we provide full OEM support and can assist with field installation requirements.
Q4: How is quality control managed at the factory?
Quality is our priority. Our professional QC team strictly monitors every production stage. Products are only packaged and shipped after meeting all performance requirements.
Q5: What types of solar modules do you offer?
We offer a wide range of modules including N-Type, P-Type, Mono-facial, Bifacial, and All-Black panels ranging from 420W to over 630W.
Q6: How can I get more help with my order or inquiry?
You can chat with our sales team online or send an inquiry email. We respond promptly to all detailed requests to provide the information you need.
