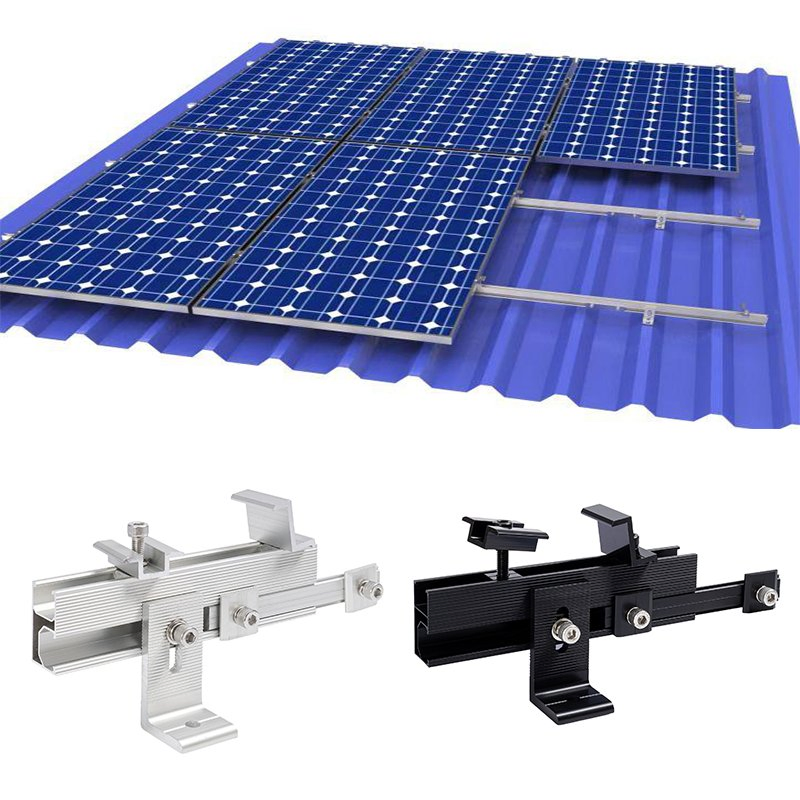

L Foot Solar Mounting System Metal Roof Mounts

1 / 5

L Foot Solar Mounting System Metal Roof Mounts

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

GT-LF

Application

Commercial

Material

Aluminum Alloy

Type

Roof Bracket

Surface Treatment

Anodizing

Color

Natural Sliver / Black

Max Wind Speed

Up to 60m/s

Snow Load

Up to 1.4kN/m2

Durable

25 Years

Panel Direction

Vertical or Landscape

Product Description

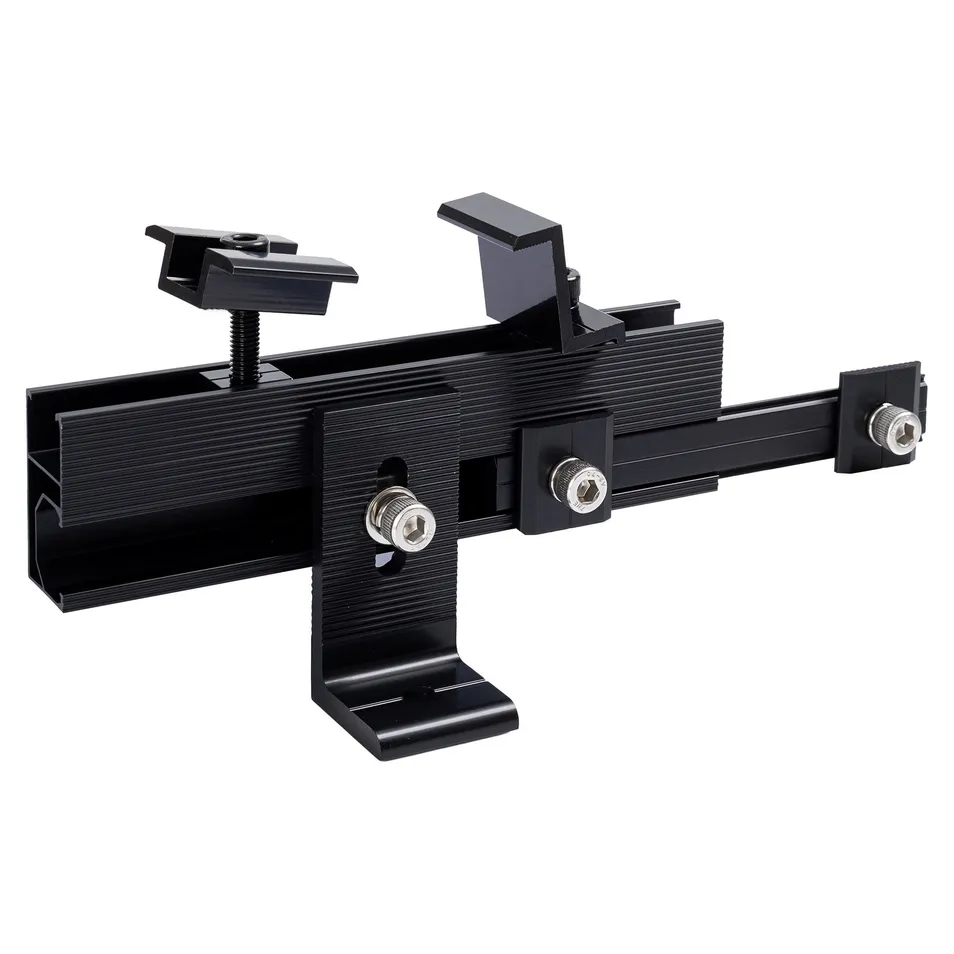

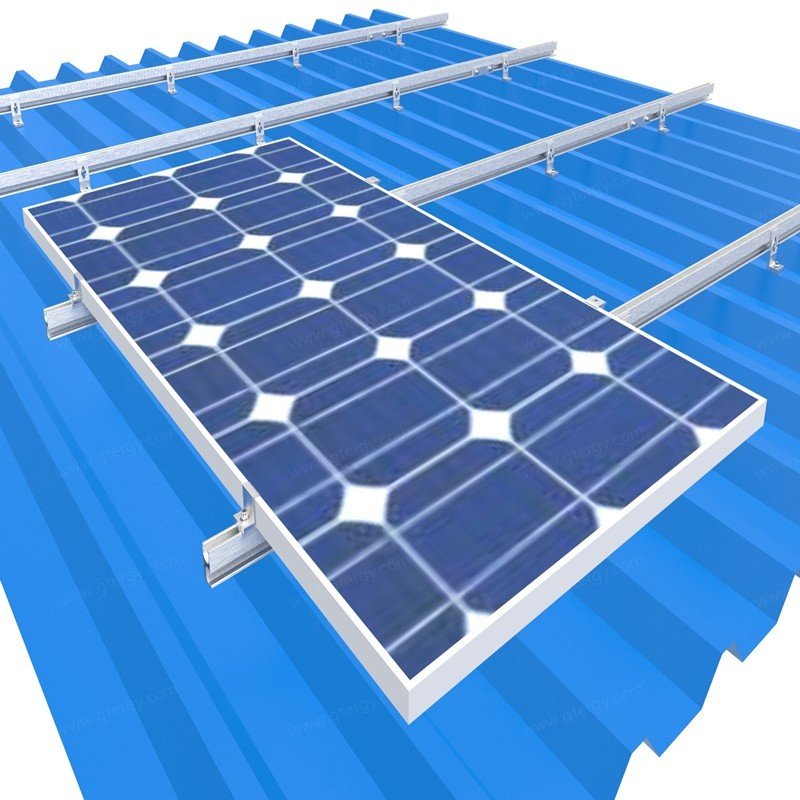

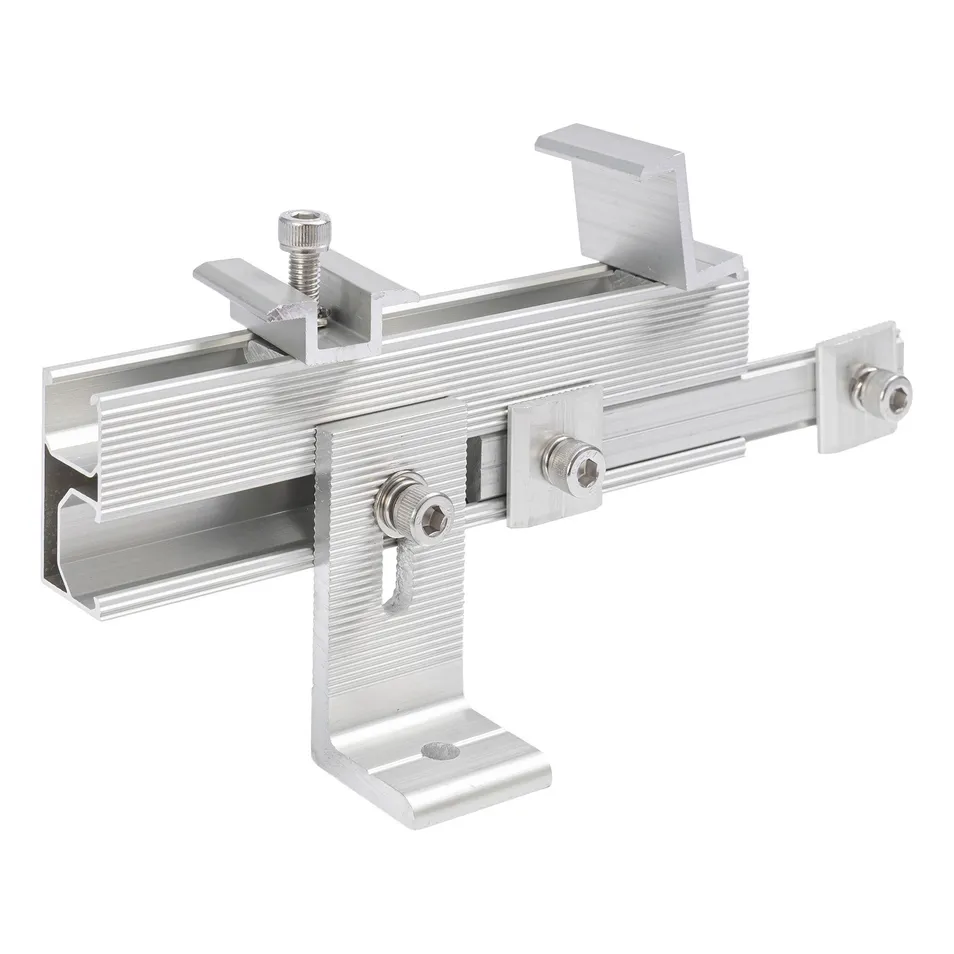

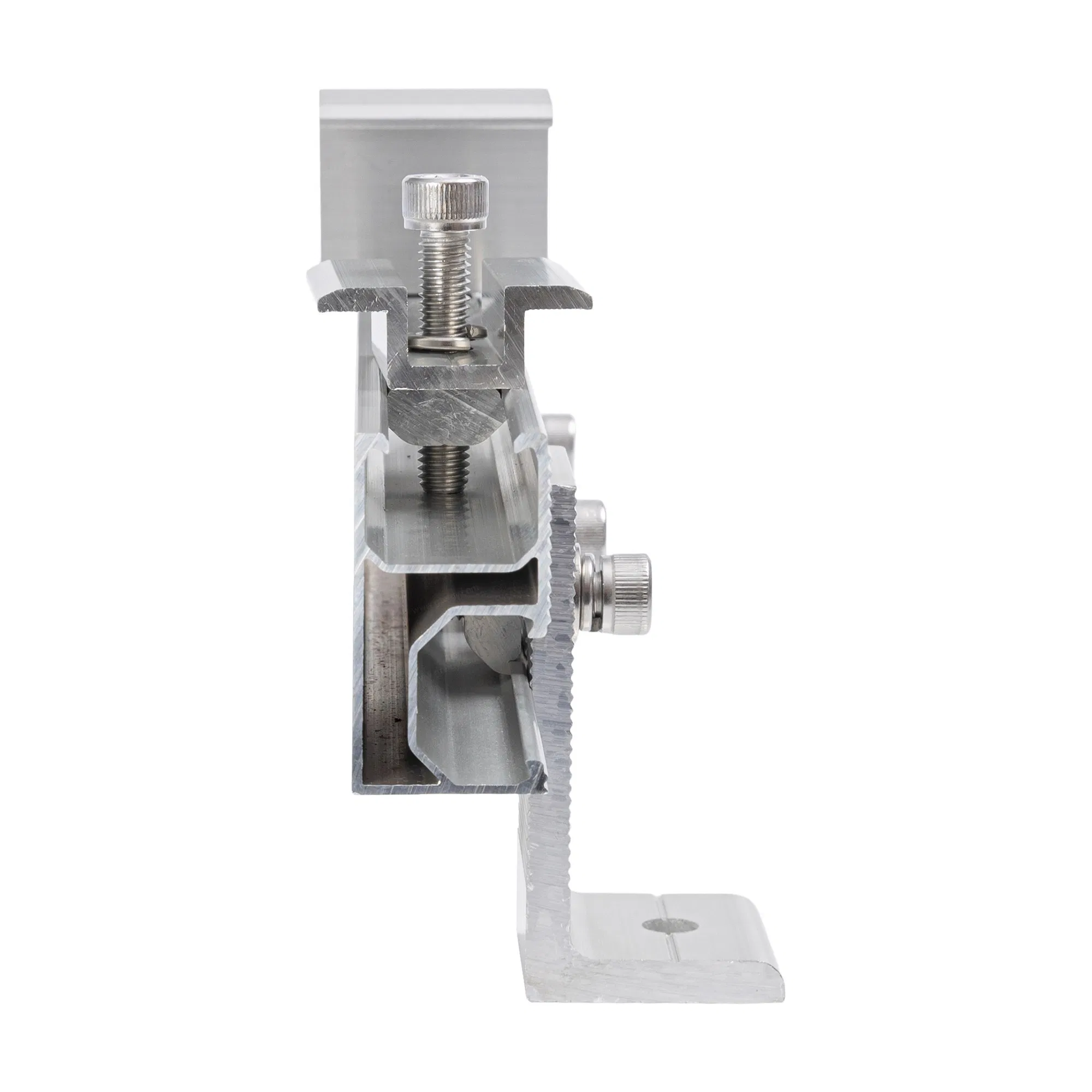

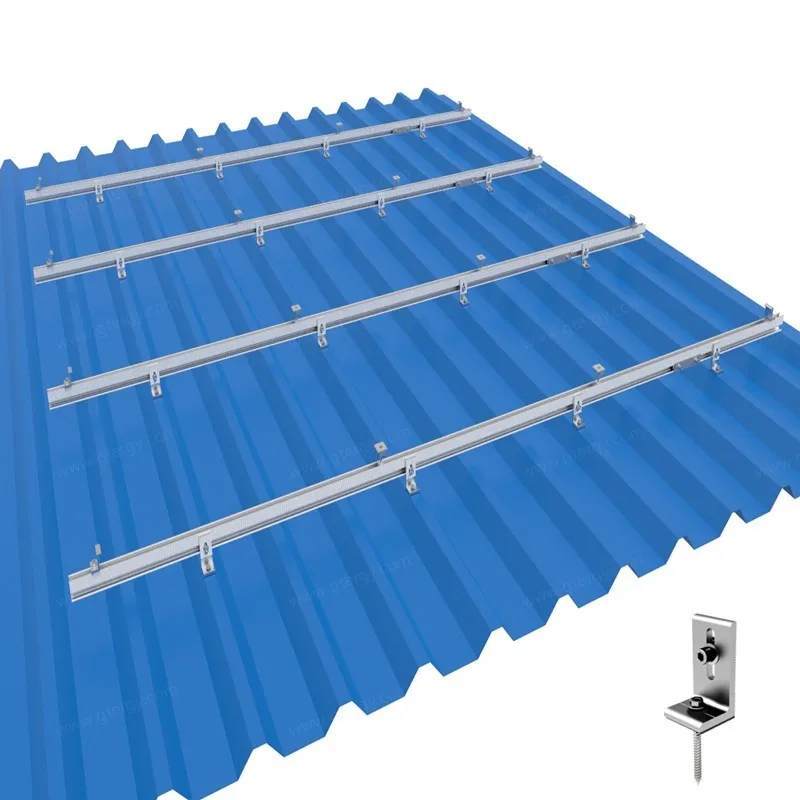

Our L Foot solar mounting brackets are designed for maximum durability and easy installation on metal roofs. The system is compatible with both trapezoidal and corrugated metal rooftops, offering a versatile solution for commercial solar projects.

✓Anodizing treatment for high corrosion resistance and aesthetics.

✓Available in 6mm & 7mm thickness options.

✓EPDM rubber ensures excellent waterproofing for the roof.

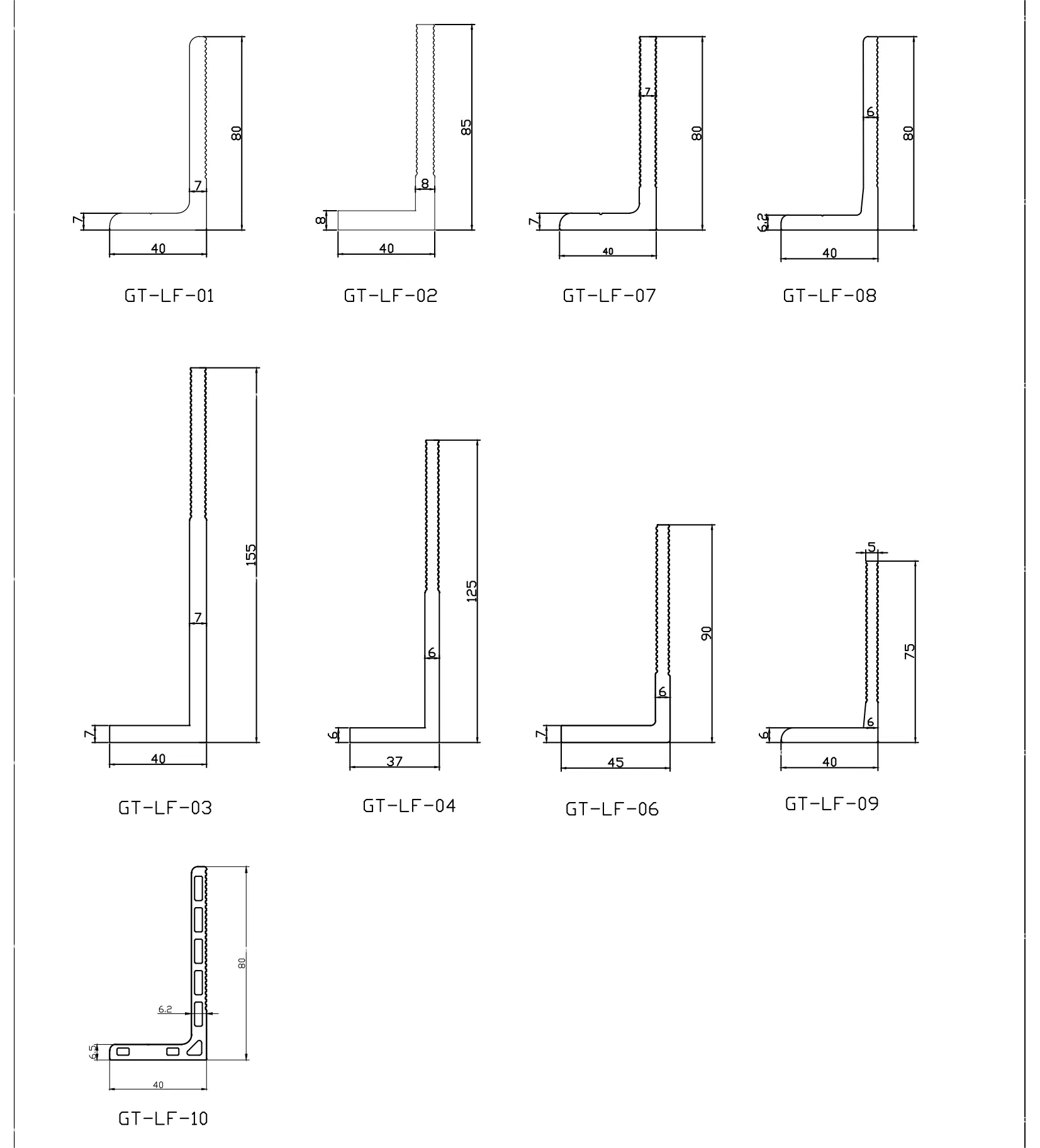

✓Multiple height options: 80mm/90mm/125mm/155mm.

✓Serrated upper surface prevents rail sliding during connection.

✓Cost-effective installation directly with aluminum profiles.

Technical Specifications

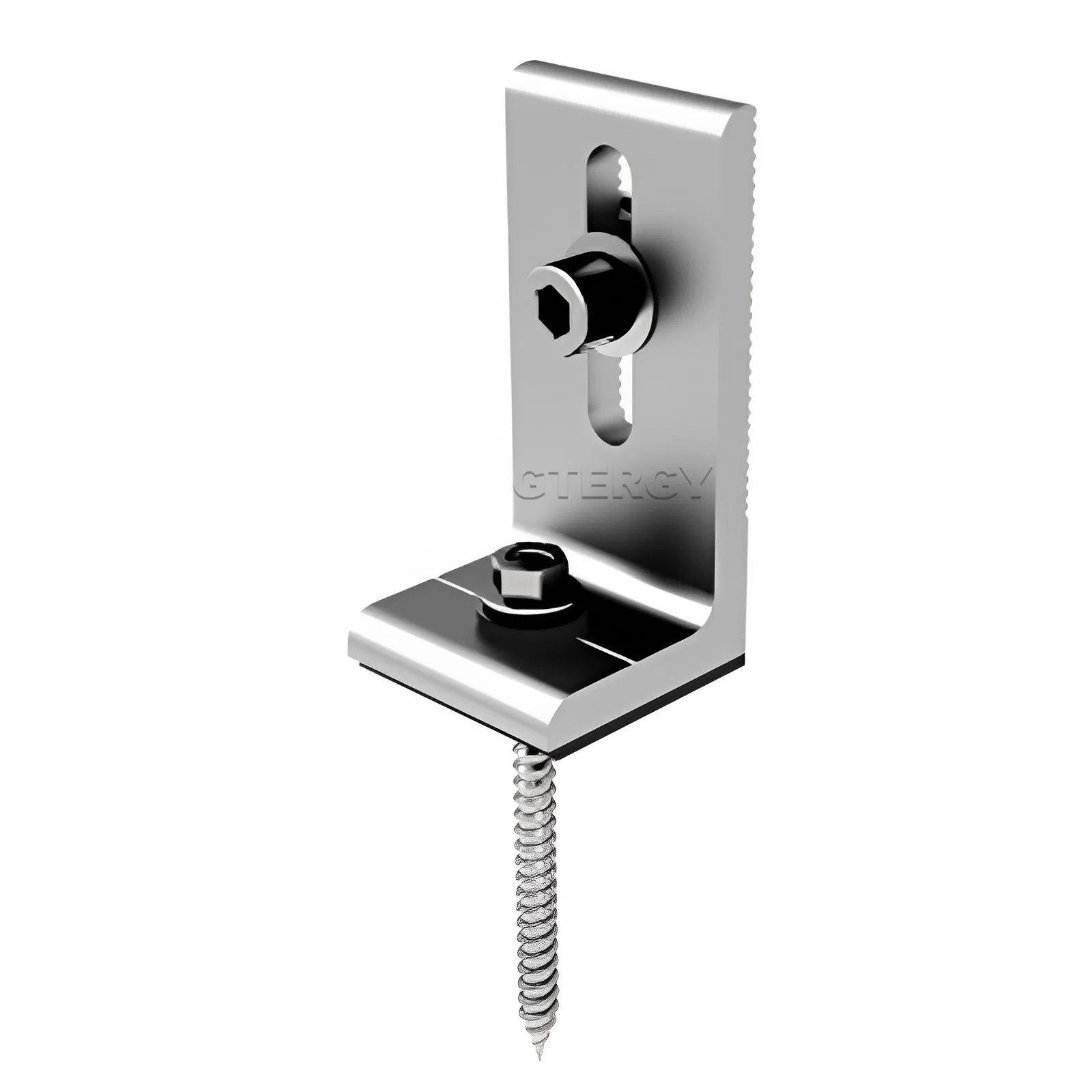

Product Name	Metal Roof Mounting Structure L Feet Bracket
Material	Aluminum 6005-T5 & SUS304
Surface Treatment	Anodizing 13 um
Size	80*40mm
Design Standard	JIS C 8955:2011, GB50009-2012, IBC 2009
Warranty	12 Years
Service Life	25 Years
Packaging	Cardboard box, Custom pallet or Wooden box
