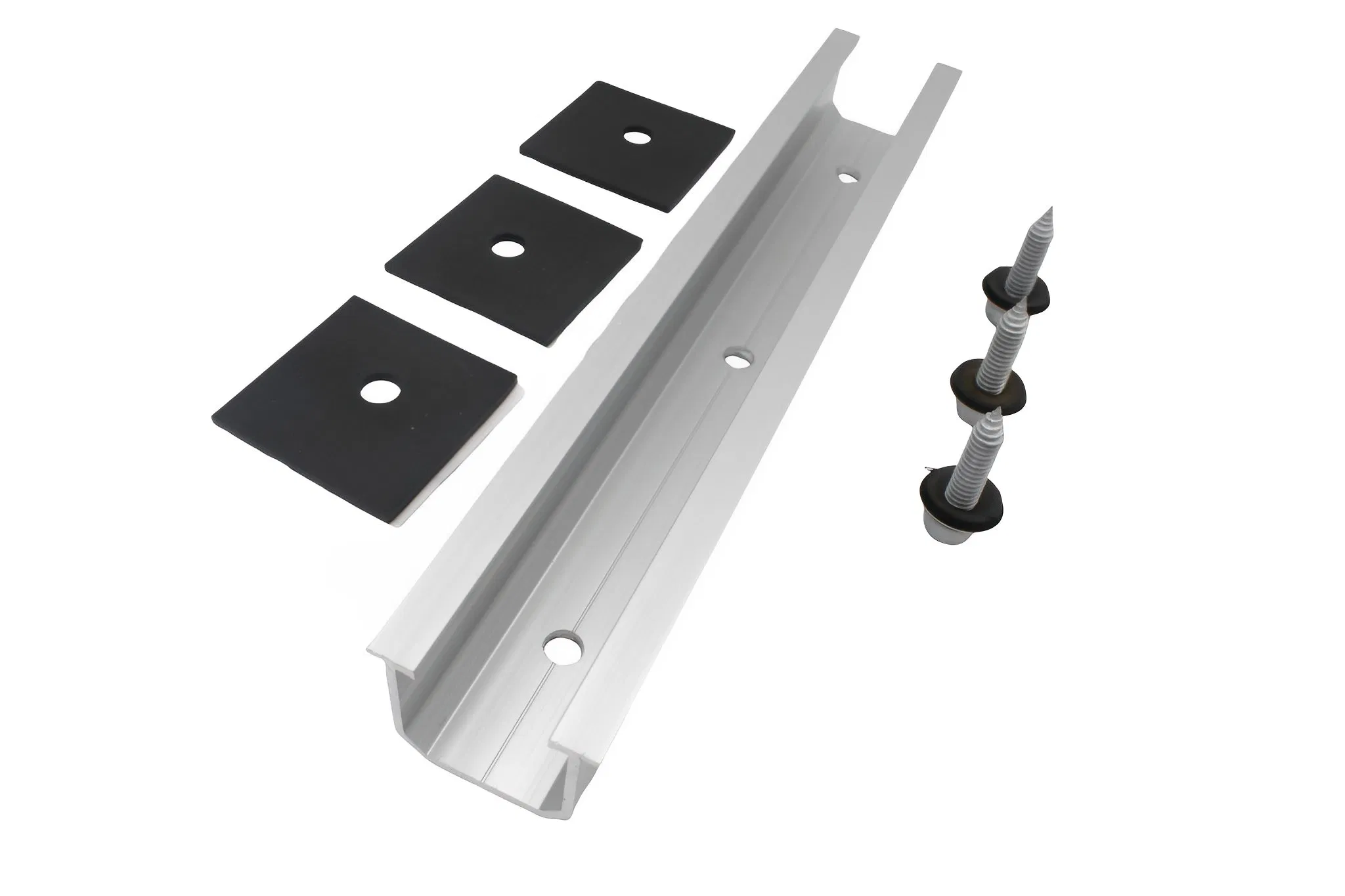

Metal Roof Mini Rail Kit Solar Panels Energy Mounting Complete Mounted PV Structure

Basic Information

Application

Commercial

Material

Aluminum Alloy

Type

Roof Bracket

Surface Treatment

Anodizing 13 Um

Max Wind Speed

up To 130mph(60m/S)

Design Snow Load

up to 30PSF(1.4kN/M2)

Design Standard

JIS C 8955:2011, GB50009-2012, 1bc 2009.Cbc2010

Panel Direction

Vertical or Landscape

Installation

Tin Rooftop or Flat Concrete Open Space

Duration

25 Years

Production Capacity

50gw /Month

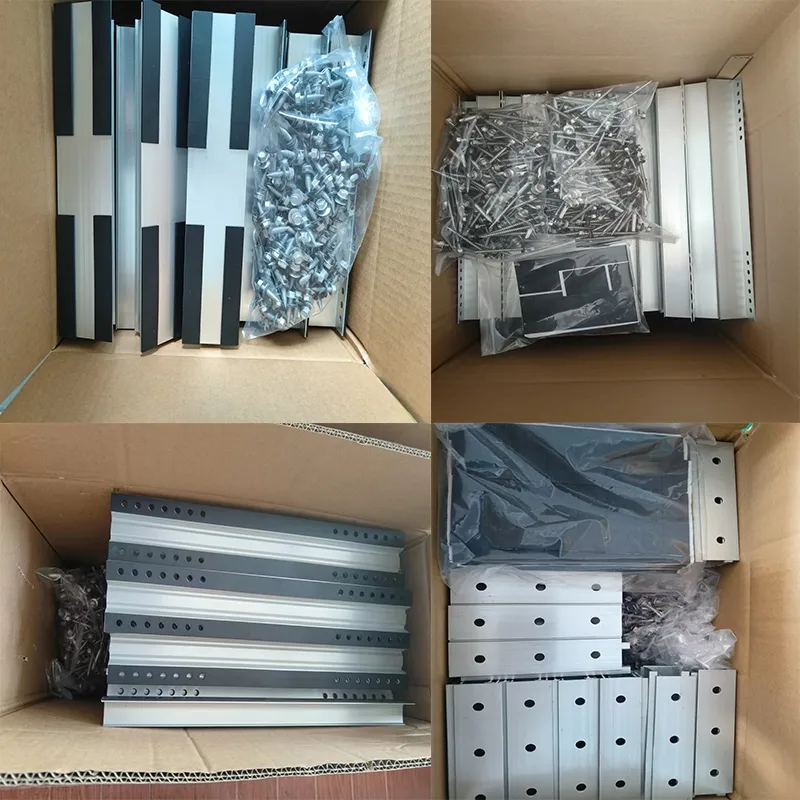

Packaging & Delivery

Package Size

240.00cm * 30.00cm * 20.00cm

Package Gross Weight

3.000kg

Product Parameters

TECHNICAL PARAMETERS
Product Name	Home Solar Panel Mounting Bracket Racking System Aluminum Pv Mounting Rail
Keywords	Solar rails
Material	Aluminum 6005-T5 & SUS304
Surface Treatment	Anodizing 13 Um
Tilt Angle	Parallel to roof
Max Wind Speed	Up To 130Mph(60m/s)
Design Snow Load	Up To 30Psf(1.4kn/m2)
Design Standard	JIS C 8955:2011, GB50009-2012, 1BC 2009.CBC2010
Warranty	12 Years
Duration	25 Years

Product Description

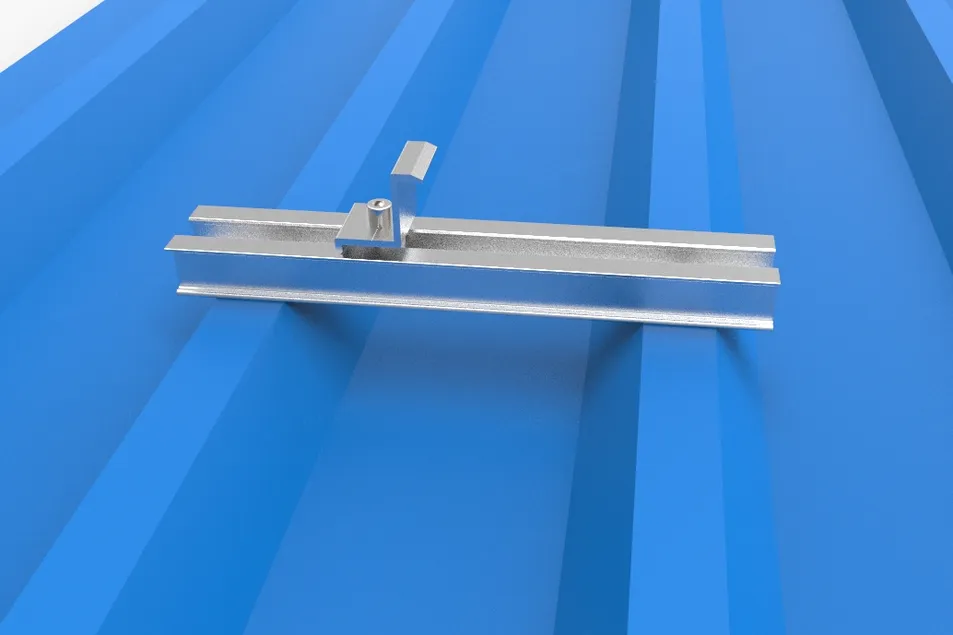

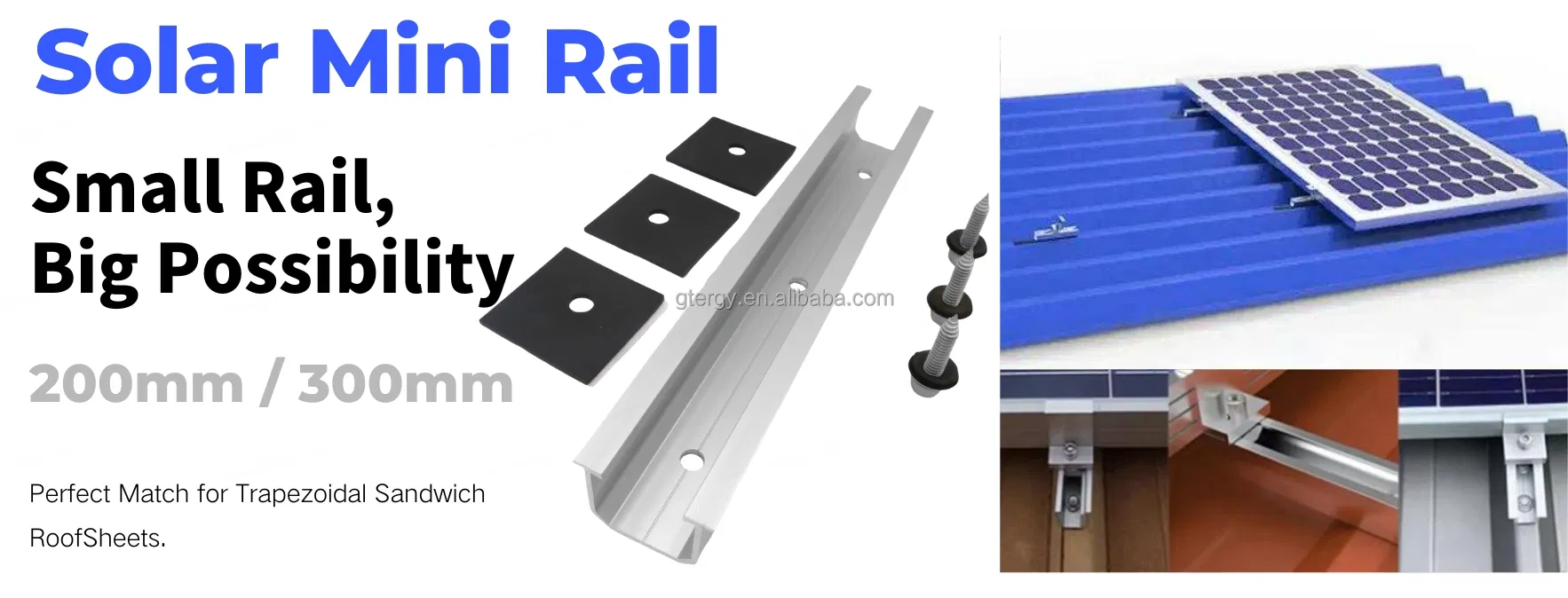

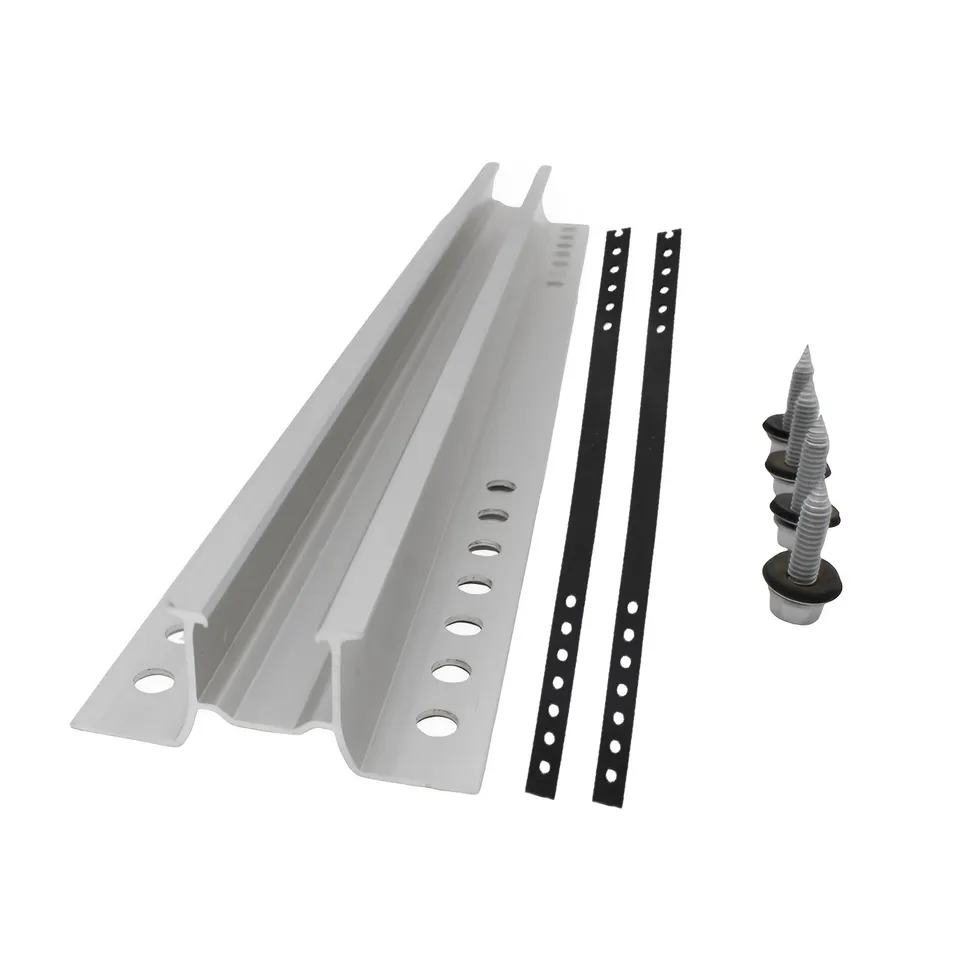

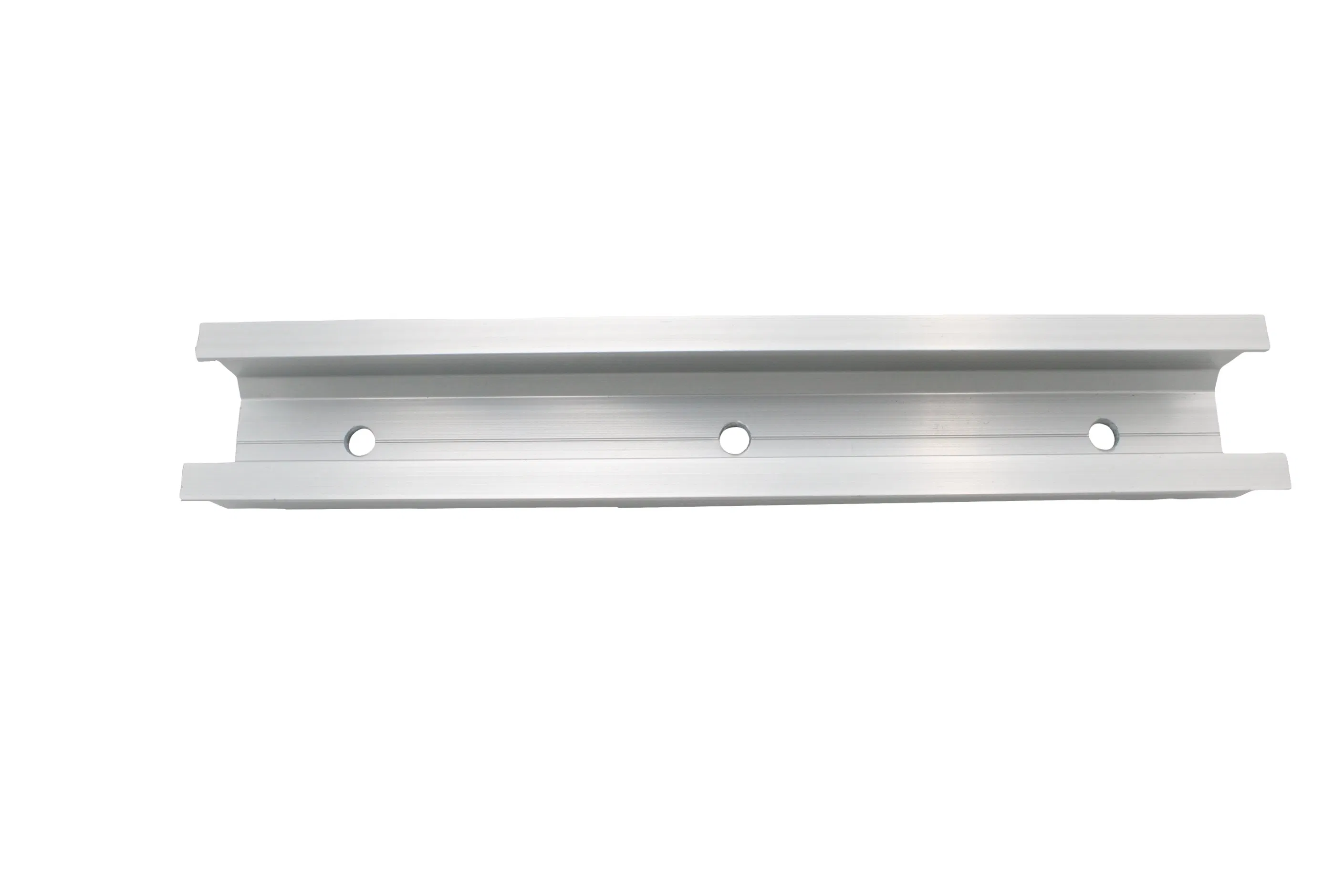

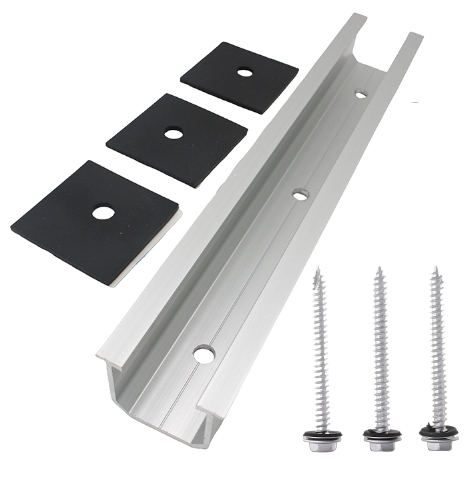

Aluminum Rail Solar Mini Rail

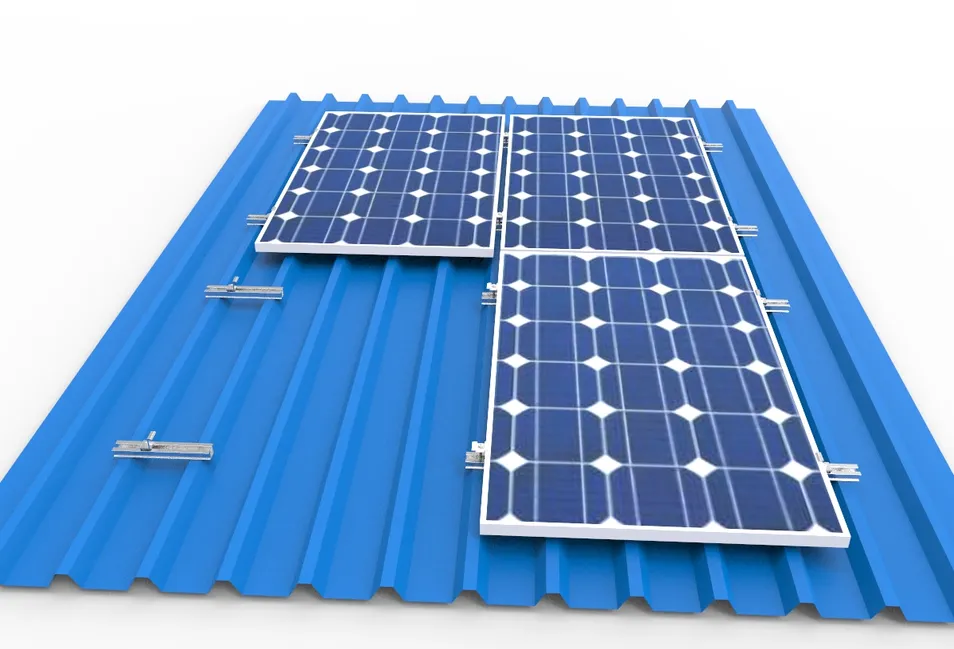

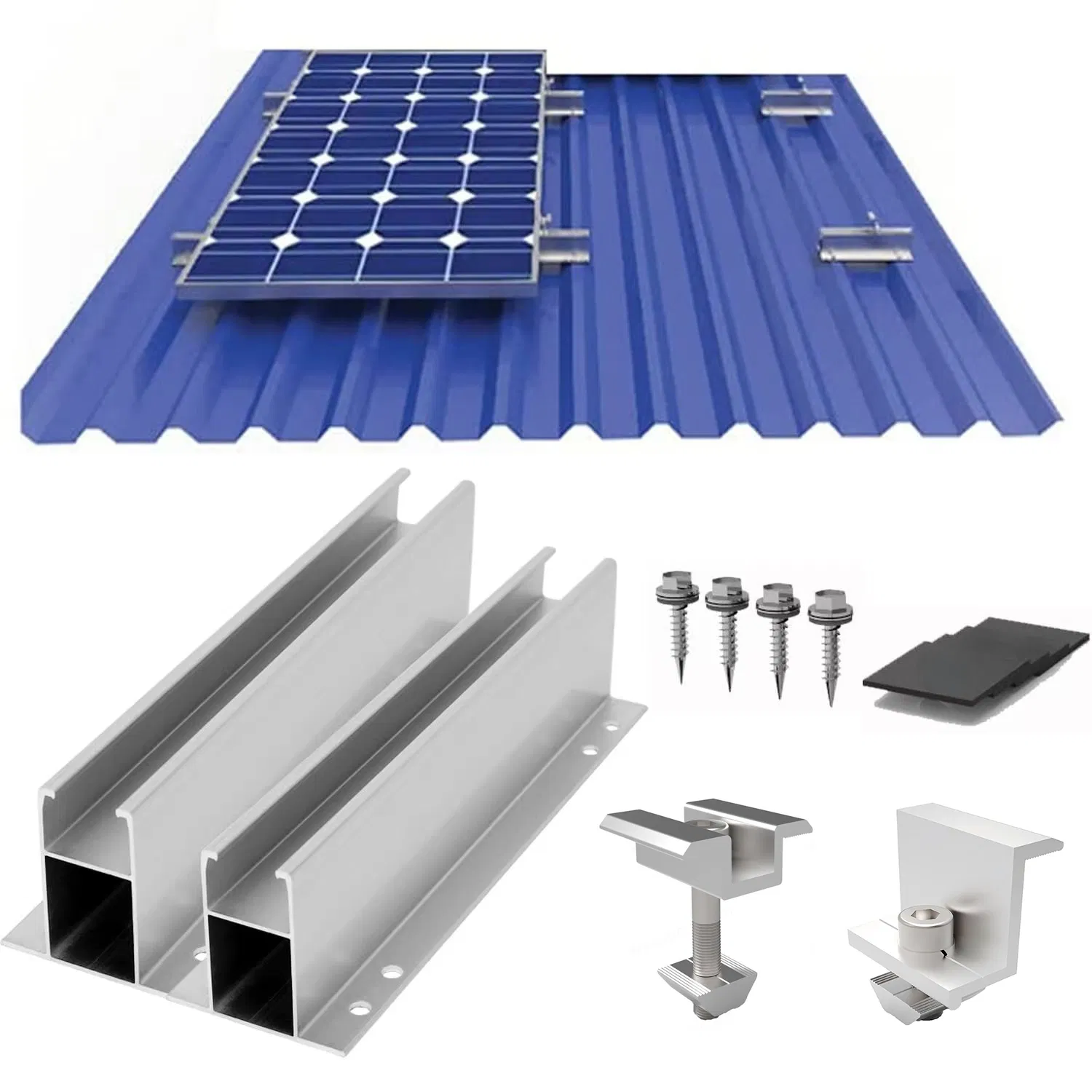

Solar Mini Rail apply for Trapezoidal metal roof:

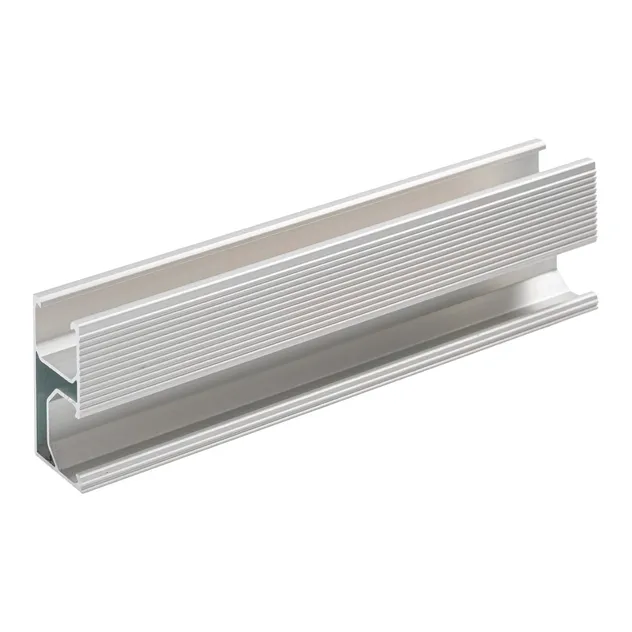

Aluminum Rails for solar panels, lightweight and cost-effective, compatible with various hooks.

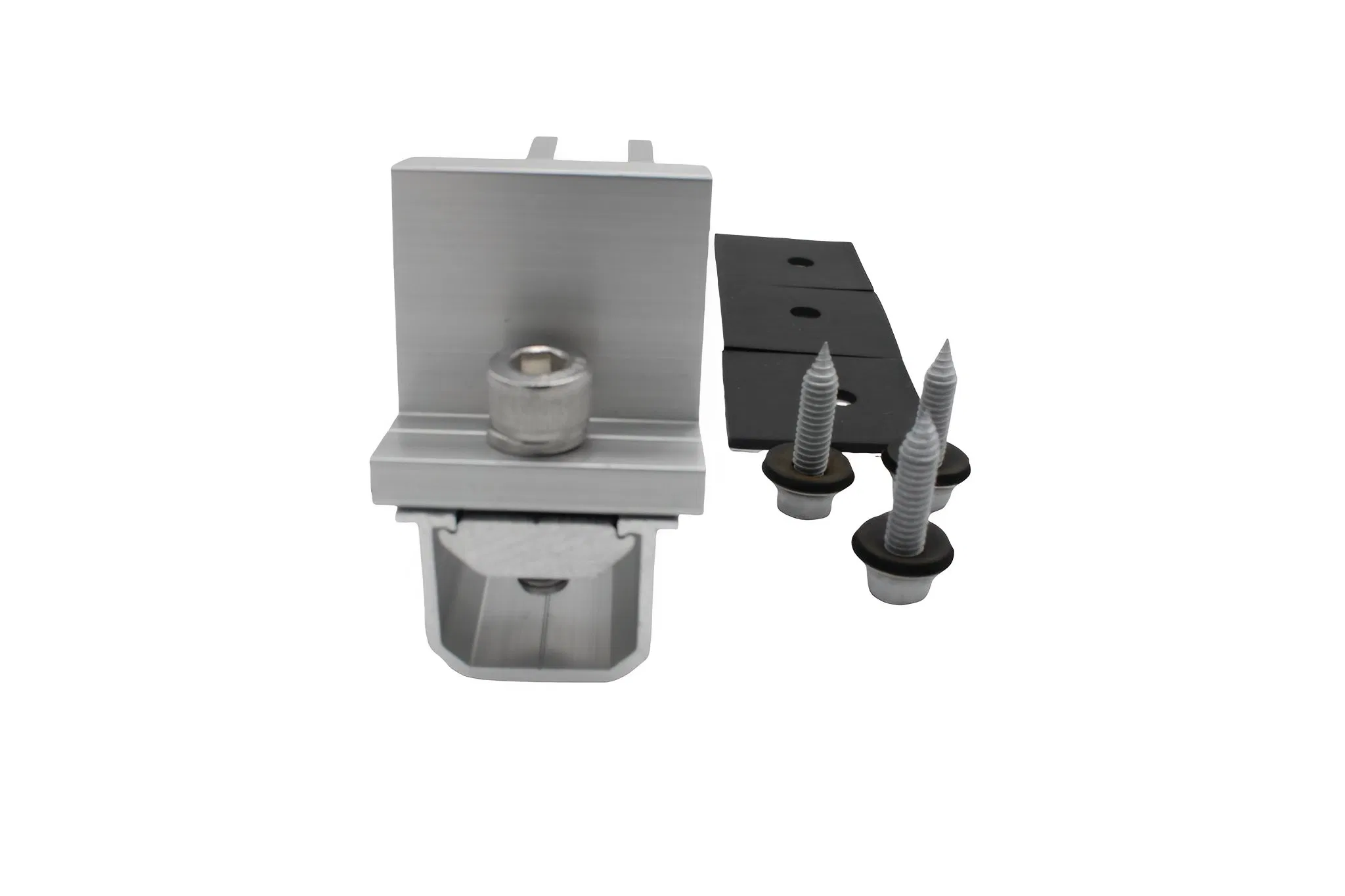

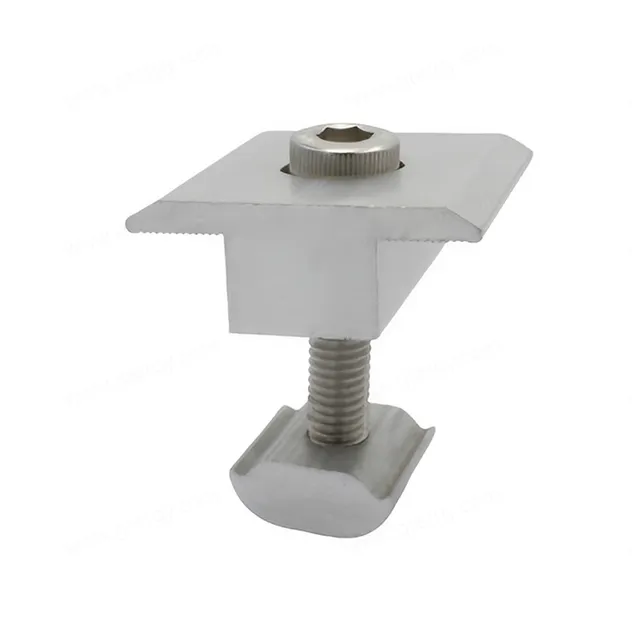

Fasten Solar PV Mounting Rails with Rapid Mid clamp & Rapid End Clamp for easy installation.
Mini rail supports solar panel without long aluminum rails, saving on installation costs.
Only three parts needed, saving at least 40% installation time.
Anti-corrosion and rust-resistance.
Customized length: 320mm/330mm/350mm available.

As a hook-type solar panel installation tool, Aluminum Solar Panel Mounting Bracket Mini Rail helps users install solar panels quickly and stably. Made of high-quality aluminum alloy material, it offers superior strength, durability, and anti-corrosion characteristics for long-term outdoor stability.

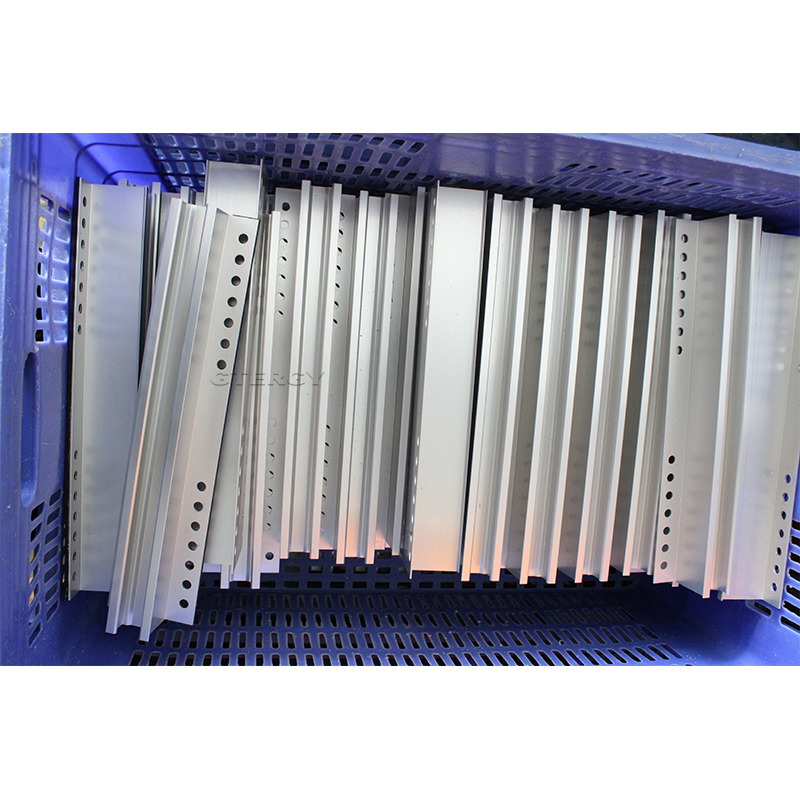

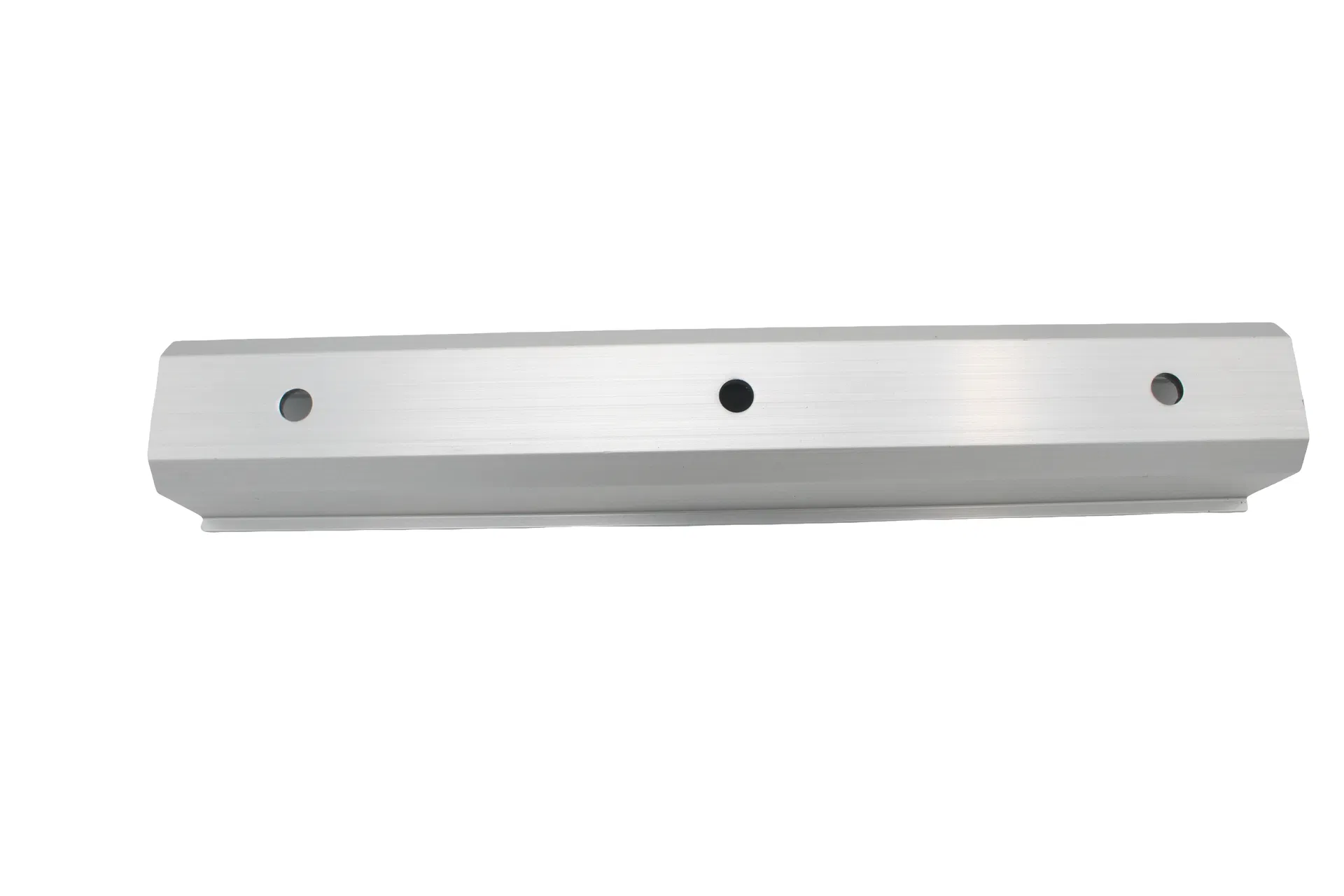

Detailed Photos

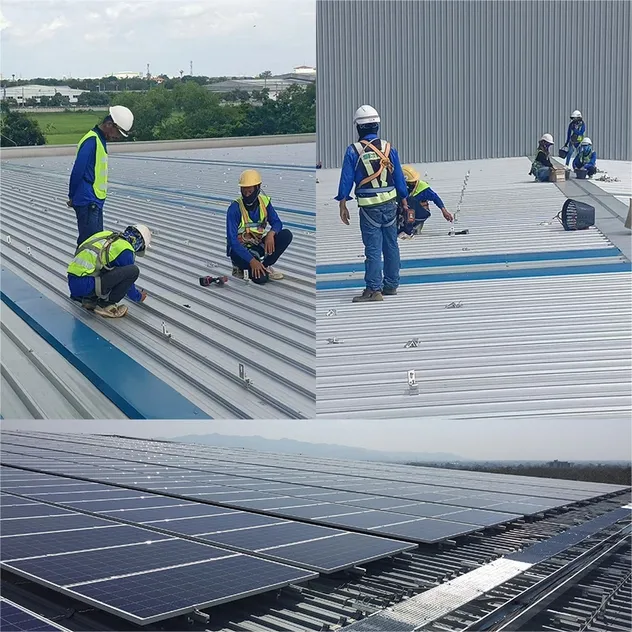

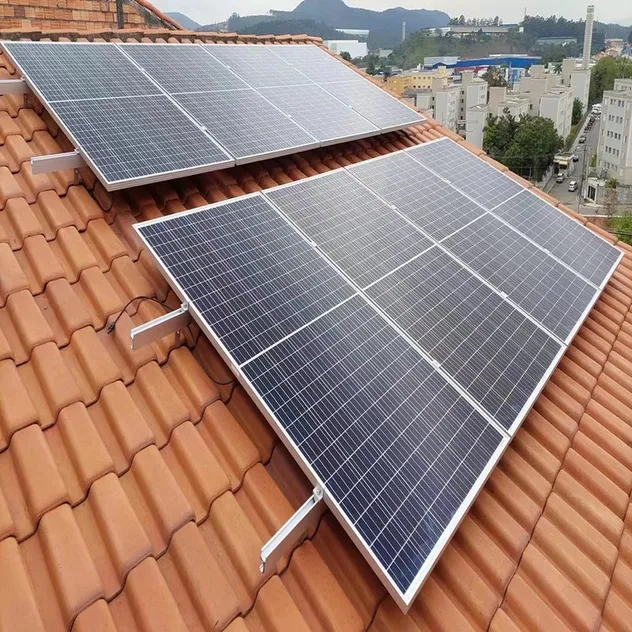

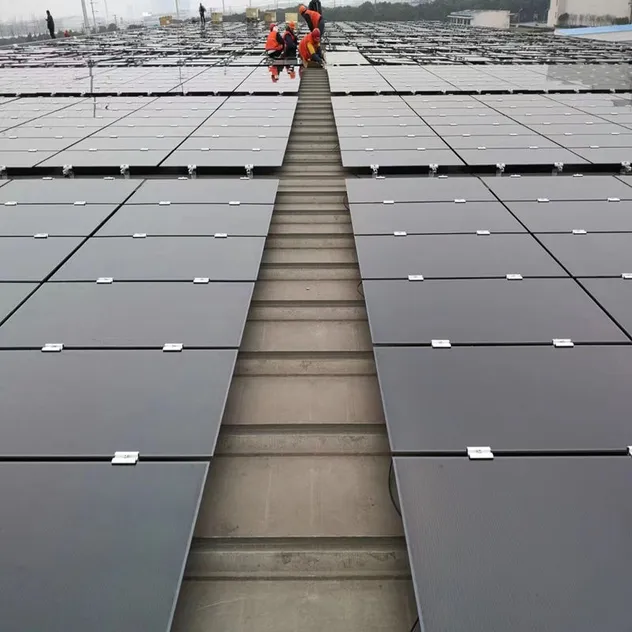

More Products & Global Projects

Frequently Asked Questions

Are you a factory or trading company?

We are a direct manufacturer in China and specialize in producing solar mounting systems. We supply multi-choice mounting systems for different kinds of power solutions whether roof, ground, RV.

How about the production time?

Stock items need 1-3 days, mass production time needs 7~15 days. Detailed production time is based on your order quantity.

Do you have any MOQ limit?

We do not have any MOQ request for our current products; 1pc for testing is available. For ODM and OEM items, a minimum order quantity is required for technical reasons.

Can I have a free sample?

If you need similar samples from our showroom, they are free, but you need to bear the freight expense. Customized samples require a sample charge.

How long does the goods arrival take?

Sample orders ship by DHL or FedEx (3-5 days). Large orders generally ship by sea, taking 15~30 days depending on the destination port.

What services can we provide?

We provide OEM and ODM services, including customized logos and color packaging based on your artwork.
