Photovoltaic Metal Roof Mounting Kit System for Solar Panel

Basic Information

Model NO.

Iron Roof Mounting System 6

Certification

ISO, CE

Application

Home

Material

Aluminum Alloy

Type

Roof Angle Bracket

Install Site

Tin Roof

Module Orientation

Landscape, Portrait

Max Wind Speed

60m/S

Max Snow Load

1.6kn/M²

Duration

More Than 20 Years

Product Description

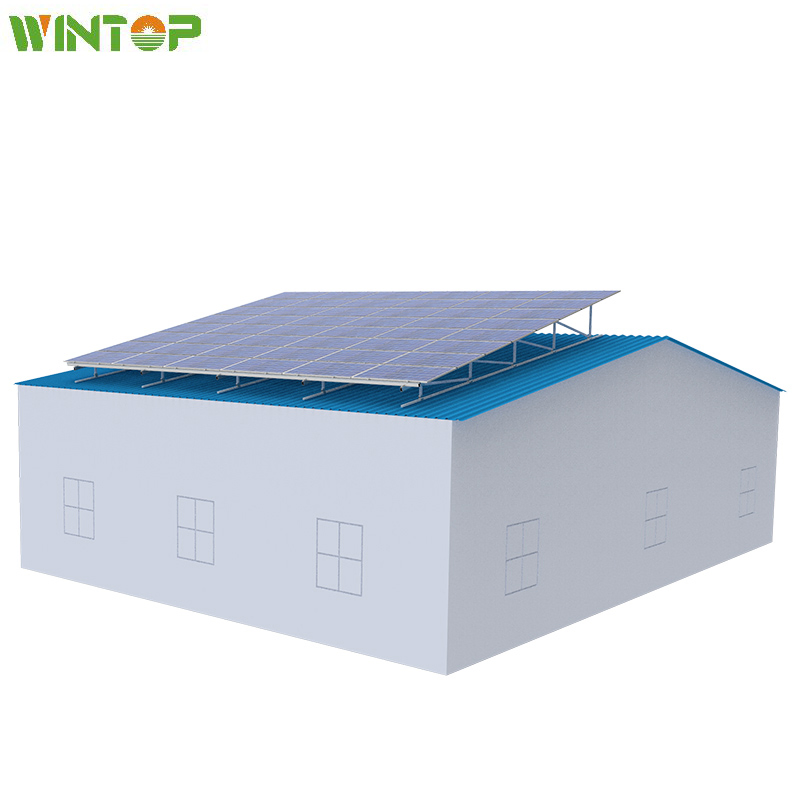

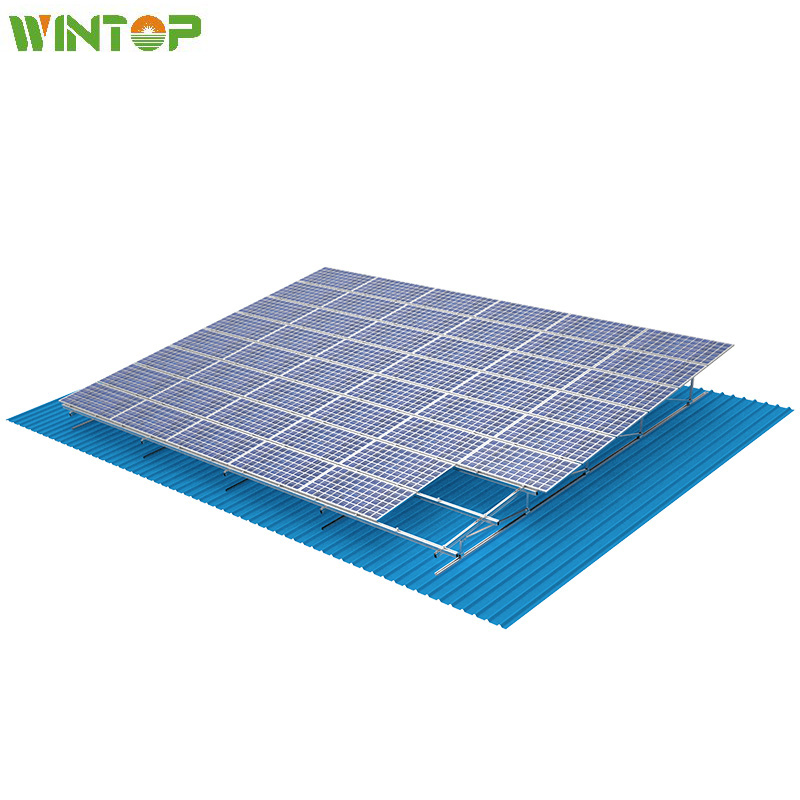

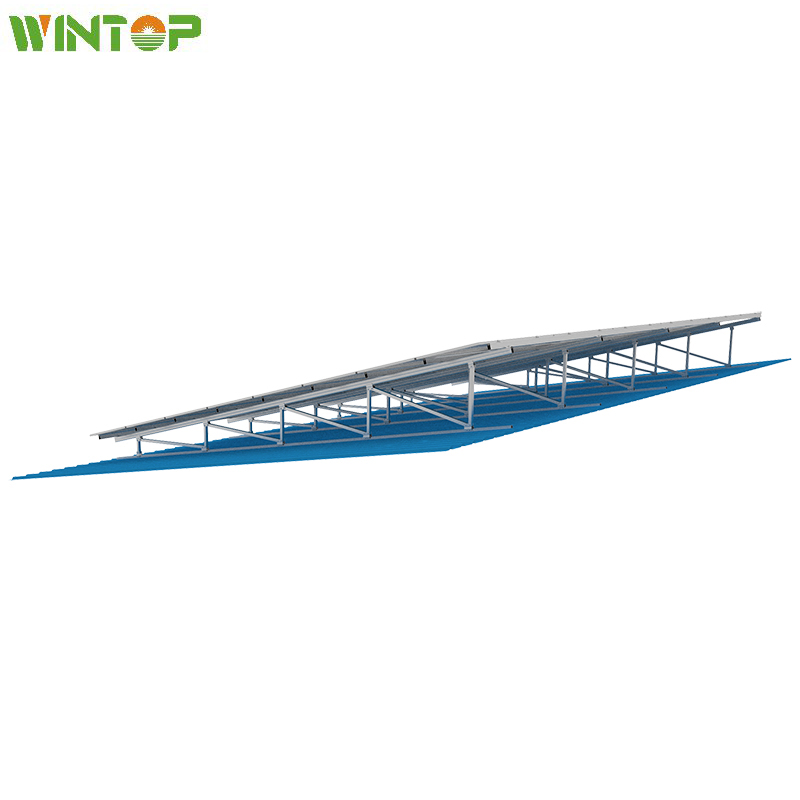

Photovoltaic Metal Roof Mounting Kit System for Solar Panel

Solar tin roof mounting system is usually suitable for tin roofs with lower roofs and solar panels that need to be heightened. This can increase the solar panel's light time more adequately. The more the duration and area of well-lit space, the more electricity you generate.

Product Parameters

Installation location	Roof
Installation foundation	Tin Roof
Installation angle	0°-60°
Wind load	60m/s (216kmh/133mph)
Snow load	1.4KN/m²
Distance from lowest point to ground	Roof height
Applicable module type	Mono-crystalline, Poly-crystalline, Double wave and Thin film
Module Orientation	Horizontal, Vertical
Design standard	AS/NZS1170, JIS C 8955-2017
Bracket material	AL6005-T5 (Anodized Oxidation)
Fastener Material	Stainless steel SUS304
Warranty & Duration	10 years & More than 20 years

Features & Benefits

⚙️ Professional structural design to ensure the strength of the bracket system.

🏗️ Lightweight stand, good flexibility and strength.

⏱️ Flexible and easy component installation, saving labor cost and time.

🏠 Various installation methods, suitable for tin roof.

🏢 For commercial or residential use.

💰 Cost-effective solution.

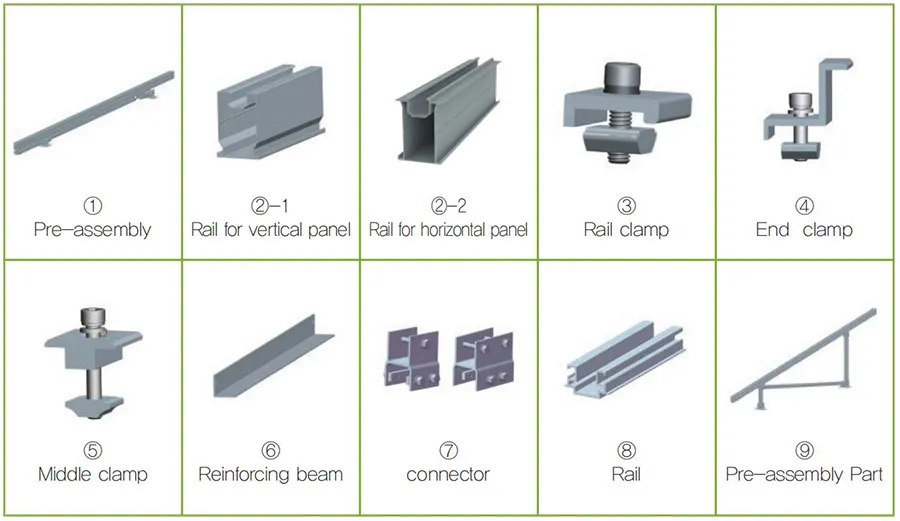

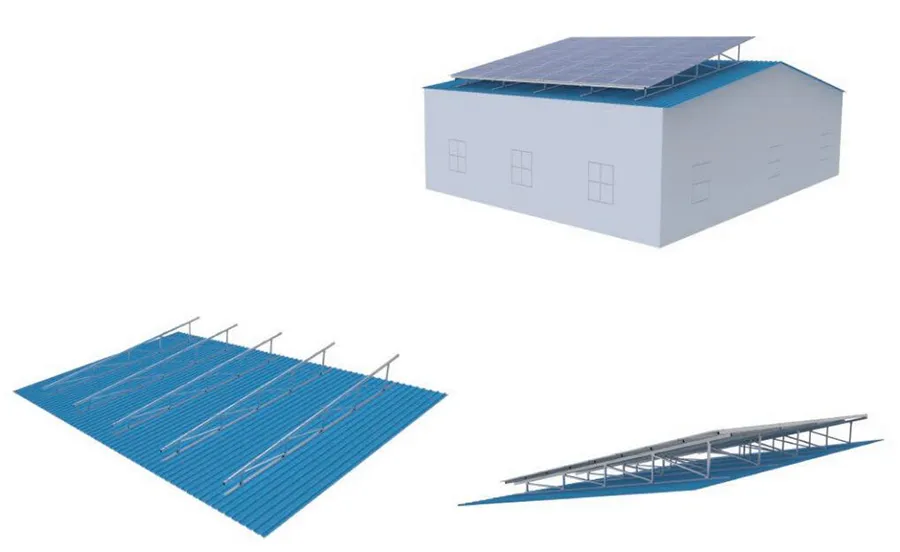

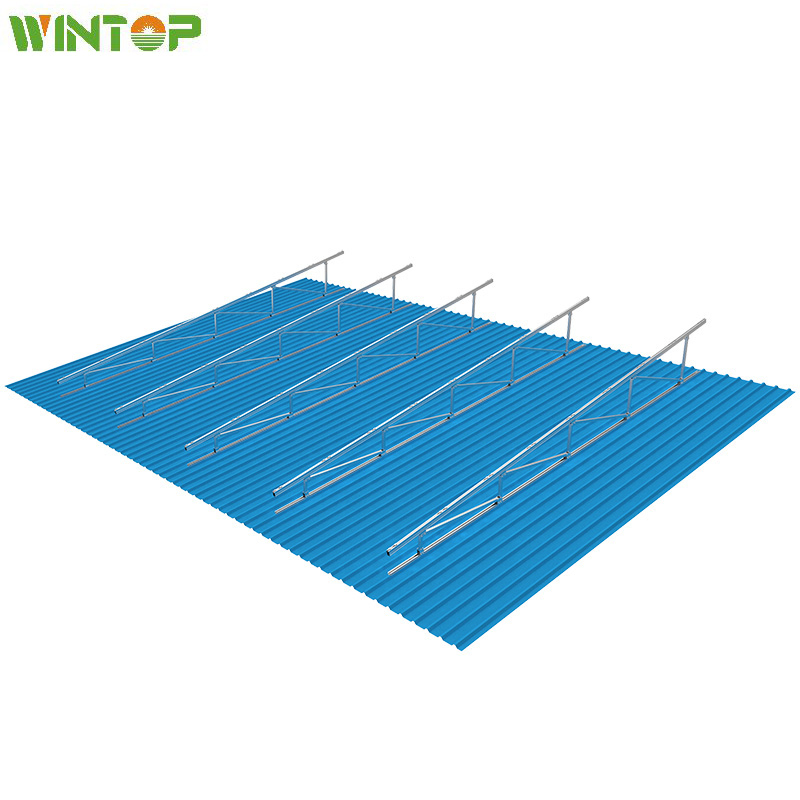

Product Components

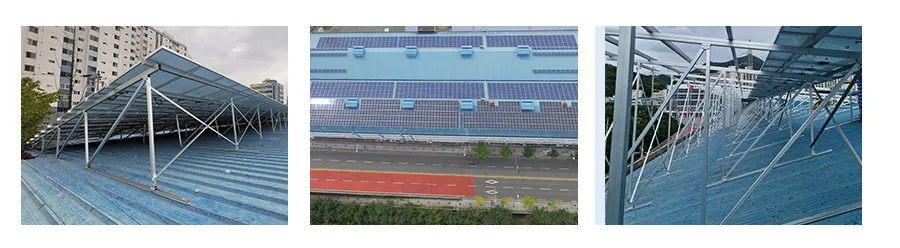

Project Showcase

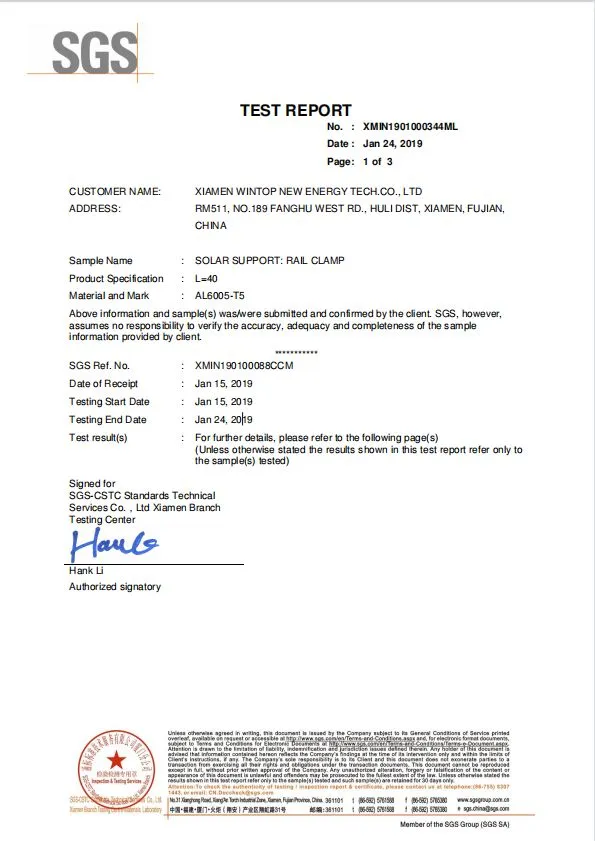

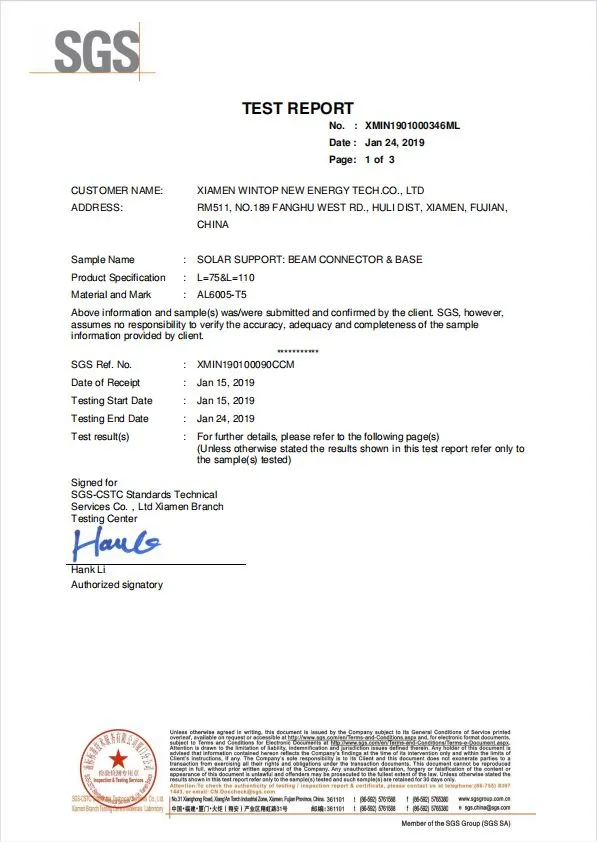

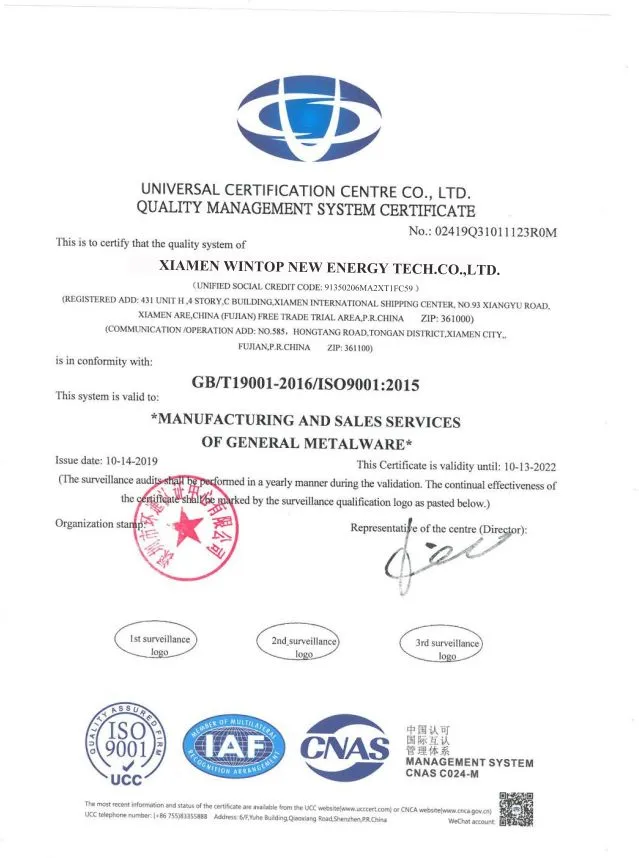

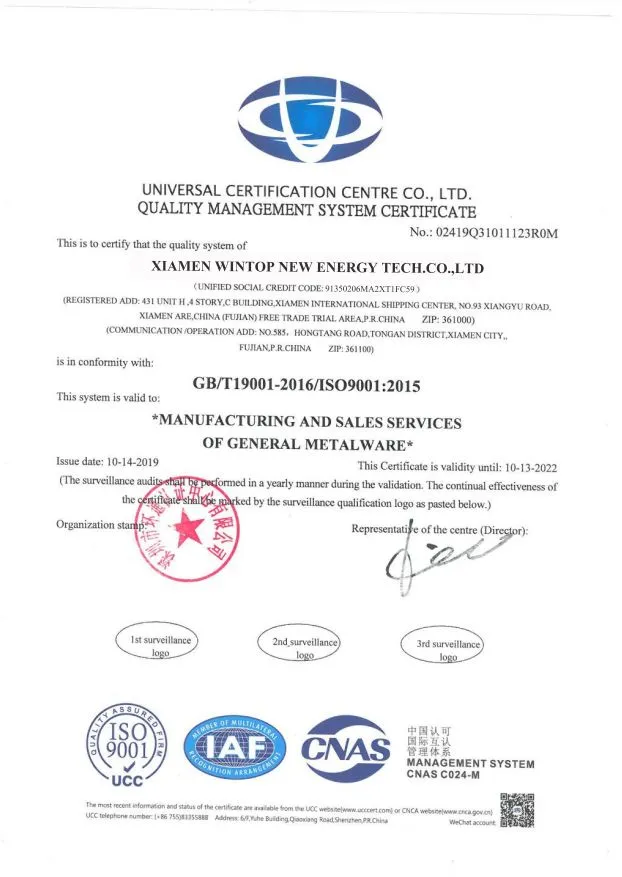

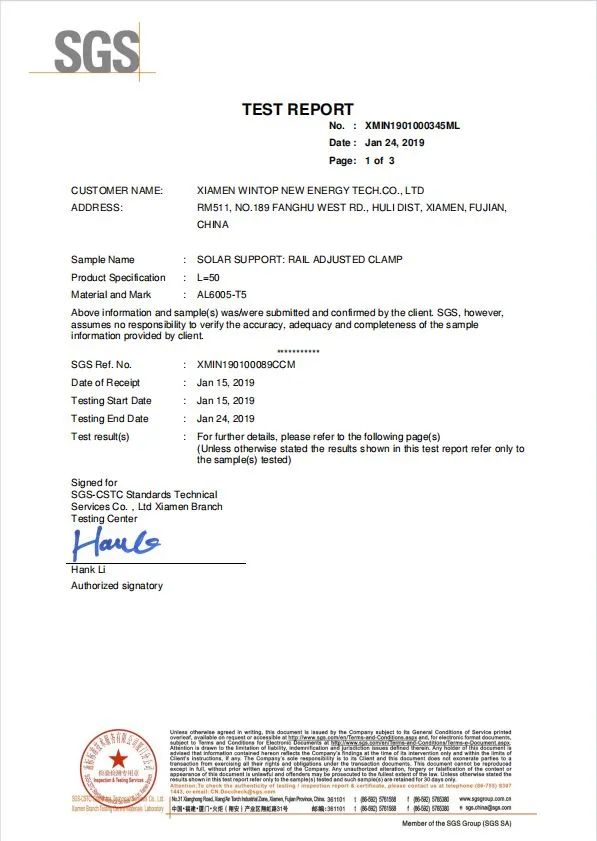

Certifications

Company Profile

Established in 2016, our company is a high-tech enterprise that integrates R&D, production and marketing of Solar Mounting System for residential, commercial and utility scale customers.

Frequently Asked Questions

Will the solar panels cause my roof to leak?

No, all of our mounting solutions are professionally engineered, guaranteed to ensure the integrity of your roof. To prevent water intrusion on shingled roofs, we use metal flashing kits that create a watertight seal every time.

Can I get samples of your mounting system?

Yes, it is acceptable to send you samples if you need. You would only need to cover the shipping fees for the samples. Please feel free to send your inquiry.

What is your minimum order quantity (MOQ)?

Our minimum order quantity is 1 set. We cater to both small-scale residential and large-scale commercial requirements.

Are the brackets resistant to extreme weather?

Yes, our systems are designed to withstand wind speeds up to 60m/s and snow loads up to 1.4KN/m², making them suitable for most harsh environmental conditions.

Is it possible to book a factory visit?

We welcome customers to visit our headquarters and factory. Hotel booking services and airport pickup are available to make your visit convenient.

What is the expected lifespan of the mounting system?

Our solar mounting systems come with a 10-year warranty and are designed for a service life of more than 20 years, thanks to high-quality anodized aluminum and stainless steel components.
