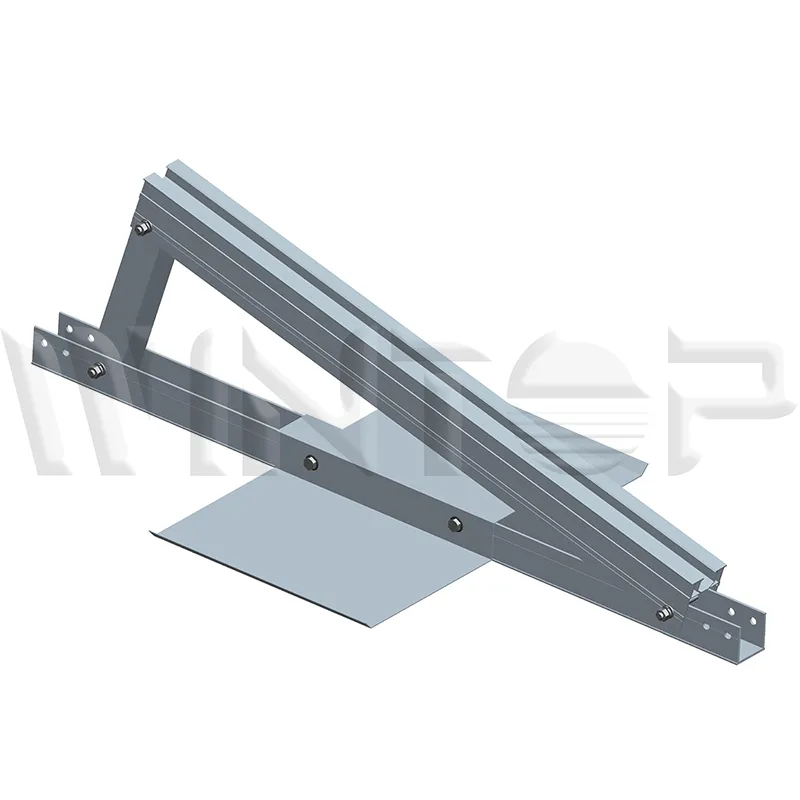

PV Flat Roof Solar Mounting Support with Ballast

Basic Specifications

Model NO.

Roof Ballast 1

Certification

ISO, CE

Application

Home / Commercial

Material

Aluminum Alloy

Type

Roof Ballast Bracket

Install Site

Concrete Roof

Orientation

Landscape, Portrait

Anti-Corrosive

Anodized

Max Wind Speed

60m/S

Max Snow Load

1.6kn/M²

Duration

More Than 20 Years

Capacity

1gw/Years

Product Overview

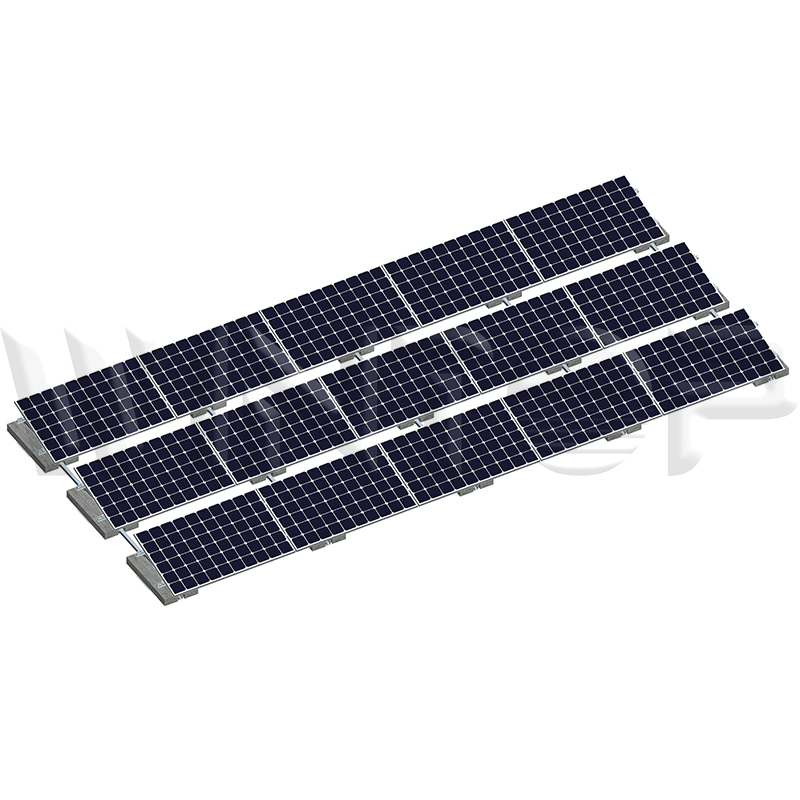

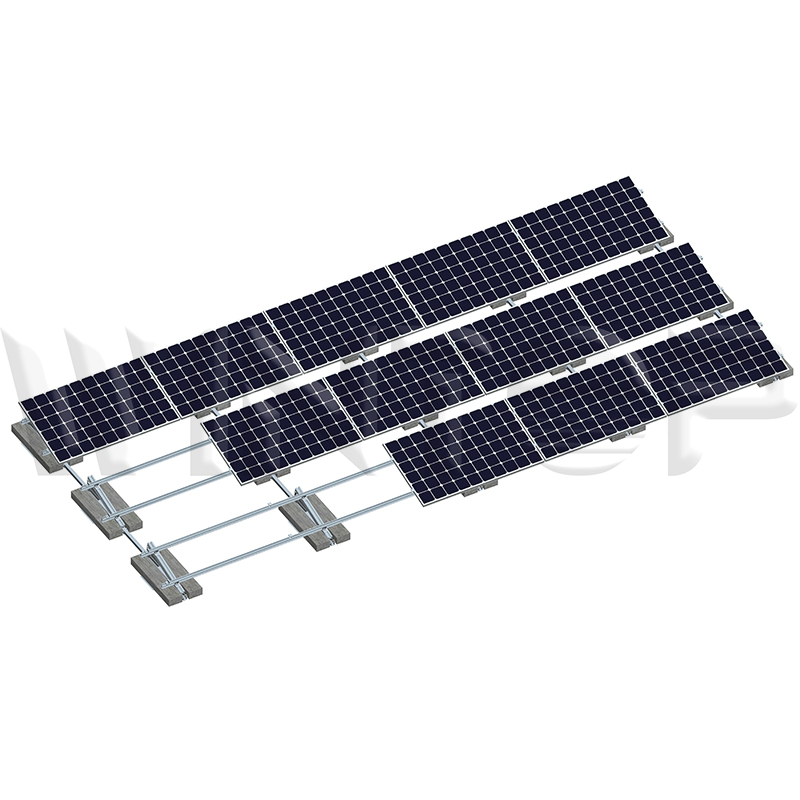

PV Flat Roof Solar Mounting Support With Ballast

The Roof Ballast Solar Mounting System is a specialized flat roof racking system. This ballast design is versatile enough for installation on pitched roofs or flat ground surfaces. It offers a cost-effective solution characterized by its convenient and rapid installation process.

Our ballast mounting systems are engineered to withstand extreme weather conditions, adhering to international standards such as AS/NZS 1170. All primary load-bearing components have undergone rigorous testing to guarantee structural integrity and long-term performance.

Technical Parameters

Installation location	Low angle rooftop or outdoor
Installation foundation	Concrete foundation
Installation angle	5°-35°
Wind load	60m/s(216kmh/133mph)
Snow load	1.4KN/m²
Module type	Mono-crystalline, Poly-crystalline, Double wave and Thin film
Module Orientation	Horizontal, Vertical
Design standard	AS/NZS1170, JIS C 8955-2017
Bracket material	AL6005-T5(Anodized Oxidation)
Fastener Material	Stainless steel SUS304
Warranty & Duration	10 years & More than 20 years

Features & Benefits

High corrosion resistance and exceptional salt tolerance.

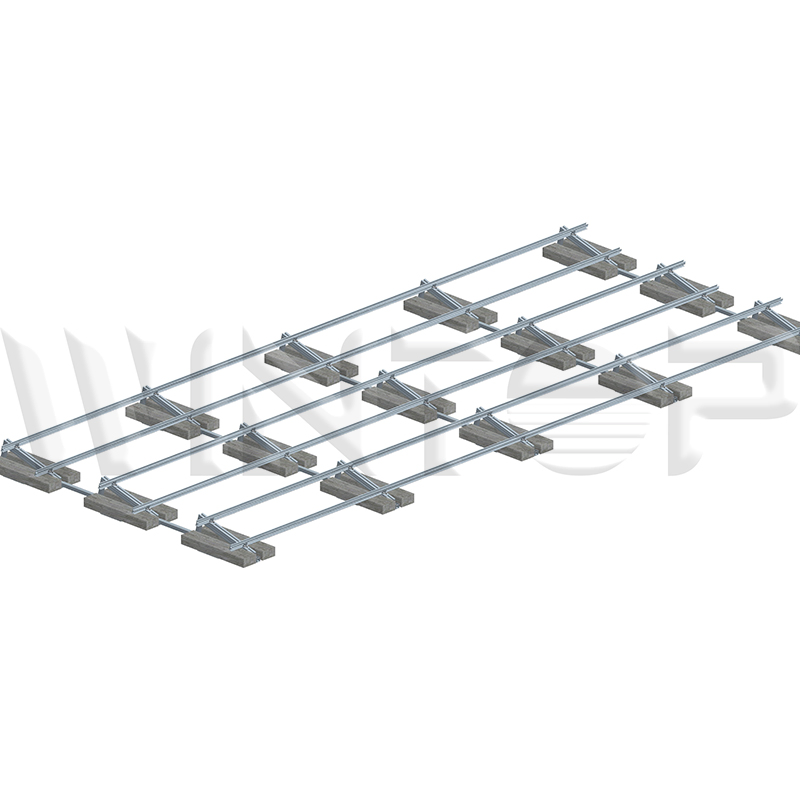

Fixed with concrete ballast to achieve superior wind resistance without roof penetration.

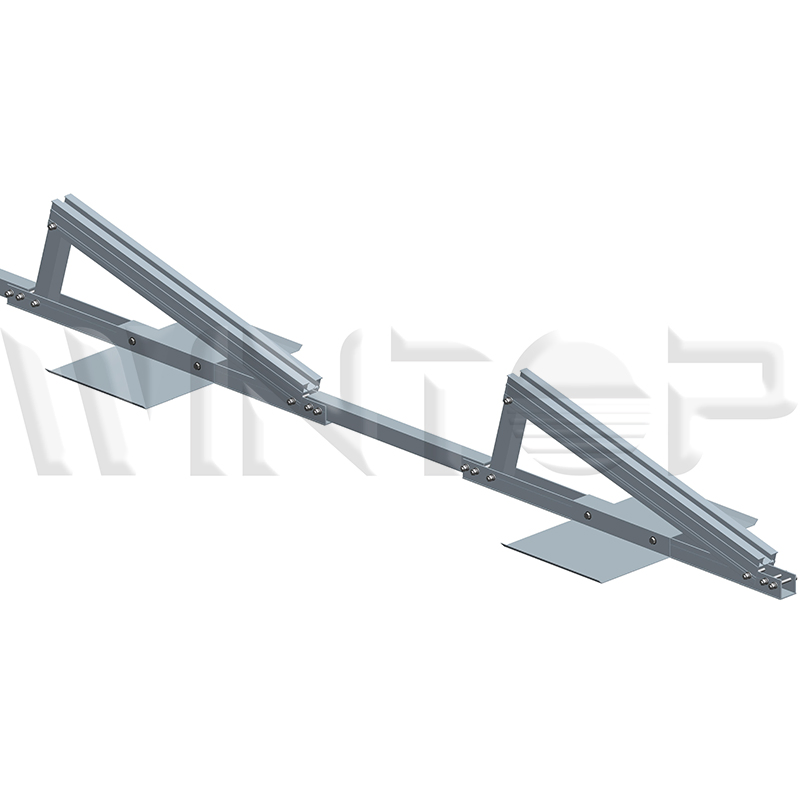

Specific bottom rail design for enhanced stability.
Flexible installation options for both horizontal and vertical module orientations.
Structure can be adjusted according to specific site demands.
Reliable protection for the roof's waterproof layer during construction.
Simplified construction method allowing simultaneous bracket and counterweight installation.

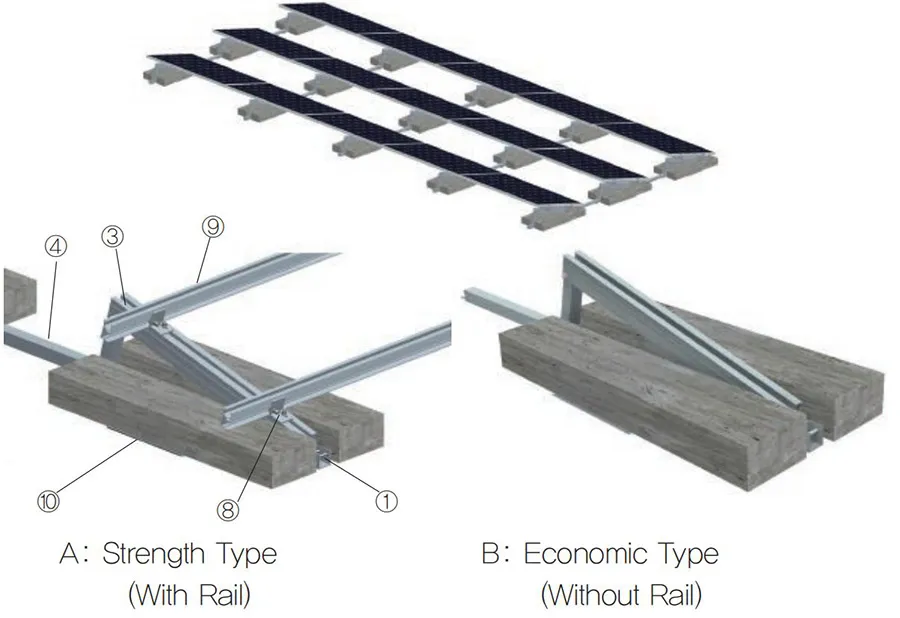

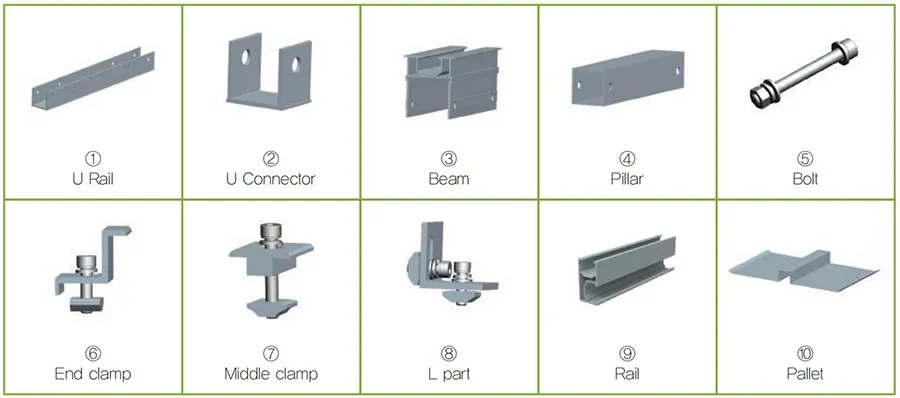

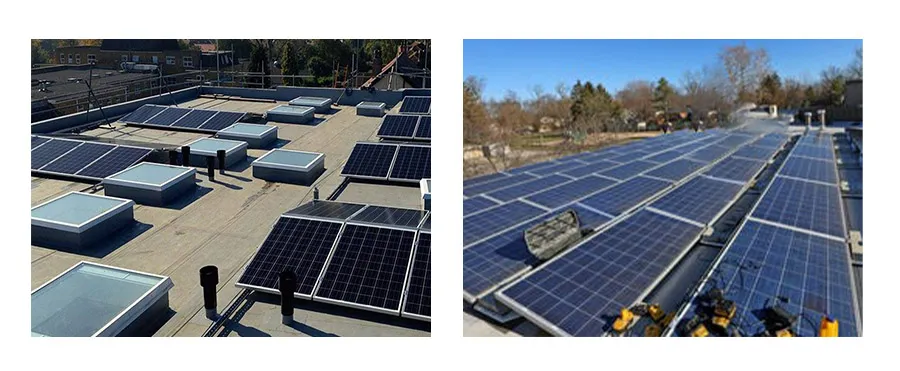

Components & Projects

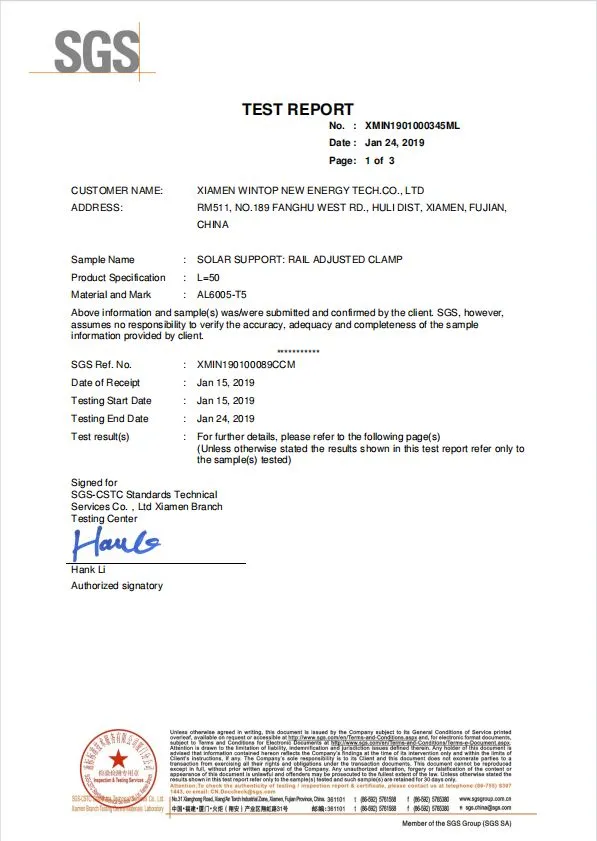

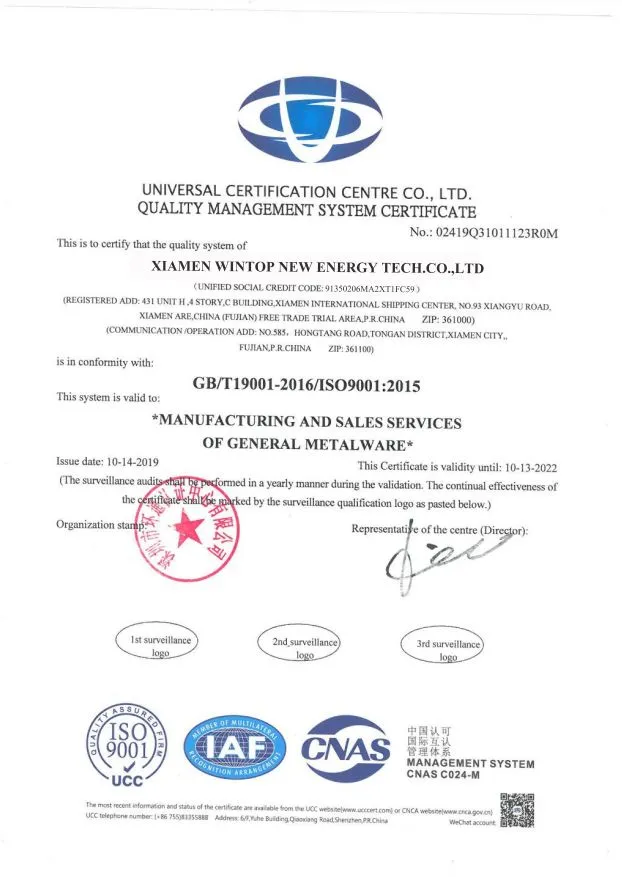

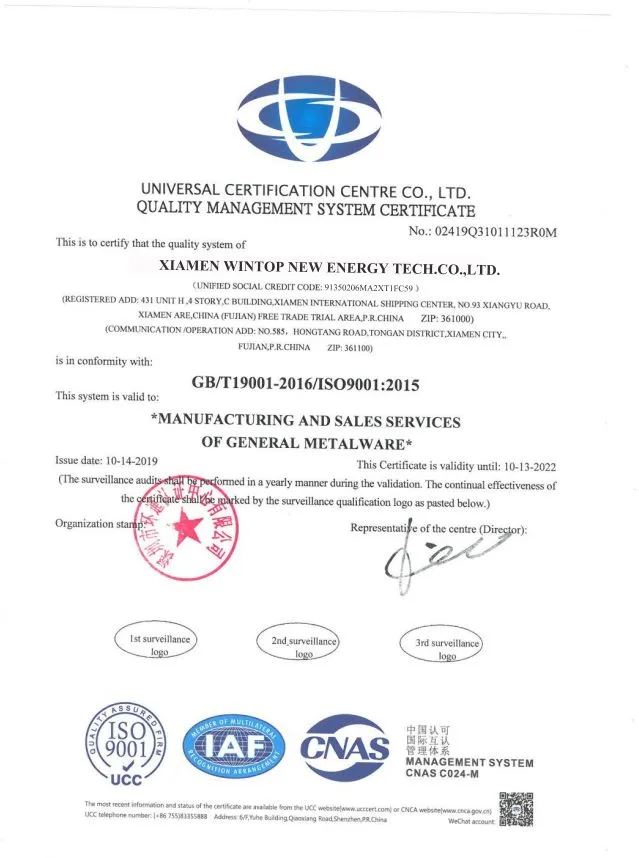

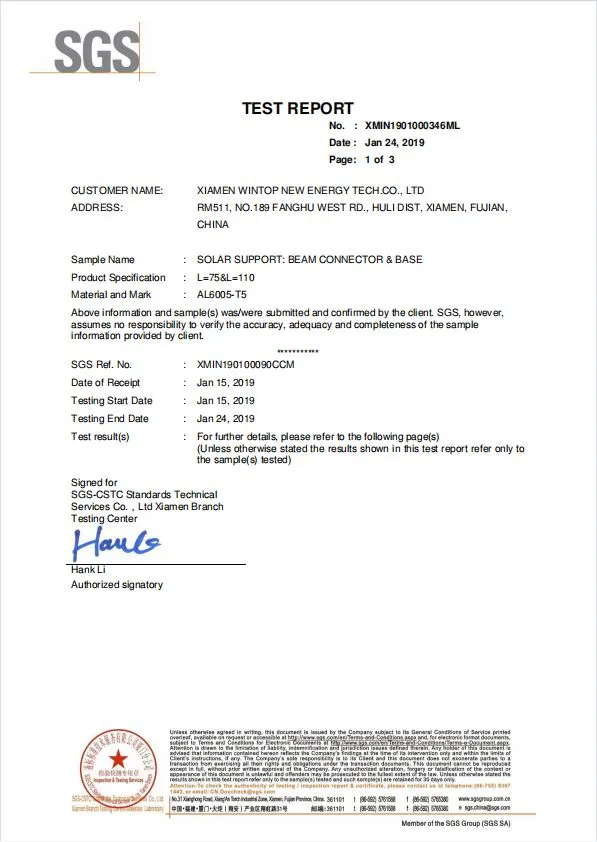

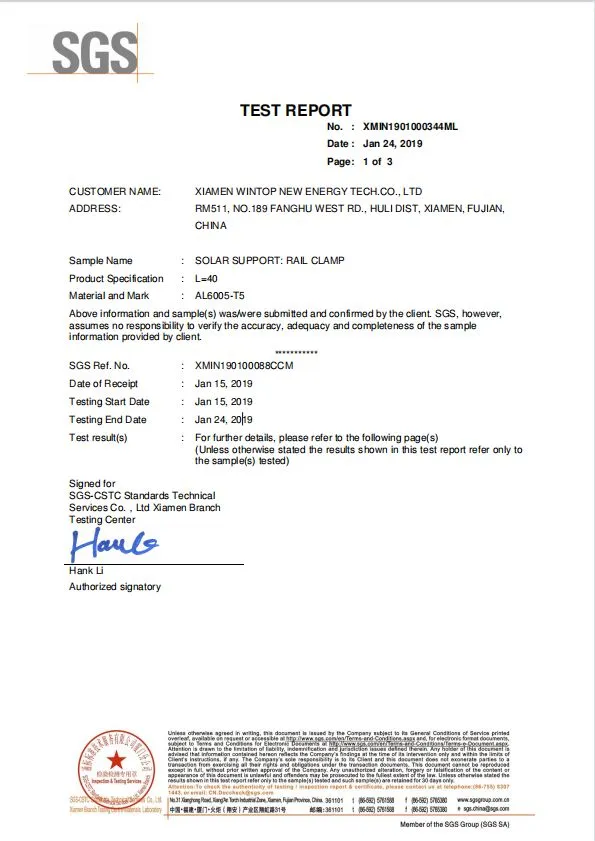

Certifications

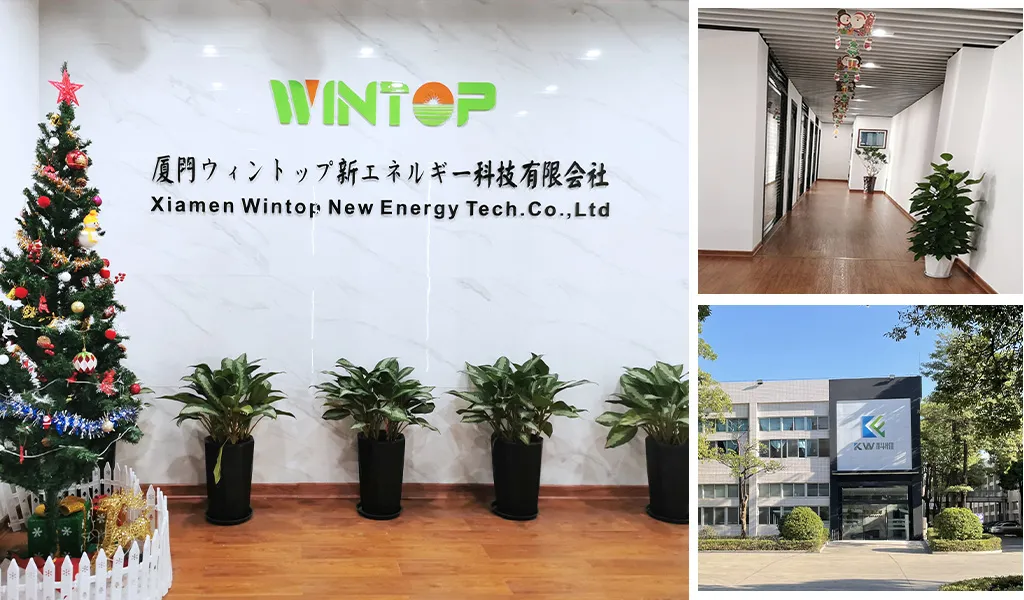

Professional Capability

Established as a high-tech enterprise, we integrate R&D, production, and marketing of Solar Mounting Systems. We cater to residential, commercial, and utility-scale customers globally with innovative clean energy solutions.

Frequently Asked Questions

Will the solar panels cause my roof to leak?

No. Our mounting solutions are professionally engineered to ensure the integrity of your roof. For ballast systems specifically, there is no penetration of the roof membrane, preserving the watertight seal completely.

What materials are used in the mounting system?

The brackets are made from high-grade Aluminum AL6005-T5 with Anodized Oxidation treatment, and fasteners are made of Stainless Steel SUS304 for maximum durability and corrosion resistance.

What is the maximum wind and snow load capacity?

The system is designed to withstand a maximum wind speed of 60m/s and a snow load of up to 1.6kn/m², complying with AS/NZS1170 and JIS C 8955-2017 standards.

Is the system compatible with all panel types?

Yes, the mounting system is applicable for Mono-crystalline, Poly-crystalline, Double wave, and Thin film modules in both horizontal and vertical orientations.

What is the expected lifespan of the mounting bracket?

The system comes with a 10-year warranty and is engineered for a service life of more than 20 years under normal environmental conditions.

Can I request samples before placing a bulk order?

Yes, samples are available upon request. You would only need to cover the relevant shipping fees for the sample units.
