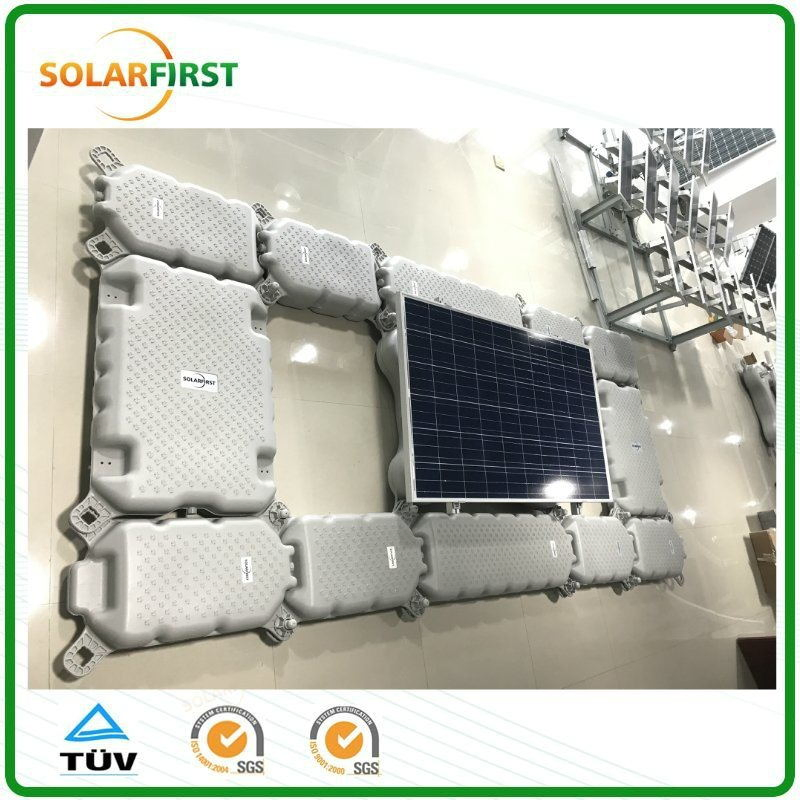

Solar Mounting Float Solar System on Water
Solar Mounting Float Solar System on Water
Solar Mounting Float Solar System on Water
Solar Mounting Float Solar System on Water
Solar Mounting Float Solar System on Water
1 / 5
Solar Mounting Float Solar System on Water
Solar Mounting Float Solar System on Water
Solar Mounting Float Solar System on Water
Solar Mounting Float Solar System on Water
Solar Mounting Float Solar System on Water

Solar Mounting Float Solar System on Water

Customization: Available
Certification: ISO
Application: Commercial
Send Inquiry

Product Description

🌊 Durable HDPE

High-density polyethylene for long-term water use.

💨 Wind Resistant

Tested up to 60m/s max wind load.

🛡️ Long Warranty

10-year warranty with 25-year service life.

📋 Basic Specifications
Model NO.
SF-FM-01
Material
HDPE, Al6005-T5, SUS304
Type
Floating Mounting
Installation Site
Lake, River, Sea, Reservoir, Pond
Tilt Angle
0 - 25 Degree
Max Wind Load
60m/s
Max Snow Load
1.4kN/M2 (up to 45KN)
Capacity
100,000,000W/Month
🔍 Product Description
Installation Site On Water Surface (lake, reservoir, dam, pond, etc.)
Surface Flow Rate ≤0.51m/s
Wind Load ≤36m/s (Standard Operational) / 60m/s (Max)
Snow Load ≤45KN / 1.4kN/M2
Tilt Angle 0~25°
Standards BS6349-6, T/CPIA 0017-2019, T/CPIA0026-2019, NBT10187-2019, GBT 13508-1992
Warranty 10-Year Warranty and 25-Year Service Life

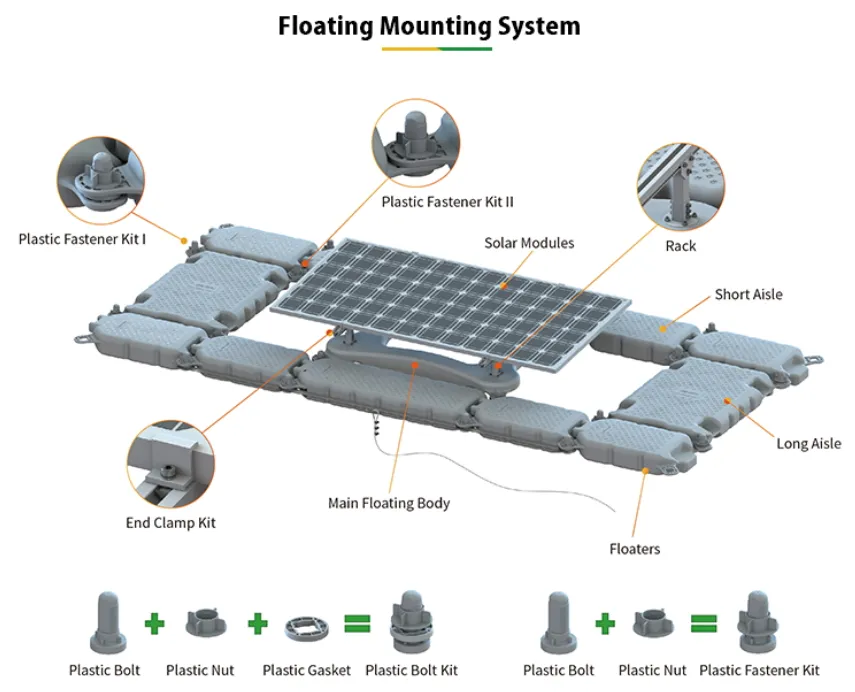

Floating Solar Mounting System Overview

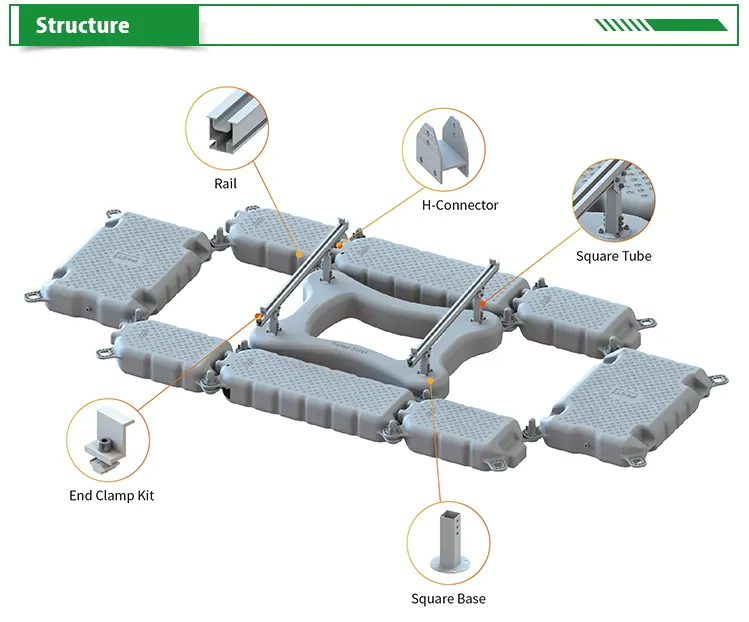

Solar Mounting Float on Water

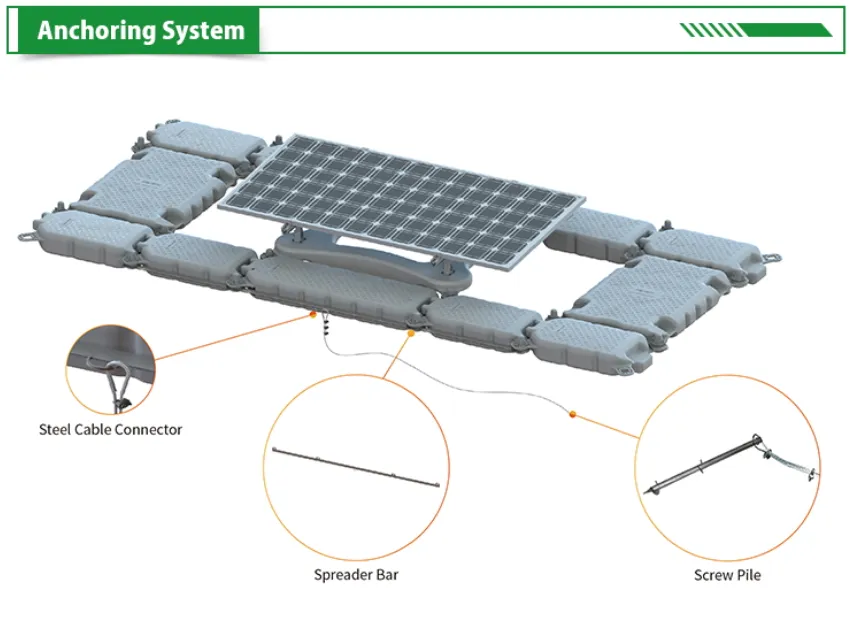

Water Surface Solar Installation

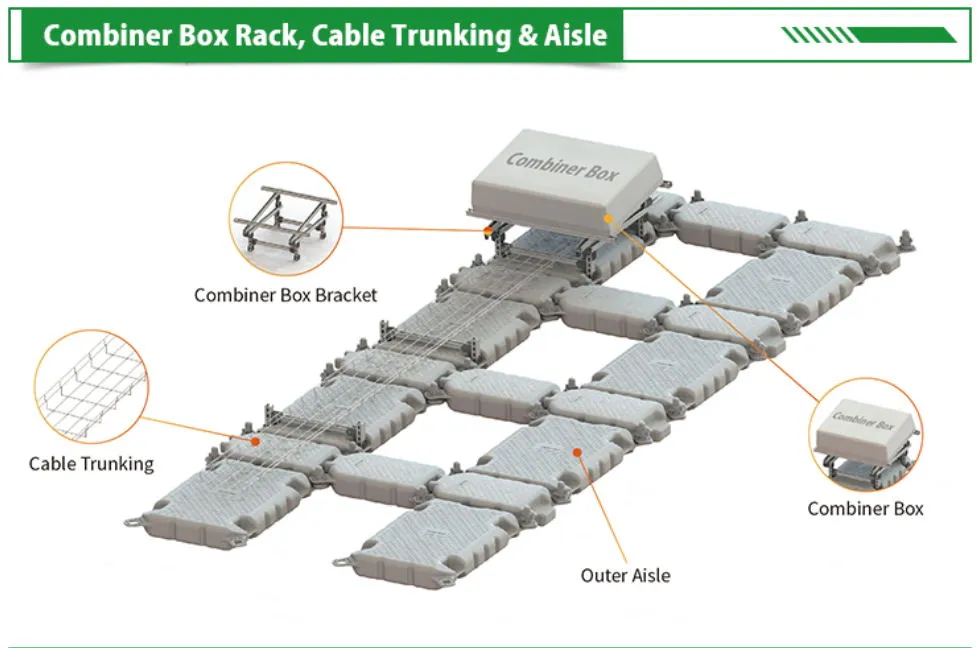

Floating Structure Detail

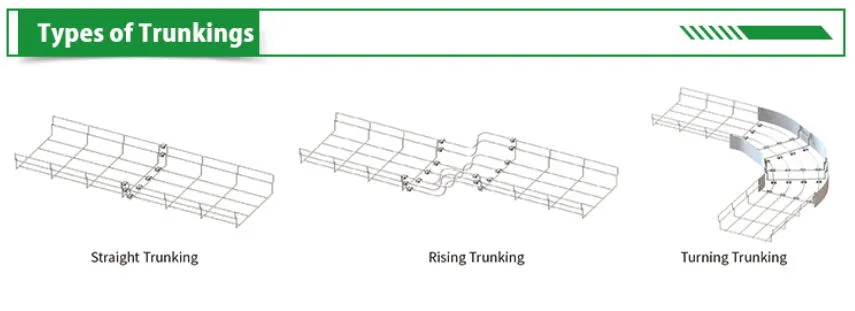

Float Component Dimensions

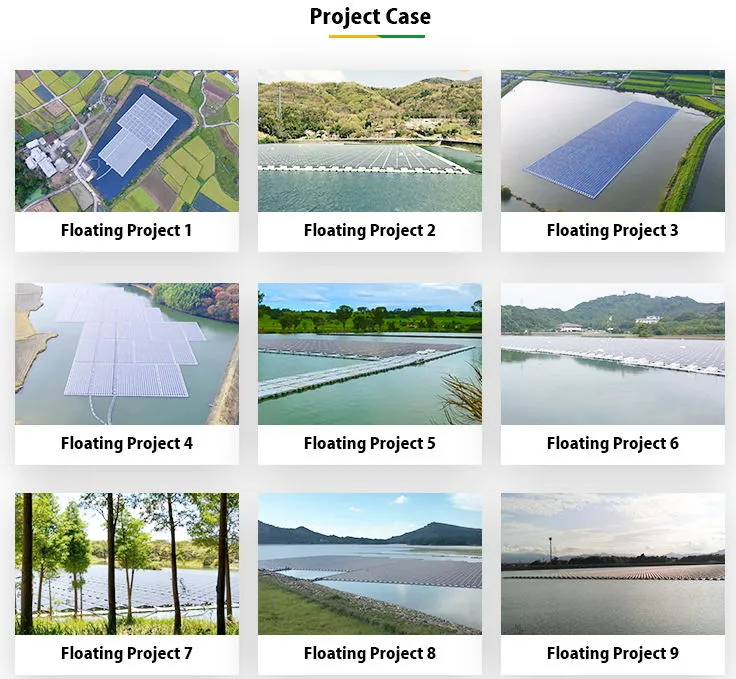

Floating PV Power Plant
❓ Frequently Asked Questions
What materials are used in the floating solar system?
The system primarily uses high-quality HDPE (High-Density Polyethylene), Al6005-T5 aluminum alloy, and SUS304 stainless steel for maximum corrosion resistance in water environments.
Where can this system be installed?
The SF-FM-01 model is designed for water surfaces such as lakes, rivers, reservoirs, dams, ponds, and even certain sea areas with low flow rates.
What is the expected lifespan of the floating mounting?
The product comes with a 10-year warranty and is engineered for a service life of up to 25 years.
Can the system withstand extreme weather conditions?
Yes, the system is designed to handle a maximum wind load of 60m/s and a maximum snow load of up to 45KN or 1.4kN/M2.
What tilt angles are supported for the solar panels?
The system supports tilt angles ranging from 0° to 25°, with standard options at 10° or 15° depending on the project requirements.
Which international standards does the product comply with?
The mounting system meets several standards including BS6349-6, T/CPIA 0017-2019, T/CPIA0026-2019, NBT10187-2019, and GBT 13508-1992.
