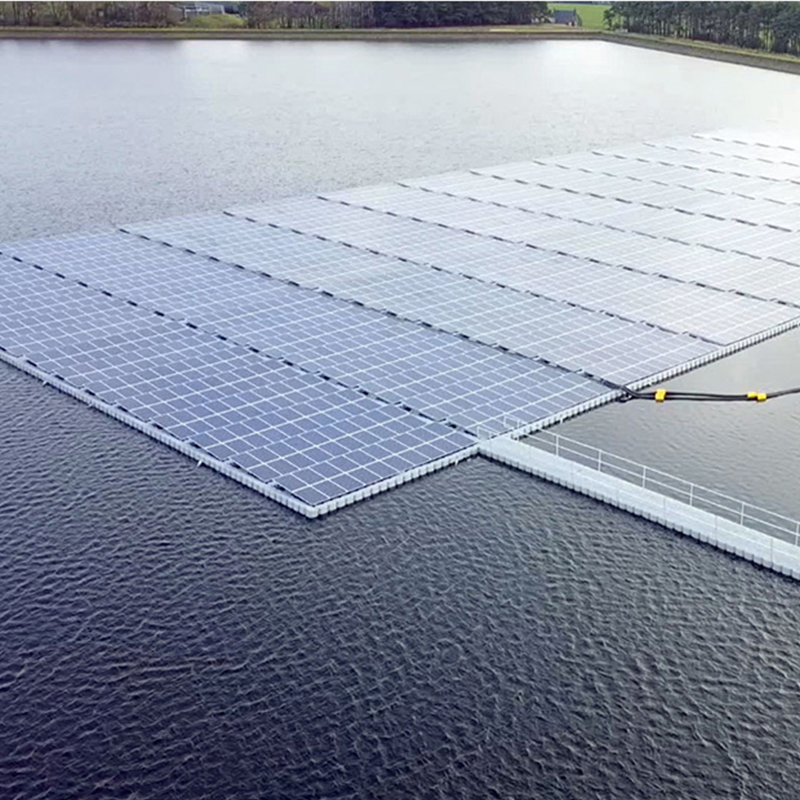

Solar Floating Mounting Structure Overview
Topic: Solar Floating Mounting Kits HDPE Floaters Waterarea Offshore Pool Pond Lake Reservior Lagoon
Key Features
◆
Modular design, simple and convenient splice installation.
◆
Increased floater volume for superior buoyant force.
◆
High-density polyethylene (HDPE) construction for long service life.
◆
Various array designs, easier to combine for site needs.
◆
Symmetrical facing array to maximize installation capacity and power efficiency.
◆
Compatible with various solar modules to reduce overall costs.
◆
Strong weather resistance with easy operation and maintenance.
◆
Ideally suited for large-sized solar modules.
Technical Specifications
| Install site | Lake, reservoir, water ponds, small idle water area |
| Tile angle | 5°, 10°, 15° |
| Max wind speed | 51m/s |
| Snow load | 1.0kn/m2 |
| Bearing weight | Module floater 70kg/m2, walkway floater 155kg/m2 |
| Module type | Framed or frameless |
| Solar panel orientation | Landscape, double row in the same/symmetrical facing |
| Fasteners | Zinc-nickle alloy & HDPE & Q235B |
| Main material | HDPE |
| Small spare parts | AL6005-T5 (Anodized) |
| Warranty | 12 years |

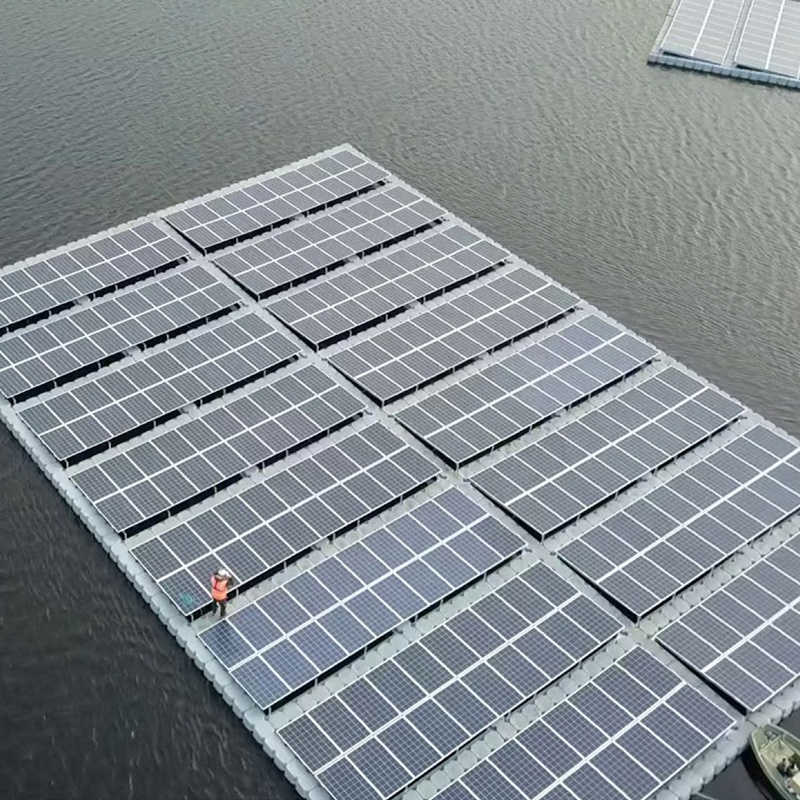

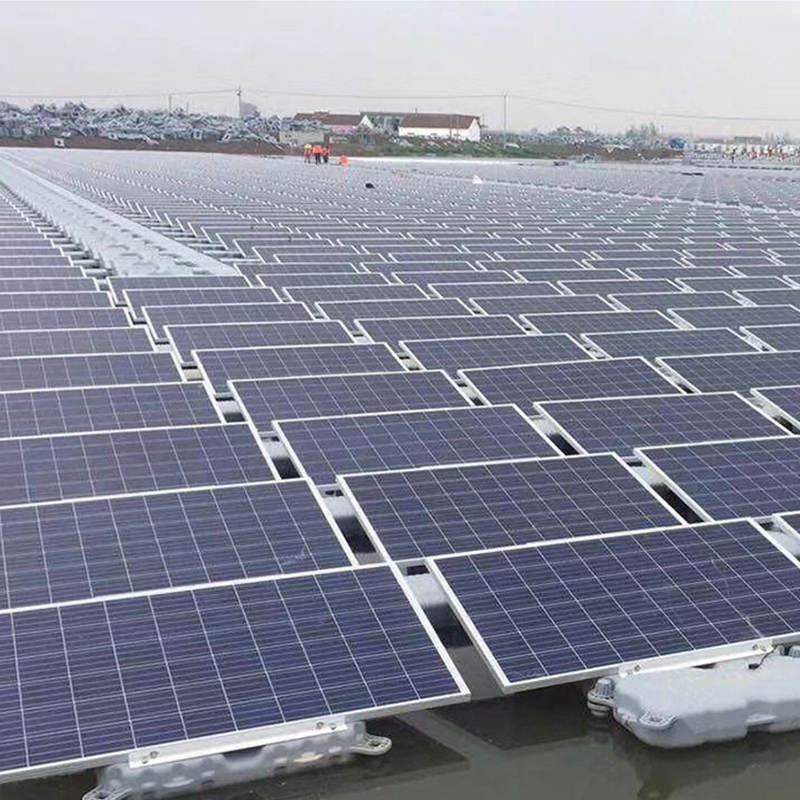

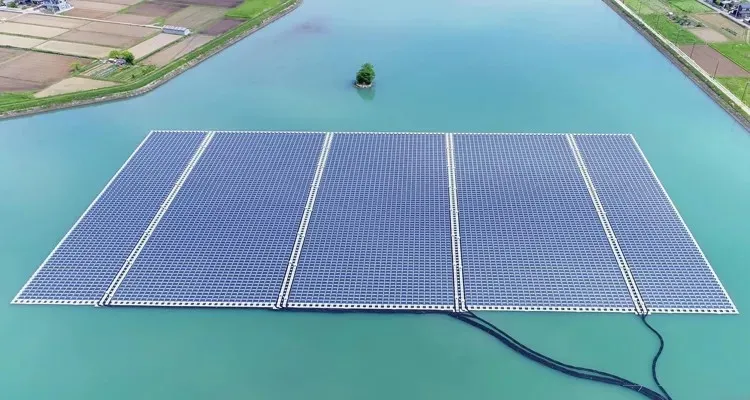

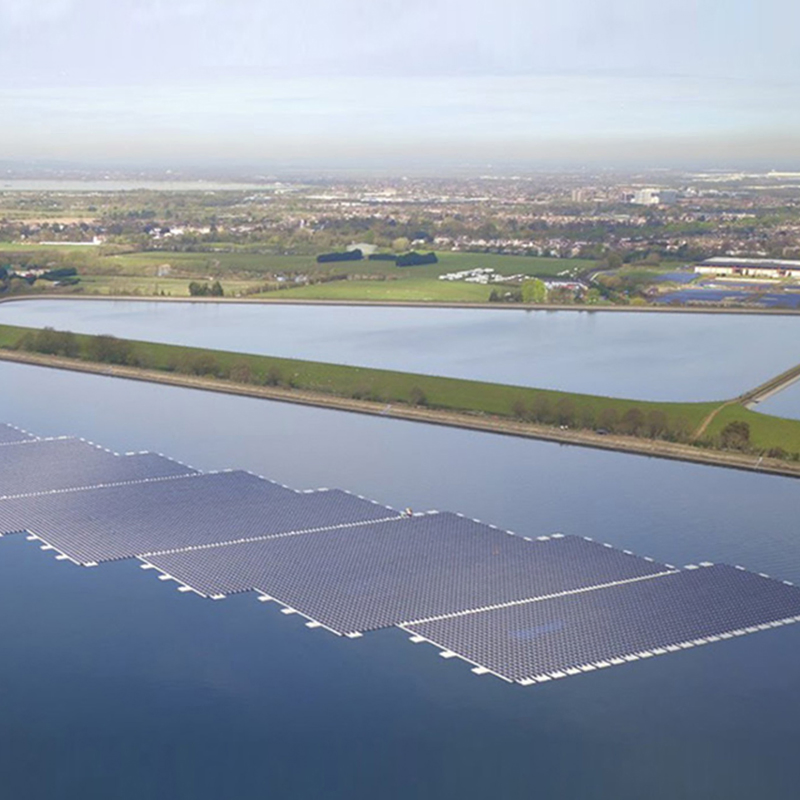

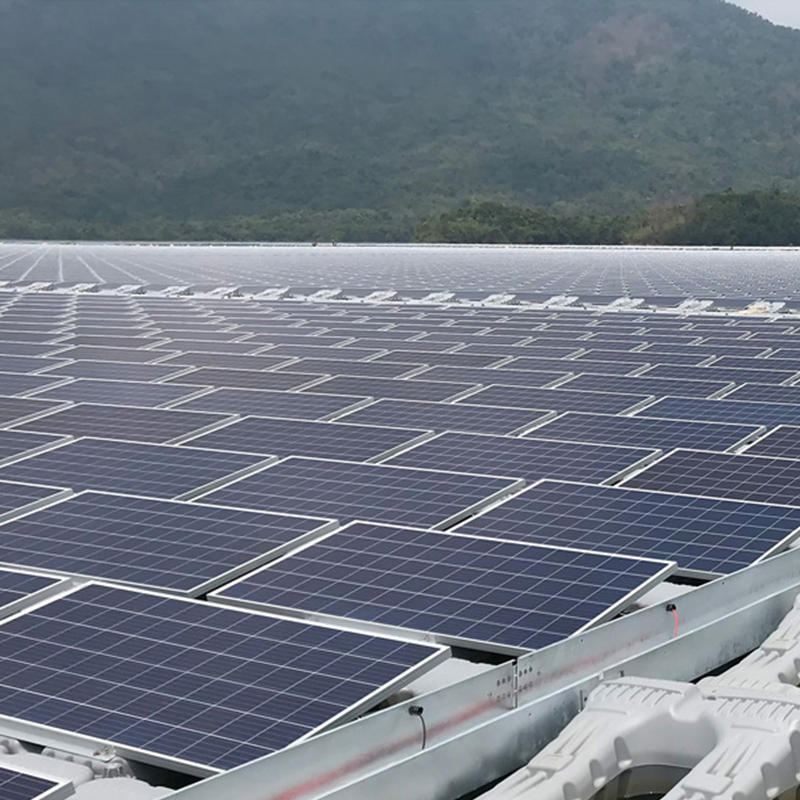

Product Gallery
Frequently Asked Questions
Q: What materials are used for the floating structure?
The main floaters are made of High Density Polyethylene (HDPE), known for its durability and strong buoyant force, while small spare parts use Anodized AL6005-T5.
Q: Can this system withstand extreme weather conditions?
Yes, the system is designed to withstand a maximum wind speed of up to 51m/s and a snow load of 1.0kn/m2.
Q: What is the typical installation site for these floaters?
These kits are ideal for installation on lakes, reservoirs, water ponds, and other offshore or idle water areas.
Q: Is the installation process complicated?
No, the modular design allows for a very simple and convenient splice installation, making it efficient for large-scale projects.
Q: What kind of warranty is offered on the structure?
We provide a 12-year warranty for the floating mounting structure, ensuring long-term reliability for your solar investment.
Q: Does it support both framed and frameless solar panels?
Yes, the mounting kits are compatible with both framed and frameless solar modules in landscape orientation.
