Solar First Floating Solar Mounting Power Plant
Solar First Floating Solar Mounting Power Plant
Solar First Floating Solar Mounting Power Plant
Solar First Floating Solar Mounting Power Plant
Solar First Floating Solar Mounting Power Plant
1 / 5
Solar First Floating Solar Mounting Power Plant
Solar First Floating Solar Mounting Power Plant
Solar First Floating Solar Mounting Power Plant
Solar First Floating Solar Mounting Power Plant
Solar First Floating Solar Mounting Power Plant

Solar First Floating Solar Mounting Power Plant

Customization: Available
Certification: ISO
Application: Commercial
Send Inquiry

Product Description

Basic Information
Model NO.
SF-FM-01
Material
HDPE
Type
Floating Mounting
Product Name
Floating Solar Mounting
Installation Site
Lake, River or Sea
Tilt Angle
10, 15 Degree or Other
Max Wind Load
60m/S
Max Snow Load
1.4kN/M2
Package
Pallet
Specification
Customized
Product Visuals
Floating Solar Mounting Power Plant Overview

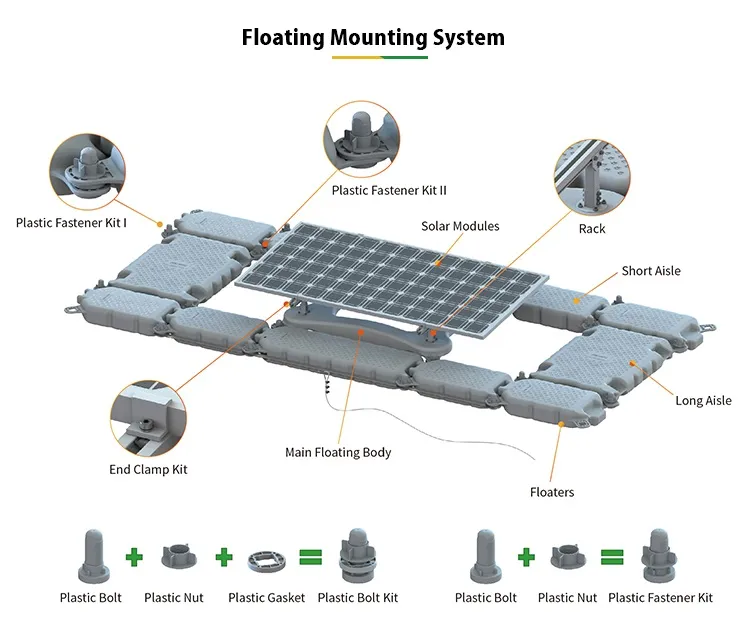

Floating Solar Mounting Detail
Technical Detail
Installation Site On Water Surface (lake, reservoir, dam, pond, etc.)
Wave Height ≤0.5m
Water Flow Rate ≤0.51m/s
Wind Load ≤36m/s
Snow Load ≤0.45kN/mm²
Tilt Angle 0~25°
Standards BS6349-6, T/CPIA 0017-2019, T/CPIA0026-2019, NBT10187-2019, GBT 13508-1992
Material HDPE, Al6005-T5, SUS304
Warranty 10-Year Warranty and 25-Year Service Life

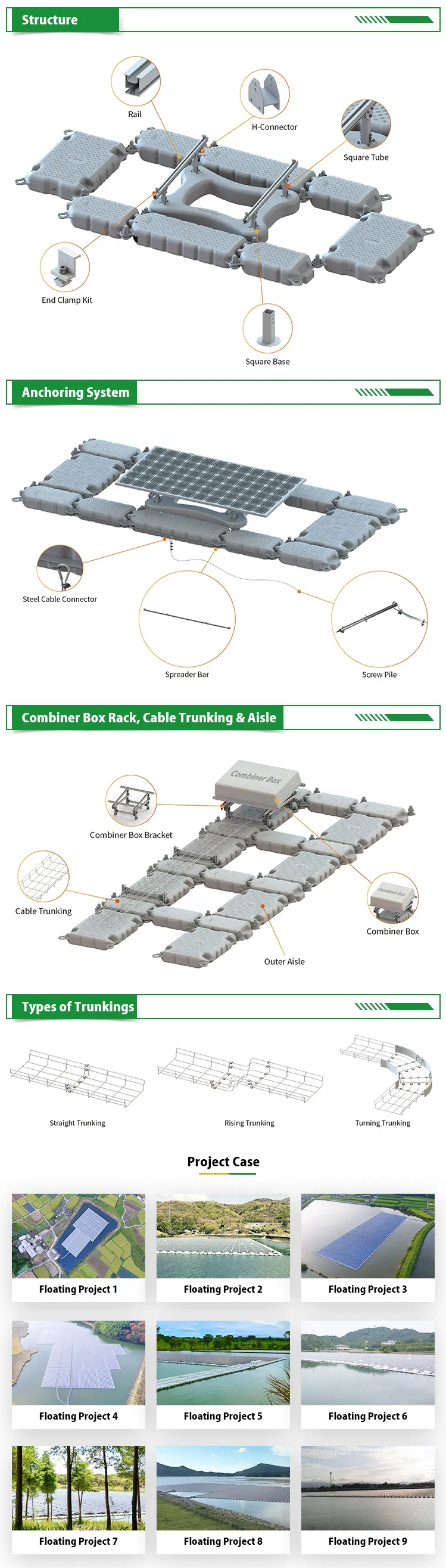

Technical Layout Specification
Frequently Asked Questions
What materials are used for the floating solar mounting system?
The system primarily uses high-density polyethylene (HDPE) for floats, along with Al6005-T5 aluminum and SUS304 stainless steel for structural components to ensure durability in water environments.
Where can this floating system be installed?
It is suitable for various water surfaces, including lakes, reservoirs, dams, ponds, and even certain sea conditions where wave heights are below 0.5m.
How much wind and snow load can the system withstand?
The system is engineered to handle a maximum wind load of up to 60m/s and a snow load of 1.4kN/m², making it resilient in extreme weather conditions.
What is the expected service life of the floating structure?
The product comes with a 10-year warranty and is designed for a service life of up to 25 years.
Can the tilt angle of the solar panels be adjusted?
Yes, the tilt angle can be customized between 0° to 25° (with standard options at 10° or 15°) to optimize energy absorption based on your location.
Which international standards does this system comply with?
The system meets several standards including BS6349-6, T/CPIA 0017-2019, and GBT 13508-1992, ensuring high quality and safety requirements.
