Product Description

📊 Overview & Basic Info

Model NO.SF-FM04

CertificationISO, TUV, CE

MaterialAluminum Alloy / HDPE

ApplicationCommercial

Installation SiteLake, River or Sea

Tilt Angle10, 15 Degree or Other

Max Wind Load60m/s

Max Snow Load1.4kn/m2

OriginChina

☀️ Product Description

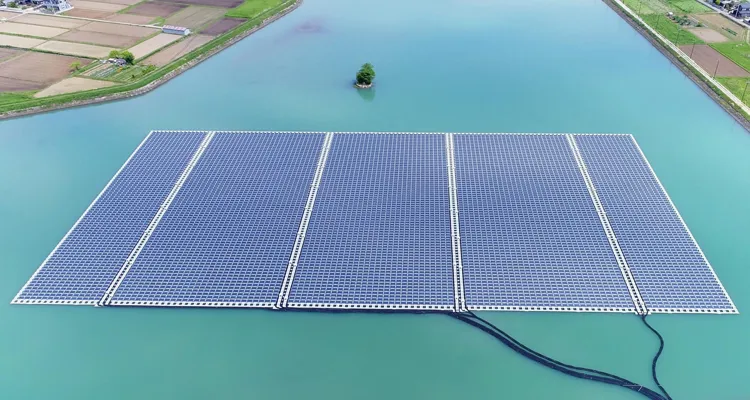

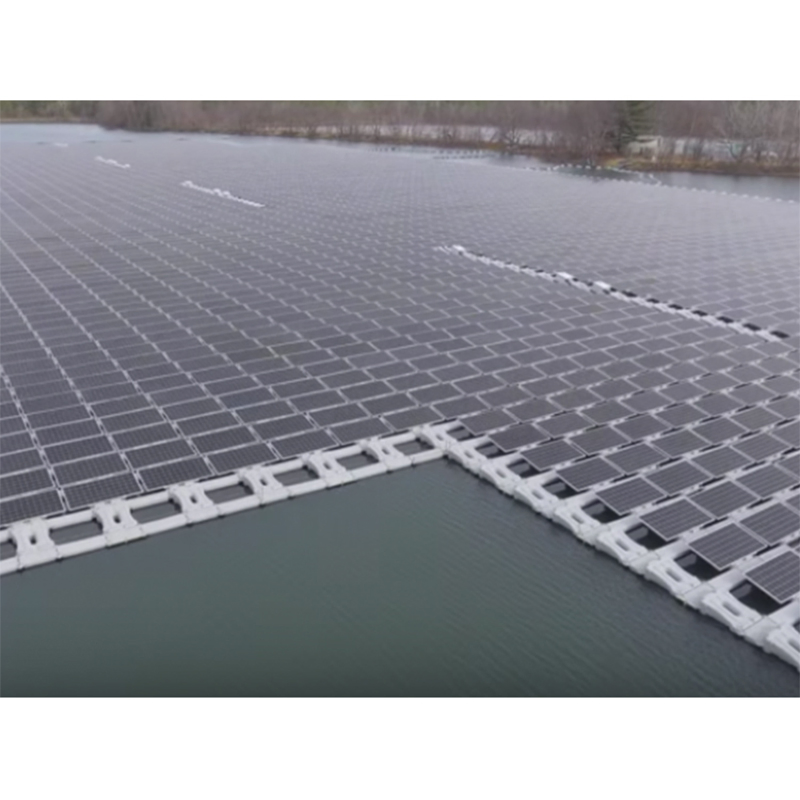

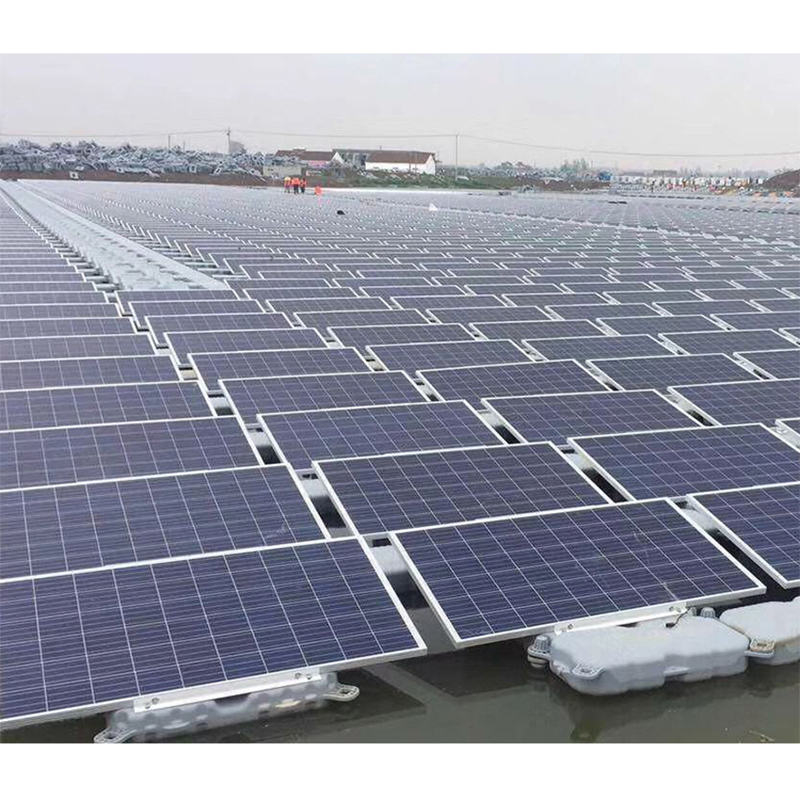

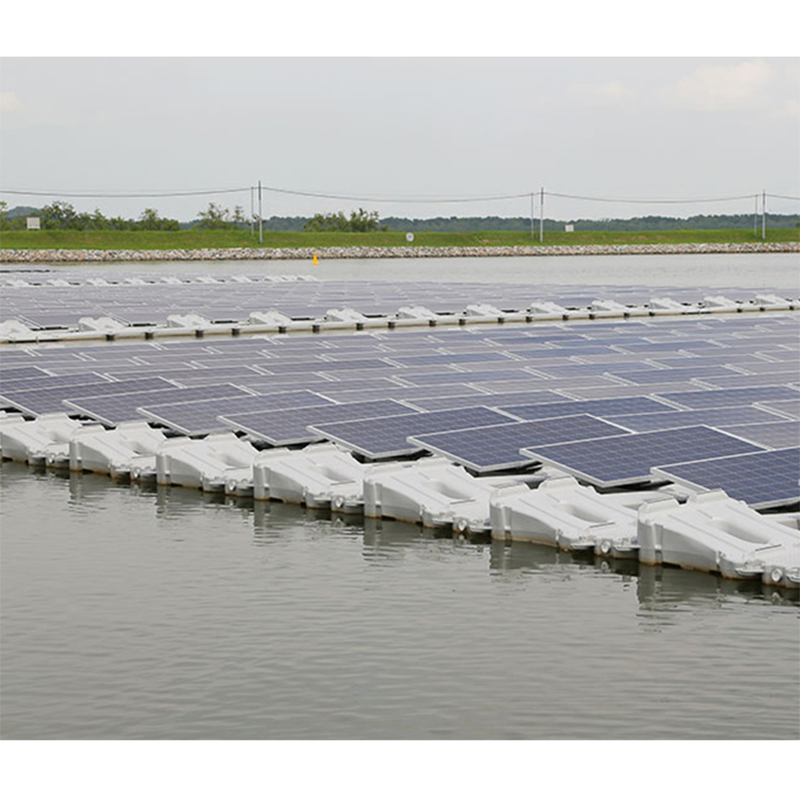

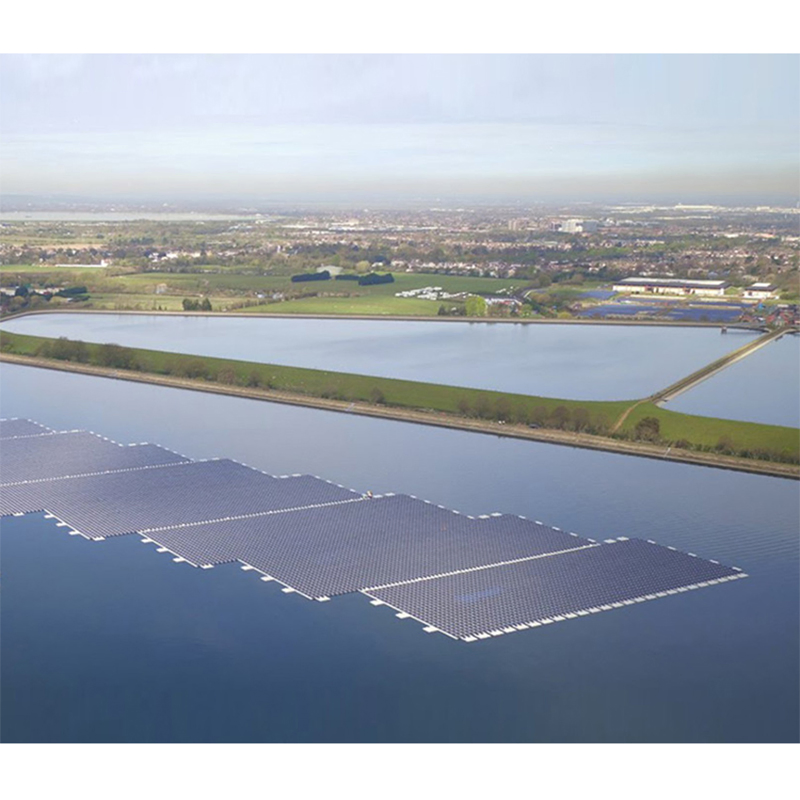

Different from traditional solar farms on the ground, the floating solar system is a solar photovoltaic system built on water. Both TGW1 series and TGW2 series are available. All components are highly pre-assembled, ensuring the mounting system fast installation and saving labor costs.

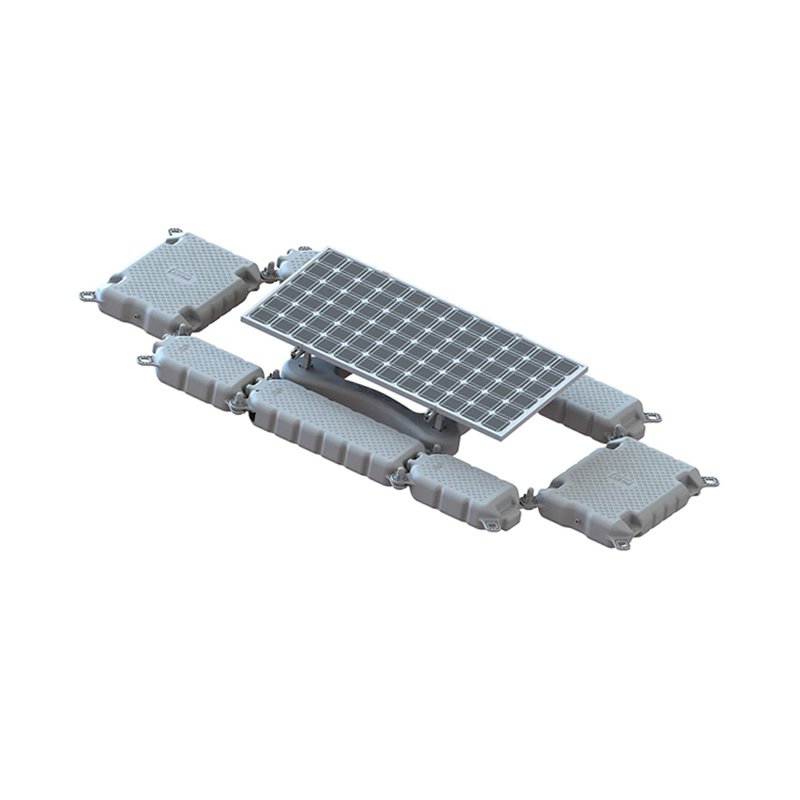

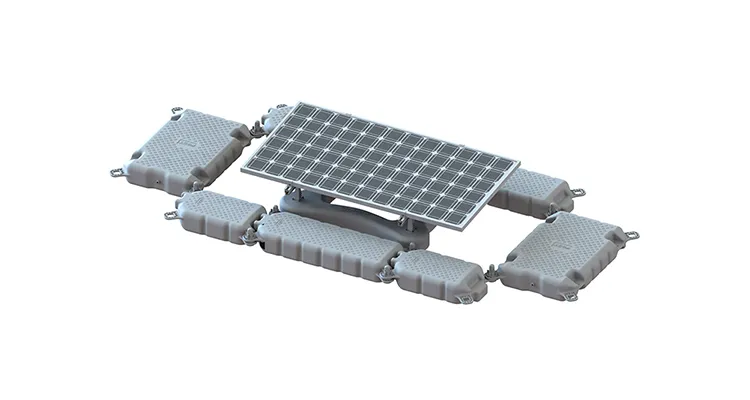

1. TGW1 Single Row

Easy maintenance
Good for larger design wind speeds
Excellent flatness, stability, and appearance
Adjustable tilt angle to increase power generation

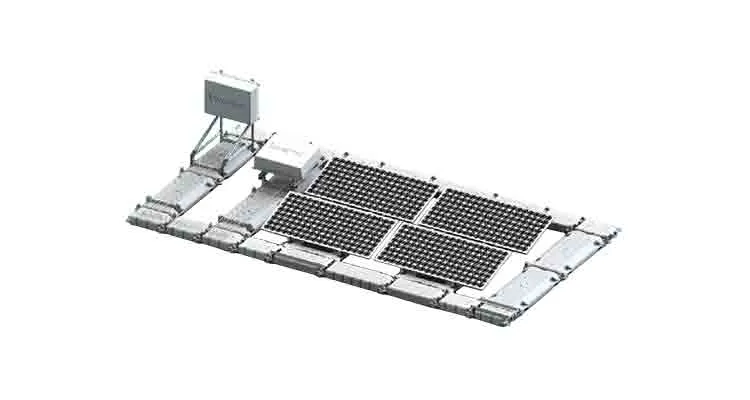

2. TGW2 Double Rows

Cost-effective solution
Tilt angle ≤ 15°
Simplified maintenance process
Robust stability and clean aesthetics

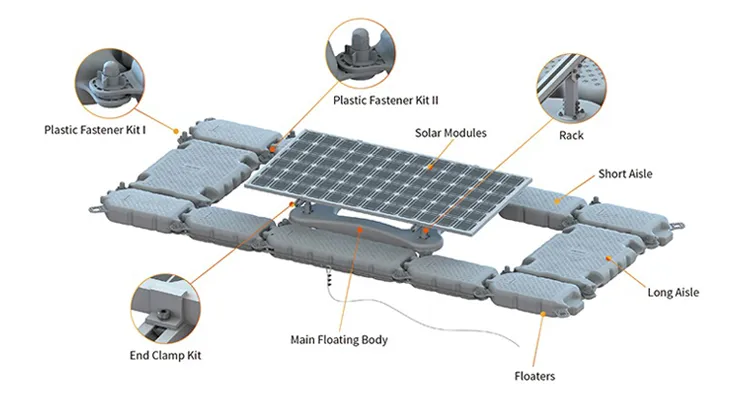

⚙️ Technical Details

Installation Site	Lake, River or Sea
Material	HDPE
Tilt Angle	10°, 15° or customized
Max Wind Load	60m/s
Max Snow Load	1.4KN/m2
Warranty	10 Years warranty and 25 years service life

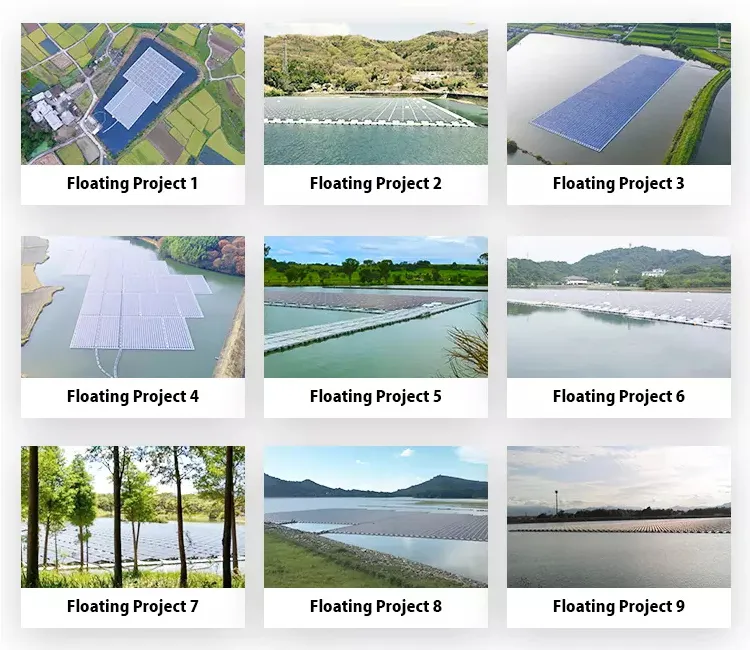

📦 Packaging, Shipping & Projects

🏆 Exhibition & Certifications

❓ Frequently Asked Questions

What materials are used for the floating mounting system?

The system primarily uses High-Density Polyethylene (HDPE) for floats and Aluminum Alloy for structural components to ensure durability and corrosion resistance in water environments.

Where can these floating solar systems be installed?

The system is versatile and can be installed on various water bodies, including lakes, rivers, reservoirs, and offshore sea areas.

What is the maximum wind and snow load the system can handle?

The system is engineered to withstand a maximum wind load of 60m/s and a maximum snow load of 1.4KN/m2.

Is it possible to customize the tilt angle?

Yes, while 10° and 15° are standard, the tilt angle can be customized according to specific project requirements to optimize power generation.

What is the expected service life of the mounting system?

The floating solar mounting system comes with a 10-year warranty and is designed for a service life of 25 years.

Are the components pre-assembled?

Yes, all components are highly pre-assembled at the factory to ensure fast installation on-site and significantly reduce labor costs.
