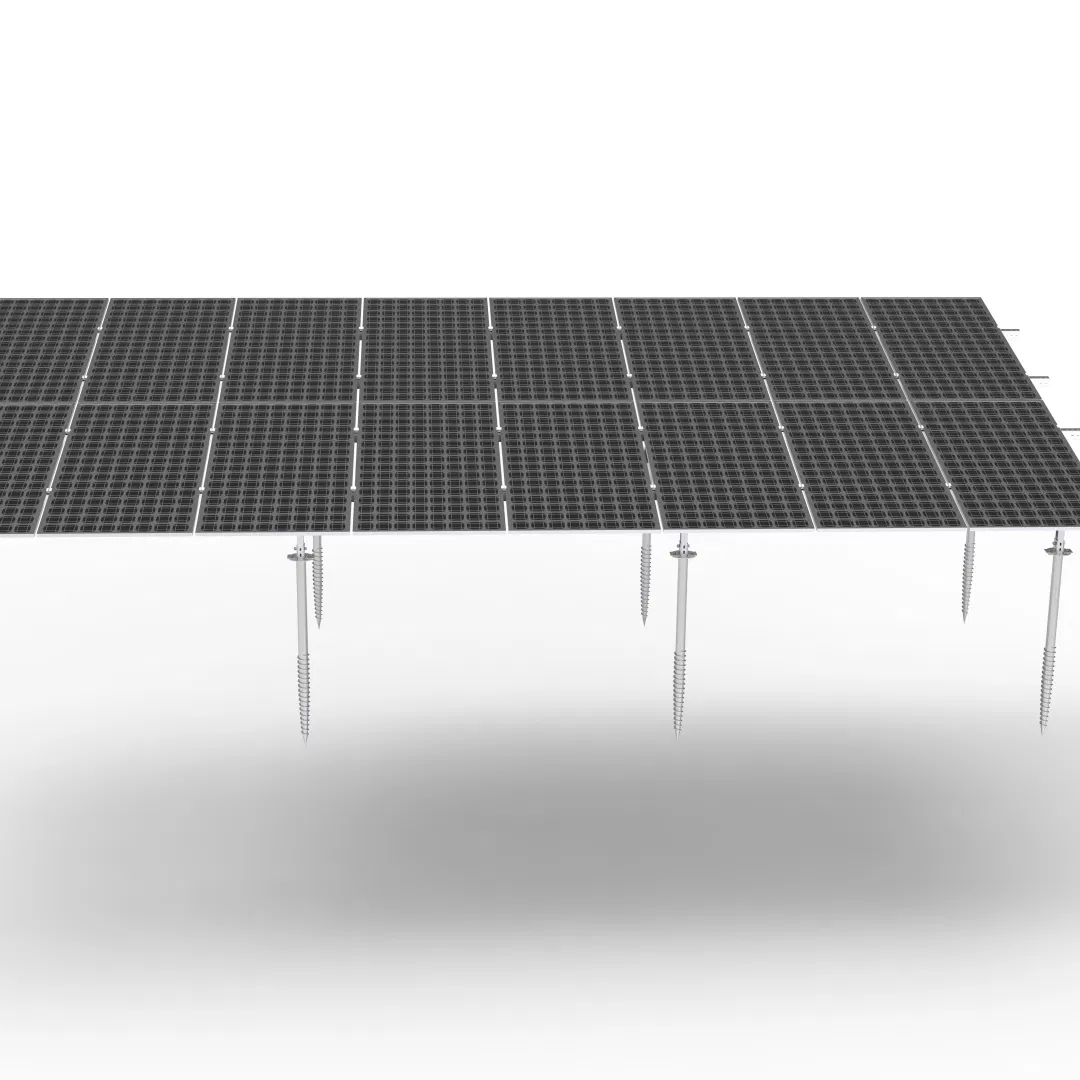

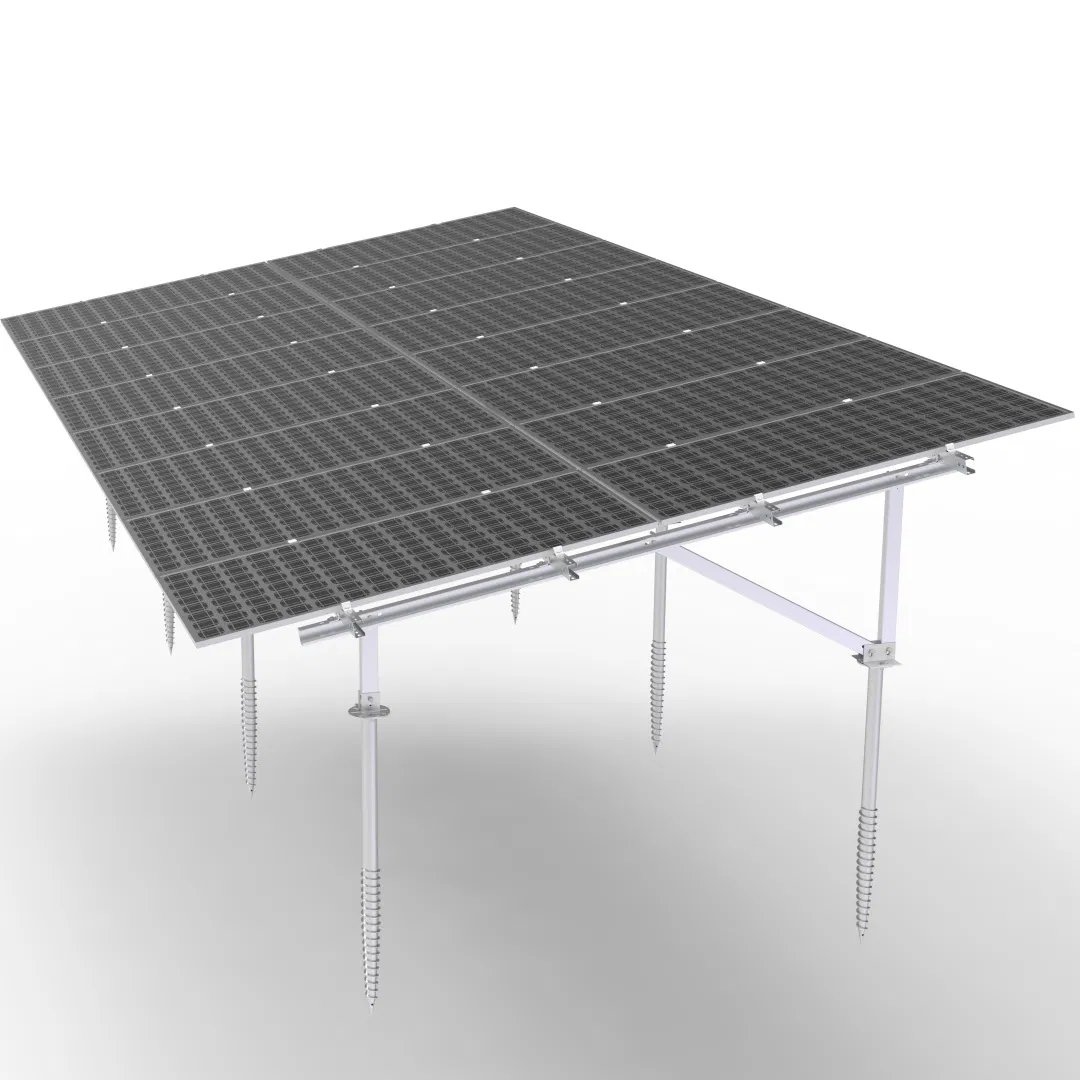

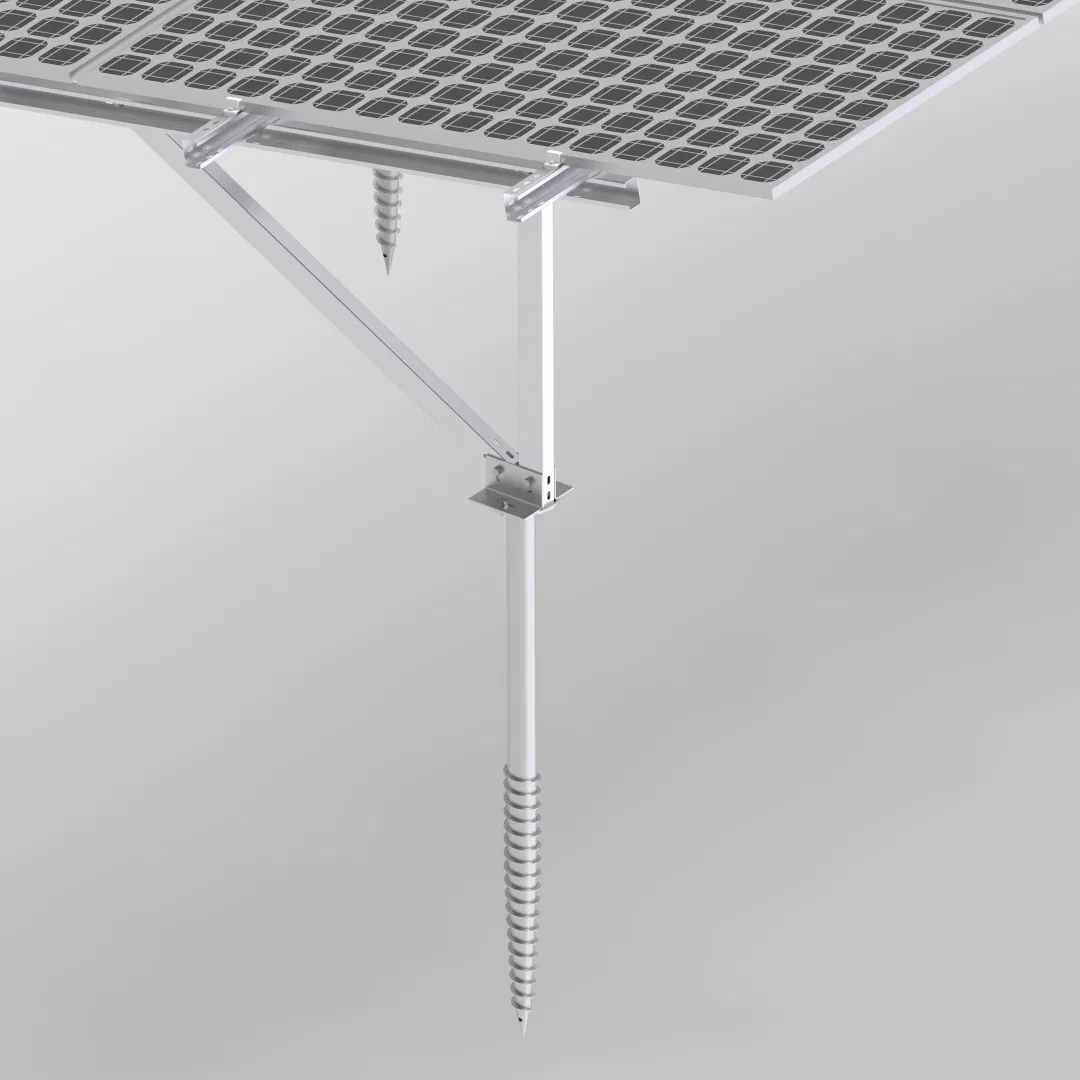

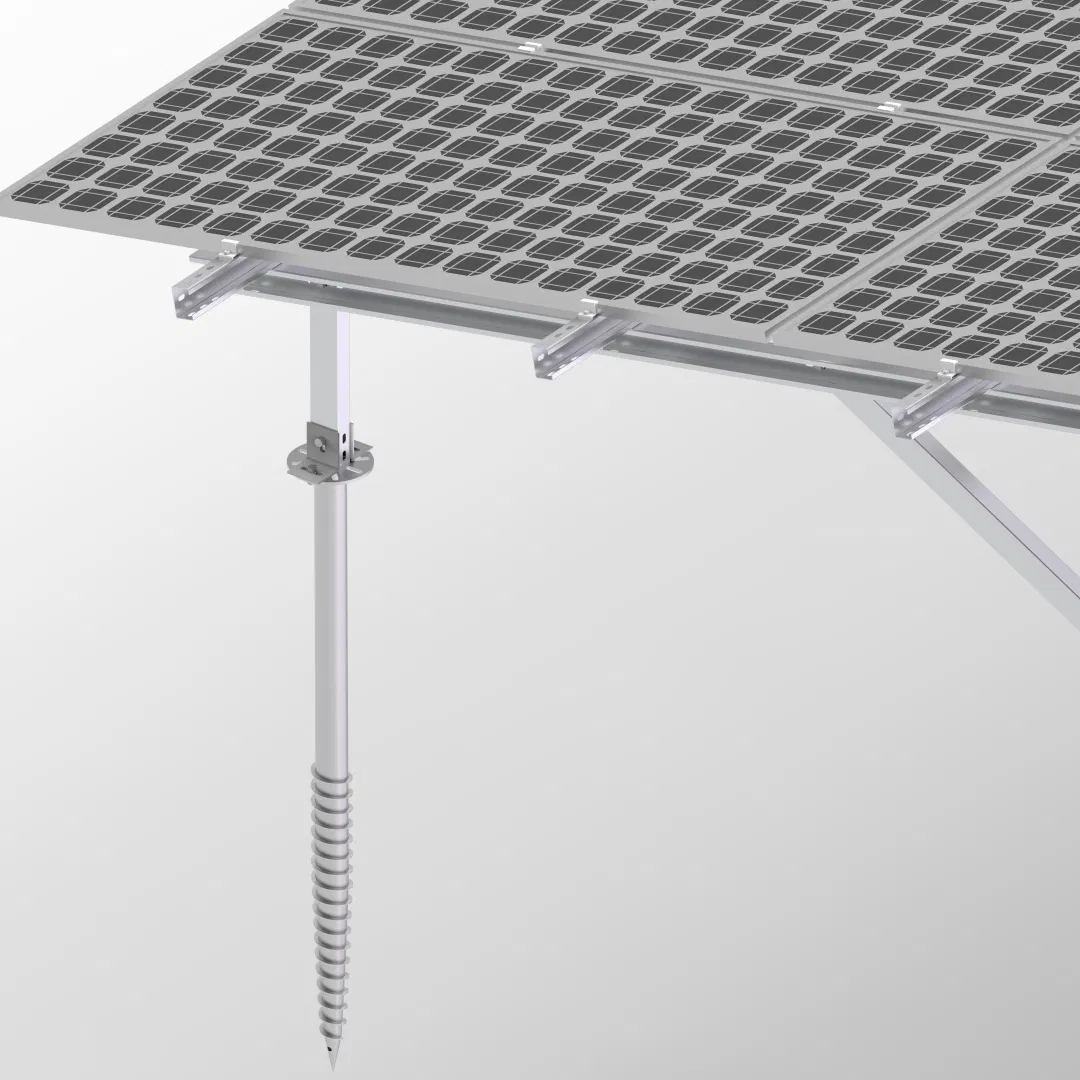

Solar Panel Ground Mount Poles Installation off Grid PV Ground Screw 2000mm Fxing Racking Kit

1

Basic Information

Certification

Certificate of Utility Model Patent

Application

Commercial

Material

Steel / Aluminum 6005-T5

Type

Ground Bracket

Product Name

Ground Screw

Surface Treatment

Anodizing 13 Um / Galvanizing

Max Wind Speed

up to 130mph (60m/S)

Design Snow Load

up to 30PSF (1.4kN/M2)

Design Standard

JIS C 8955:2011, GB50009-2012, 1BC 2009

Panel Direction

Vertical or Landscape

Installation

Tin Rooftop or Flat Concrete Open Space

Service Life

25 Years

Package Size

240.00cm * 30.00cm * 20.00cm

Gross Weight

3.000kg

2

Technical Parameters

TECHNICAL SPECIFICATIONS
Product Name	Ground screw solar mount
Material	Aluminum 6005-T5 & SUS304 Galvanized steel
Tilt Angle	10°-15°; 15°-30°; 30°-60°
Design Standard	JIS C 8955:2011, GB50009-2012, 1BC 2009, CBC 2010
Warranty	12 Years
Duration	25 Years
Application	Compatible with almost all market panels

3

Product Description

High Performance

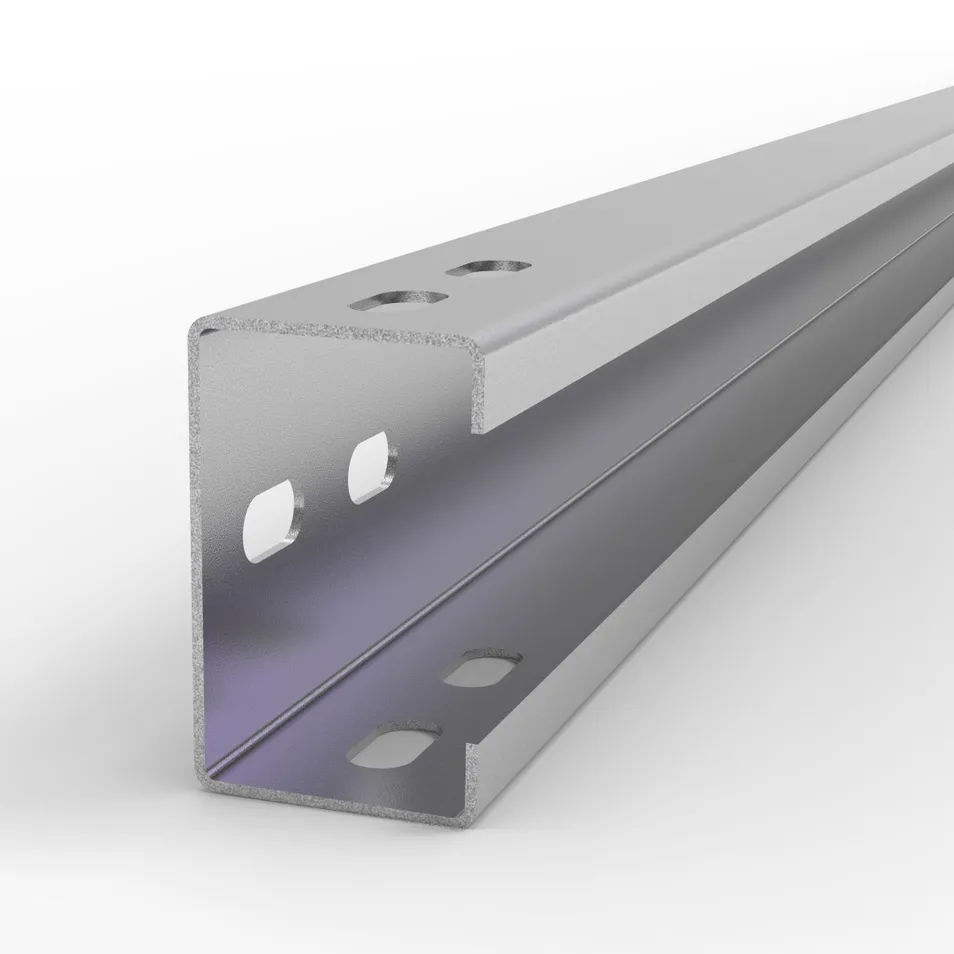

Galvanized steel solar panel mounting system: Solar ground mounting system is manufactured in zinc-mg-aluminum steel plates and can be used in a variety of conditions using concrete foundations and ground screws for different panel arrays.

100% high strength zinc magnesium aluminum steel plate, good corrosion resistance.

High competitiveness on material cost and environmental protection.

Easy and fast installation with unique design.

Foundation Solution Concrete Free - Surrounding areas remain unspoiled.

4

Detailed Project Photos

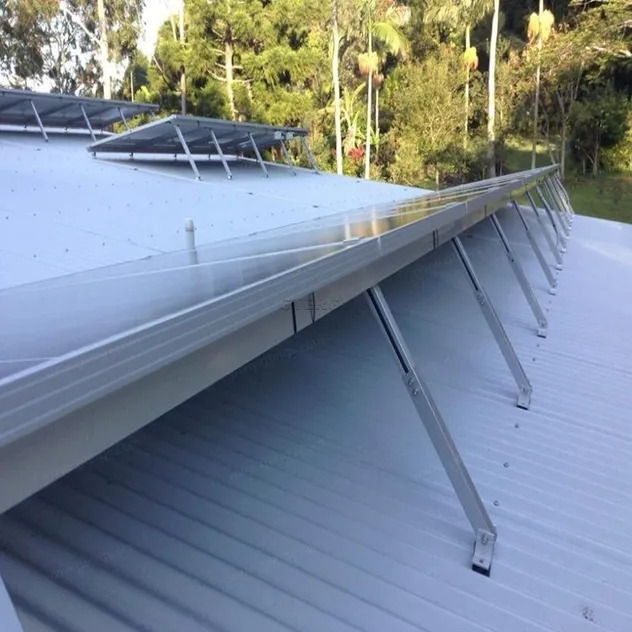

800kw Metal rooftop
Mexico

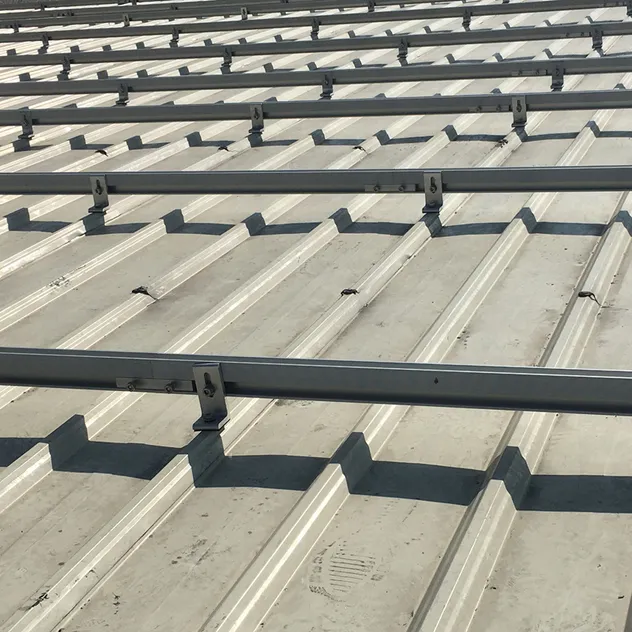

2MW L feet system
Sri Lanka

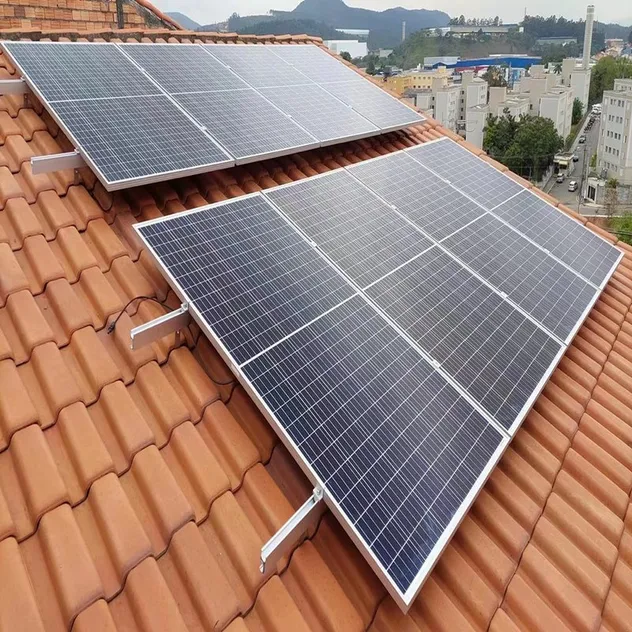

24KW tile rooftop
Poland

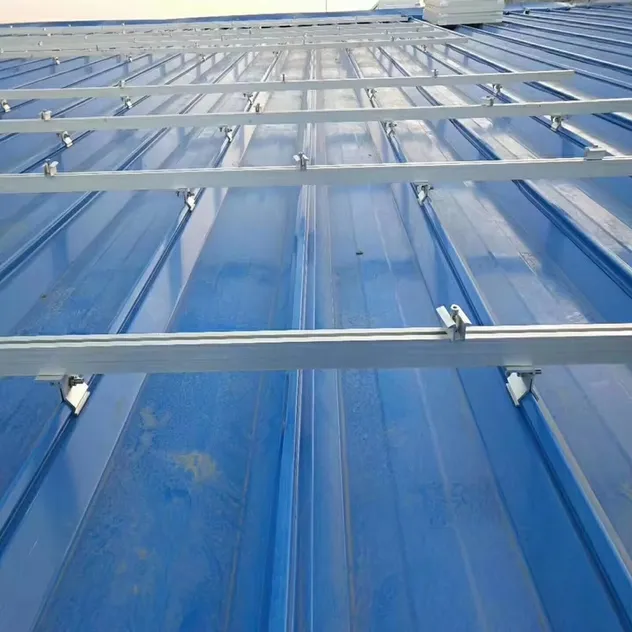

4MW roof clamps
Myanmar

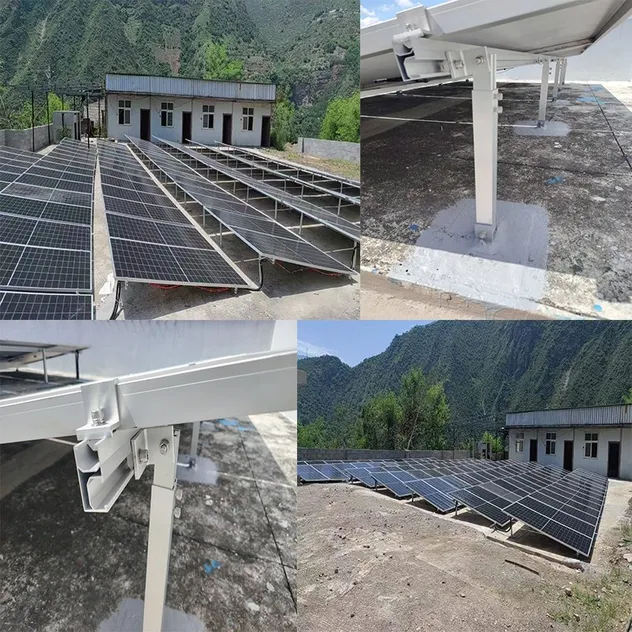

Concrete rooftop
South Africa

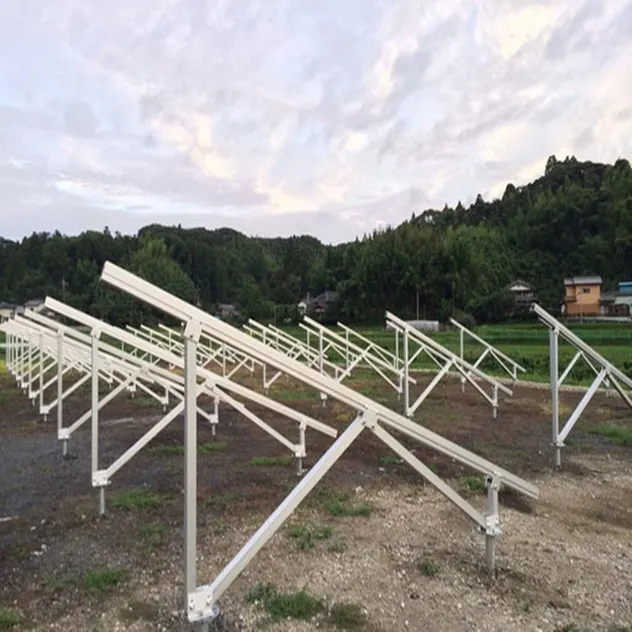

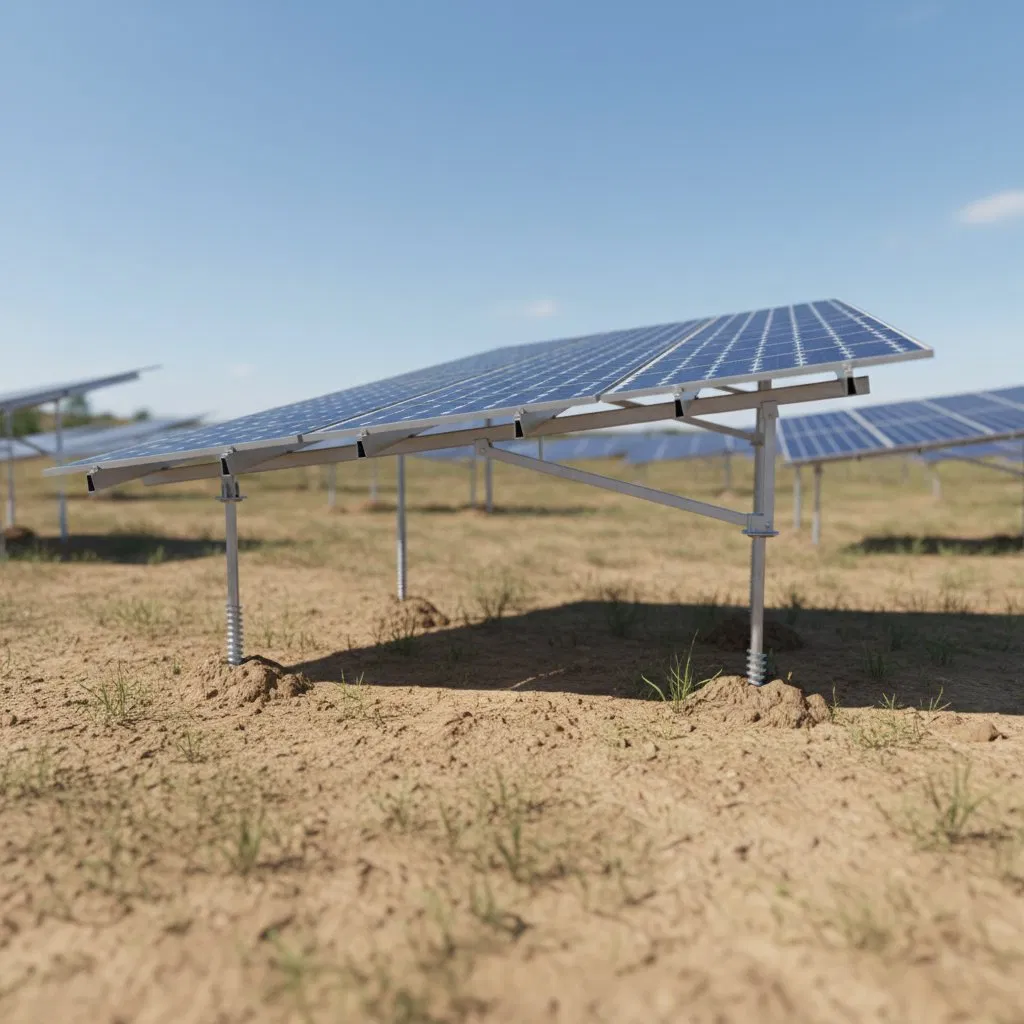

Ground solar mount
Japan

5

Packaging & Shipping

6

Frequently Asked Questions

Are you a factory or trading company?

We are a direct manufacturer in China and specialize in producing solar mounting systems. We supply multi-choice mounting systems for different kinds of power solutions whether roof, ground, or RV.

How about the production time?

Stock items need 1-3 days, while mass production typically takes 7~15 days, depending on your order quantity.

Do you have any MOQ limit?

We do not have any MOQ request for our standard products; 1pc for quality testing is available. For ODM and OEM items, a minimum order quantity is required.

Can I have a free sample?

We can provide similar samples from our showroom for free, though you would need to cover freight costs. Customized samples may require a sample charge.

How long does the goods arrival take?

Sample orders via DHL/FedEx take 3-5 days. Large orders shipped by sea generally take 15~30 days to arrive at the local port, depending on the distance.

What services can you provide?

We provide OEM and ODM services, including customized logos, colors, and packaging based on your requirements.
