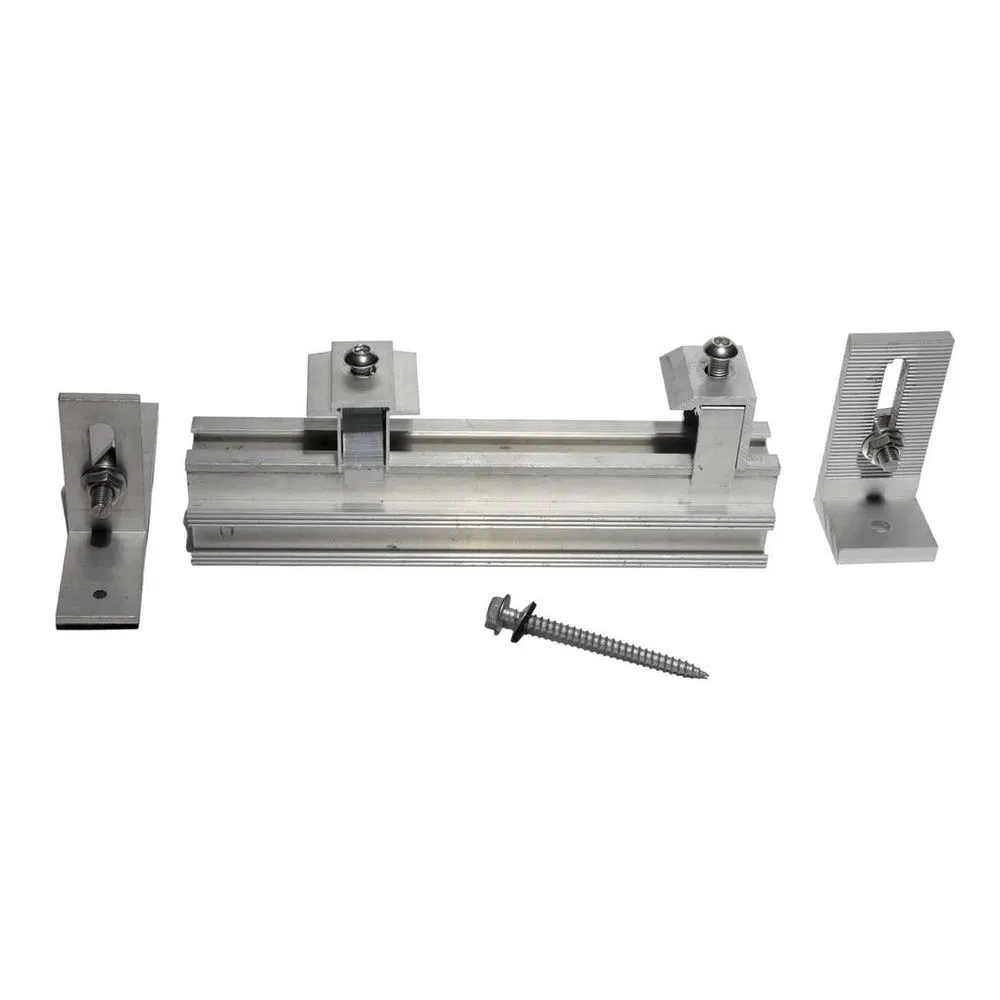

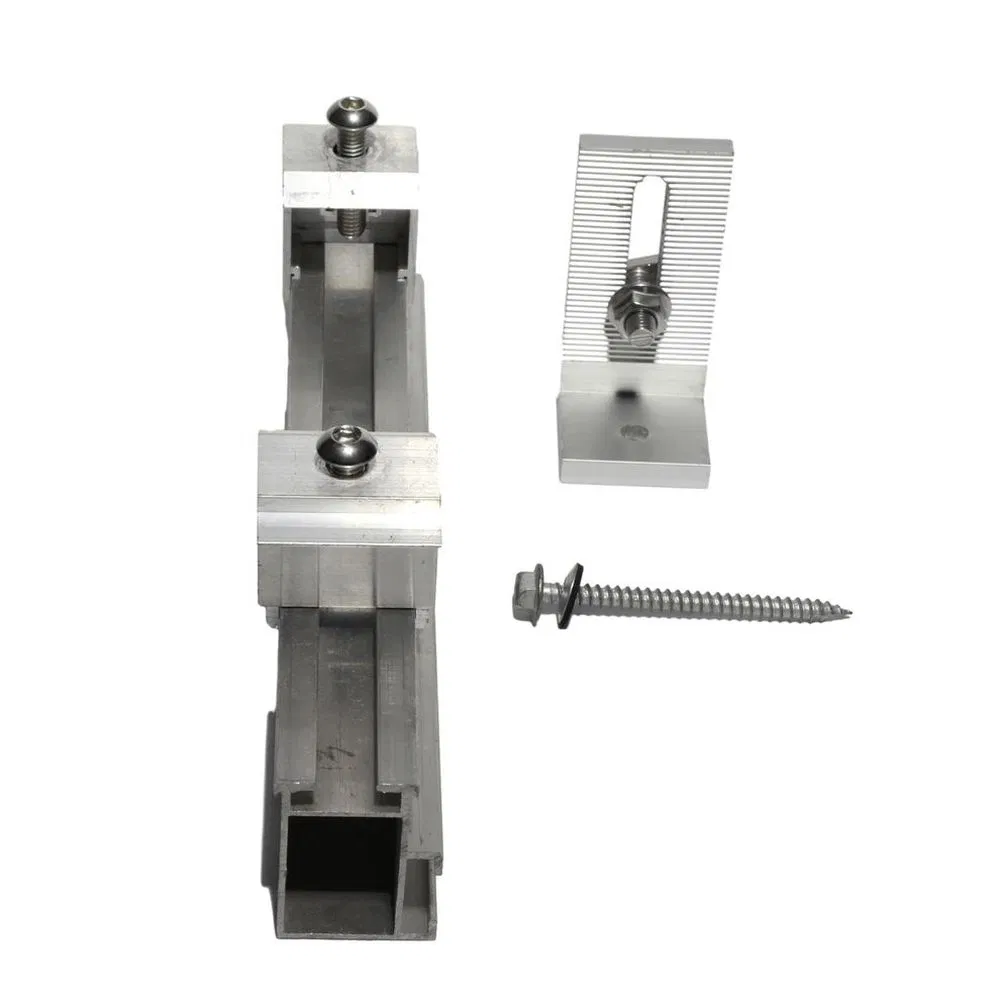

| Model NO. | Metal Roof Solar Mounting System |
| Material | Aluminum Alloy (6063-T5/6005-T5) |
| Type | Roof Bracket |
| Wind Load | 40m/S or Customized |
| Snow Load | 1.4kN or Customized |
| Surface Treatment | Aluminum Anodized, Black Electrophoresis, Hot-DIP Galvanized |
| Tilt Angle | 0-45 deg |
| International Standard | AS/NZS 1170, JIS4955:2011, ISO9001 |

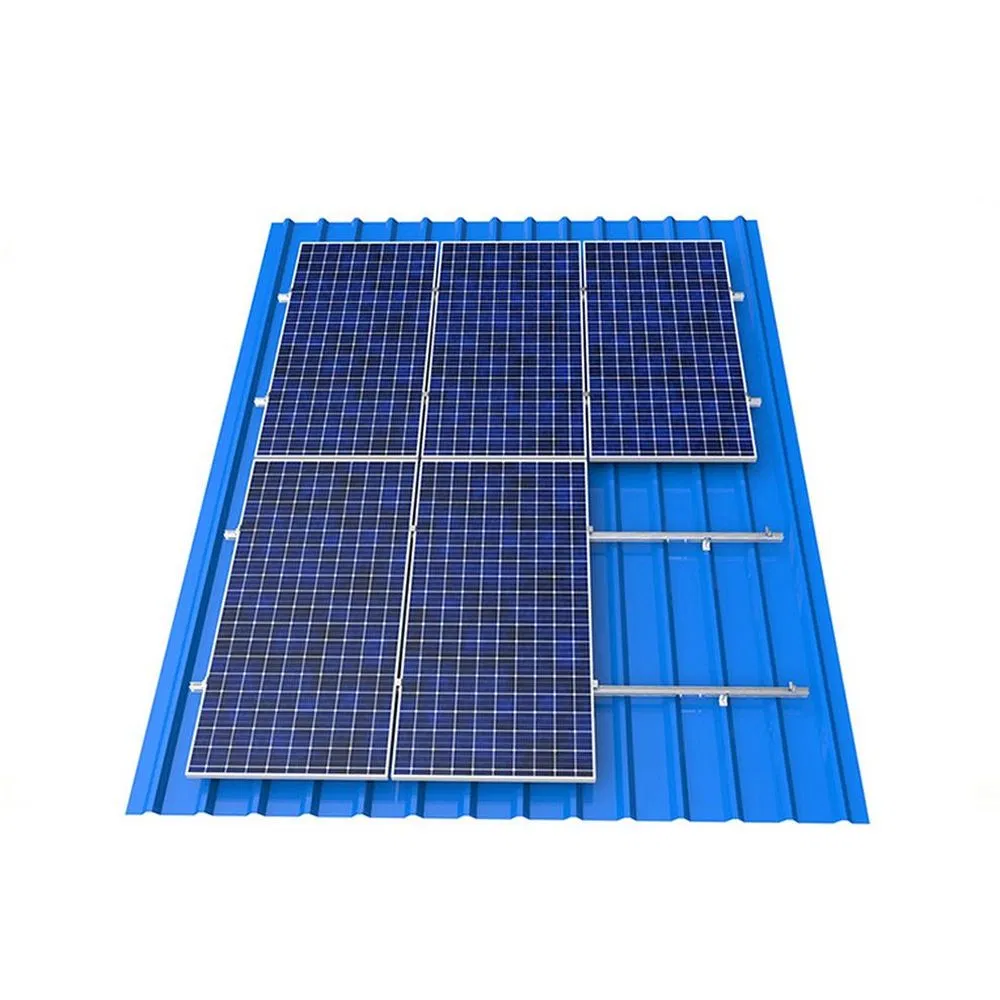

The metal roof solar installation system is designed for efficiency and durability. It adapts quickly to various metal roof structures, significantly reducing construction time and costs. Its superior stability resists severe weather, including strong winds and heavy snow loads.
Our non-penetrating installation method preserves the roof's waterproof integrity, minimizing leakage risks while providing a clean, aesthetic integration with the building's architecture.
| Solar Panel Type | Framed or Frameless |
| Module Array | Horizontal or Vertical |
| Package Size | 45.50cm * 26.50cm * 37.50cm |
| Gross Weight | 23.600kg |
| Warranty | Over 25 Years |

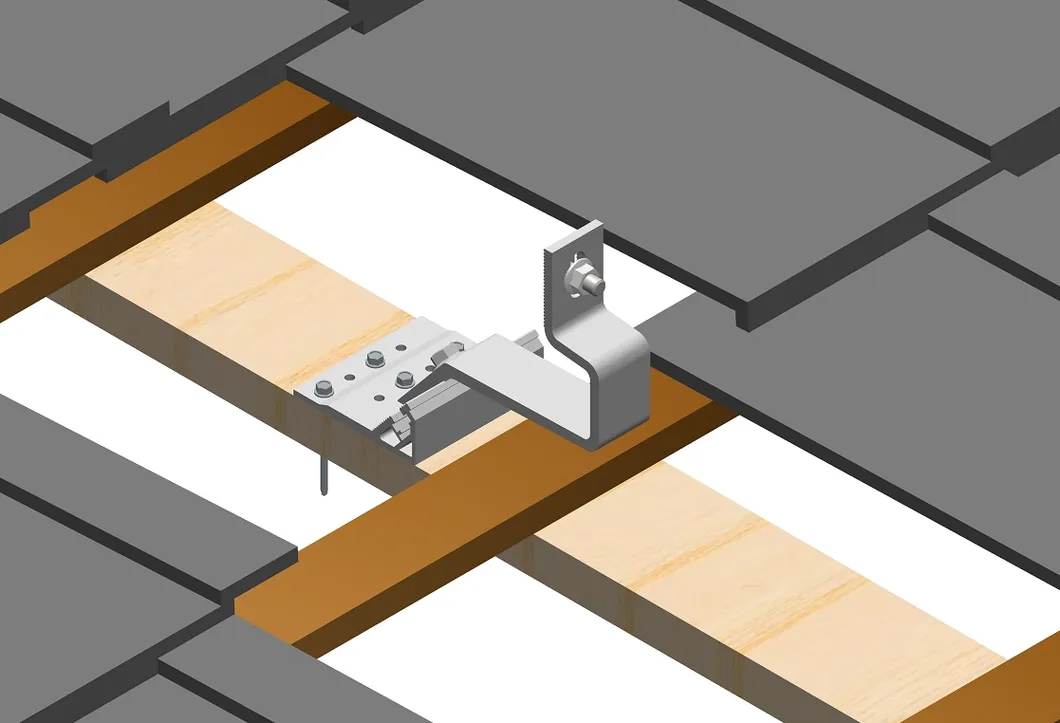

Secure the base onto the wooden beam.

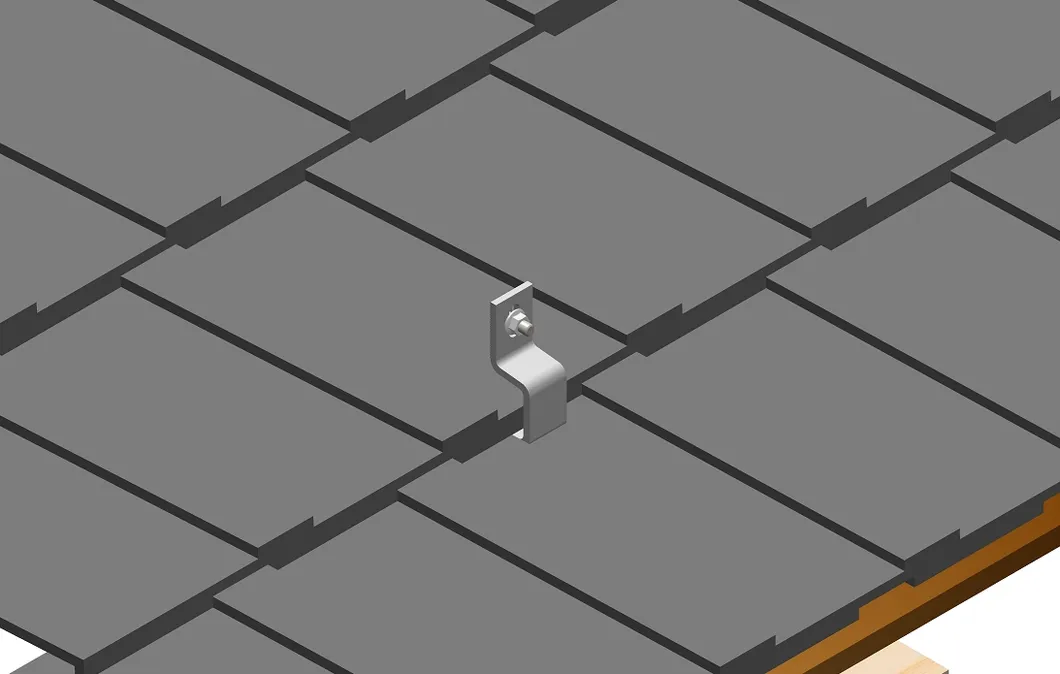

Cover the base with tiles properly.

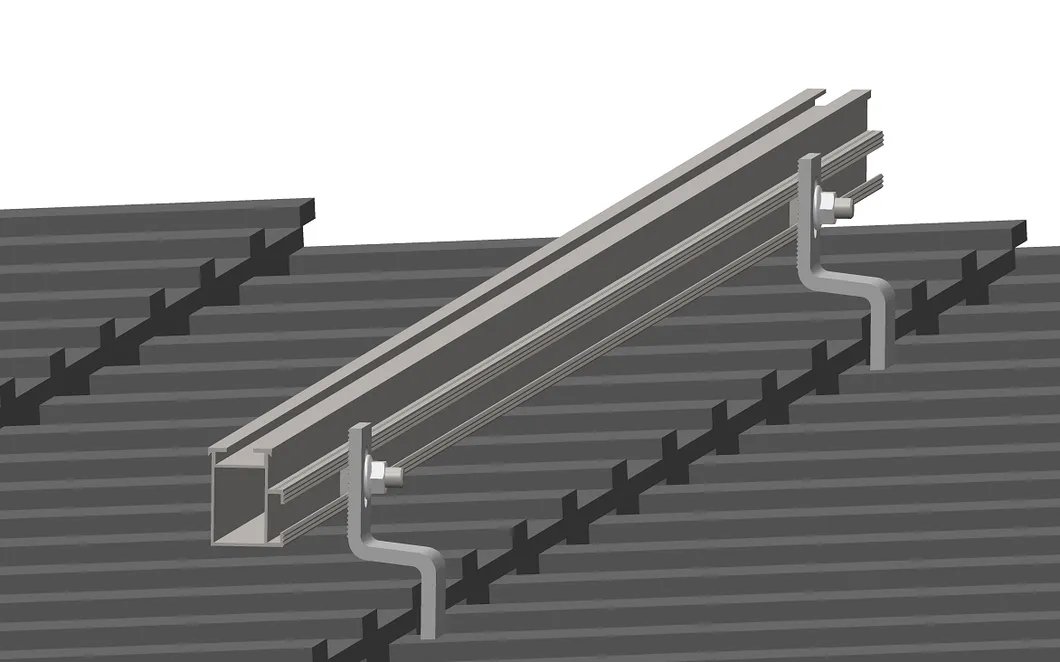

Connect the rail to the hook using t-bolts.

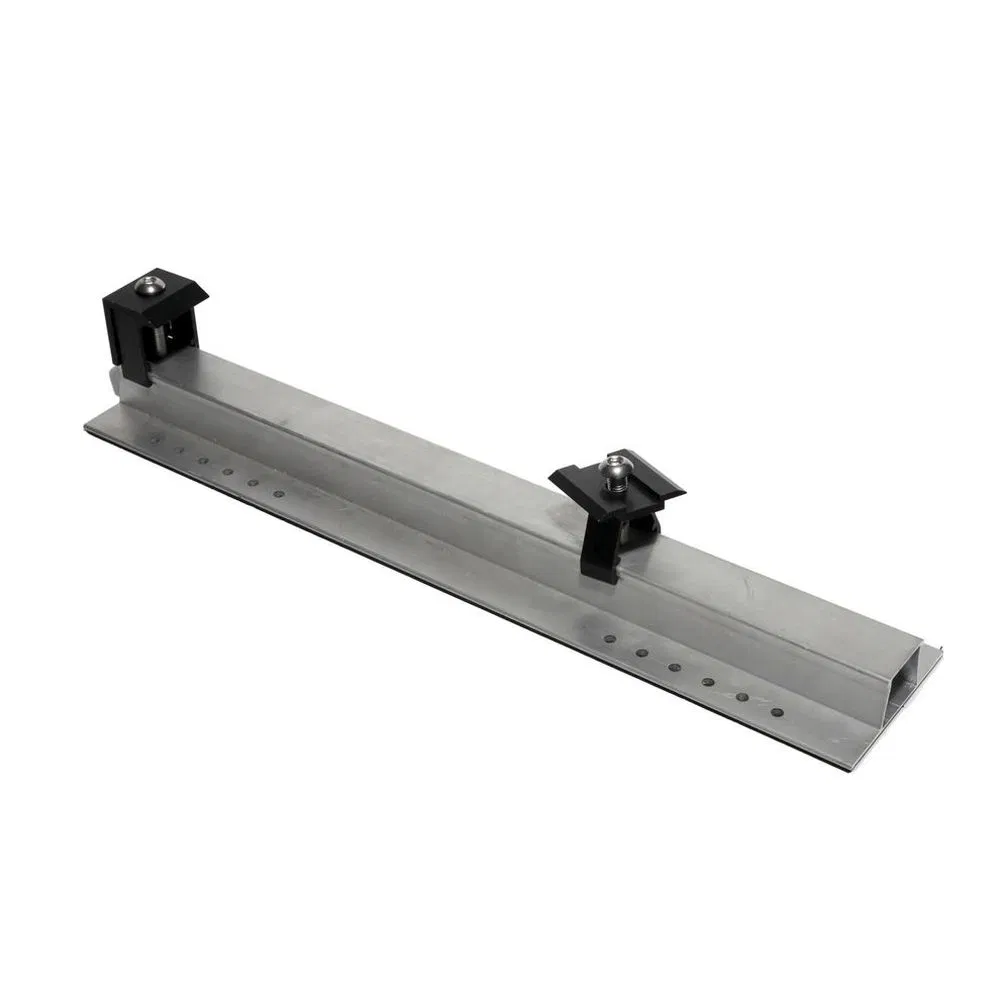

Fix 2 modules onto the rail with mid clamps.

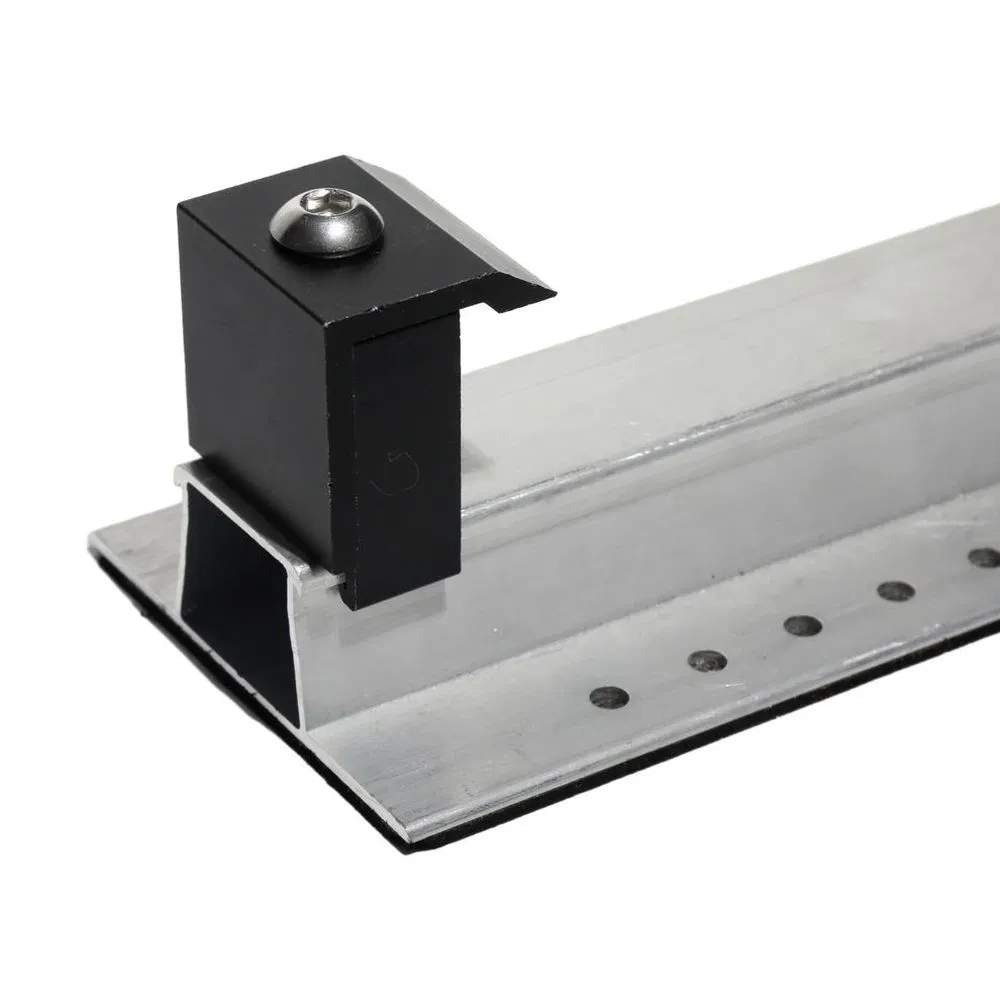

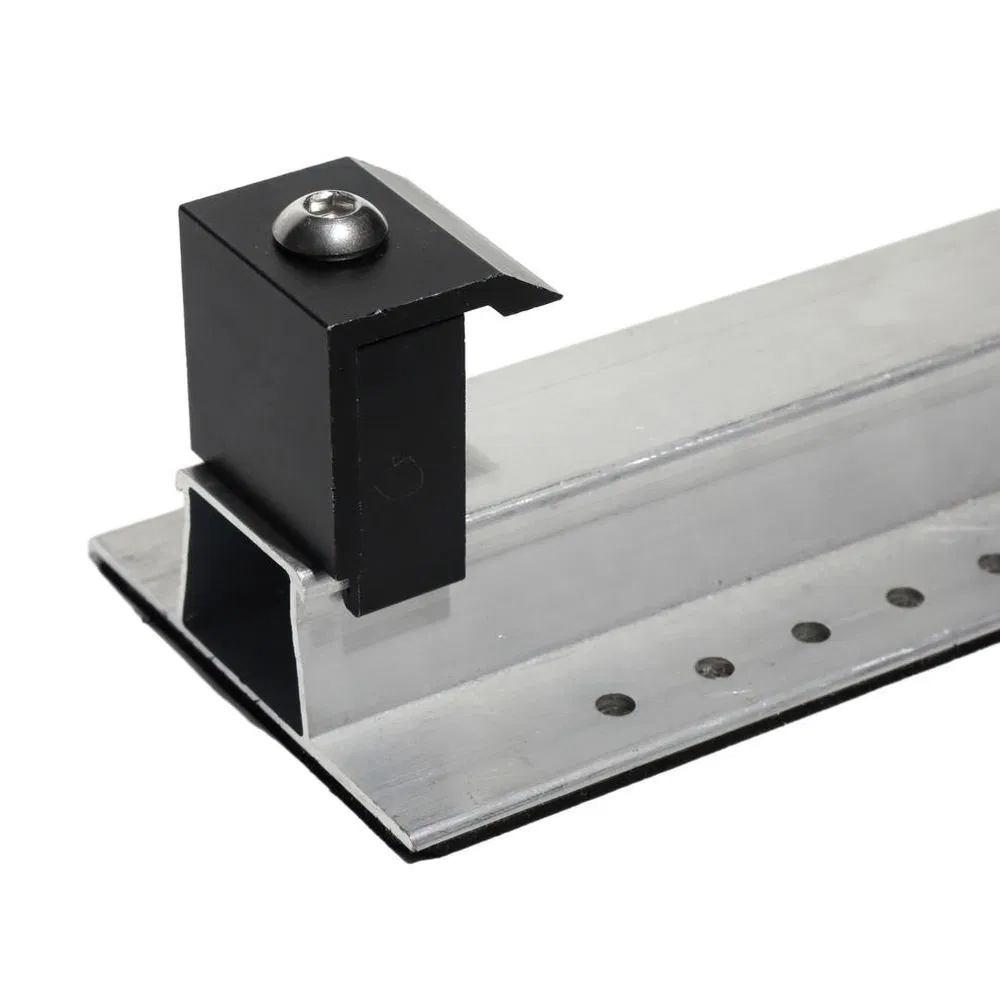

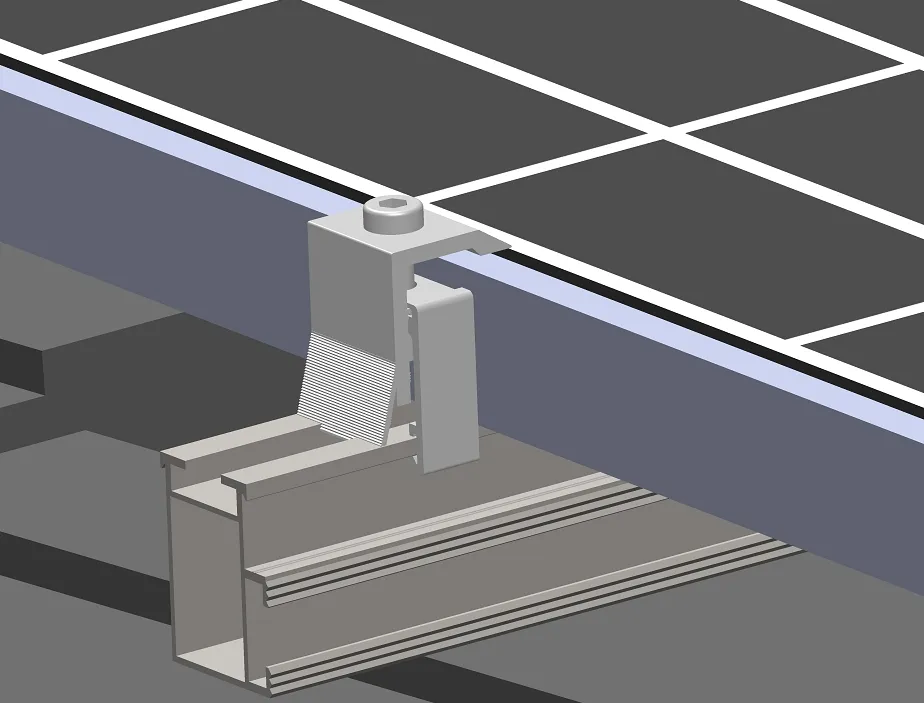

Secure the other side of the module to the rail using end clamps.
