Solar Panel Trapezoidal Roof Mount L Foot Clamp Corrugated Metal Sheet Roof Solar Mounting

1 / 3

Solar Panel Trapezoidal Roof Mount L Foot Clamp Corrugated Metal Sheet Roof Solar Mounting

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

BR-LFRM

Material

Aluminum Alloy

Type

Roof Bracket

Aluminum Type

Al6005-T5

Max Wind Load

As Per Client's Request

Max Snow Load

As Per Client's Request

Module Orientation

Portrait or Landscape

Application Site

Tin Roof Top

HS Code

7610900000

Capacity

50MW/Month

Product Description

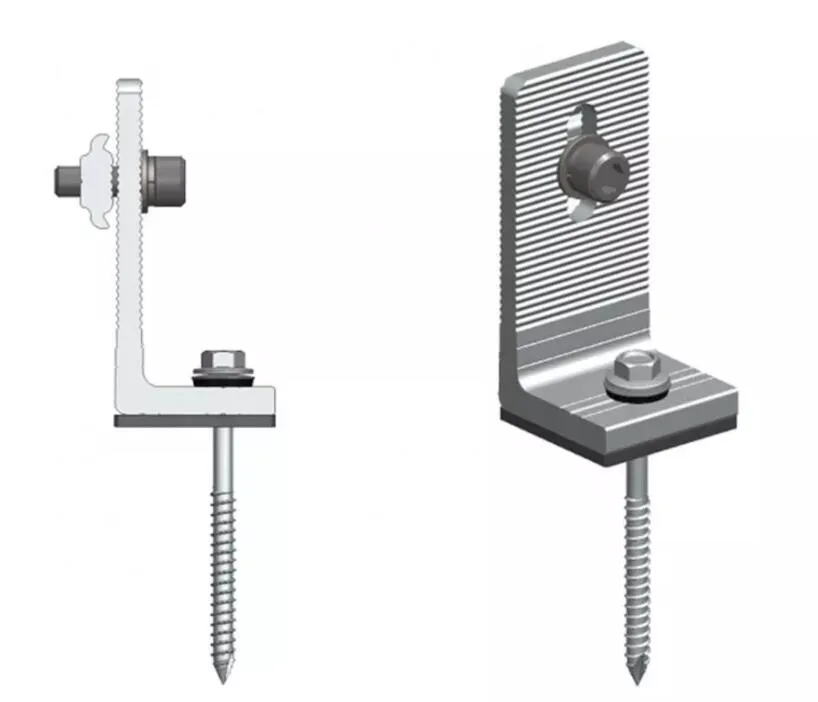

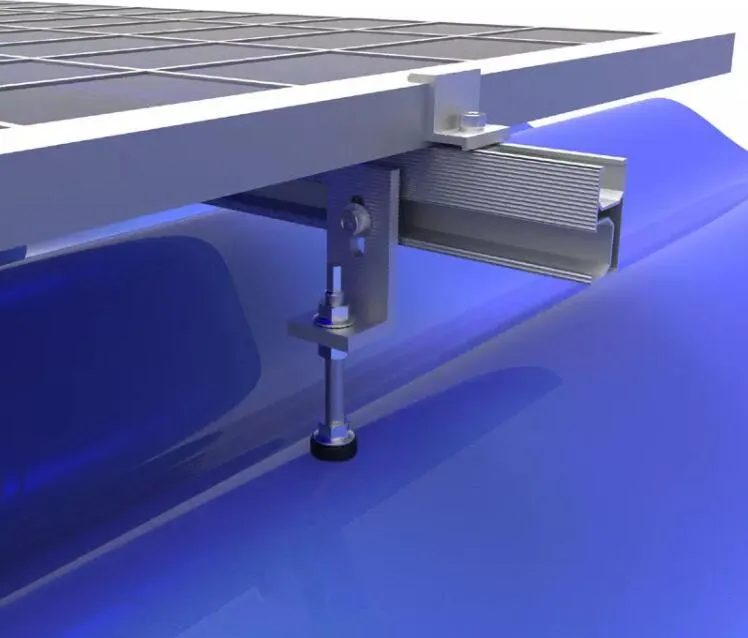

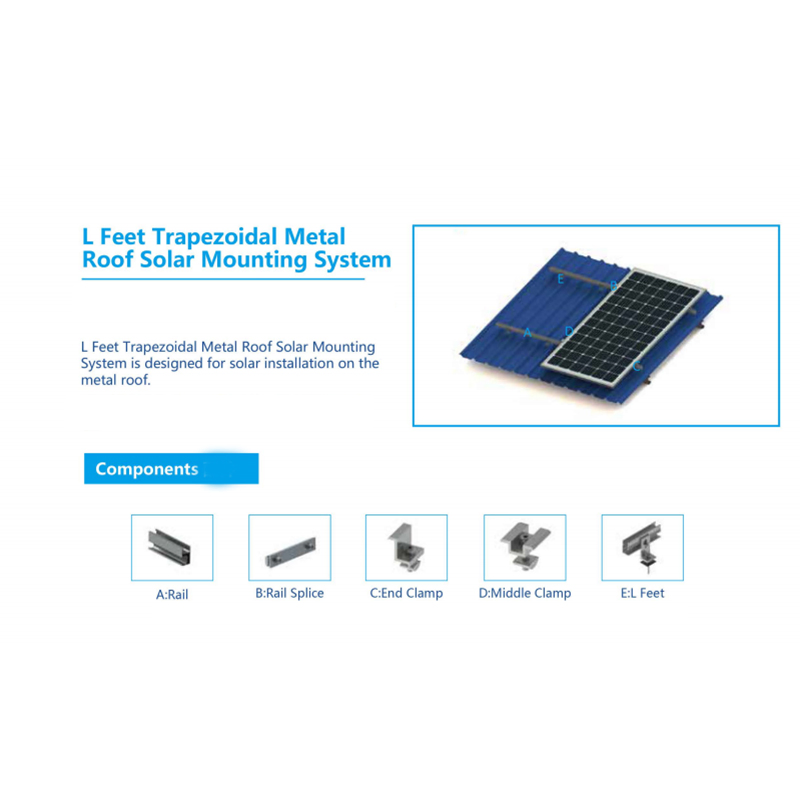

Solar panel trapezoidal roof mount L foot clamp corrugated metal sheet roof solar mounting

Product Name	Corrugated metal trapezoid rooftop L foot universal solar roof mounting system
Material	A2-70 & Aluminum
Model Number	BR-TF-M
Standard	AS/NZS 1170
Snow Load	Up to 1.4KN/M2
Max Wind Speed	Up to 60m/s
Installation Site	Pitched Tile Roof / Asphalt Roof
Applicable Module	Framed or Frameless
Warranty	10 Years Warranty, 20 Years Service Life

Key Features

Accommodate different types of PV solar panels

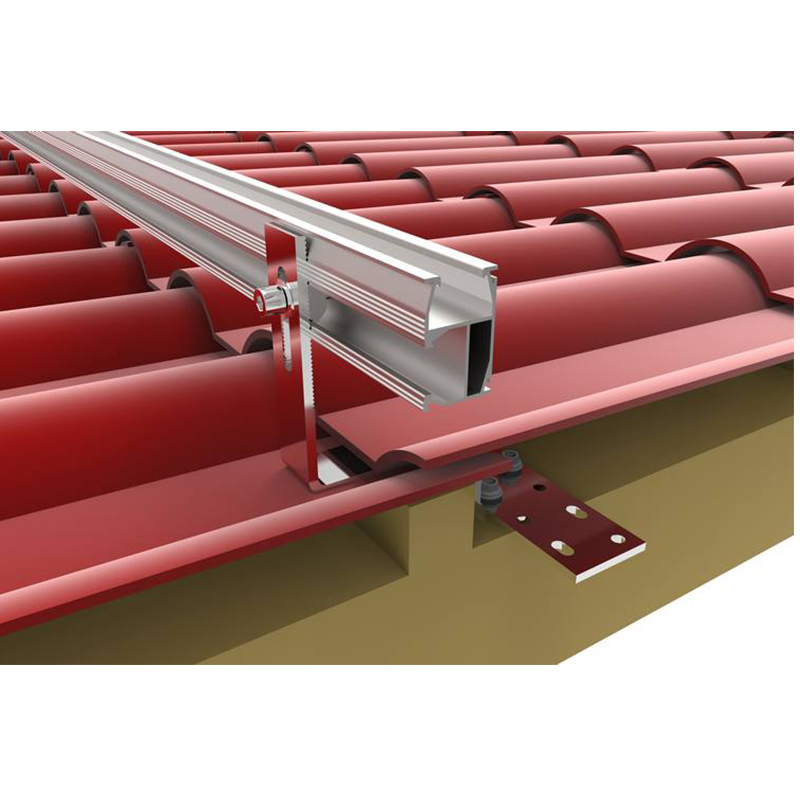

Custom-made tile hooks based on tile specifications

High-quality SUS 304 & AL6005-T5 material

Easy and fast installation process

No drilling into tile required

Cost-efficient fixed hooks and flexible adjustable hooks

Core Advantages

Flexible system suitable for most pitched roof designs

Complete range of stainless steel hooks and aluminum profiles

Fully compatible with all standard profiles

Frequently Asked Questions

What materials are used in the solar roof mounting system?

The system is constructed using high-quality Aluminum Alloy (AL6005-T5) and Stainless Steel (SUS 304 / A2-70), ensuring excellent corrosion resistance and durability.

What information is needed to get a precise quote for a solar mounting project?

Please provide the solar panel dimensions (L/W/T), power wattage, panel array layout (rows x columns), local wind and snow loads, installation angle, and the specific roof type (tin, tile, or concrete).

Is this system compatible with both framed and frameless solar panels?

Yes, the solar roof mounting system is designed to be versatile and can accommodate both framed and frameless PV solar panels in either portrait or landscape orientation.

What are the maximum environmental loads the system can handle?

The system is engineered to withstand wind speeds up to 60m/s and snow loads up to 1.4KN/M2, meeting AS/NZS 1170 standards. These can be further customized per specific project requirements.

Does the installation require drilling into the roof tiles?

No, one of the key advantages of our tile roof hook solution is that it is designed for fast installation without the need to drill into the tiles, preserving the roof's integrity.

What is the expected service life and warranty?

We provide a 10-year warranty on the mounting system, which is designed for a service life of at least 20 years under normal environmental conditions.
