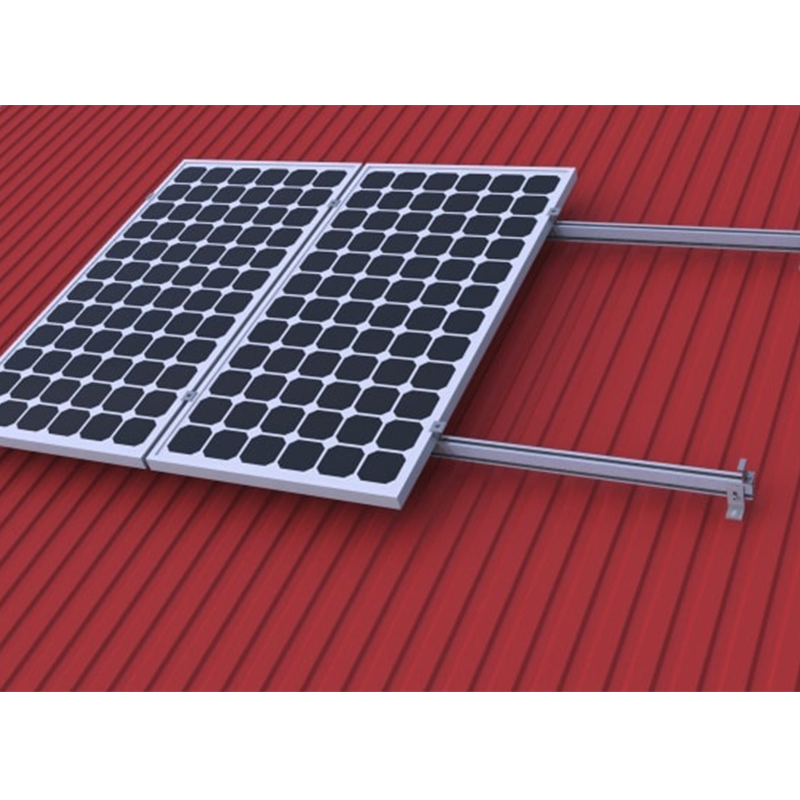

Solar Panel Roof Mounting Brackets Solar Roof Mounting for Metal Roof

1 / 5

Solar Panel Roof Mounting Brackets Solar Roof Mounting for Metal Roof

Customization:	Available
After-sales Service:	Yes
Warranty:	10 Years

Send Inquiry

Product Description

📊 Basic Information

Model NO.

SF-RM02

Certification

ISO, TUV, CE

Application

Commercial & Residential

Material

AL6005-T5, SUS304

Type

Roof Bracket

Installation Site

Metal Rooftop

Color

Natural

Production Capacity

50000 Sets Per Month

🛠️ Product Description

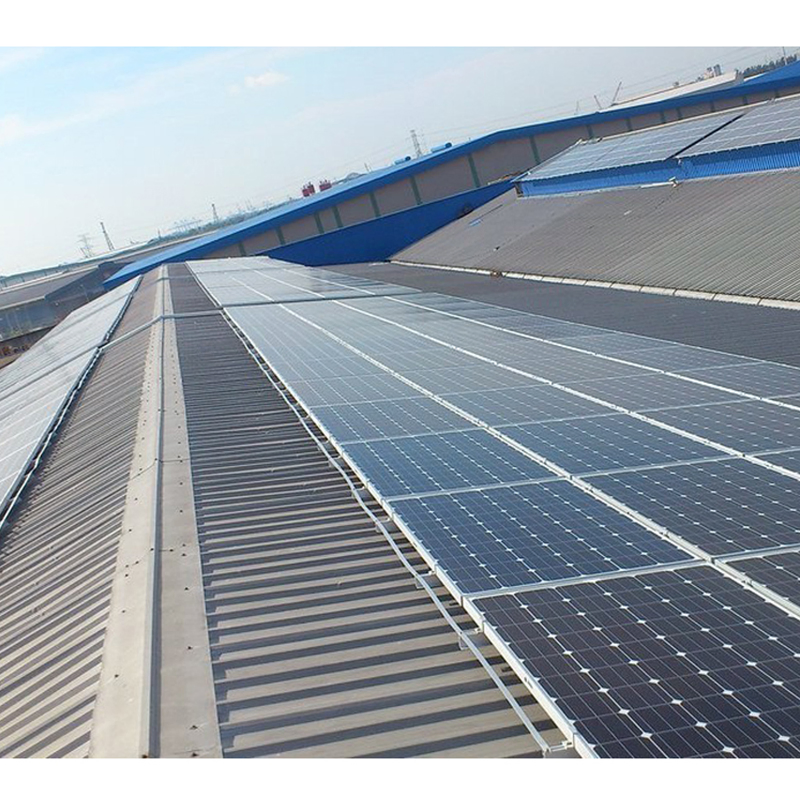

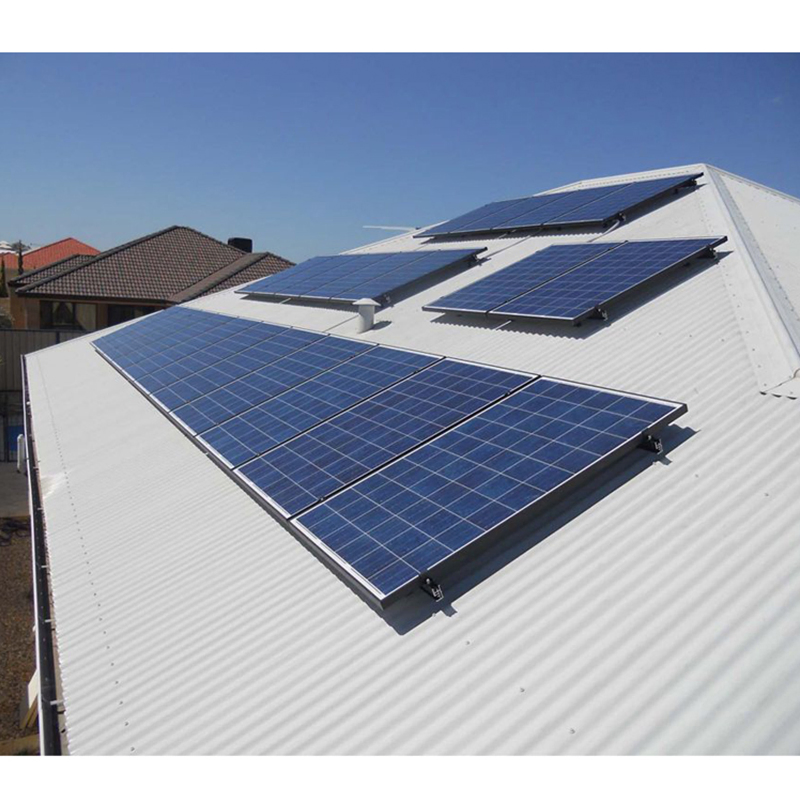

Metal Roof Mounting Structure

The roof standing seam clamps mounting structure is widely applied for commercial and residential roof projects. Designed specifically for pitch tin roofs, this system is highly popular due to its versatility. The wide range of components makes it possible to fasten almost all types of solar modules.

High solar module compatibility
Safety and reliability
Quick and easy installation
Superior rust-resistance

📋 Technical Details

Installation site	Tin roof
Applicable module	Framed or frameless panels
Material	Aluminum 6005-T5, SUS304
Wind Load	Up to 60m/s
Snow Load	1.4kn/m2
Tile Angle	Parallel to roof surface
Warranty	10 Years warranty and 25 years service life
Standards	AS/NZS 1170, JIS C8955:2017, GB50009-2012, DIN 1055, IBC 2006

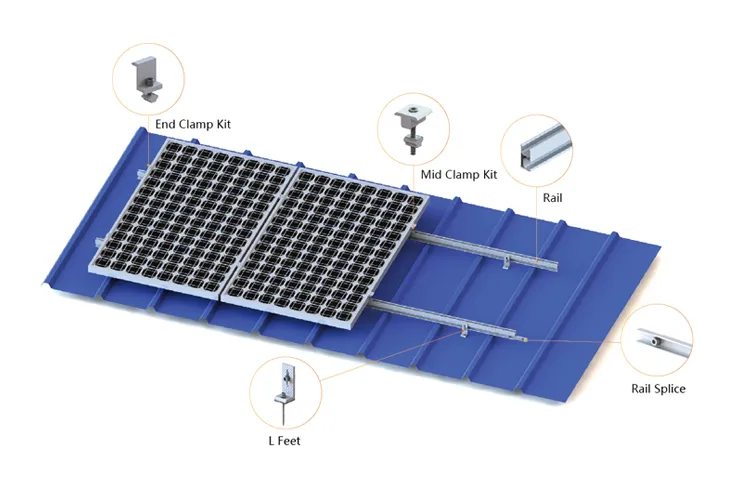

⚙️ Installation Components

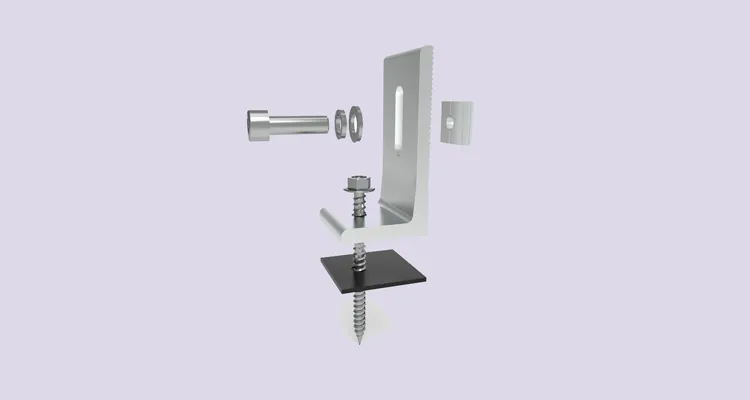

L Foot Material: AL6005-T5, SUS 304
Function: Fix rails to rooftop

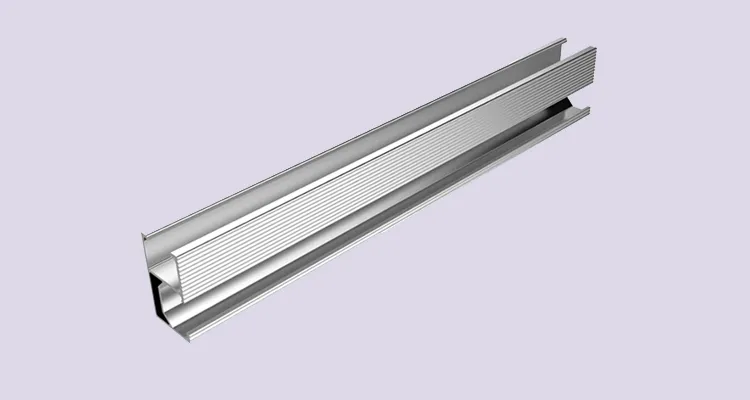

Aluminum Rail Material: AL6005-T5
Function: Fix panels with clamps to rooftop

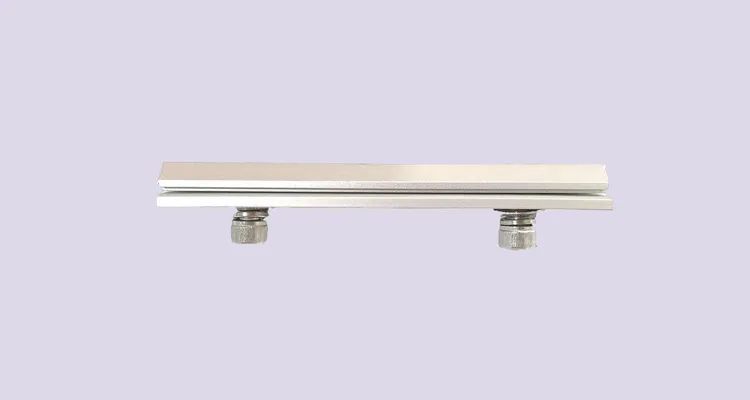

Rail Splice Material: AL6005-T5, SUS304
Function: Connect rail segments

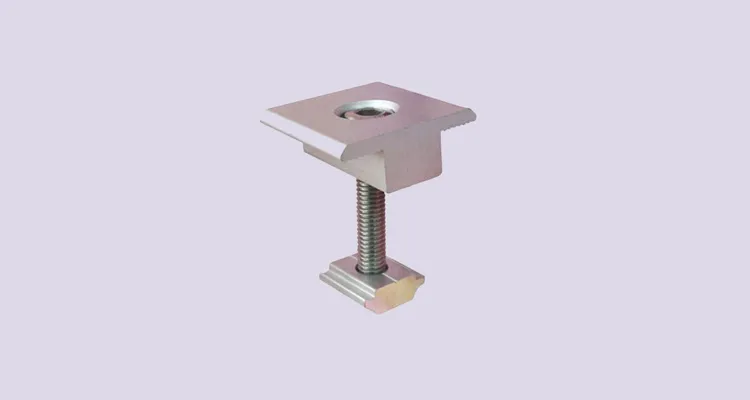

Mid Clamp Material: AL6005-T5, SUS304
Function: Fix panels to rails in the middle

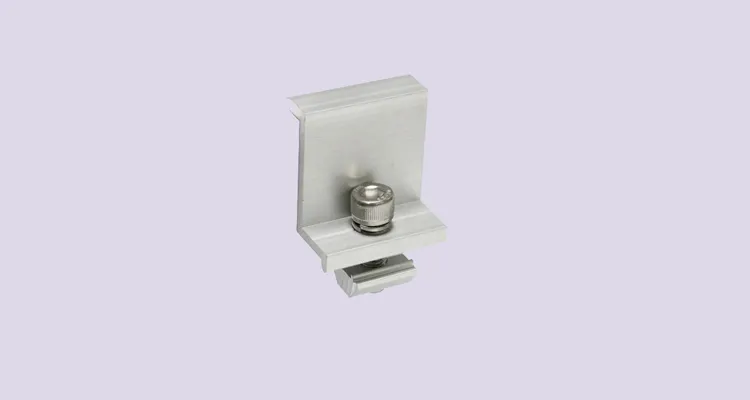

End Clamp Material: AL6005-T5, SUS304
Function: Fix panels to rails at the ends

📖 Installation & Logistics

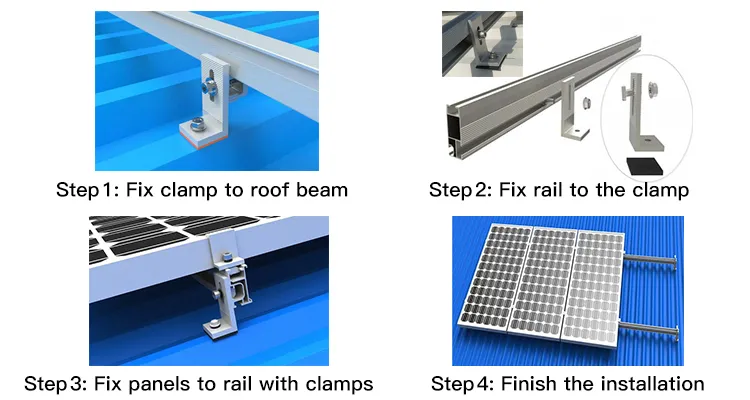

Installation Guide

Packaging & Shipping

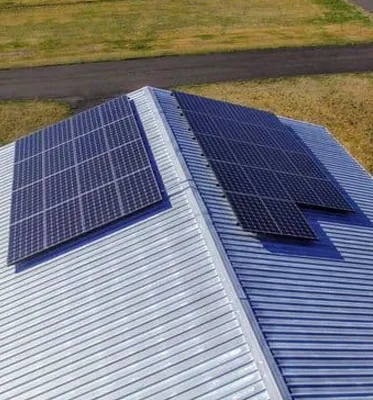

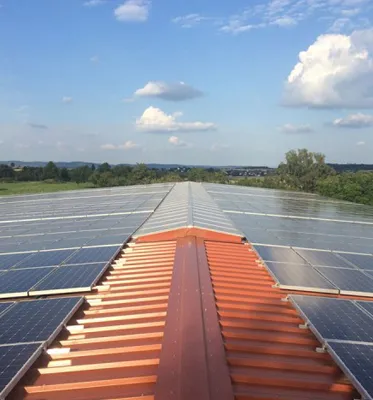

🌍 Global Projects & Certifications

❓ Frequently Asked Questions

What types of roofs is this mounting system suitable for?

This system is specifically designed for metal and tin roofs, particularly standing seam structures, for both commercial and residential applications.

What materials are used to ensure durability?

All main components are manufactured from high-grade Aluminum 6005-T5 and SUS304 stainless steel, providing excellent rust resistance and structural integrity.

Can this system withstand high wind and snow loads?

Yes, the structure is engineered to handle wind loads up to 60m/s and snow loads up to 1.4kn/m2, meeting international standards like AS/NZS 1170.

Is it compatible with all solar panel brands?

The system is highly compatible and can be used with both framed and frameless solar modules of various sizes.

What is the expected service life of the mounting brackets?

The product comes with a 10-year warranty and is designed for a service life of up to 25 years under standard environmental conditions.

How is the product packaged for shipping?

Components are securely packed in pallets or carton boxes to ensure safety during transport, and we can also accommodate specific packaging requests.
