Solar Panel Roof Mounting System Solar Tile Roof Mount

1 / 5

Solar Panel Roof Mounting System Solar Tile Roof Mount

Customization:	Available
After-sales Service:	Yes
Warranty:	10 Years

Send Inquiry

Product Description

Basic Information

Model NO.

SF-RM02

Certification

ISO, TUV, CE

Application

Home

Material

Aluminum Alloy

Type

Roof Bracket

Product Name

Solar Roof Mount

Color

Silver or Customized

Wind Speed

60m/S

Snow Load

1.4kn/M2

Installation Site

Pitched Roof

Standard

AS/NZS 1170/JIS4955:2011/ISO9001

Service Life

10 Years

Product Description

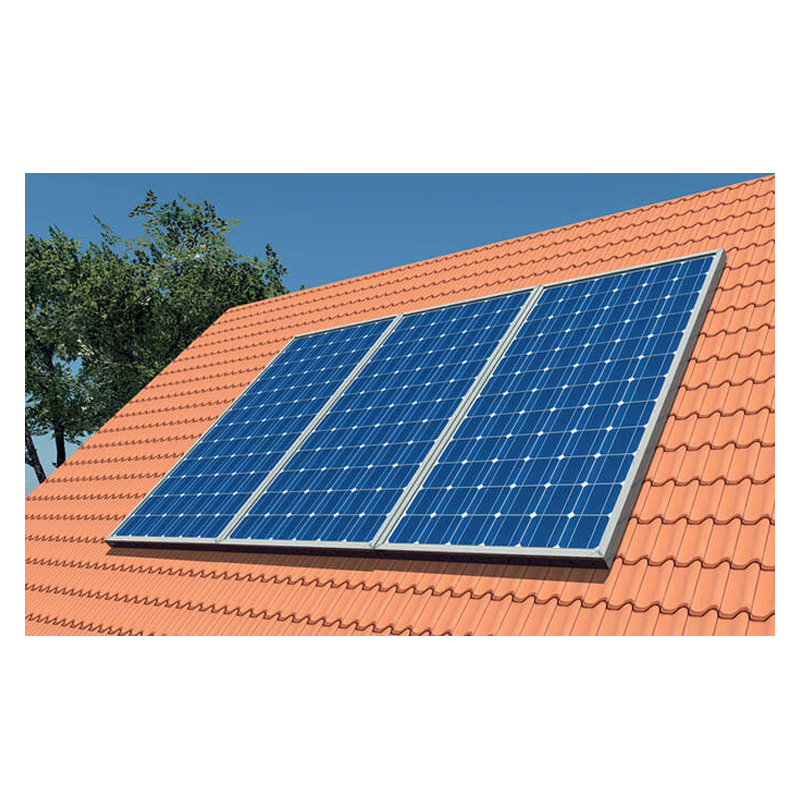

Tile Roof Mounting

Pitched tile roof mounting is designed with great flexibility both for commercial and residential roof solar system. It is suitable for installing framed and frameless modules flushed to the pitched roof. Special extruded aluminum rail, pre-assembled clamps and varied roof hooks or brackets with tilt-in modules ensure easy and quick installation.

Advantage:

Great flexibility: Tile hook several types according to your tile direction.
Easy installation: Simple hook components.
Save 50% labor: Most parts are preassembled.
Rust-resistance.

Technical Details

Installation	Pitched Tile Roof
Color	Silver Or Customized
Wind Load	Up to 60m/s
Snow Load	1.4kn/m2
Tile Angle	Parallel To Roof Surface
Material	Anodized AL6005-T5, SUS304
Warranty	10 Years Warranty And 25 Years Service Life
Standards	AS/NZS1170, JIS C8955:2017, GB50009-2012, DIN1055, IBC2006

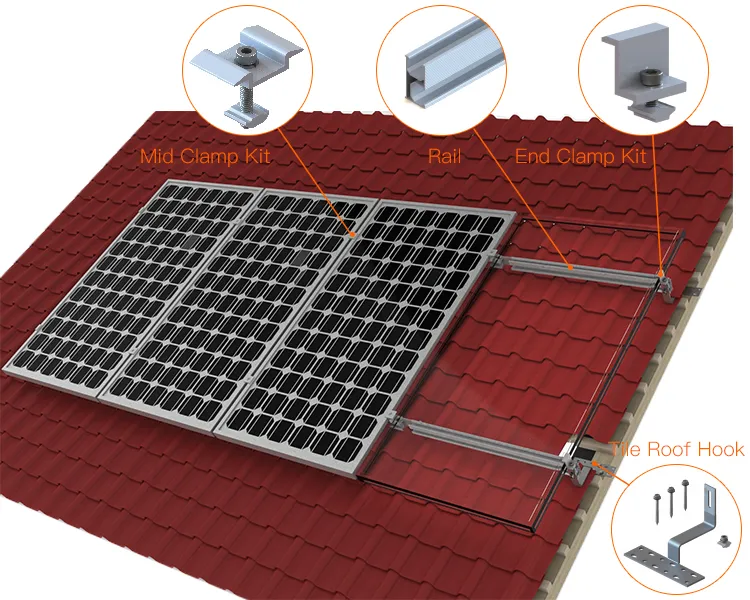

Installation Components

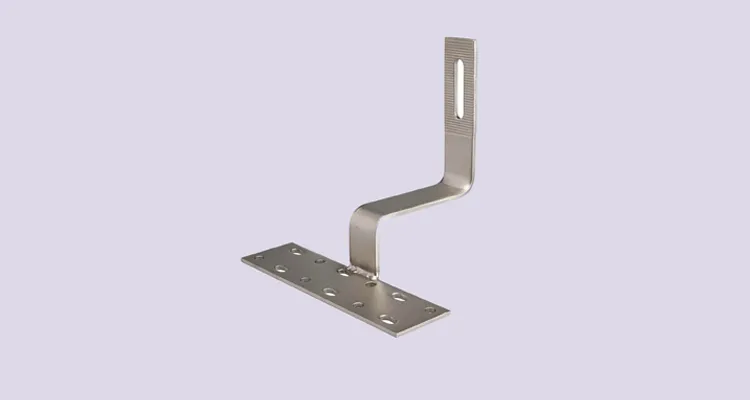

Tile Roof Hook

Material: SUS 304
Function: Fix rails to rooftop

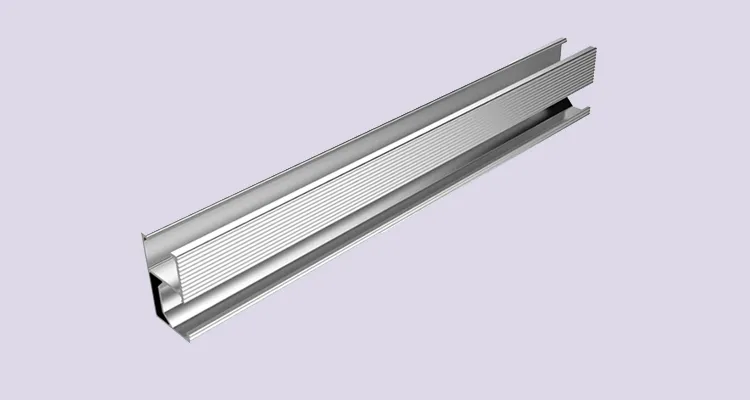

Aluminum Rail

Material: AL6005-T5
Function: Fix panels with clamps to rooftop

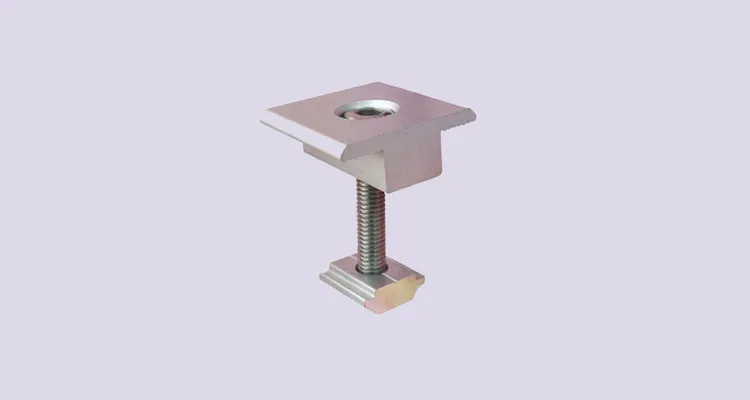

Mid Clamp

Material: AL6005-T5, SUS304
Function: Fix panels to rails in the mid of panels

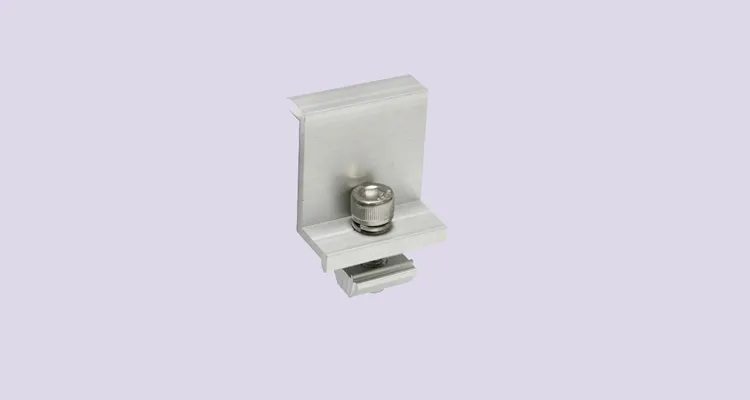

End Clamp

Material: AL6005-T5, SUS304
Function: Fix panels to rails at the end of panels

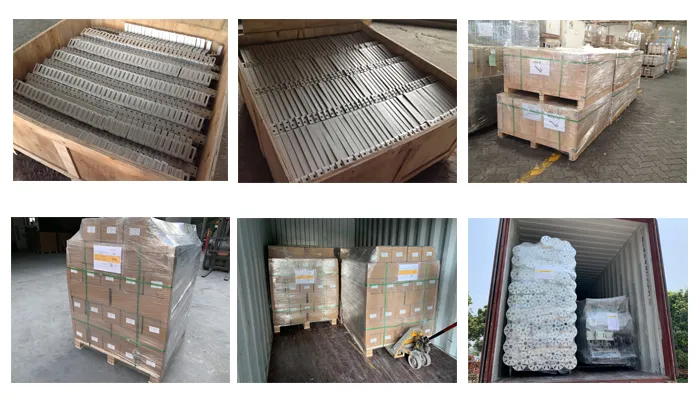

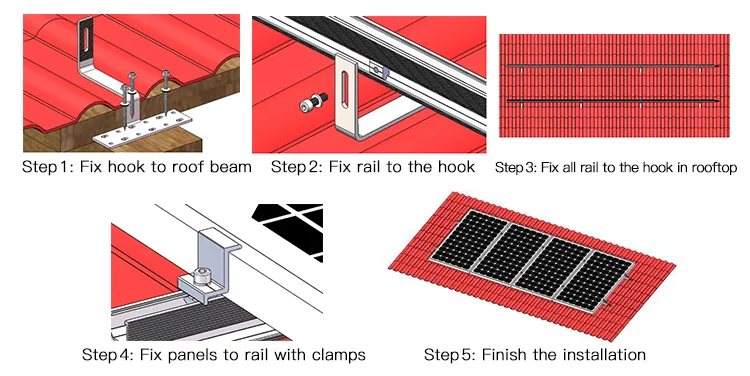

Installation Guide & Packaging

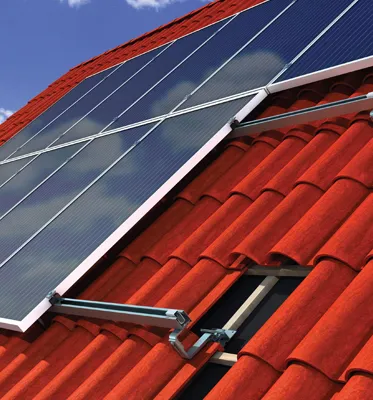

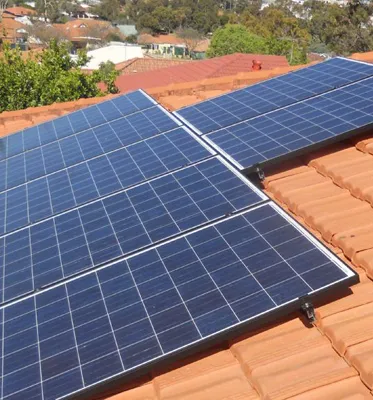

Project Case Study

Exhibition & Certifications

Frequently Asked Questions

What types of roofs is this solar mounting system suitable for?

This system is specifically designed for pitched tile roofs, offering great flexibility for both commercial and residential applications.

Are the components resistant to corrosion?

Yes, the components are made of Anodized AL6005-T5 aluminum and SUS304 stainless steel, ensuring high rust resistance and durability.

How much time can I save during installation?

The system features pre-assembled clamps and simple hook components, which can save up to 50% of labor costs and time.

Can the system withstand extreme wind and snow?

Absolutely. It is engineered to withstand wind speeds up to 60m/s and snow loads up to 1.4kn/m2.

What is the expected service life of the mount?

The system comes with a 10-year warranty and is designed for a service life of up to 25 years.
