Solar Tracking System Brackets Mobile PV Solar Panel Racking Mounting
Solar Tracking System Brackets Mobile PV Solar Panel Racking Mounting
Solar Tracking System Brackets Mobile PV Solar Panel Racking Mounting
Solar Tracking System Brackets Mobile PV Solar Panel Racking Mounting
Solar Tracking System Brackets Mobile PV Solar Panel Racking Mounting
1 / 5
Solar Tracking System Brackets Mobile PV Solar Panel Racking Mounting
Solar Tracking System Brackets Mobile PV Solar Panel Racking Mounting
Solar Tracking System Brackets Mobile PV Solar Panel Racking Mounting
Solar Tracking System Brackets Mobile PV Solar Panel Racking Mounting
Solar Tracking System Brackets Mobile PV Solar Panel Racking Mounting

Solar Tracking System Brackets Mobile PV Solar Panel Racking Mounting

Customization: Available
After-sales Service: 2 Years
Warranty: 2 Years
Send Inquiry

Product Description

i

Basic Information

Model NO.
solar bracket
Certification
ISO, CE
Application
Commercial; Industrial; Home
Material
Stainless Steel; Aluminum
Type
Tracking Bracket
Wind Load
150 Km/H
Snow Load
1.4kn/M2
Model Type
Frame
Color
Natural
Capacity
30000PCS Monthly
Output Voltage
110V/220V
Work Time
8-10h
Battery Type
Lead Acid
Specification
10kw solar panel mounting
Origin
China
Production Capacity
10000sets/Week
✓

Product Description

Description of Solar Tracking System Brackets Mobile PV Solar Panel Racking Mounting

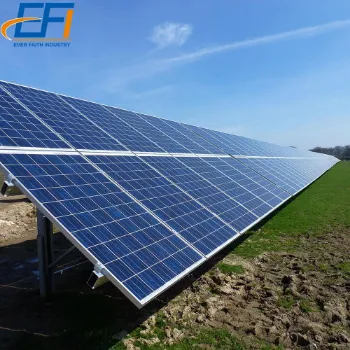

Solar Tracking System

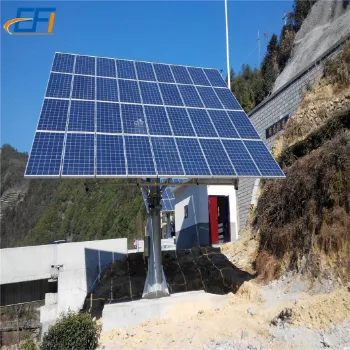

Mobile PV Mounting
Raw MaterialAluminum 6063; HDG Steel; Stainless steel 304
StylesSingle Pole, Double Poles, Concrete Foundation, Ground Screws, House Roof Mounting Structures
Manufacturing EquipmentExtrusion, Cold Rolled, Cutting, deburring, punching, tapping, chamfering machines
Surface TreatmentHDG (hot dipped galvanized), Pre-galvanized, Electrical-galvanizing, powder coating, Anodized etc.
UsageSolar light industry, solar panel industry, solar power industry, solar station, solar farm and solar park.
DimensionsCustomized
Lengths10FT, 20FT or customized lengths
ThicknessAbove 0.7mm or customized
MOQ1000 Pieces
Warranty10 years warranty and service life of 25 years
P

System Gallery

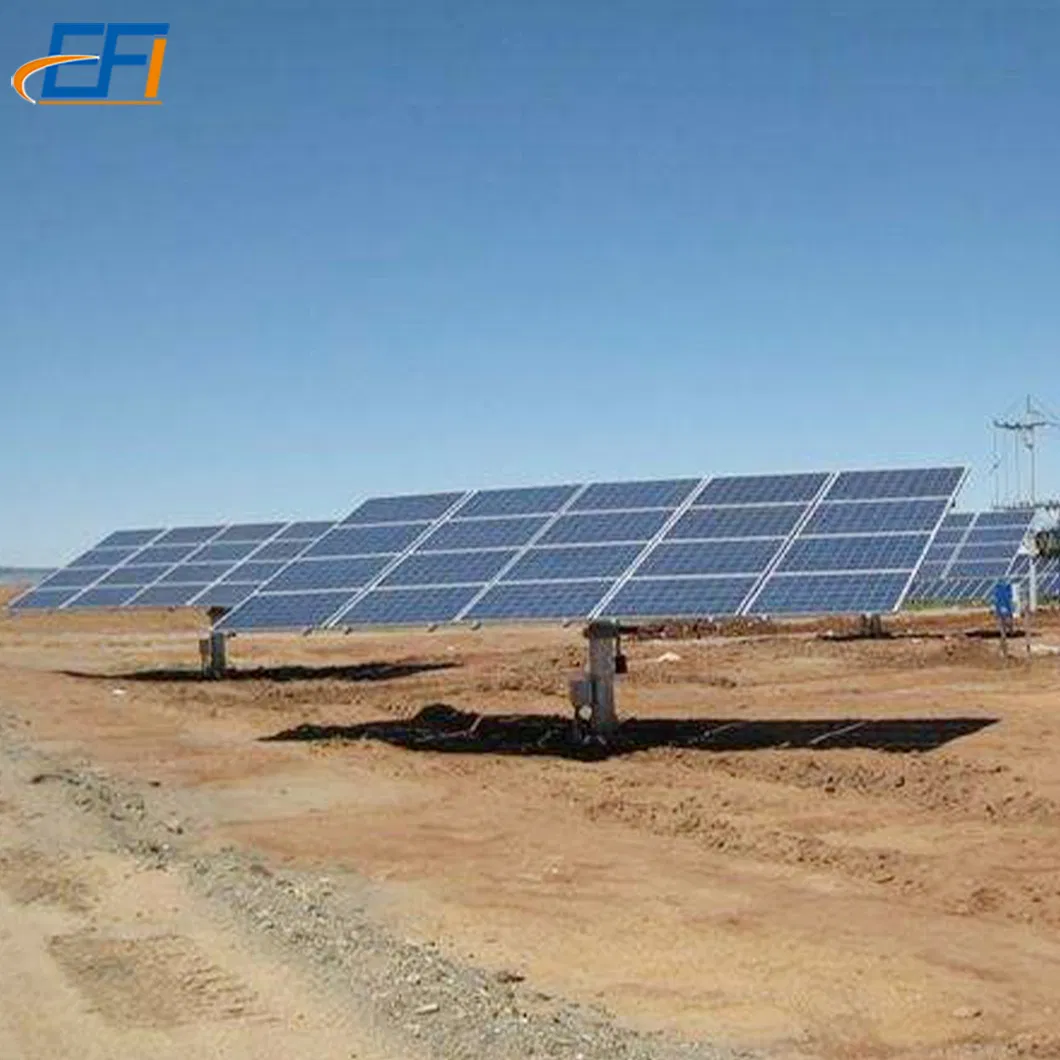

Solar Bracket View 1

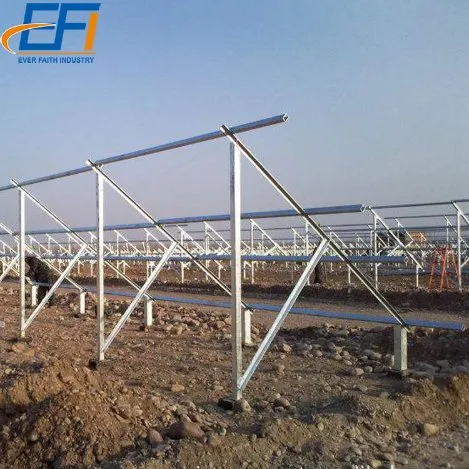

Solar Bracket View 2
Solar Bracket View 3

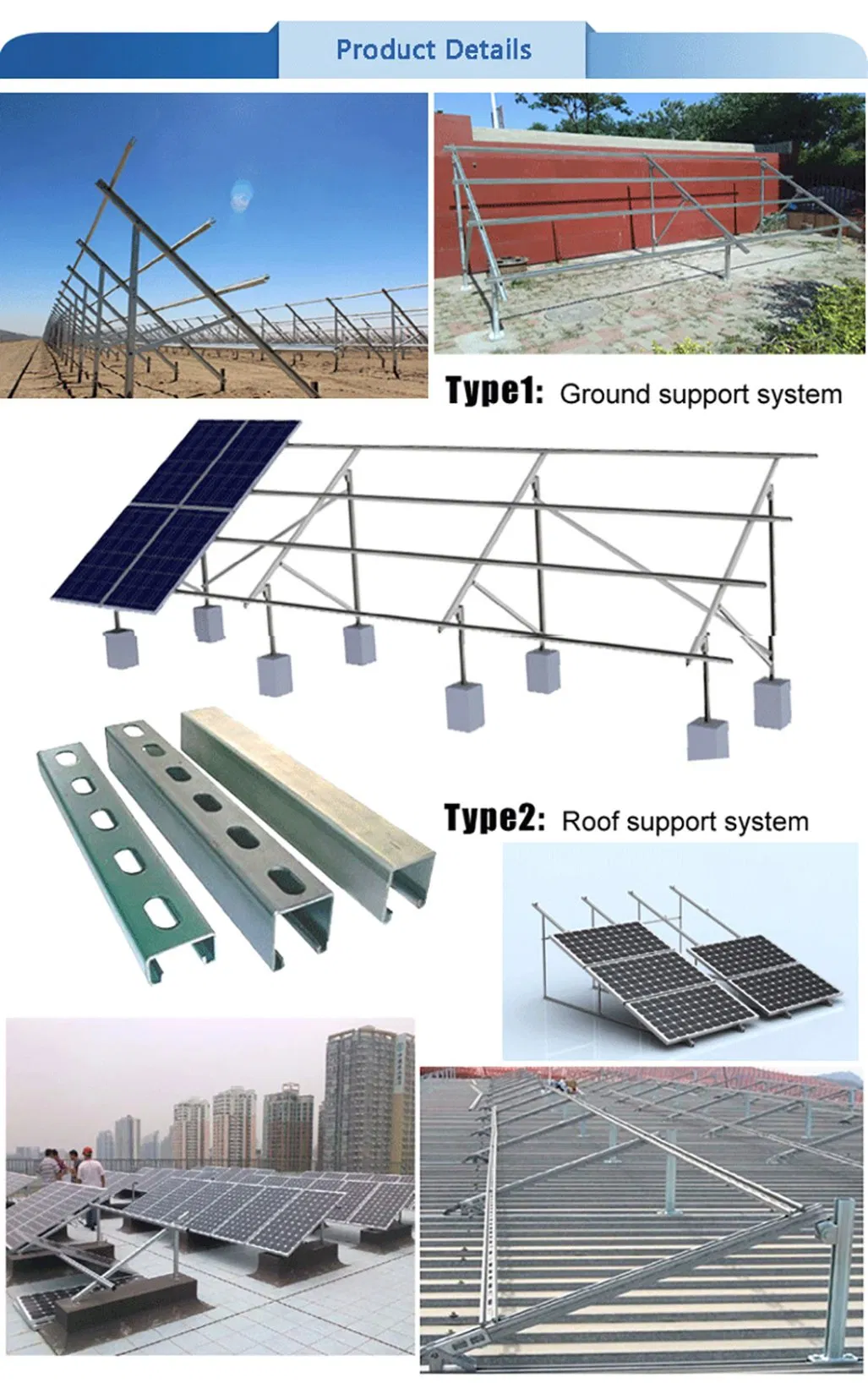

Technical Layout
Installation Details
Product Specification Drawing
Structure Detail 1
Structure Detail 2
?

Frequently Asked Questions

What materials are used for the solar tracking brackets?
The brackets are primarily constructed from high-quality Aluminum 6063, Hot-Dipped Galvanized Steel, and Stainless Steel 304 for maximum durability.
What is the maximum wind load capacity of the system?
The system is engineered to withstand wind loads of up to 150 Km/H, ensuring stability in various weather conditions.
How long is the warranty and expected service life?
We offer a 10-year warranty, while the design service life of the solar mounting structures is over 25 years.
Can the mounting structures be customized for specific projects?
Yes, dimensions and lengths (standard 10FT or 20FT) can be customized according to client requirements and project specifications.
What surface treatments are available for corrosion resistance?
Options include Hot-Dipped Galvanized (HDG), Electrical-galvanizing, powder coating in various colors, and Anodized finishes.
What are the typical applications for these brackets?
They are widely used in commercial, industrial, and home solar panel installations, as well as large-scale solar farms and parks.
